Parts Lookup › MAX Series

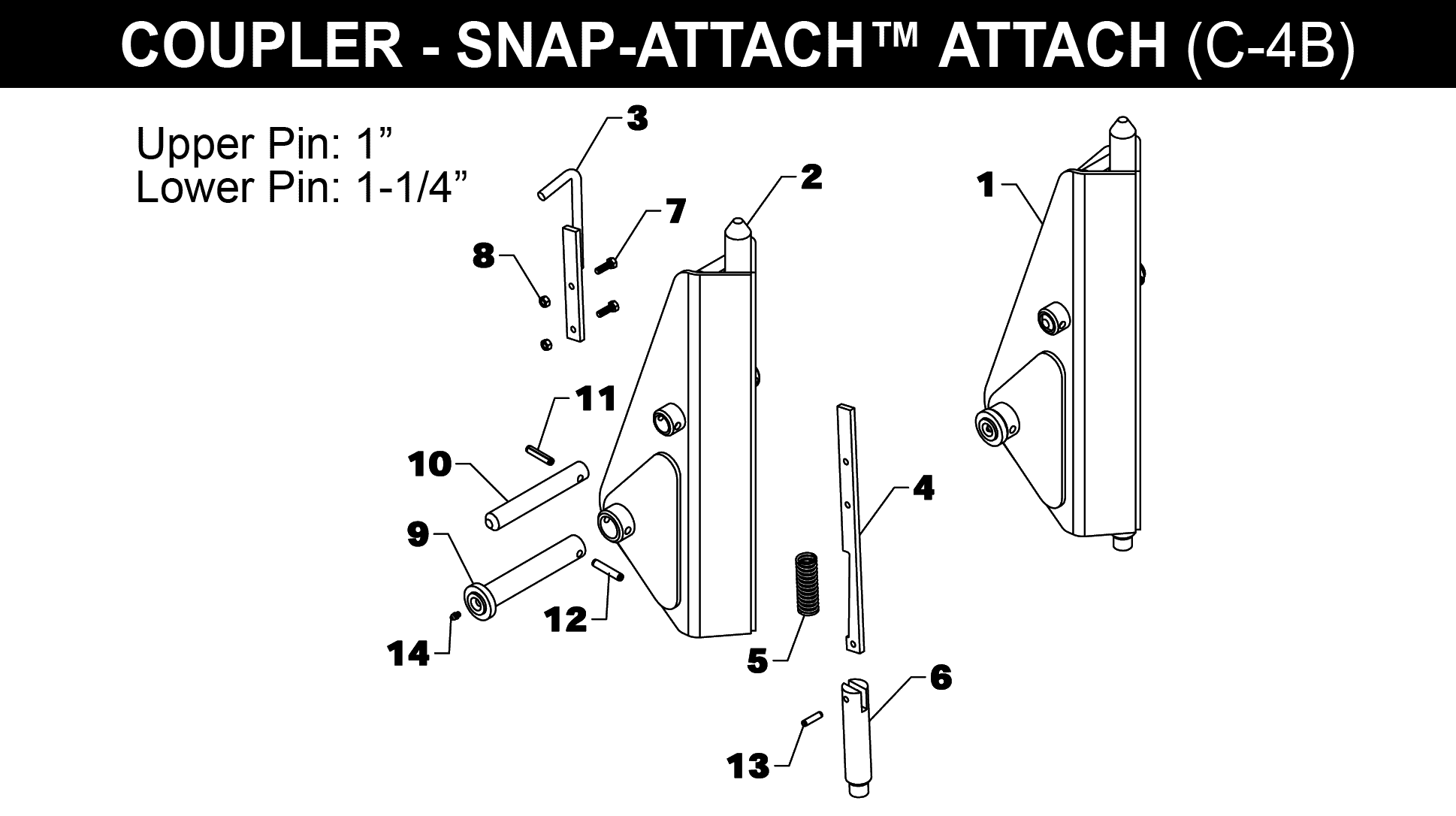

SNAP-ATTACH™ COUPLER - C-4B
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | QC-1201COM | COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC) | 1 | $663.66 | |
| 2 |  | QC-1201AS | COUPLER-SNAP ATTACH SHELL ONLY | 1 | $532.95 | |
| 3 |  | QC-6AS | SNAP-ATTACH LATCH HANDLE | 1 | $22.62 | |
| 4 |  | QC-8 | SNAP-ATTACH LATCH | 1 | $52.80 | |

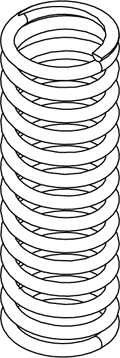

| 5 |  | QC-12 | SPRING FOR COUPLER | 1 | $17.62 | |
| 6 |  | QC-3 | SNAP-ATTACH BOTTOM LATCH PIN | 1 | $52.80 | |
| 7 |  | HHS0518016 | BOLT - 5/16 X 1 | 2 | $3.94 | |
| 8 |  | HTN0518 | LOCK NUT - 5/16 | 2 | $0.82 | |
| 9 |  | XAF-55AS | LINKAGE PIN | 1 | $67.91 | |
| 10 |  | LF-51 | PIN - LINKAGE | 1 | $17.62 | |

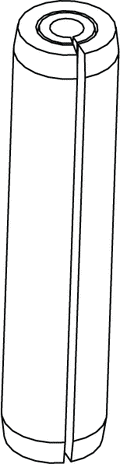

| 11 |  | DRP0600028 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 12 |  | DRP0600032 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 13 |  | RLP0500020 | ROLL PIN - 5/16 X 1-1/4 | 1 | $0.89 | |
| 14 |  | ZER1805 | GREASE FITTING | 1 | $2.53 |
