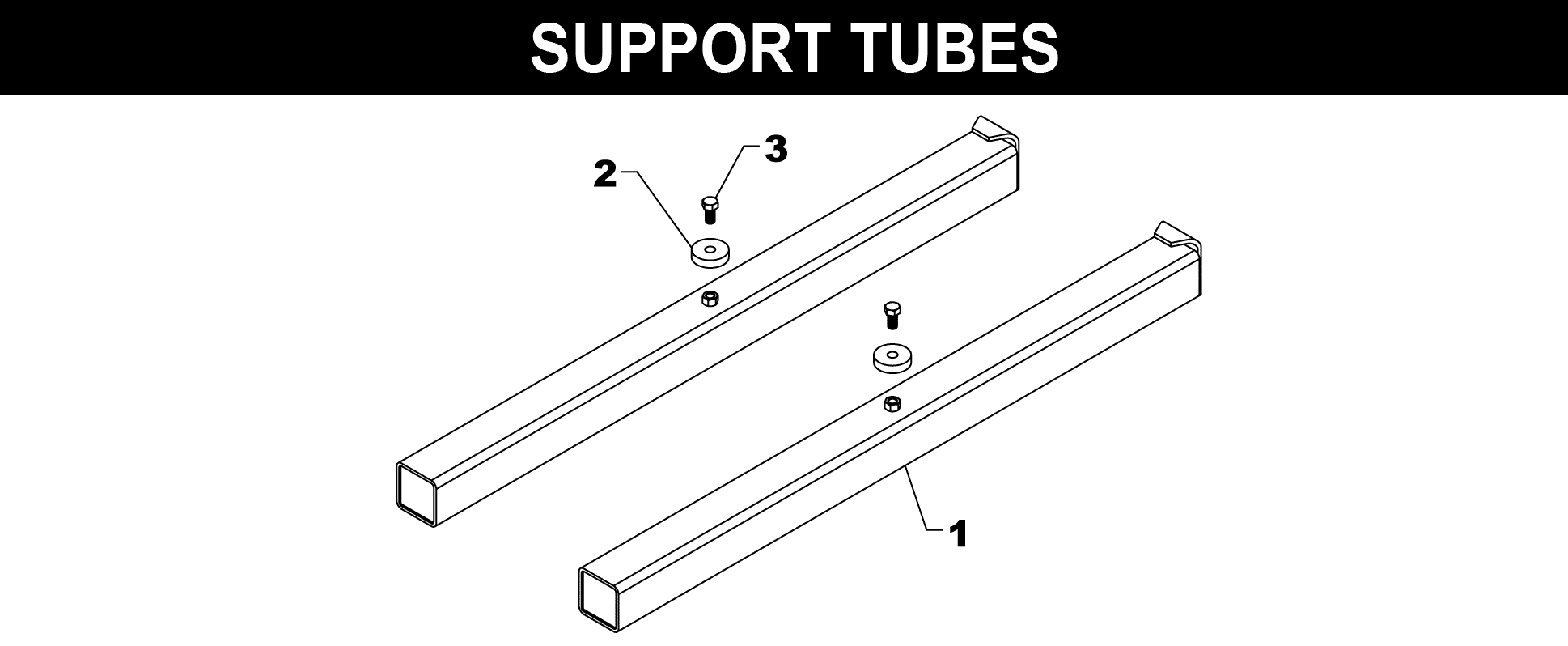

xta-400

XTA-400 & XTA-400B FRAME

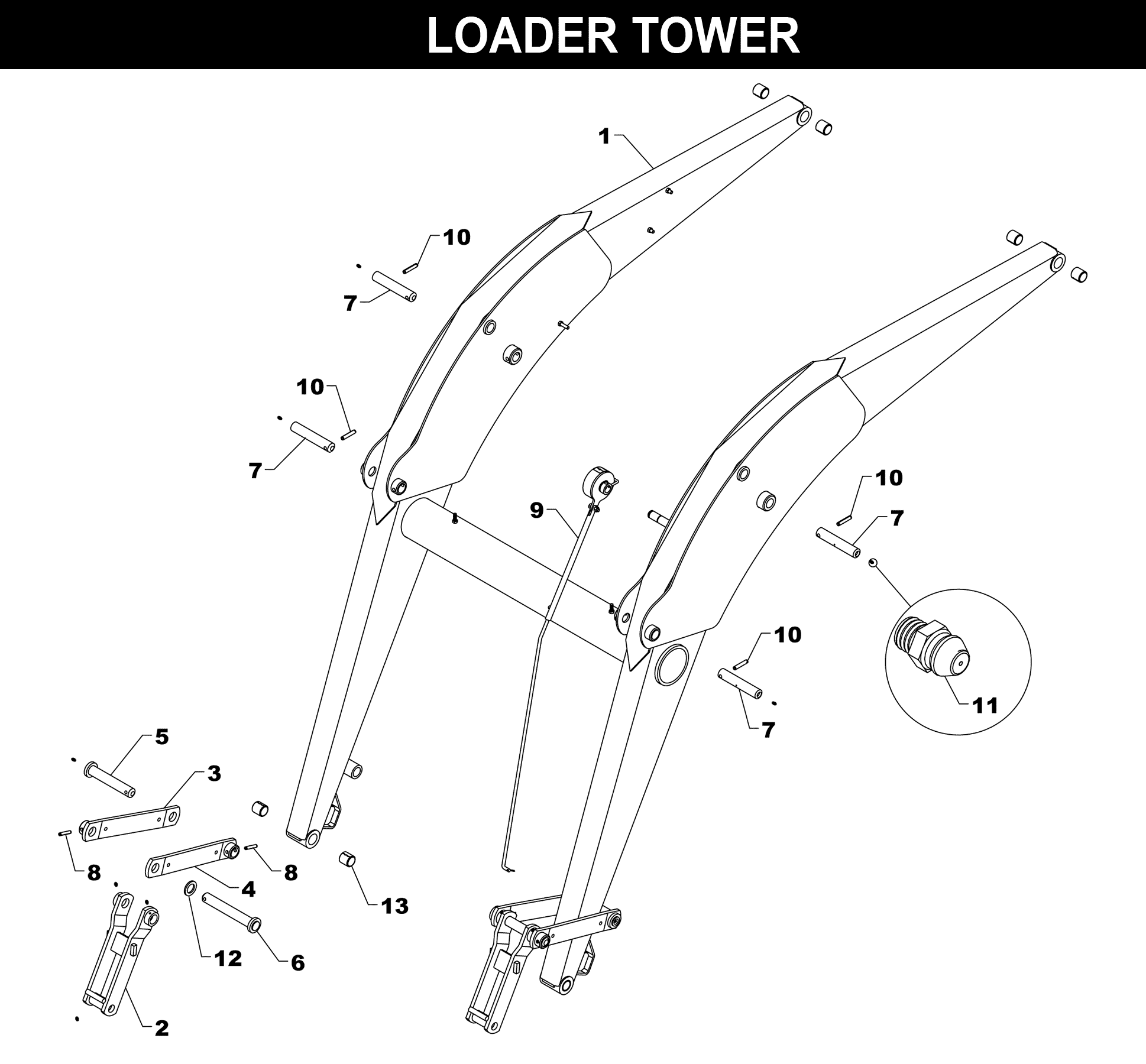

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	XBF-4AS	FRAME (XTA-400)	1	$7,589.36
2	NAF-15AS	LINKAGE CONNECTOR	2	$115.64
3	XBF-10AS	OUTSIDE BUCKET LINKAGE	2	$63.81
4	XBF-11AS	INSIDE BUCKET LINKAGE	2	$63.81
5	XAF-55AS	LINKAGE PIN	2	$67.91
6	LMF-125AS	ROUND HEAD PIN	2	$57.84
7	XAF-54	PIN	4	$54.23
8	DRP0700036	DRIVE LOCK PIN	4	$17.62
9	LAC-15-16	ROTATIONAL BUCKET INDICATOR	1	$123.18
10	RLP0700036	ROLL PIN - 7/16	4	$3.31
11	ZER1805	GREASE FITTING	12	$2.53
12	NAF-217	SPACER WASHER	2	$1.31
13	LW-32	INSERT BUSHING	8	$35.23

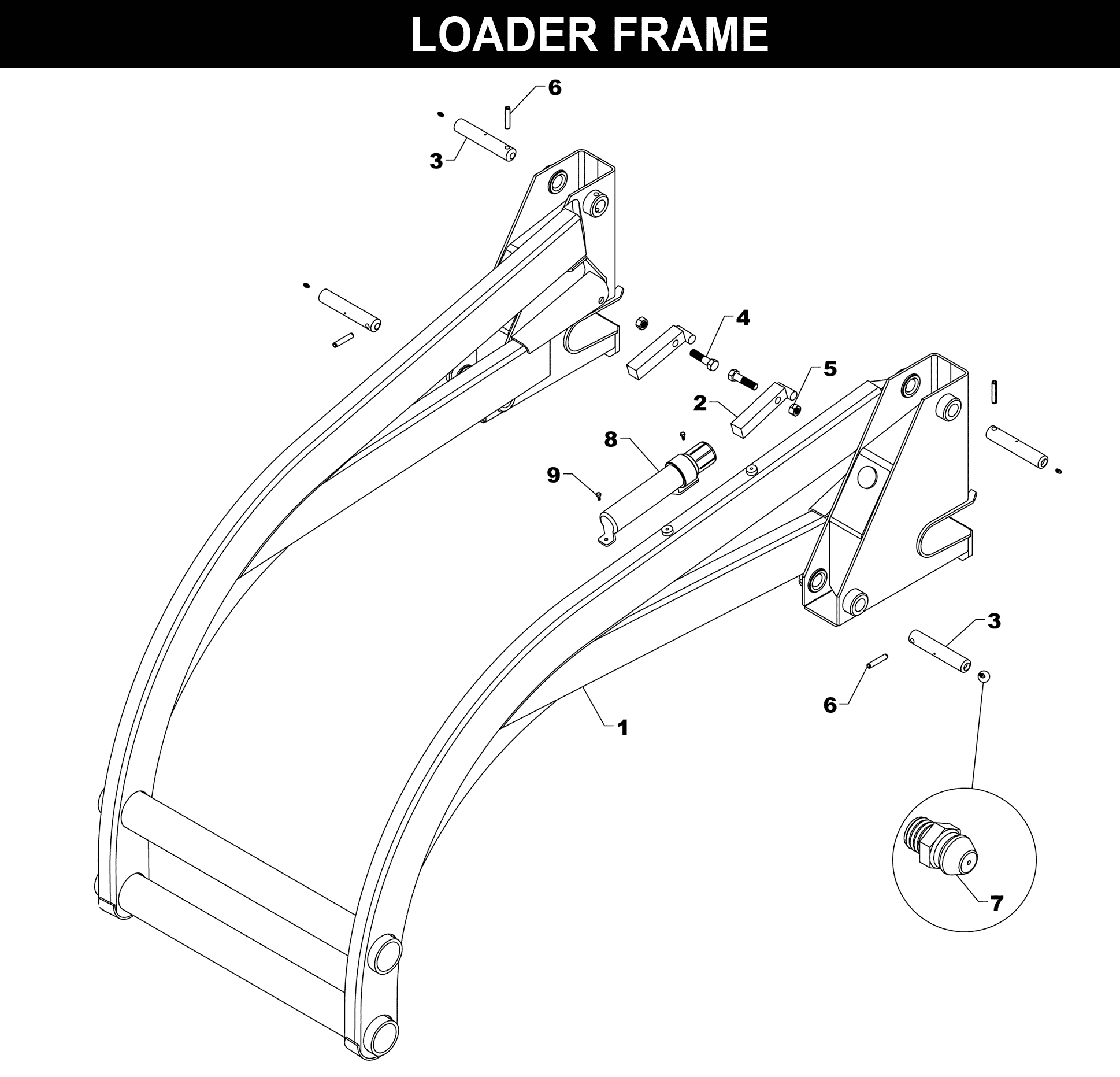

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	XBT-12AS	TOWER (XTA-400)	1	$4,334.10
2	XAT-25AS	LATCH	2	$50.27
3	XAF-54	PIN	4	$54.23
4	HHS1011040	BOLT - 5/8 X 2-1/2	2	$5.06
5	HTN1011	LOCK NUT - 5/8	2	$5.03
6	RLP0700036	ROLL PIN - 7/16	4	$3.31
7	ZER1805	GREASE FITTING	1	$2.53
8	GP-2	CANISTER TO STORE MANUAL	1	$44.94
9	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

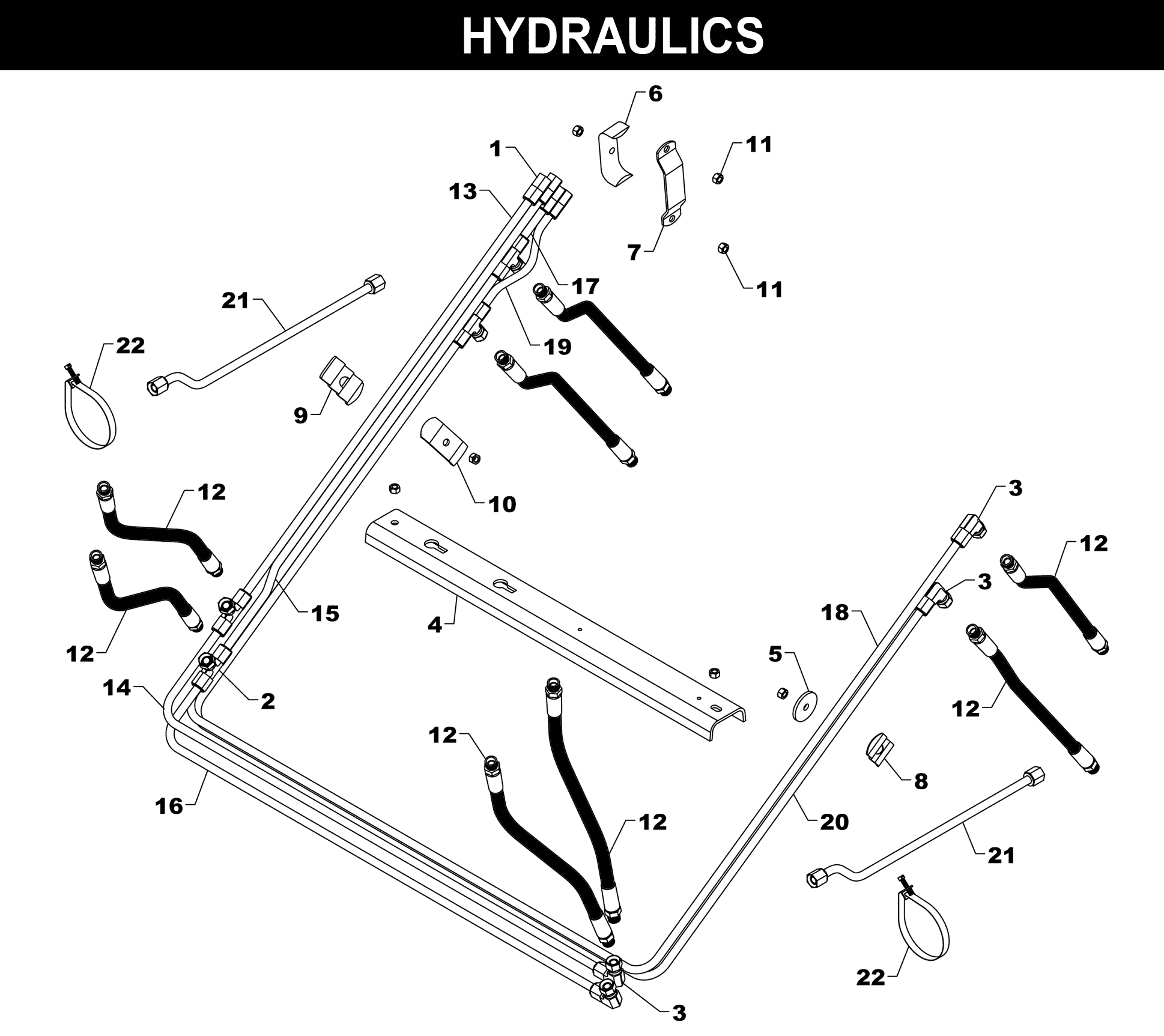

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	4	$67.91
4	OH-2	OIL LINE HOLDER	1	$85.49
5	OH-16	OIL LINE HOLDER	1	$1.42
6	OH-19	OIL LINE PROTECTOR	1	$20.13
7	OH-17	HOSE HOLDER	1	$15.61
8	OH-13	OIL LINE HOLDER	1	$10.39
9	OH-14	OIL LINE PROTECTOR	1	$8.03
10	OH-3	OIL LINE PROTECTOR	1	$12.58
11	HTN0616	LOCK NUT - 3/8	7	$2.53
12	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	8	$50.22
13	OLT-400A	OIL LINE	1	$32.68
14	OLT-401A	OIL LINE	1	$42.71
15	OLT-402A	OIL LINE	1	$47.82
16	OLT-403A	OIL LINE	1	$42.71
17	OLT-404A	OIL LINE	1	$27.63
18	OLT-405A	OIL LINE	1	$62.80
19	OLT-406A	OIL LINE	1	$50.27
20	OLT-407A	OIL LINE	1	$62.80
21	OLT-143	OIL LINE	2	$27.63
22	BAND-15	METAL BAND	2	$5.03

Click a number on the diagram to find the part.

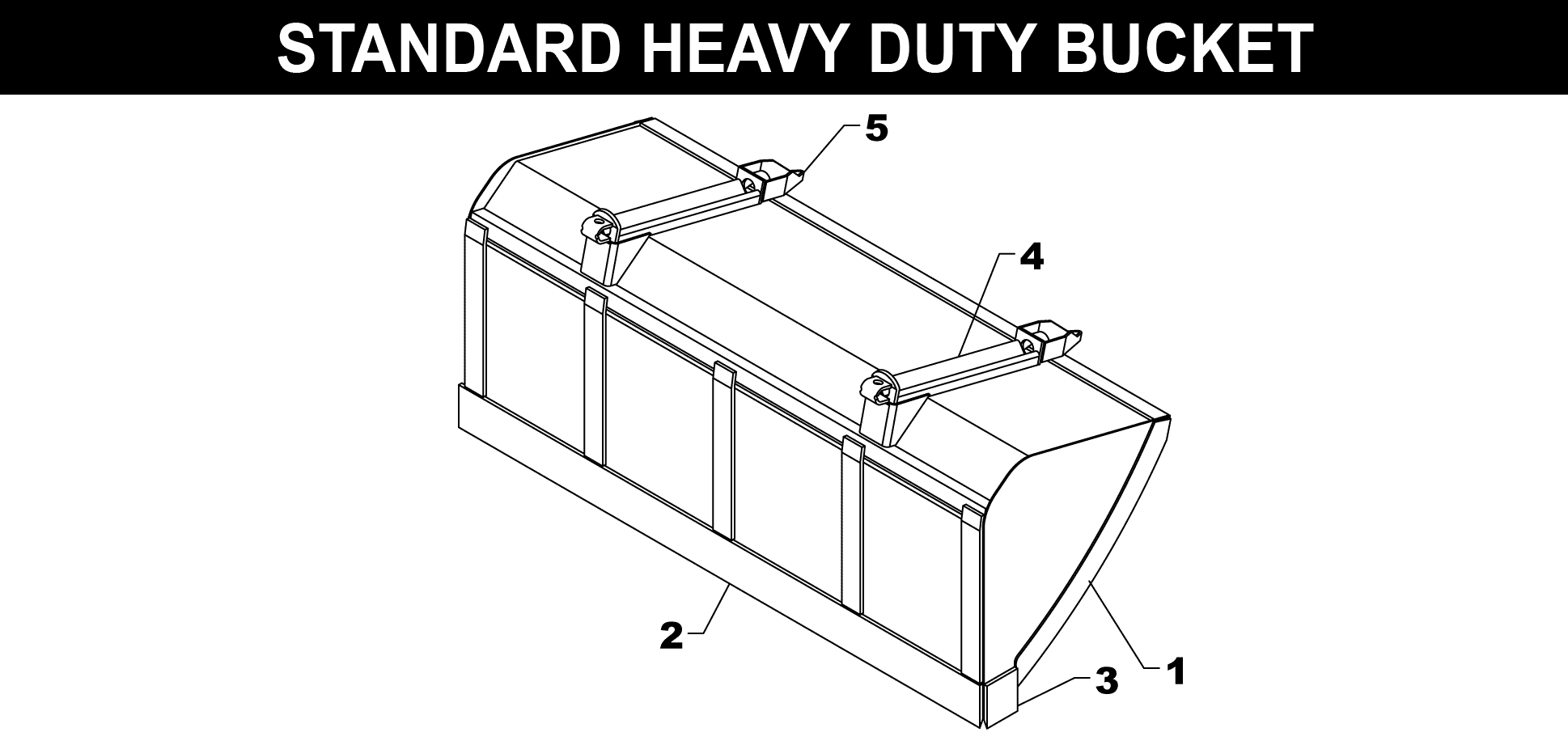

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	90Q425	BUCKET-90 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,503.57
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
