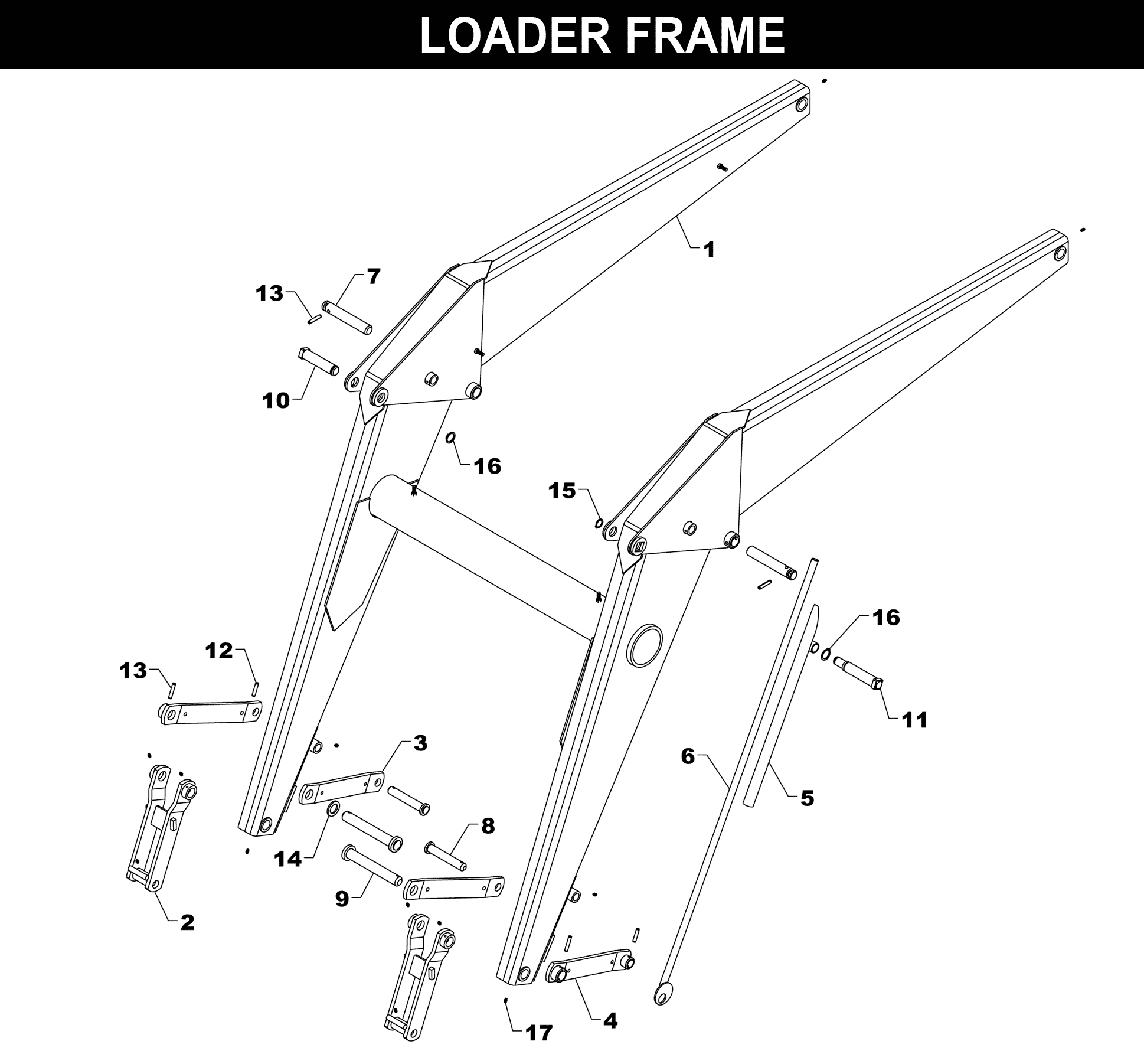

TA-46 & TA-46A FRAME

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	NAF-4AS	FRAME (TA-46)	1	$8,105.02
2	NAF-15AS	LINKAGE CONNECTOR	2	$115.64
3	NAF-10	OUTSIDE BUCKET PIVOT	2	$50.20
4	NAF-10AS	BUCKET PIVOT ASSEMBLY	2	$67.91
5	LMF-31AS	GAUGE ROD HOLDER	1	$42.71
6	LMF-47AS	GAUGE ROD	1	$42.71
7	LF-83	LIFT PIN	2	$17.62
8	LMF-28AS	PIVOT PIN	2	$27.63
9	LMF-125AS	ROUND HEAD PIN	2	$57.84
10	NAF-52AS	PIN - BUCKET CYLINDER	1	$50.27
11	NAF-53AS	PIN - GAUGE ROD HOLDER	1	$72.89
12	DRP0600028	DOUBLE ROLL PIN	2	$2.53
13	DRP0600032	DOUBLE ROLL PIN	4	$2.53
14	NAF-217	SPACER WASHER	1	$1.31
15	SR-C08	SNAP RING - EXTERNAL	1	$5.03
16	SR-C10	SNAP RING - EXTERNAL	2	$5.03
17	ZER1805	GREASE FITTING	12	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

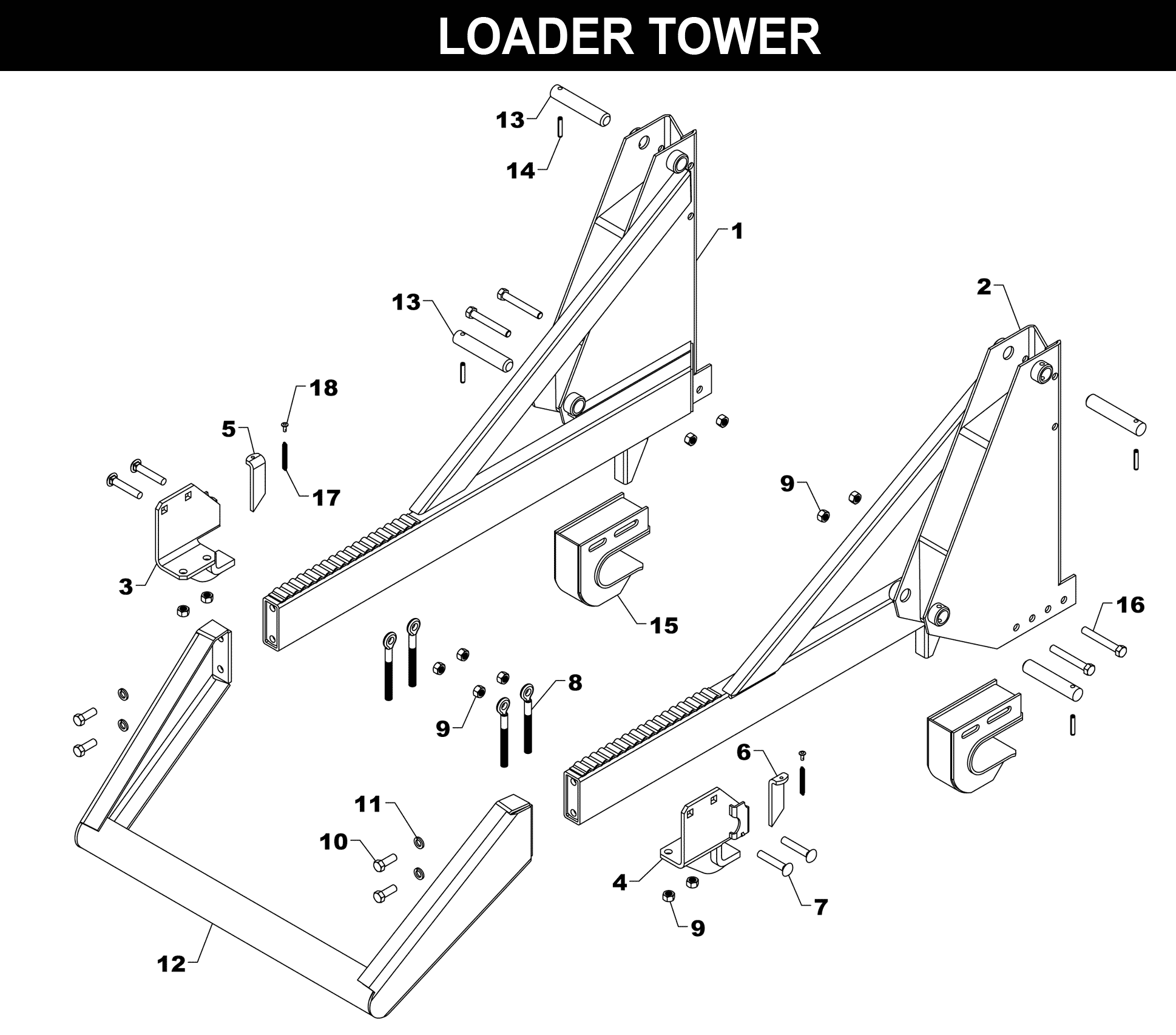

1	NAT-112AS-R	TOWER - RIGHT (TA-46A)	1	$2,355.55
2	NAT-112AS-L	TOWER - LEFT (TA-46A)	1	$2,355.55
3	NAT-120AS-R	SLIDE LOCK - RIGHT	1	$143.32
4	NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
5	NAT-106-R	DROP LOCK - RIGHT	1	$15.12
6	NAT-106-L	DROP LOCK - LEFT	1	$15.12
7	CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	4	$7.54
8	NAT-140	BAR CLAMP BOLT	4	$17.62
9	HTN1011	LOCK NUT - 5/8	12	$5.03
10	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
11	LWM10	LOCK WASHER -5/8	4	$0.77
12	0H010	FRONT WRAP	1	$666.18
13	NAF-51	PIN (HEADLESS)	4	$40.22
14	DRP0600032	DOUBLE ROLL PIN	4	$2.53
15	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
16	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
17	RLG-51	SPRING	2	$7.54
17	RLG-51	SPRING	2	$7.54
18	NAT-126	RIVET	2	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

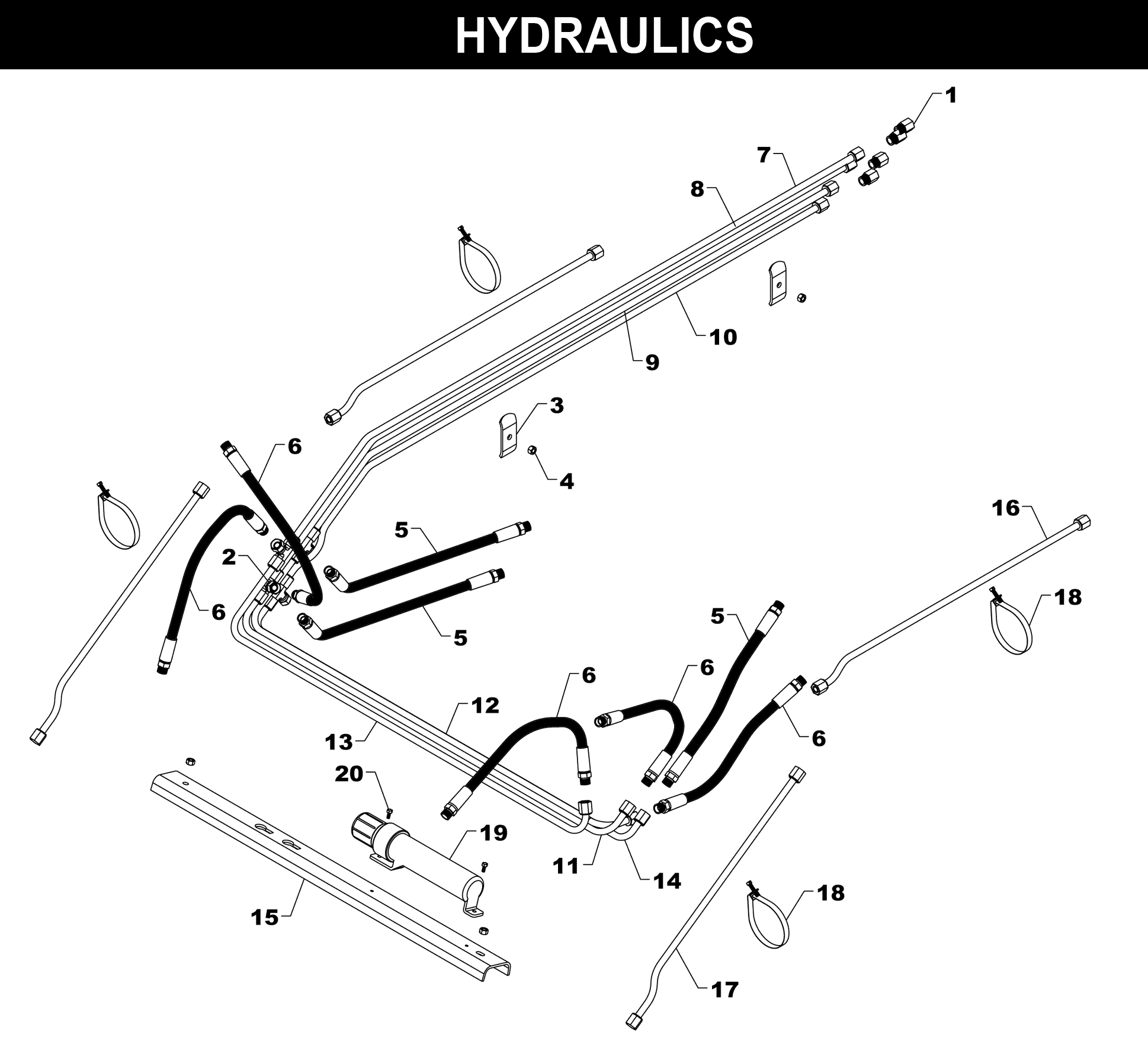

1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	OH-3	OIL LINE PROTECTOR	2	$12.58
4	HTN0616	LOCK NUT - 3/8	4	$2.53
5	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	3	$50.22
6	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	5	$65.36
7	OLT-137	OIL LINE	1	$42.71
8	OLT-139	OIL LINE	1	$42.71
9	OLT-136	OIL LINE	1	$25.13
10	OLT-138	OIL LINE	1	$37.70
11	OLT-140	OIL LINE	1	$37.70
12	OLT-141	OIL LINE	1	$37.70
13	OLT-142	OIL LINE	1	$37.70
14	OLT-144	OIL LINE	1	$37.70
15	OH-1	OIL LINE PROTECTOR	1	$105.61
16	OLT-2	OIL LINE	2	$22.62
17	OLT-1	OIL LINE	2	$19.77
18	BAND-15	METAL BAND	4	$5.03
19	GP-2	CANISTER TO STORE MANUAL	1	$44.94
20	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	90Q425	BUCKET-90 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,503.57
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22B	GRAB FORK-TIE DOWN BRACKET	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	DEC-46	DECAL KIT FOR TA-46	1	$67.91
1	DEC-45	DECAL KIT FOR TA-45	1	$67.91
1	DEC-48	DECAL KIT FOR TA-48	1	$70.39
2	V-5403-A	PAINT-WESTENDORF RED - SPRAY CAN	1	$52.80
2	V-9524-A	PAINT-STONE BLACK-SPRAY CAN	1	$52.80
3	V-9524-P	PAINT-STONE BLACK - PINT	1	$15.12
4	V-9524-Q	PAINT-STONE BLACK - QUART	1	$22.62
5	V-9524-G	PAINT-STONE BLACK - GALLON	1	$82.95

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

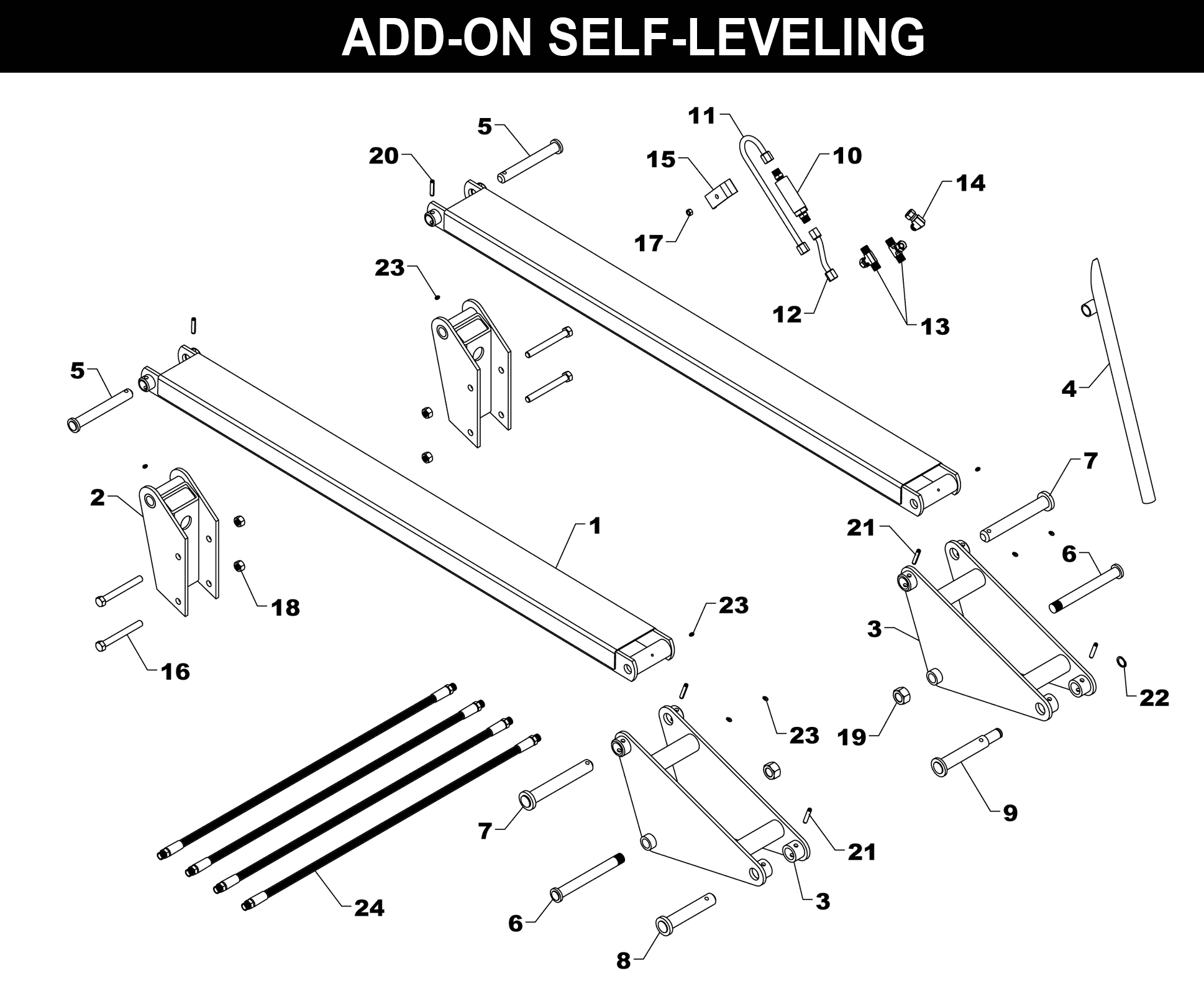

1	NAF-23AS	SELF-LEVELING TOP LINKAGE	2	$505.96
2	NAT-36AS	SELF-LEVELING TOWER BRACKET	2	$183.55
3	NAF-29AS	SELF-LEVELING HINGE PLATE	2	$345.34

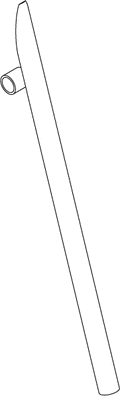

4	LMF-131AS	GAUGE ROD HOLDER	1	$42.71
5	NAF-80AS	PIN-ROUND HEAD	2	$40.22
6	LMF-24AS	ROUND HEAD BOLT	2	$78.30
7	LMF-125AS	ROUND HEAD PIN	2	$57.84
8	NAF-56AS	PIN - ROUND HEAD	1	$60.33
9	NAF-57AS	PIN - GAUGE ROD ROUND HEAD	1	$82.95
10	SLV-1	RELIEF VALVE	1	$274.00
11	OLT-22	OIL LINE - HOOK	1	$17.62
12	OLT-159	OIL LINE - OFFSET	1	$45.26
13	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	2	$75.47
14	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	1	$67.91
15	OH-5	OIL LINE PROTECTOR	1	$10.07
16	HHS1011088	BOLT - 5/8 X 5-1/2	4	$7.54
17	HTN0616	LOCK NUT - 3/8	1	$2.53
18	HTN1011	LOCK NUT - 5/8	4	$5.03
19	HFN1614	NUT - 1	2	$5.07
20	DRP0600028	DOUBLE ROLL PIN	2	$2.53
21	DRP0600032	DOUBLE ROLL PIN	4	$2.53
22	SR-C08	SNAP RING - EXTERNAL	1	$5.03
23	ZER1805	GREASE FITTING	8	$2.53
24	H06040-FF	HYDRAULIC HOSE - 3/8 X 40	4	$88.02
