XTA-700 / 700A / 700D Parts
7 assemblies · choose one below

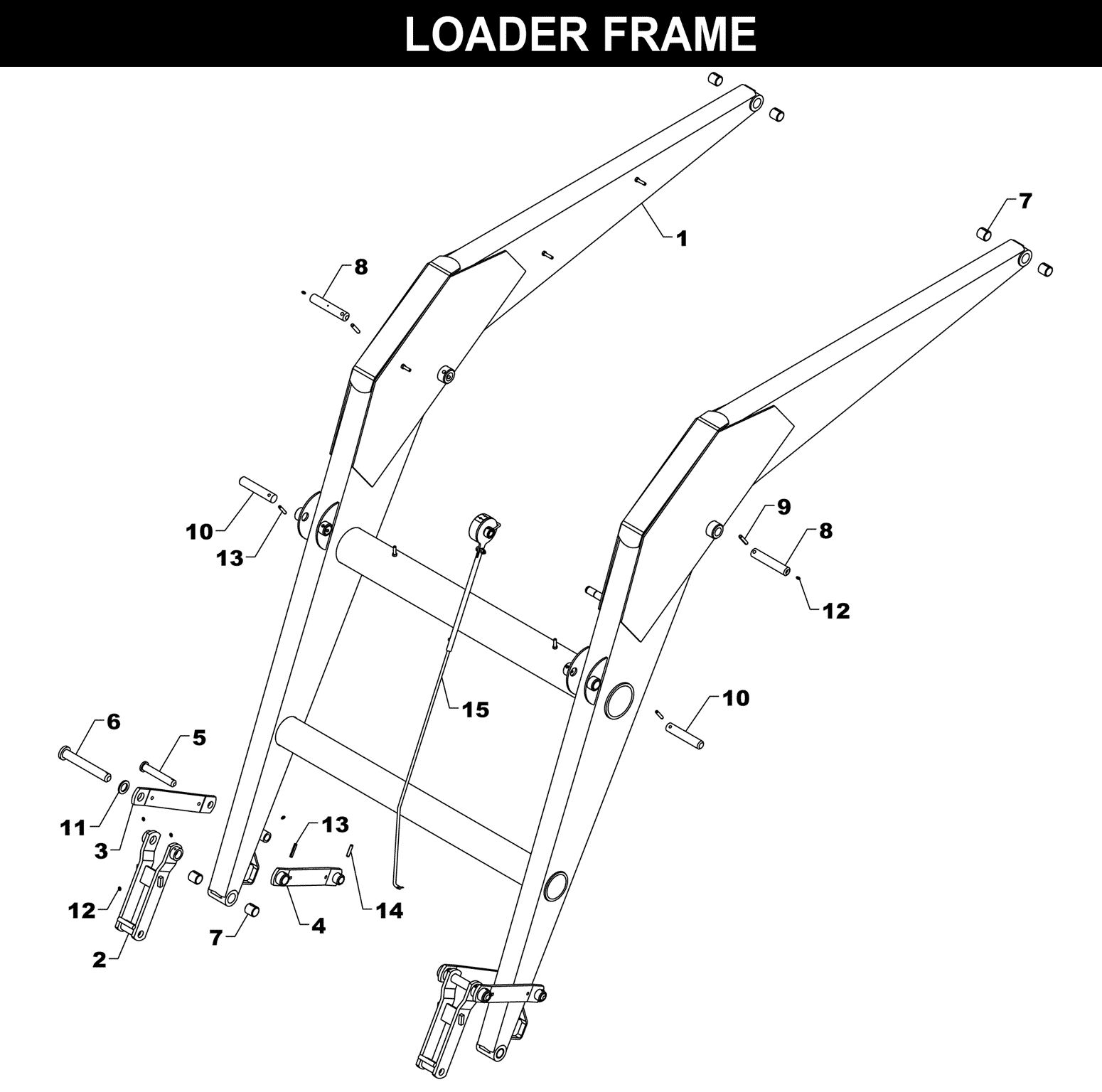

XTA-700 FRAME
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | XAF-4AS | FRAME (XTA-700/A/D) | 1 | $13,356.63 | ||
| 2 |  | NAF-15AS | LINKAGE CONNECTOR | 2 | $115.64 | |
| 3 |  | NAF-10 | OUTSIDE BUCKET PIVOT | 2 | $50.20 | |
| 4 |  | NAF-10AS | BUCKET PIVOT ASSEMBLY | 2 | $67.91 | |
| 5 |  | LMF-28AS | PIVOT PIN | 2 | $27.63 | |
| 6 |  | LMF-125AS | ROUND HEAD PIN | 2 | $57.84 | |
| 7 |  | LW-32 | INSERT BUSHING | 8 | $35.23 | |
| 8 |  | XAF-54 | PIN | 2 | $54.23 | |
| 9 |  | RLP0700036 | ROLL PIN - 7/16 | 2 | $3.31 | |
| 10 | NAF-51 | PIN (HEADLESS) | 2 | $40.22 | ||
| 11 |  | NAF-217 | SPACER WASHER | 2 | $1.31 | |
| 12 |  | ZER1805 | GREASE FITTING | 10 | $2.53 | |
| 13 |  | DRP0600032 | DOUBLE ROLL PIN | 4 | $2.53 | |
| 14 |  | DRP0600028 | DOUBLE ROLL PIN | 2 | $2.53 | |
| 15 | LAC-15-17 | ROTATIONAL BUCKET INDICATOR | 1 | $123.18 |

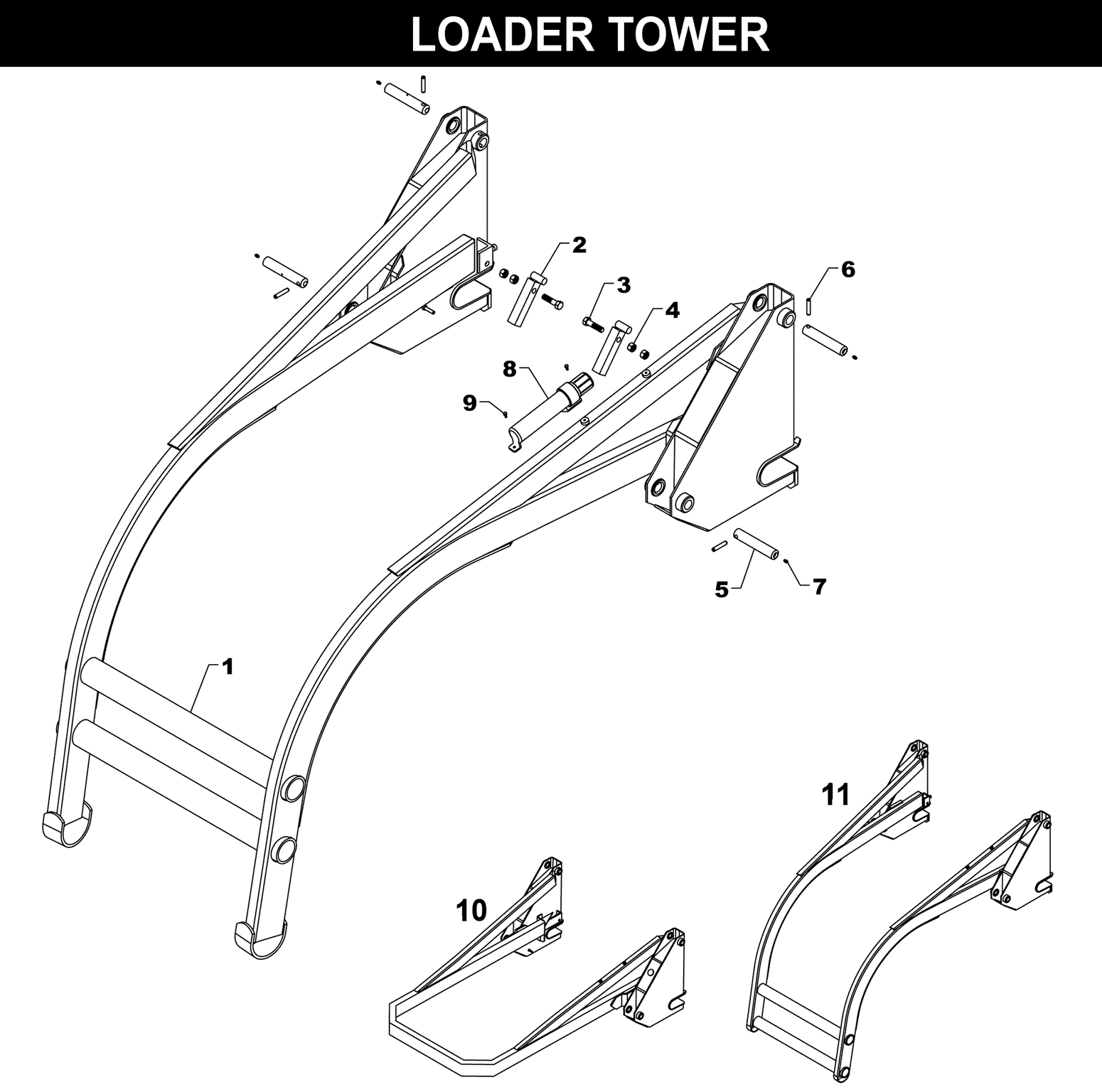

XTA-700 TOWER
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | XAT-12AS | TOWER (XTA-700) | 1 | $6,388.72 | ||
| 2 |  | XAT-25AS | LATCH | 2 | $50.27 | |
| 3 |  | HHS1011040 | BOLT - 5/8 X 2-1/2 | 2 | $5.06 | |
| 4 |  | HTN1011 | LOCK NUT - 5/8 | 4 | $5.03 | |
| 5 | | XAF-54 | PIN | 4 | $54.23 | |
| 6 | | RLP0700036 | ROLL PIN - 7/16 | 4 | $3.31 | |
| 7 | | ZER1805 | GREASE FITTING | 4 | $2.53 | |
| 8 |  | GP-2 | CANISTER TO STORE MANUAL | 1 | $44.94 | |
| 9 |  | EC-M03 | SELF-TAPPING SCREW | 2 | $1.56 | |
| 10 | XAT-112AS | TOWER (XTA-700A) | 1 | $5,163.67 | ||
| 11 | XAT-212AS | TOWER (XTA-700D) | 1 | $7,243.49 |

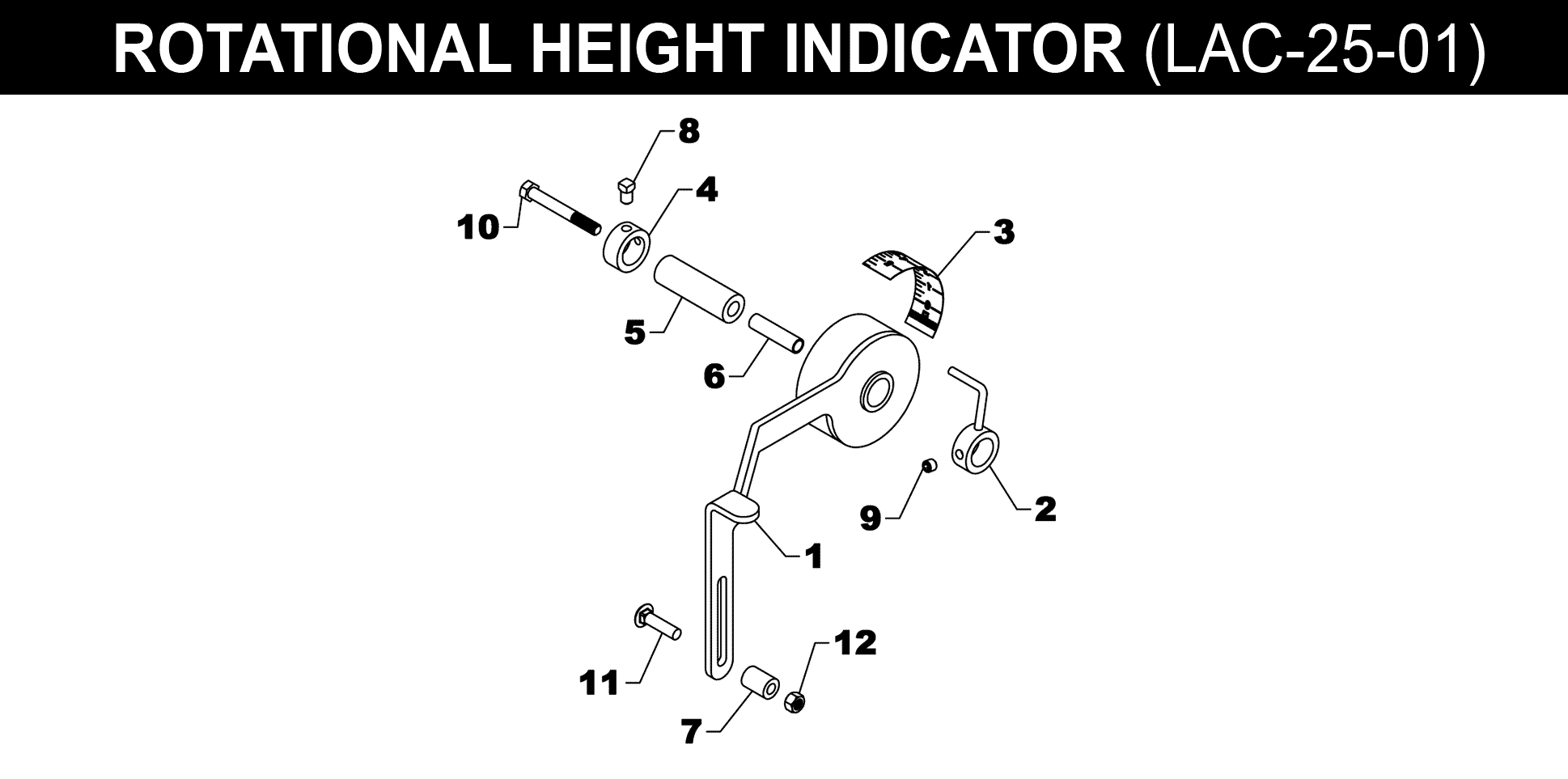

Height Indicator - LAC-25-01
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | GRD-11AS | HEIGHT INDICATOR | 1 | $43.35 | |
| 2 |  | GRD-2AS | POINTER FOR ROTATIONAL HEIGHT INDICATOR | 1 | $47.82 | |
| 3 |  | DE-GRD | DECAL FOR ROTATIONAL INDICATORS | 1 | $20.13 | |
| 4 |  | BUS-105 | BUSHING | 1 | $20.13 | |
| 5 |  | BUS-106 | BUSHING | 1 | $12.58 | |
| 6 |  | BUS-107 | INSERT BUSHING | 1 | $12.58 | |
| 7 |  | LM-4 | NYLON BUSHING | 1 | $2.53 | |
| 8 |  | SHS0616008 | SQUARE HEAD SET SCREW | 1 | $5.03 | |
| 9 |  | AHS0616006 | SET SCREW | 1 | $10.07 | |
| 10 |  | HHS0616048 | BOLT -3/8 X 3 | 1 | $5.03 | |
| 11 |  | CBF0616024 | CARRIAGE BOLT - 3/1 X 1-1/2 | 1 | $7.54 | |
| 12 |  | HTN0616 | LOCK NUT - 3/8 | 1 | $2.53 |

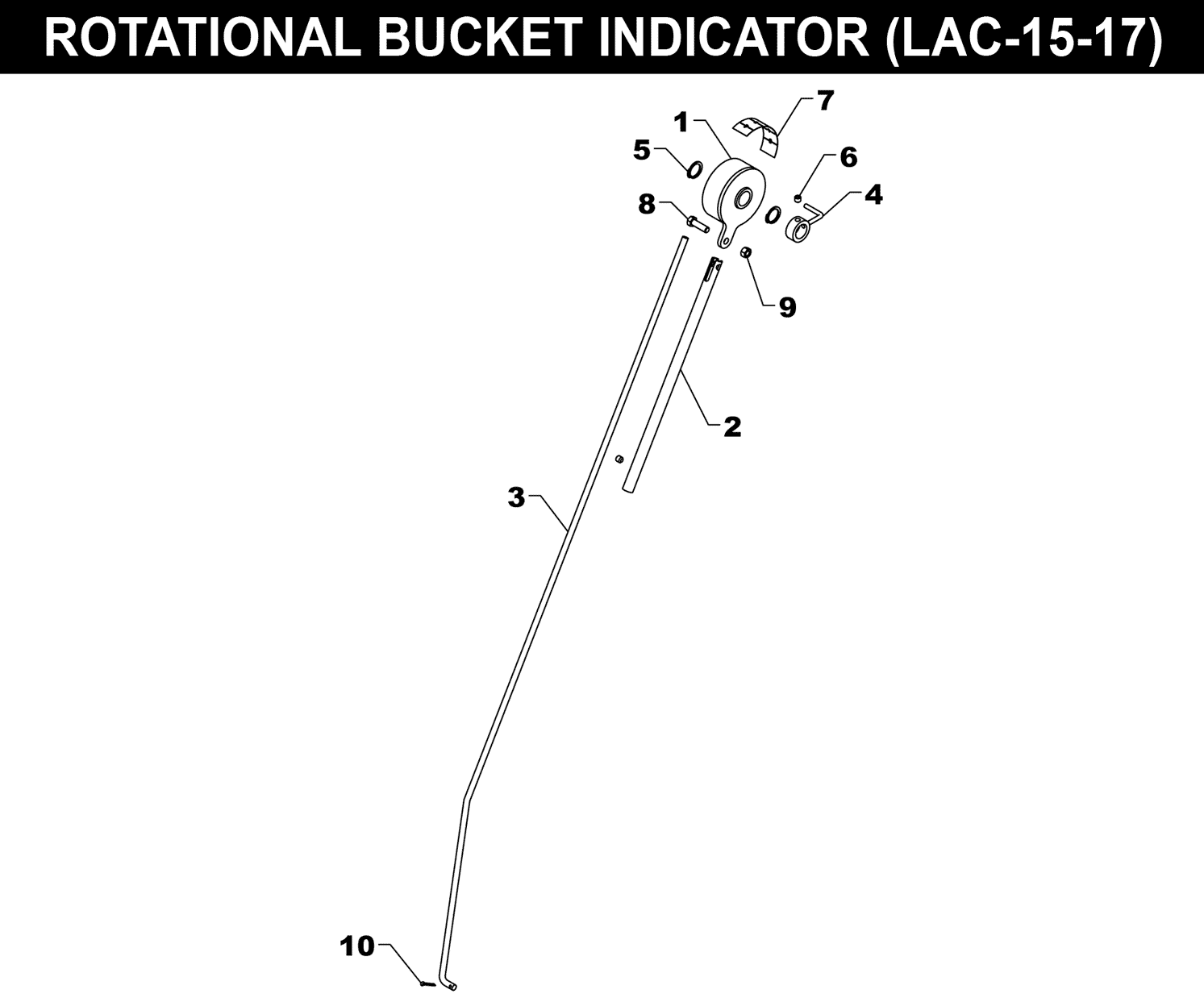

LAC-15-17
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | GRD-101AS | BUCKET INDICATOR | 1 | $20.64 | |
| 2 |  | GRD-105 | GAUGE ROD HOLDER | 1 | $22.62 | |
| 3 | GRD-145 | GAUGE ROD | 1 | $35.23 | ||
| 4 | | GRD-2AS | POINTER FOR ROTATIONAL HEIGHT INDICATOR | 1 | $47.82 | |
| 5 |  | SR-C08 | SNAP RING - EXTERNAL | 2 | $5.03 | |
| 6 | | AHS0616006 | SET SCREW | 2 | $10.07 | |
| 7 | | DE-GRD | DECAL FOR ROTATIONAL INDICATORS | 1 | $20.13 | |
| 8 |  | HHS0616020 | BOLT - 3/8 X 1-1/4 | 1 | $5.03 | |
| 9 | | HTN0616 | LOCK NUT - 3/8 | 1 | $2.53 | |
| 10 |  | CTK0200016 | COTTER KEY - 1/8 X 1 | 1 | $0.77 |

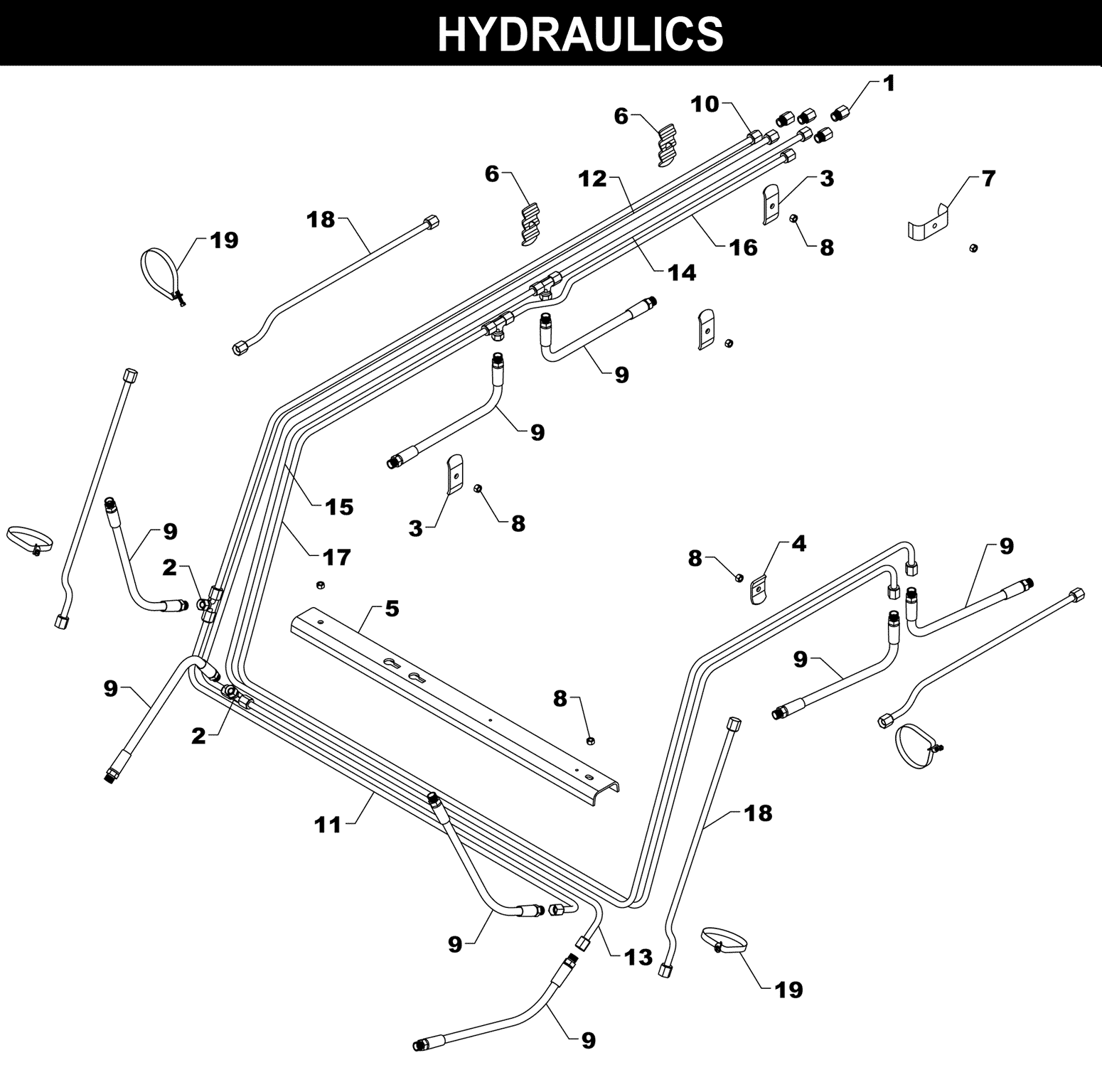

XTA-700 HYDRAULICS
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | PF-FFC8 | PIPE FITTING - FEMALE CONNECTOR | 4 | $20.13 | |
| 2 |  | PF-FSBT8 | PIPE FITTING - SWIVEL NUT TEE | 4 | $75.47 | |
| 3 |  | OH-3 | OIL LINE PROTECTOR | 3 | $12.58 | |
| 4 |  | OH-6 | OIL LINE PROTECTOR | 1 | $12.04 | |
| 5 |  | OH-1 | OIL LINE PROTECTOR | 1 | $105.61 | |
| 6 |  | OH-14 | OIL LINE PROTECTOR | 2 | $8.03 | |
| 7 |  | OH-19 | OIL LINE PROTECTOR | 1 | $20.13 | |
| 8 | | HTN0616 | LOCK NUT - 3/8 | 7 | $2.53 | |
| 9 |  | H06020-FF | HYDRAULIC HOSE - 3/8 X 20 | 8 | $50.22 | |
| 10 | OLT-280 | OIL LINE | 1 | $50.27 | ||
| 11 | OLT-281 | OIL LINE | 1 | $52.80 | ||
| 12 | OLT-282 | OIL LINE | 1 | $57.84 | ||
| 13 | OLT-283 | OIL LINE | 1 | $42.71 | ||
| 14 | OLT-284 | OIL LINE | 1 | $32.68 | ||
| 15 | OLT-285 | OIL LINE | 1 | $90.49 | ||
| 16 | OLT-286 | OIL LINE | 1 | $47.82 | ||
| 17 | OLT-287 | OIL LINE | 1 | $90.49 | ||
| 18 |  | OLT-1 | OIL LINE | 4 | $19.77 | |
| 19 |  | BAND-15 | METAL BAND | 4 | $5.03 |
TA-76 TA-77 BUCKET
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | 96Q729 | BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS | 1 | $2,638.63 | |
| 1 |  | 108Q733 | BUCKET-108 LARGE CAPACITY WITH SNAP-ATTACH | 1 | $2,983.32 | |
| 2 |  | CB-14 | BUCKET-CUTTING EDGE - 96 | 1 | $862.27 | |
| 2 |  | UB-414 | BUCKET-CUTTING EDGE - 108 | 1 | $950.07 | |
| 3 |  | SB-15 | SIDE BLADE | 2 | $52.80 | |
| 4 |  | QC-13AS | ADAPTER-SNAP-ATTACH WELD ON (1 PC) | 2 | $130.52 | |
| 5 |  | JB-22A | BUCKET GUIDE OR TEPEE | 2 | $70.39 |
SNAP-ATTACH™ COUPLER - C-4B
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | QC-1201COM | COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC) | 1 | $663.66 | |
| 2 |  | QC-1201AS | COUPLER-SNAP ATTACH SHELL ONLY | 1 | $532.95 | |
| 3 |  | QC-6AS | SNAP-ATTACH LATCH HANDLE | 1 | $22.62 | |
| 4 |  | QC-8 | SNAP-ATTACH LATCH | 1 | $52.80 | |
| 5 |  | QC-12 | SPRING FOR COUPLER | 1 | $17.62 | |
| 6 |  | QC-3 | SNAP-ATTACH BOTTOM LATCH PIN | 1 | $52.80 | |
| 7 |  | HHS0518016 | BOLT - 5/16 X 1 | 2 | $3.94 | |
| 8 |  | HTN0518 | LOCK NUT - 5/16 | 2 | $0.82 | |
| 9 |  | XAF-55AS | LINKAGE PIN | 1 | $67.91 | |
| 10 |  | LF-51 | PIN - LINKAGE | 1 | $17.62 | |
| 11 | | DRP0600028 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 12 | | DRP0600032 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 13 |  | RLP0500020 | ROLL PIN - 5/16 X 1-1/4 | 1 | $0.89 | |
| 14 | | ZER1805 | GREASE FITTING | 1 | $2.53 |
