ta-26-12

TA-26-12 Frame

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	RAF-304AS	FRAME (TA-26-12)	1	—	Call to order
2	RAF-10	BUCKET CYLINDER BAR - INSIDE	2	$60.33
3	RAF-10AS	OUTSIDE BUCKET PIVOT	2	$67.91
4	RAF-15AS	BUCKET PIVOT	2	$105.61

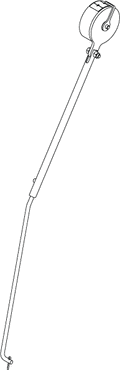

5	LAC-15-04	ROTATIONAL BUCKET INDICATOR	1	$123.18
6	LAC-25-09	ROTATIONAL HEIGHT INDICATOR	1	$98.54
7	RAF-224	PIN	1	$60.33
8	RAF-226	PIVOT PIN	4	$72.89
9	RAF-324	PIN-GREASEABLE	1	$47.82
10	LF-180	LIFT PIN TA-26 PLUS	2	$58.64
11	SR-C08	SNAP RING - EXTERNAL	8	$5.03
12	ZER1805	GREASE FITTING	12	$2.53
13	XCF-47AS	CROSS PIPE CAP	2	$57.84

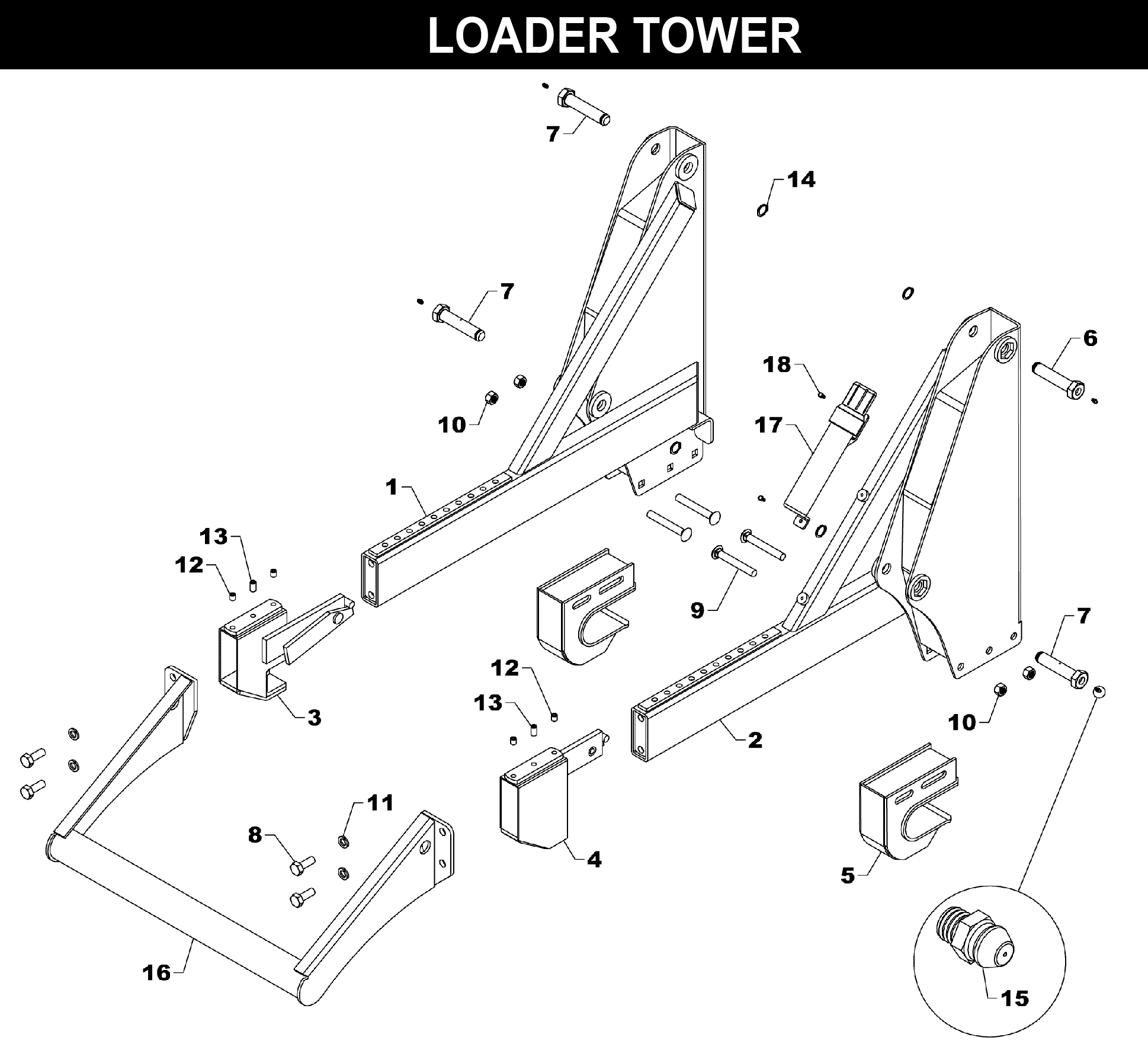

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RAT-312AS-R	TOWER (TA-26-12) - RIGHT	1	$3,133.28
2	RAT-312AS-L	TOWER (TA-26-12) - LEFT	1	$3,133.28
3	RT-20AS-R	SLIDE LATCH ASSEMBLY-RIGHT	1	$243.86
4	RT-20AS-L	SLIDE LATCH ASSEMBLY-LEFT	1	$243.86
5	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
6	RAF-224	PIN	1	$60.33
7	RAF-324	PIN-GREASEABLE	3	$47.82
8	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
9	CBF1011072	CARRIAGE BOLT - 5/8 X 4-1/2	4	$12.58
10	HTN1011	LOCK NUT - 5/8	4	$5.03
11	LWM10	LOCK WASHER -5/8	4	$0.77
12	AHS0813010	SET SCREW ALLEN HEAD - 1-1/2 X 5/8	4	$2.53
13	AHS0813016	SET SCREW ALLEN HEAD -1/2 X 1	2	$5.03
14	SR-C08	SNAP RING - EXTERNAL	4	$5.03
15	ZER1805	GREASE FITTING	4	$2.53
16	0H059	FRONT WRAP	1	$666.34
17	GP-2	CANISTER TO STORE MANUAL	1	$44.94
18	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GRD-121AS	BUCKET INDICATOR	1	$49.64
2	GRD-123	POINTER FOR ROTATIONAL INDICATOR	1	$47.82
3	GRD-105	GAUGE ROD HOLDER	1	$22.62
4	GRD-125	GAUGE ROD	1	$22.62
5	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
6	RAF-224	PIN	1	$60.33
7	LM-4	NYLON BUSHING	1	$2.53
8	SR-C08	SNAP RING - EXTERNAL	1	$5.03
9	HHS0616024	BOLT - 3/8 X 1-1/2	1	$2.53
10	HHS0616020	BOLT - 3/8 X 1-1/4	1	$5.03
11	FWW08	FLAT WASHER - 1/2	1	$2.53
12	HTN0616	LOCK NUT - 3/8	1	$2.53
13	AHS0616006	SET SCREW	1	$10.07
14	ZER1805	GREASE FITTING	1	$2.53
15	CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GRD-11AS	HEIGHT INDICATOR	1	$43.35
2	GRD-2AS	POINTER FOR ROTATIONAL HEIGHT INDICATOR	1	$47.82
3	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
4	BUS-105	BUSHING	1	$20.13
5	BUS-106	BUSHING	1	$12.58
6	BUS-107	INSERT BUSHING	1	$12.58
7	LM-4	NYLON BUSHING	1	$2.53
8	RAF-224	PIN	1	$60.33
9	ZER1805	GREASE FITTING	1	$2.53
10	SHS0616008	SQUARE HEAD SET SCREW	1	$5.03
11	AHS0616006	SET SCREW	1	$10.07
12	SR-C08	SNAP RING - EXTERNAL	1	$5.03
13	HHS0616056	BOLT - 3/8 X 3-1/2	1	$7.57
14	CBF0616024	CARRIAGE BOLT - 3/1 X 1-1/2	1	$7.54
15	HTN0616	LOCK NUT - 3/8	1	$2.53

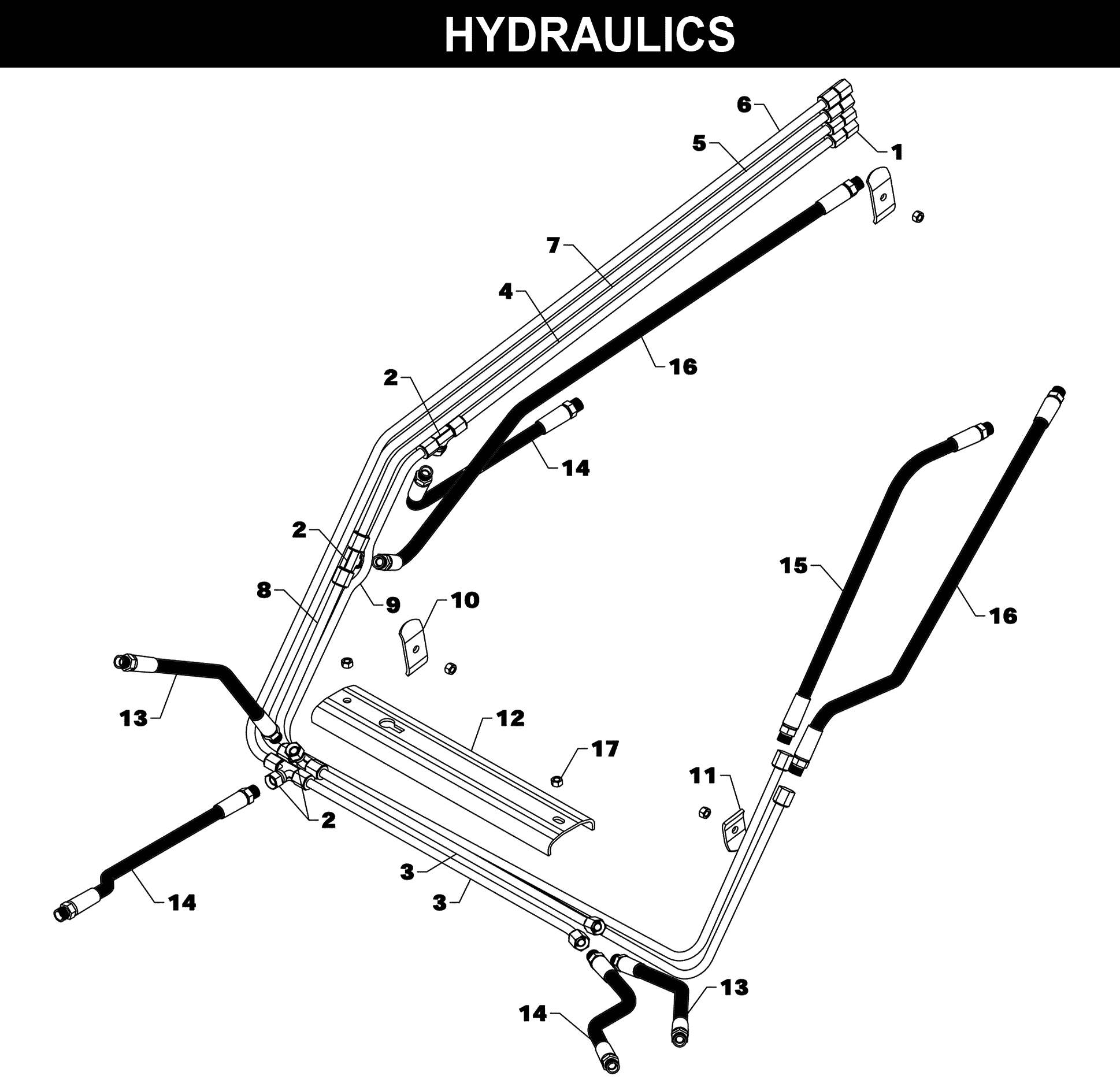

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	OLT-620	OIL LINE	2	$35.23
4	OLT-621	OIL LINE	1	—	Call to order
5	OLT-622	OIL LINE	1	$67.91
6	OLT-623	OIL LINE	1	—	Call to order
7	OLT-624	OIL LINE	1	—	Call to order
8	OLT-625	OIL LINE	1	—	Call to order
9	OLT-626	OIL LINE	1	$88.64
10	OH-3	OIL LINE PROTECTOR	2	$12.58
11	OH-6	OIL LINE PROTECTOR	1	$12.04
12	OH-9	OIL LINE PROTECTOR	1	$50.19
13	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	2	$47.82
14	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	3	$50.22
15	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	1	$65.36
16	H06040-FF	HYDRAULIC HOSE - 3/8 X 40	2	$88.02
17	HTN0616	LOCK NUT - 3/8	5	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	72Q214	BUCKET-72 WITH SNAP-ATTACH ADAPTERS	1	$2,006.04
1	84Q216	BUCKET-84 WITH SNAP-ATTACH ADAPTERS	1	$2,176.65
2	JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	C-30	COUPLER-SKID STEER ATTACH	1	$1,247.34
2	QC-300AS	ADAPTER-SNAP-ATTACH BOLT ON (1 PC)	1	$150.61
3	QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4	QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5	QC-2010	LINKAGE	2	$27.12
6	QC-2011	LATCH	2	$73.08
7	QC-12	SPRING FOR COUPLER	2	$17.62
8	LF-51	PIN - LINKAGE	2	$17.62
9	XAF-55AS	LINKAGE PIN	2	$67.91
10	HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
11	HHS0616032	BOLT - 3/8 X 2	2	$2.53
12	FWW06	FLAT WASHER - 3/8	4	$0.95
13	LWM06	LOCK WASHER - 3/8	2	$0.37
14	HFN0616	HEX NUT - 3/8	4	$0.67
15	DRP0600028	DOUBLE ROLL PIN	2	$2.53
16	DRP0600032	DOUBLE ROLL PIN	2	$2.53
17	RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
18	ZER1805	GREASE FITTING	4	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
