WL-64A Parts

4 assemblies · choose one below

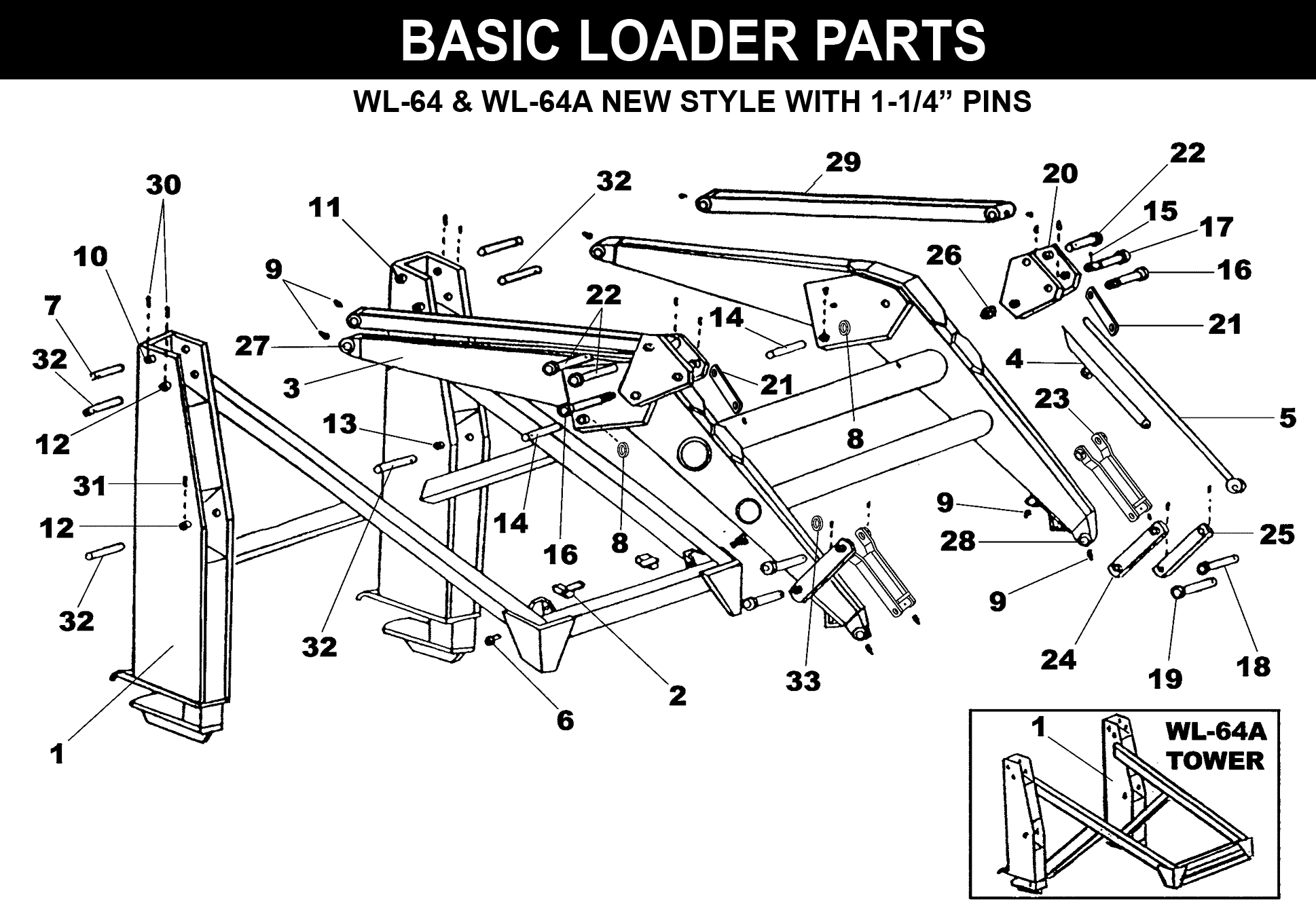

WL-64 • WL-64A • WL-64 D/G Basic Loader Parts

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	LMT-1AS	TOWER (WL-64)	1	$9,493.70
1	LMT-101AS	TOWER (WL-64A)	1	$9,085.14
2	BT-18AS	FLOP LOCK	2	$65.37
3	LMF-4AAS	FRAME (WL-64)	1	$8,864.19
4	LMF-31AS	GAUGE ROD HOLDER	1	$42.71
5	LMF-47AS	GAUGE ROD	1	$42.71
6	HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
7	JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	2	$18.57
8	QC-317A	SPACER - 1 DIA.	2	$5.03
9	ZER1805	GREASE FITTING	16	$2.53
10	SB-7	PIN BUSHING - 1	4	$14.50
11	JB-5	BUSHING - 1 NO HOLE	2	$30.17
12	QC-102	BUSHING WITH HOLE - 1-1/4	12	$12.58
13	QC-104	BUSHING WITH O HOLE - 1-1/4	6	$12.58
14	LF-83	LIFT PIN	2	$17.62
15	CTK0400032	COTTER KEY - 1/4 X 2	1	$0.87
16	LMF-24AS	ROUND HEAD BOLT	2	$78.30
17	LMF-126AS	PIN	1	$62.80
18	LMF-125AS	ROUND HEAD PIN	2	$57.84
19	LMF-28AS	PIVOT PIN	2	$27.63
20	LMF-29AAS-I	HINGE PLATE-INSIDE 1-1/4	4	$175.94
21	LMF-30A	HINGE LINKAGE STRAP	2	$35.23
22	LMF-118AAS	PIN	3	$50.27
24	LMF-110	HINGE BAR	2	$75.46
25	LMF-110AS	HINGE BAR ASSEMBLY	2	$75.46
26	HFN1614	NUT - 1	2	$5.07
27	WW-300	CASTING-ARM END - 1	2	$163.39
28	WW-300-A	CASTING-ARM END - 1-1/4	2	$175.94
29	LMF-23AS	TOP LINKAGE ARM	2	$369.56
30	DRP0600028	DOUBLE ROLL PIN	4	$2.53
31	DRP0600032	DOUBLE ROLL PIN	10	$2.53
32	LMT-20	PIN (ROUND HEAD)	4	$40.22
33	NAF-217	SPACER WASHER	1	$1.31

Click a number on the diagram to find the part.

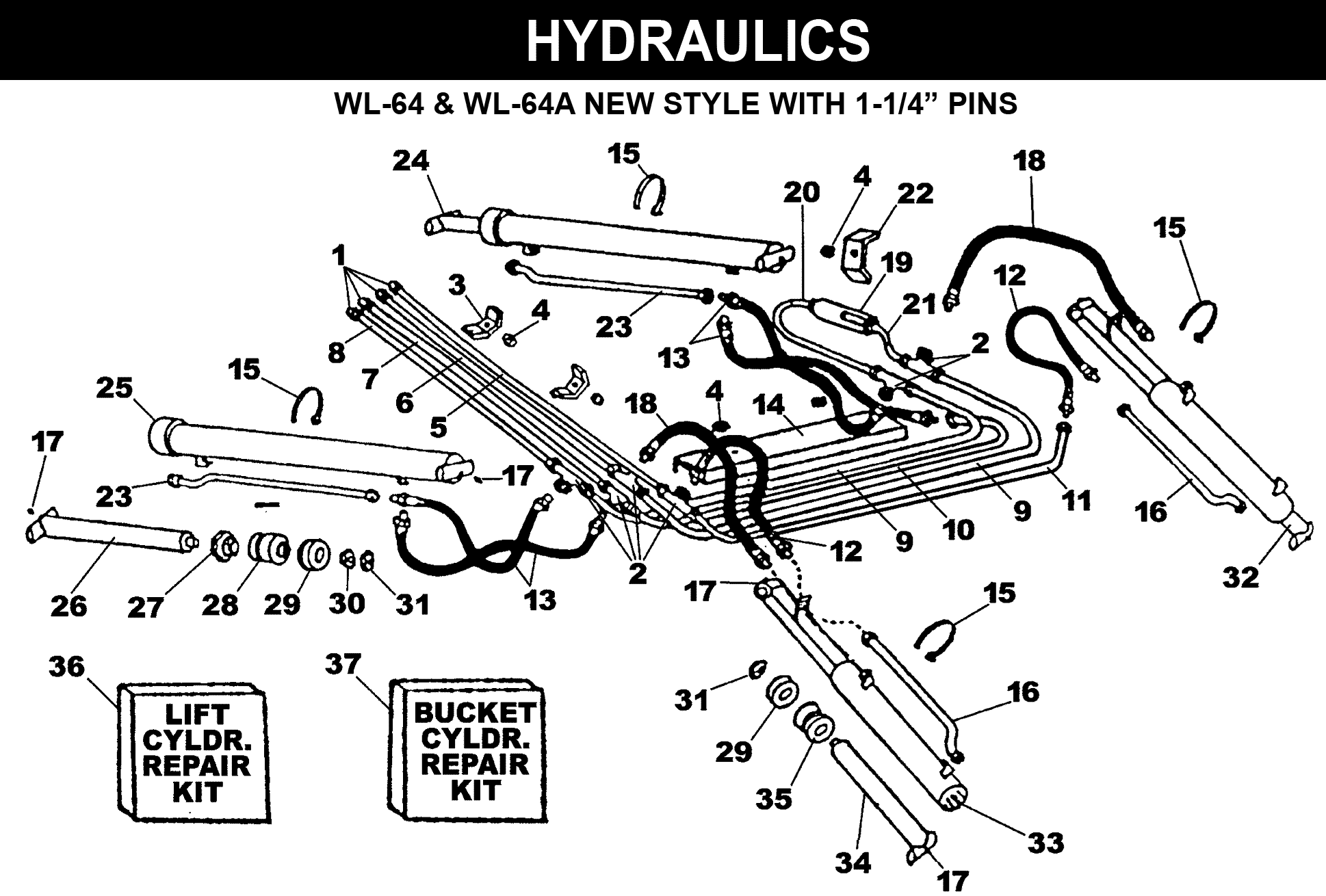

Ref	Part #	Description	Qty	Price	Buy
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	6	$75.47
3	OH-3	OIL LINE PROTECTOR	2	$12.58
4	HFN0616	HEX NUT - 3/8	5	$0.67
5	OLT-40	OIL LINE	1	$27.63
6	OLT-41	OIL LINE	1	$25.13
7	OLT-42	OIL LINE	1	$25.13
8	OLT-43	OIL LINE	1	$25.13
9	OLT-44	OIL LINE	2	$35.23
10	OLT-45	OIL LINE	1	$30.17
11	OLT-46	OIL LINE	1	$32.68
12	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	2	$65.36
13	H06020	HYDRAULIC HOSE - 3/8 X 20	4	$42.71
14	OH-1	OIL LINE PROTECTOR	1	$105.61
15	BAND-15	METAL BAND	4	$5.03
16	OLT-1	OIL LINE	2	$19.77
17	ZER1805	GREASE FITTING	8	$2.53
18	H06040-FF	HYDRAULIC HOSE - 3/8 X 40	2	$88.02
19	SLV-1	RELIEF VALVE	1	$274.00
20	OLT-22	OIL LINE - HOOK	1	$17.62
21	OLT-23	OIL LINE	1	$12.58
22	OH-5	OIL LINE PROTECTOR	1	$10.07
23	OLT-3	OIL LINE	2	$22.62
24	L-12	CYLINDER - LIFT - 3 DIA.	2	$1,199.18
25	L-1201	CYLINDER-BARREL (L-12)	2	$610.88
26	L-1210	CYLINDER-RAM	2	$620.93
27	L-1251	HEX CAP - (L-12)	2	$110.63
28	G-D	GLAND-64L (2-1/4 RAM)	2	$201.12
29	P-B	PISTON - 3 DIA.	4	$118.14
30	HJN1614	HEX JAM NUT - 1	2	$17.62
31	HFN1614	NUT - 1	4	$5.07
32	B-3-1	CYLINDER-BUCKET - 3 DIA. FOR 1 PINS	2	$1,262.00
33	B-301	CYLINDER-BARREL (B-3)	2	$646.08
34	B-310	CYLINDER-RAM - 1.75 DIA. (B-3) (B-5)	2	—	Call to order
35	G-E	GLAND-TAPERED (1-3/4 RAM)	2	$155.86
36	#6CK	CYLINDER REPAIR SEAL KIT	1	$113.14
37	#4CK	CYLINDER REPAIR SEAL KIT	1	$103.48

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
