TA-76 Parts

5 assemblies · choose one below

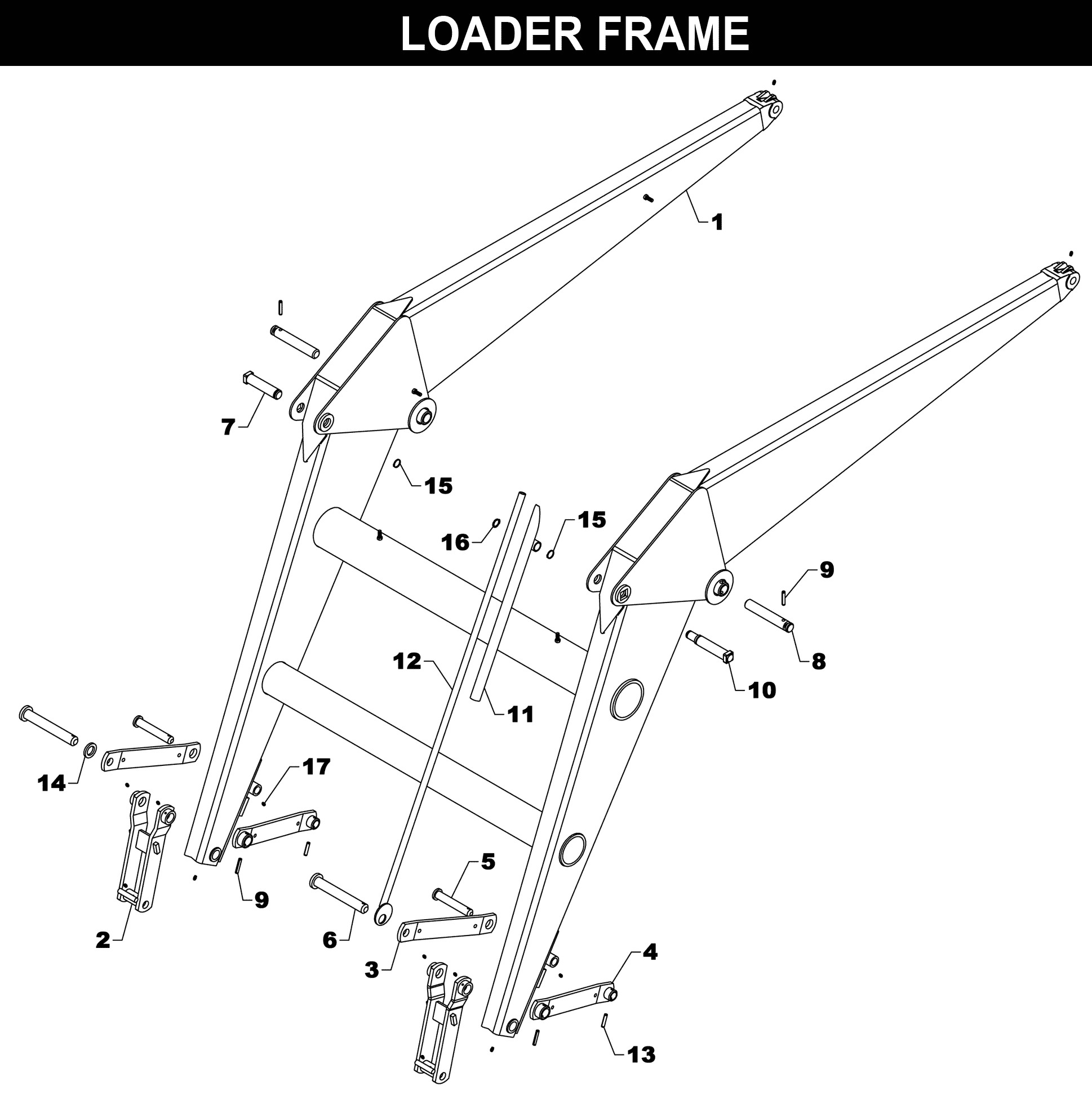

TA-76 FRAME

Open on its own page

Click a number on the diagram to find the part.

TA-76 FRAME exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		NBF-4AS	FRAME	1	$9,241.30
2		NAF-15AS	LINKAGE CONNECTOR	2	$115.64
3		NAF-10	OUTSIDE BUCKET PIVOT	2	$50.20
4		NAF-10AS	BUCKET PIVOT ASSEMBLY	2	$67.91
5		LMF-28AS	PIVOT PIN	2	$27.63
6		LMF-125AS	ROUND HEAD PIN	2	$57.84
7		NAF-52AS	PIN - BUCKET CYLINDER	1	$50.27
8		LF-83	LIFT PIN	2	$17.62
9		DRP0600032	DOUBLE ROLL PIN	4	$2.53
10		NAF-53AS	PIN - GAUGE ROD HOLDER	1	$72.89
11		LMF-31AS	GAUGE ROD HOLDER	1	$42.71
12		LMF-47AS	GAUGE ROD	1	$42.71
13		DRP0600028	DOUBLE ROLL PIN	2	$2.53
14		NAF-117	PIN HEAD	1	$12.58
15		SR-C10	SNAP RING - EXTERNAL	2	$5.03
16		SR-C08	SNAP RING - EXTERNAL	1	$5.03
17		ZER1805	GREASE FITTING	12	$2.53

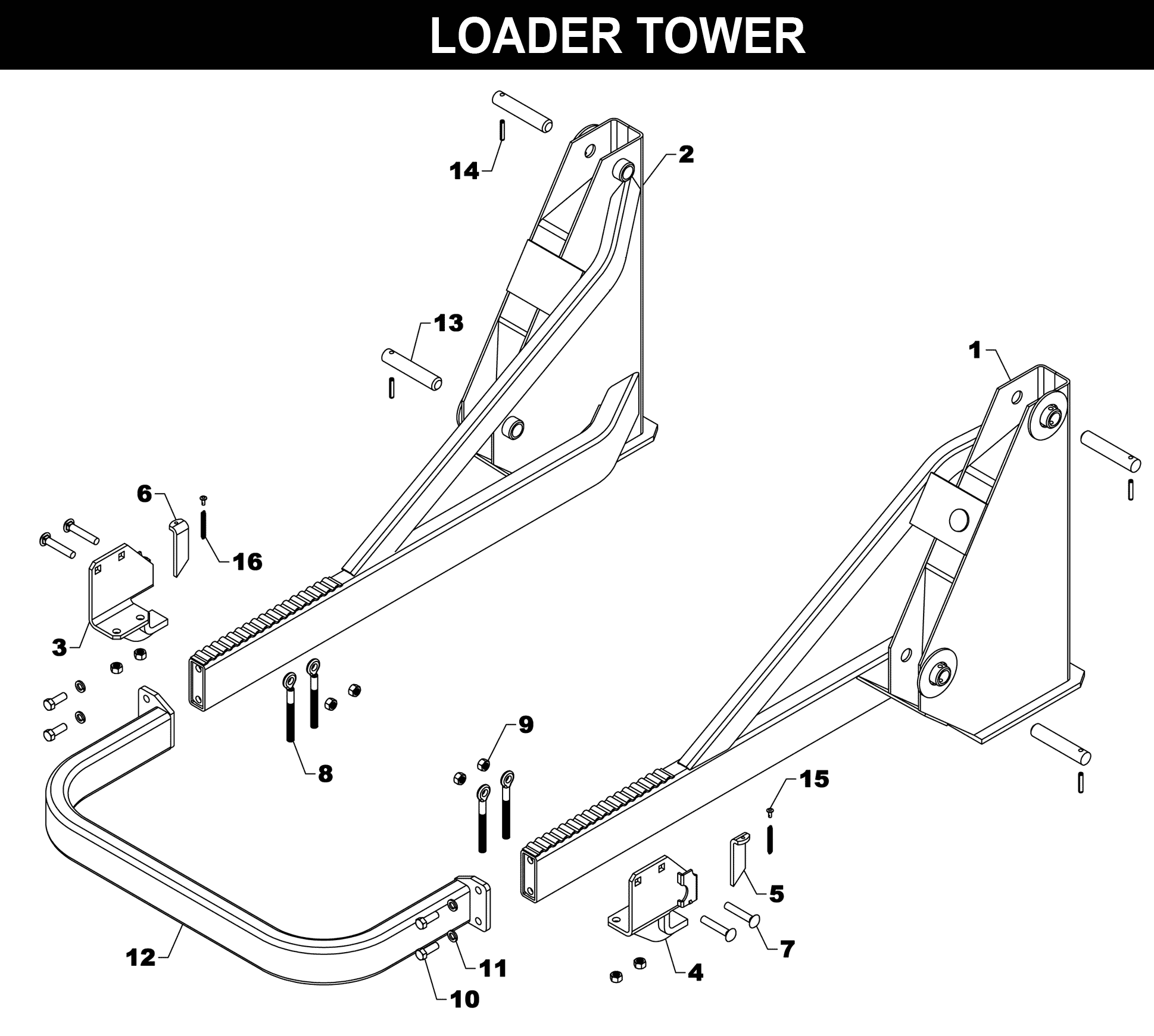

TA-76 TA-77 TOWER

Open on its own page

Click a number on the diagram to find the part.

TA-76 TA-77 TOWER exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		NBT-12AS-L	TOWER - LEFT	1	$2,971.50
2		NBT-12AS-R	TOWER - RIGHT	1	$2,971.50
3		NAT-120COM-R	SLIDE LOCK - RIGHT KIT WITH HARDWARE	1	$291.64
3		NAT-120AS-R	SLIDE LOCK - RIGHT	1	$143.32
4		NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
4		NAT-120COM-L	SLIDE LOCK - LEFT KIT WITH HARDWARE	1	$291.64
5		NAT-106-L	DROP LOCK - LEFT	1	$15.12
6		NAT-106-R	DROP LOCK - RIGHT	1	$15.12
7		CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	1	$7.54
8		NAT-140	BAR CLAMP BOLT	4	$17.62
9		HTN1011	LOCK NUT - 5/8	8	$5.03
10		HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
11		LWM10	LOCK WASHER -5/8	4	$0.77
12		0H013	FRONT WRAP	1	$683.80
13		NAF-51	PIN (HEADLESS)	4	$40.22
14		DRP0600032	DOUBLE ROLL PIN	4	$2.53
15		NAT-126	RIVET	2	$2.53
16		RLG-51	SPRING	2	$7.54

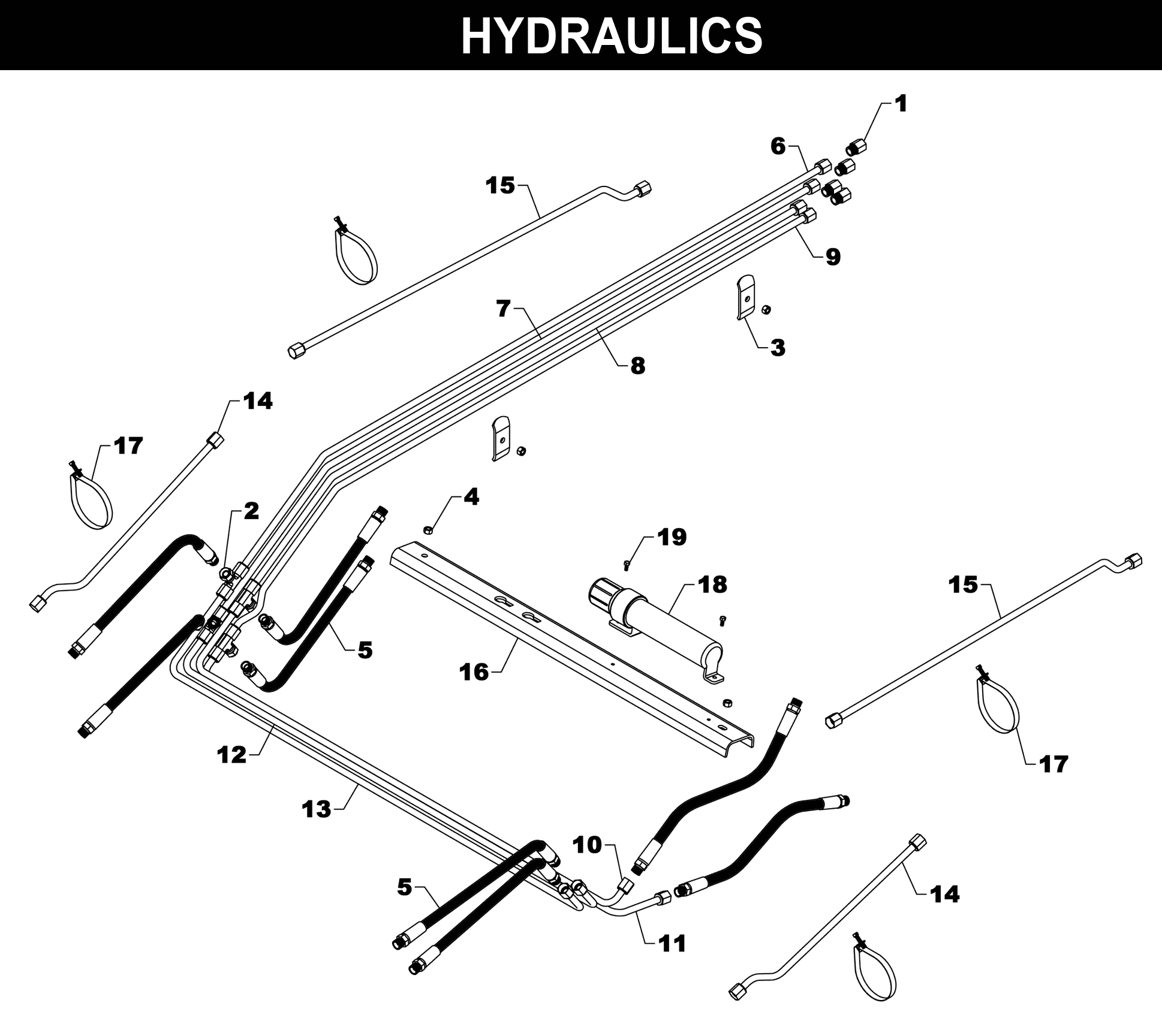

TA-76 HYDRAULICS

Open on its own page

Click a number on the diagram to find the part.

TA-76 HYDRAULICS exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2		PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3		OH-3	OIL LINE PROTECTOR	2	$12.58
4		HTN0616	LOCK NUT - 3/8	4	$2.53
5		H06020-FF	HYDRAULIC HOSE - 3/8 X 20	8	$50.22
6		OLT-160	OIL LINE	1	$32.68
7		OLT-161	OIL LINE	1	$32.68
8		OLT-162	OIL LINE	1	$30.17
9		OLT-163	OIL LINE	1	$45.26
10		OLT-164	OIL LINE	1	$55.35
11		OLT-165	OIL LINE	1	$55.35
12		OLT-166	OIL LINE	1	$55.35
13		OLT-167	OIL LINE	1	$55.35
14		OLT-143	OIL LINE	2	$27.63
15		OLT-3	OIL LINE	2	$22.62
16		OH-1	OIL LINE PROTECTOR	1	$105.61
17		BAND-15	METAL BAND	4	$5.03
18		GP-2	CANISTER TO STORE MANUAL	1	$44.94
19		EC-M03	SELF-TAPPING SCREW	2	$1.56

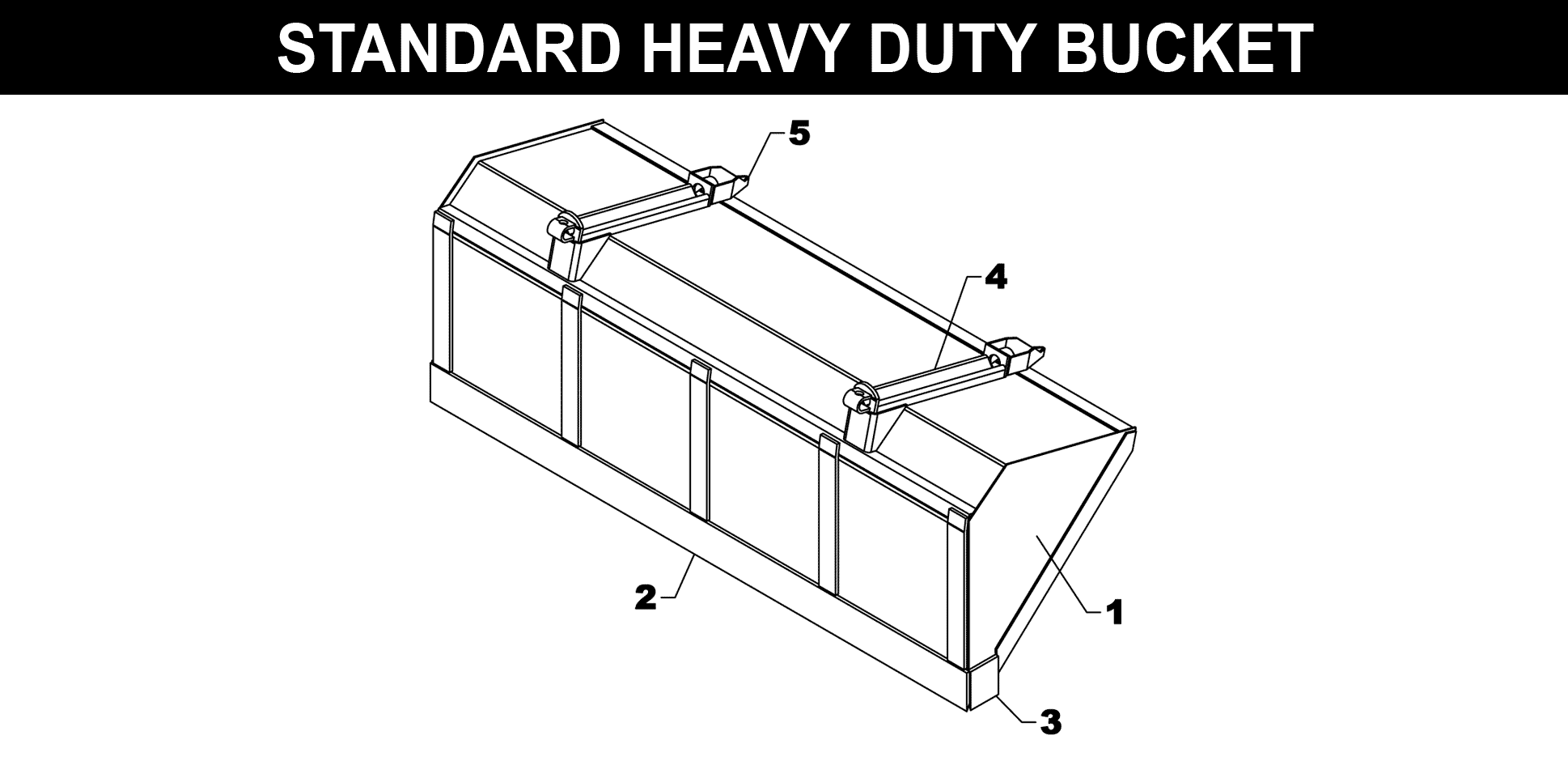

TA-76 TA-77 BUCKET

Open on its own page

Click a number on the diagram to find the part.

TA-76 TA-77 BUCKET exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		96Q729	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
1		108Q733	BUCKET-108 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,983.32
2		CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
2		UB-414	BUCKET-CUTTING EDGE - 108	1	$950.07
3		SB-15	SIDE BLADE	2	$52.80
4		QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5		JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

SNAP-ATTACH™ COUPLER - C-4B

Open on its own page

Click a number on the diagram to find the part.

SNAP-ATTACH™ COUPLER - C-4B exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2		QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3		QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4		QC-8	SNAP-ATTACH LATCH	1	$52.80
5		QC-12	SPRING FOR COUPLER	1	$17.62
6		QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7		HHS0518016	BOLT - 5/16 X 1	2	$3.94
8		HTN0518	LOCK NUT - 5/16	2	$0.82
9		XAF-55AS	LINKAGE PIN	1	$67.91
10		LF-51	PIN - LINKAGE	1	$17.62
11		DRP0600028	DOUBLE ROLL PIN	1	$2.53
12		DRP0600032	DOUBLE ROLL PIN	1	$2.53
13		RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14		ZER1805	GREASE FITTING	1	$2.53
