Parts Lookup › Loader Parts › Traction Action Series
TA-26 PLUS Parts
11 assemblies · choose one below

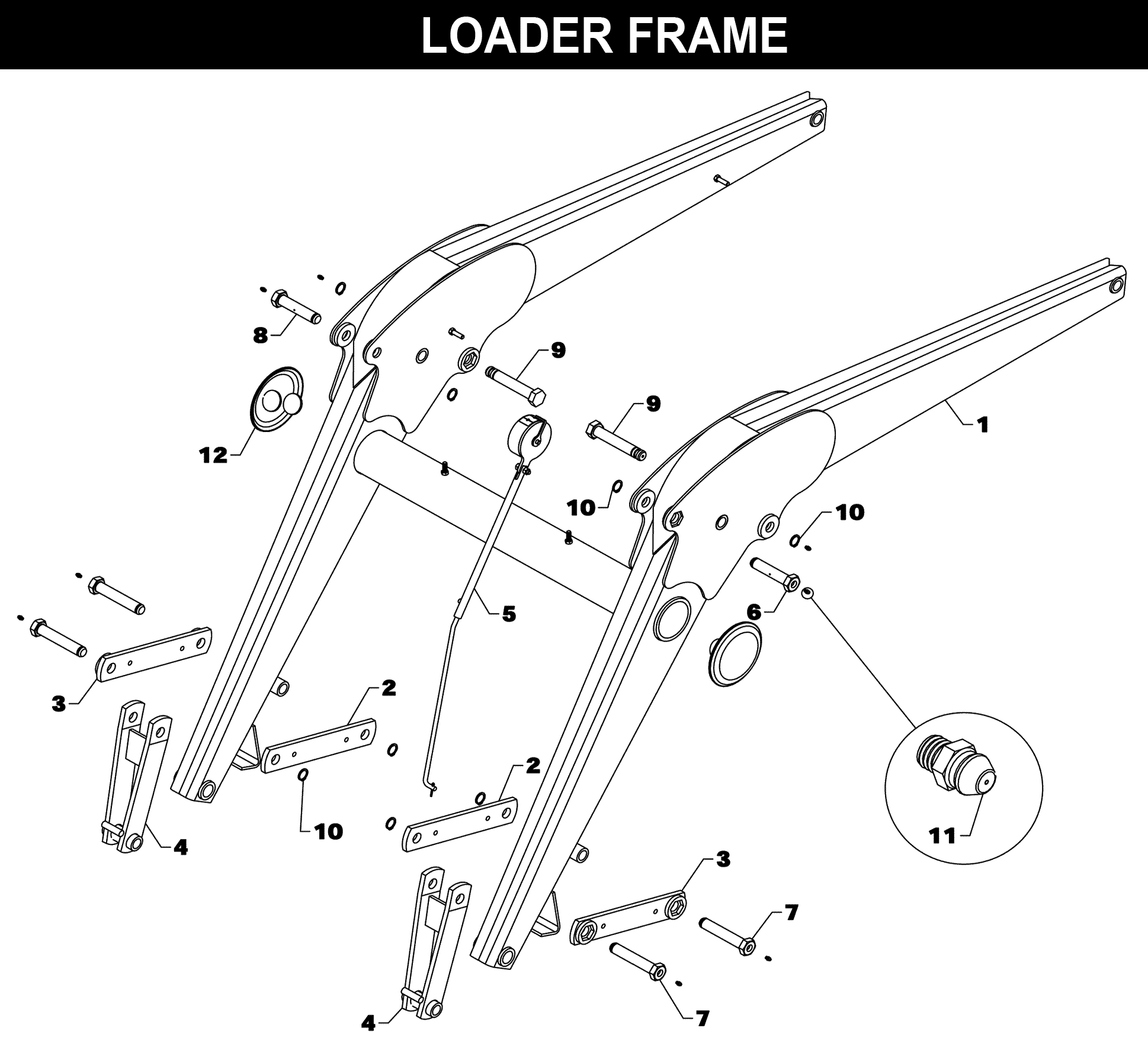

TA-26 Plus Loader Frame
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | RAF-404AS | FRAME (TA-26/26 PLUS) | 1 | $5,709.23 | |
| 2 |  | RAF-10 | BUCKET CYLINDER BAR - INSIDE | 2 | $60.33 | |
| 3 |  | RAF-10AS | OUTSIDE BUCKET PIVOT | 2 | $67.91 | |
| 4 |  | RAF-15AS | BUCKET PIVOT | 2 | $105.61 | |
| 5 |  | LAC-15-04 | ROTATIONAL BUCKET INDICATOR | 1 | $123.18 | |
| 6 |  | RAF-224 | PIN | 1 | $60.33 | |
| 7 |  | RAF-226 | PIVOT PIN | 4 | $72.89 | |
| 8 |  | RAF-324 | PIN-GREASEABLE | 1 | $47.82 | |
| 9 |  | LF-180 | LIFT PIN TA-26 PLUS | 2 | $58.64 | |
| 10 |  | SR-C08 | SNAP RING - EXTERNAL | 8 | $5.03 | |
| 11 |  | ZER1805 | GREASE FITTING | 8 | $2.53 | |
| 12 |  | XCF-47AS | CROSS PIPE CAP | 2 | $57.84 |

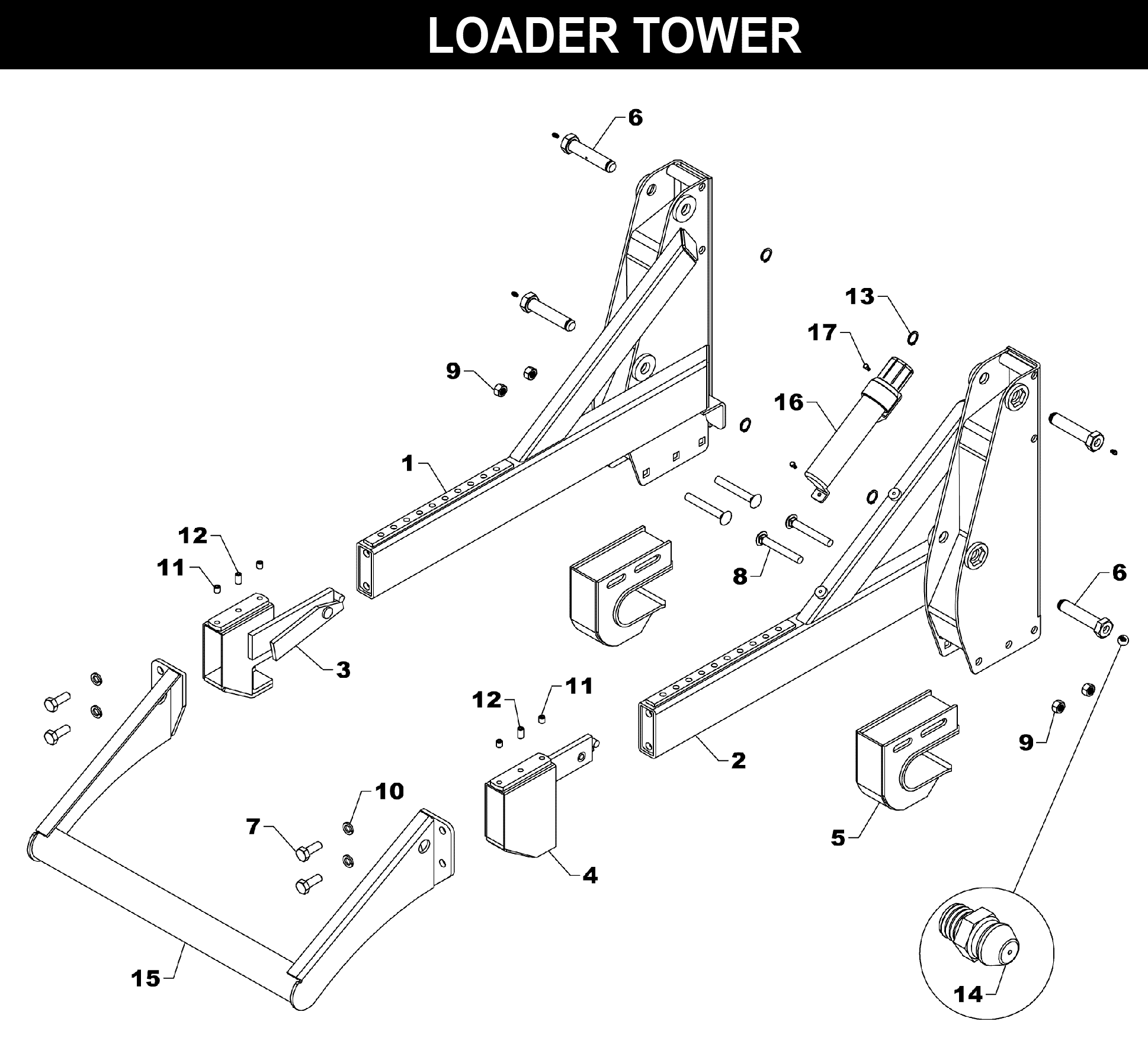

TA-26 Plus Tower
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | RAT-412AS-R | TOWER (TA-26/26 PLUS) - RIGHT | 1 | $2,308.94 | |
| 2 |  | RAT-412AS-L | TOWER (TA-26/26 PLUS) - LEFT | 1 | $2,308.94 | |
| 3 |  | RT-20AS-R | SLIDE LATCH ASSEMBLY-RIGHT | 1 | $243.86 | |
| 4 |  | RT-20AS-L | SLIDE LATCH ASSEMBLY-LEFT | 1 | $243.86 | |
| 5 |  | RT-15AS | SHOE-ADJUSTABLE | 2 | $178.48 | |
| 6 | | RAF-324 | PIN-GREASEABLE | 4 | $47.82 | |
| 7 |  | HHS1011028 | BOLT - 5/8 X 1-3/4 | 4 | $4.55 | |
| 8 |  | CBF1011072 | CARRIAGE BOLT - 5/8 X 4-1/2 | 4 | $12.58 | |
| 9 |  | HTN1011 | LOCK NUT - 5/8 | 4 | $5.03 | |
| 10 |  | LWM10 | LOCK WASHER -5/8 | 4 | $0.77 | |
| 11 |  | AHS0813010 | SET SCREW ALLEN HEAD - 1-1/2 X 5/8 | 4 | $2.53 | |
| 12 |  | AHS0813016 | SET SCREW ALLEN HEAD -1/2 X 1 | 2 | $5.03 | |
| 13 | | SR-C08 | SNAP RING - EXTERNAL | 4 | $5.03 | |
| 14 | | ZER1805 | GREASE FITTING | 4 | $2.53 | |
| 15 |  | 0H059 | FRONT WRAP | 1 | $666.34 | |
| 16 |  | GP-2 | CANISTER TO STORE MANUAL | 1 | $44.94 | |
| 17 |  | EC-M03 | SELF-TAPPING SCREW | 2 | $1.56 |
Bucket Indicator - LAC-15-04
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | GRD-121AS | BUCKET INDICATOR | 1 | $49.64 | |
| 2 |  | GRD-123 | POINTER FOR ROTATIONAL INDICATOR | 1 | $47.82 | |
| 3 |  | GRD-105 | GAUGE ROD HOLDER | 1 | $22.62 | |
| 4 |  | GRD-125 | GAUGE ROD | 1 | $22.62 | |
| 5 |  | DE-GRD | DECAL FOR ROTATIONAL INDICATORS | 1 | $20.13 | |
| 6 | | RAF-224 | PIN | 1 | $60.33 | |
| 7 |  | LM-4 | NYLON BUSHING | 1 | $2.53 | |
| 8 | | SR-C08 | SNAP RING - EXTERNAL | 1 | $5.03 | |
| 9 |  | HHS0616024 | BOLT - 3/8 X 1-1/2 | 1 | $2.53 | |
| 10 |  | HHS0616020 | BOLT - 3/8 X 1-1/4 | 1 | $5.03 | |
| 11 |  | FWW08 | FLAT WASHER - 1/2 | 1 | $2.53 | |
| 12 |  | HTN0616 | LOCK NUT - 3/8 | 1 | $2.53 | |
| 13 |  | AHS0616006 | SET SCREW | 1 | $10.07 | |
| 14 | | ZER1805 | GREASE FITTING | 1 | $2.53 | |
| 15 |  | CTK0200016 | COTTER KEY - 1/8 X 1 | 1 | $0.77 |
Height Indicator - LAC-25-09
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | GRD-11AS | HEIGHT INDICATOR | 1 | $43.35 | |
| 2 |  | GRD-2AS | POINTER FOR ROTATIONAL HEIGHT INDICATOR | 1 | $47.82 | |
| 3 | | DE-GRD | DECAL FOR ROTATIONAL INDICATORS | 1 | $20.13 | |
| 4 |  | BUS-105 | BUSHING | 1 | $20.13 | |
| 5 |  | BUS-106 | BUSHING | 1 | $12.58 | |
| 6 |  | BUS-107 | INSERT BUSHING | 1 | $12.58 | |
| 7 | | LM-4 | NYLON BUSHING | 1 | $2.53 | |
| 8 | | RAF-224 | PIN | 1 | $60.33 | |
| 9 | | ZER1805 | GREASE FITTING | 1 | $2.53 | |
| 10 |  | SHS0616008 | SQUARE HEAD SET SCREW | 1 | $5.03 | |
| 11 | | AHS0616006 | SET SCREW | 1 | $10.07 | |
| 12 | | SR-C08 | SNAP RING - EXTERNAL | 1 | $5.03 | |
| 13 |  | HHS0616056 | BOLT - 3/8 X 3-1/2 | 1 | $7.57 | |
| 14 |  | CBF0616024 | CARRIAGE BOLT - 3/1 X 1-1/2 | 1 | $7.54 | |
| 15 | | HTN0616 | LOCK NUT - 3/8 | 1 | $2.53 |
TA-26/TA-26 Plus Hydraulics
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | PF-FFC8 | PIPE FITTING - FEMALE CONNECTOR | 4 | $20.13 | |
| 2 |  | PF-FSBT8 | PIPE FITTING - SWIVEL NUT TEE | 4 | $75.47 | |
| 3 |  | PF-FSE8 | PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG. | 1 | $67.91 | |
| 4 | OLT-132 | OIL LINE | 1 | $67.91 | ||
| 5 | OLT-133 | OIL LINE | 1 | $67.91 | ||
| 6 | OLT-630 | OIL LINE | 1 | $100.56 | ||
| 7 | OLT-631 | OIL LINE | 1 | $62.80 | ||
| 8 | OLT-632 | OIL LINE | 1 | $40.22 | ||
| 9 | OLT-633 | OIL LINE | 2 | $35.23 | ||
| 10 | OLT-634 | OIL LINE | 1 | $37.70 | ||
| 11 |  | OH-3 | OIL LINE PROTECTOR | 2 | $12.58 | |
| 12 |  | OH-6 | OIL LINE PROTECTOR | 1 | $12.04 | |
| 13 |  | OH-9 | OIL LINE PROTECTOR | 1 | $50.19 | |
| 14 | H06015-FF | HYDRAULIC HOSE - 3/8 X 15 | 2 | $47.82 | ||
| 15 |  | H06020-FF | HYDRAULIC HOSE - 3/8 X 20 | 5 | $50.22 | |
| 16 |  | H06030-FF | HYDRAULIC HOSE STEEL LINE - 3/8 X 30 | 1 | $65.36 | |
| 17 | | HTN0616 | LOCK NUT - 3/8 | 5 | $2.53 |
TA-26 Series Buckets
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | 72Q214 | BUCKET-72 WITH SNAP-ATTACH ADAPTERS | 1 | $2,006.04 | |
| 1 |  | 84Q216 | BUCKET-84 WITH SNAP-ATTACH ADAPTERS | 1 | $2,176.65 | |
| 2 |  | JB-14 | BUCKET-CUTTING EDGE - 72 | 1 | $676.25 | |
| 2 |  | SB-14 | BUCKET-CUTTING EDGE - 84 | 1 | $859.37 | |
| 3 |  | SB-15 | SIDE BLADE | 2 | $52.80 | |
| 4 |  | QC-13AS | ADAPTER-SNAP-ATTACH WELD ON (1 PC) | 2 | $130.52 | |
| 5 |  | JB-22A | BUCKET GUIDE OR TEPEE | 2 | $70.39 |
SKID STEER COUPLER - C-30
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | C-30 | COUPLER-SKID STEER ATTACH | 1 | $1,247.34 | |
| 2 |  | QC-300AS | ADAPTER-SNAP-ATTACH BOLT ON (1 PC) | 1 | $150.61 | |
| 3 |  | QC-2007AS-R | COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT | 1 | $64.22 | |
| 4 |  | QC-2007AS-L | COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT | 1 | $64.22 | |
| 5 |  | QC-2010 | LINKAGE | 2 | $27.12 | |
| 6 |  | QC-2011 | LATCH | 2 | $73.08 | |
| 7 |  | QC-12 | SPRING FOR COUPLER | 2 | $17.62 | |
| 8 |  | LF-51 | PIN - LINKAGE | 2 | $17.62 | |
| 9 |  | XAF-55AS | LINKAGE PIN | 2 | $67.91 | |
| 10 | | HHS0616020 | BOLT - 3/8 X 1-1/4 | 2 | $5.03 | |
| 11 |  | HHS0616032 | BOLT - 3/8 X 2 | 2 | $2.53 | |
| 12 |  | FWW06 | FLAT WASHER - 3/8 | 4 | $0.95 | |
| 13 |  | LWM06 | LOCK WASHER - 3/8 | 2 | $0.37 | |
| 14 |  | HFN0616 | HEX NUT - 3/8 | 4 | $0.67 | |
| 15 |  | DRP0600028 | DOUBLE ROLL PIN | 2 | $2.53 | |
| 16 |  | DRP0600032 | DOUBLE ROLL PIN | 2 | $2.53 | |
| 17 |  | RLP0500020 | ROLL PIN - 5/16 X 1-1/4 | 2 | $0.89 | |
| 18 | | ZER1805 | GREASE FITTING | 4 | $2.53 |
SNAP-ATTACH™ COUPLER - C-4B
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | QC-1201COM | COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC) | 1 | $663.66 | |
| 2 |  | QC-1201AS | COUPLER-SNAP ATTACH SHELL ONLY | 1 | $532.95 | |
| 3 |  | QC-6AS | SNAP-ATTACH LATCH HANDLE | 1 | $22.62 | |
| 4 |  | QC-8 | SNAP-ATTACH LATCH | 1 | $52.80 | |
| 5 | | QC-12 | SPRING FOR COUPLER | 1 | $17.62 | |
| 6 |  | QC-3 | SNAP-ATTACH BOTTOM LATCH PIN | 1 | $52.80 | |
| 7 |  | HHS0518016 | BOLT - 5/16 X 1 | 2 | $3.94 | |
| 8 |  | HTN0518 | LOCK NUT - 5/16 | 2 | $0.82 | |
| 9 | | XAF-55AS | LINKAGE PIN | 1 | $67.91 | |
| 10 | | LF-51 | PIN - LINKAGE | 1 | $17.62 | |
| 11 | | DRP0600028 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 12 | | DRP0600032 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 13 | | RLP0500020 | ROLL PIN - 5/16 X 1-1/4 | 1 | $0.89 | |
| 14 | | ZER1805 | GREASE FITTING | 1 | $2.53 |
Bucket Indicator - LAC-15-23
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | GRD-101AS | BUCKET INDICATOR | 1 | $20.64 | |
| 2 | | GRD-2AS | POINTER FOR ROTATIONAL HEIGHT INDICATOR | 1 | $47.82 | |
| 3 | | GRD-105 | GAUGE ROD HOLDER | 1 | $22.62 | |
| 4 |  | GRD-155 | GAUGE ROD | 1 | $52.80 | |
| 5 | | BUS-105 | BUSHING | 1 | $20.13 | |
| 6 | | BUS-106 | BUSHING | 1 | $12.58 | |
| 7 | | DE-GRD | DECAL FOR ROTATIONAL INDICATORS | 1 | $20.13 | |
| 8 | | AHS0616006 | SET SCREW | 3 | $10.07 | |
| 9 | | SHS0616008 | SQUARE HEAD SET SCREW | 1 | $5.03 | |
| 10 | | HHS0616020 | BOLT - 3/8 X 1-1/4 | 1 | $5.03 | |
| 11 | | HTN0616 | LOCK NUT - 3/8 | 1 | $2.53 | |
| 12 | | CTK0200016 | COTTER KEY - 1/8 X 1 | 1 | $0.77 |
Height Indicator - LAC-25-16
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | GRD-23AS | HEIGHT INDICATOR | 1 | — | Call to order | |
| 2 | GRD-22AS | POINTER | 1 | — | Call to order | |
| 3 | BUS-163 | BUSHING | 1 | — | Call to order | |
| 4 | BUS-164 | INSERT BUSHING | 1 | — | Call to order | |
| 5 | | DE-GRD | DECAL FOR ROTATIONAL INDICATORS | 1 | $20.13 | |
| 6 | MF-47 | GAUGE ROD WASHER | 1 | — | Call to order | |
| 7 | RAF-141 | SELF-LEVELING PIN | 1 | — | Call to order | |
| 8 | | HHS0616032 | BOLT - 3/8 X 2 | 1 | $2.53 | |
| 9 |  | HHS1011096 | BOLT - 5/8 X 6 | 1 | $10.07 | |
| 10 | | SR-C08 | SNAP RING - EXTERNAL | 1 | $5.03 | |
| 11 | | HTN1011 | LOCK NUT - 5/8 | 1 | $5.03 |
TA-26 & TA-26 PLUS ADD-ON SELF LEVELING
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | RAT-26AS | SELF-LEVELING BRACKET (WELD ON) | 2 | $120.65 | |
| 2 |  | RAF-23AS | SELF-LEVELING - TOP LINK | 2 | $444.96 | |
| 3 |  | RAF-429AS-R | HINGE PLATE - RIGHT | 1 | $178.48 | |
| 4 |  | RAF-429AS-L | HINGE PLATE - LEFT | 1 | $178.48 | |
| 5 |  | RAT-30 | SPACER BUSHING | 2 | $5.03 | |
| 6 |  | RAF-38 | PIN-HEX HEAD | 1 | $38.16 | |
| 7 |  | RAF-41 | PIN-HEX HEAD FOR SELF-LEVELING | 5 | $42.71 | |
| 8 |  | HHS1011088 | BOLT - 5/8 X 5-1/2 | 2 | $7.54 | |
| 9 | | HTN1011 | LOCK NUT - 5/8 | 4 | $5.03 | |
| 10 |  | CBF1011080 | CARRIAGE BOLT - 5/8 X 5 | 2 | $15.12 | |
| 11 | | SR-C08 | SNAP RING - EXTERNAL | 8 | $5.03 | |
| 12 | | ZER1805 | GREASE FITTING | 6 | $2.53 | |
| 13 |  | RAF-39 | PIN-HEX HEAD WITH ZERK | 2 | $52.80 | |
| 14 | SLV-2A | RELIEF VALVE | 1 | — | Call to order | |
| 15 |  | PF-8-JU-S | MALE TEE FITTING | 1 | $10.95 | |
| 16 |  | PF-FMC0608 | PIPE FITTING - 1/2 TUBE TO 3/8 NPT | 2 | $8.02 | |
| 17 |  | OLT-150 | OIL LINE | 1 | $26.10 | |
| 18 |  | OLT-654 | OIL LINE | 1 | $50.91 | |
| 19 |  | OLT-439 | OIL LINE | 1 | $27.63 | |
| 20 | | PF-FSBT8 | PIPE FITTING - SWIVEL NUT TEE | 1 | $75.47 | |
| 21 | | H06030-FF | HYDRAULIC HOSE STEEL LINE - 3/8 X 30 | 2 | $65.36 | |
| 22 | | BUS-105 | BUSHING | 1 | $20.13 | |
| 23 |  | BF-60 | SPACER | 1 | $7.54 |
