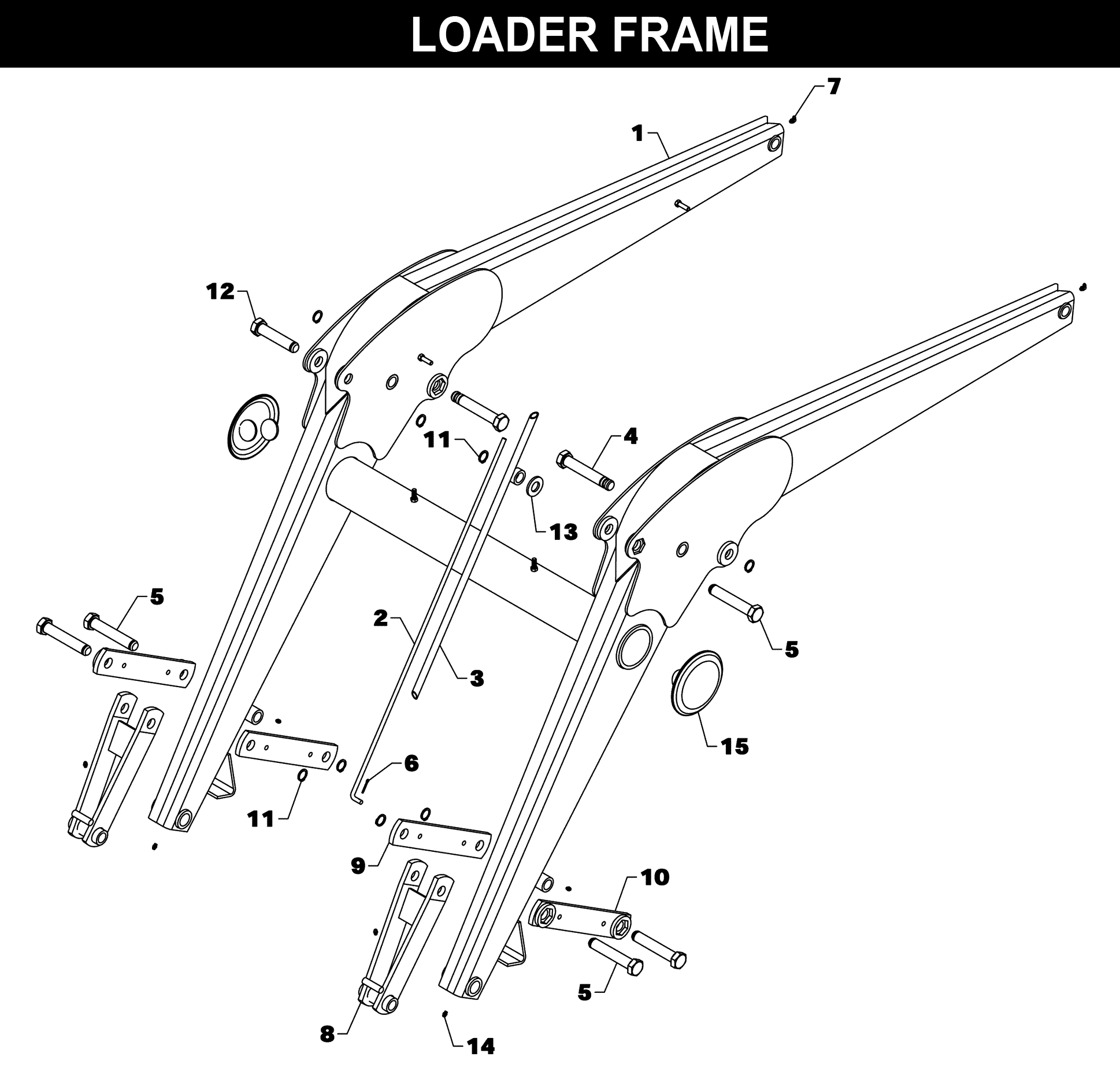

TA-26 Loader Frame

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RAF-404AS	FRAME (TA-26/26 PLUS)	1	$5,709.23
2	SAF-49	GAUGE ROD	1	$22.07
3	RAF-66AS	GAUGE ROD HOLDER	1	$22.62
4	LF-80A	LIFT PIN	2	$30.17
5	RAF-26	HEX HEAD PIN	5	$37.71
6	CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77
7	ZER523	GREASE FITTING - 90 DEGREES	2	$2.53
8	RAF-15AS	BUCKET PIVOT	2	$105.61
9	RAF-10	BUCKET CYLINDER BAR - INSIDE	2	$60.33
10	RAF-10AS	OUTSIDE BUCKET PIVOT	2	$67.91
11	SR-C08	SNAP RING - EXTERNAL	8	$5.03
12	RAF-24	HEX HEAD PIN	1	$34.05
13	RAF-65	WASHER - 1/4	1	$17.62
14	ZER1805	GREASE FITTING	6	$2.53
15	XCF-47AS	CROSS PIPE CAP	2	$57.84

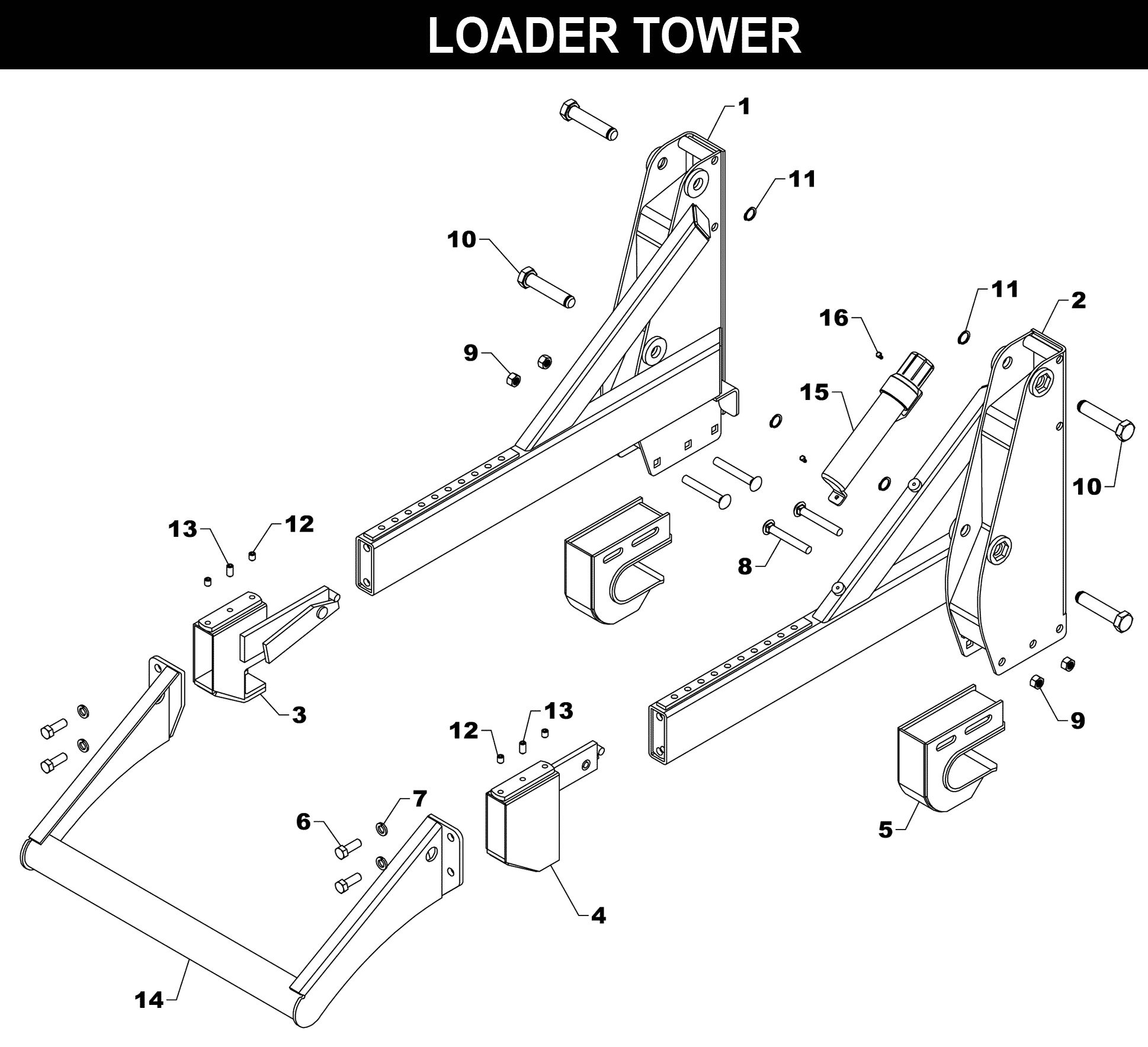

TA-26 Tower

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RAT-412AS-R	TOWER (TA-26/26 PLUS) - RIGHT	1	$2,308.94
2	RAT-412AS-L	TOWER (TA-26/26 PLUS) - LEFT	1	$2,308.94
3	RT-20AS-R	SLIDE LATCH ASSEMBLY-RIGHT	1	$243.86
4	RT-20AS-L	SLIDE LATCH ASSEMBLY-LEFT	1	$243.86
5	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
6	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
7	LWM10	LOCK WASHER -5/8	4	$0.77
8	CBF1011072	CARRIAGE BOLT - 5/8 X 4-1/2	4	$12.58
9	HTN1011	LOCK NUT - 5/8	4	$5.03
10	RAF-24	HEX HEAD PIN	4	$34.05
11	SR-C08	SNAP RING - EXTERNAL	4	$5.03
12	AHS0813010	SET SCREW ALLEN HEAD - 1-1/2 X 5/8	4	$2.53
13	AHS0813016	SET SCREW ALLEN HEAD -1/2 X 1	2	$5.03
14	0H059	FRONT WRAP	1	$666.34
15	GP-2	CANISTER TO STORE MANUAL	1	$44.94
16	EC-M03	SELF-TAPPING SCREW	2	$1.56

Bucket Indicator - LAC-15-04

Open on its own page

Click a number on the diagram to find the part.

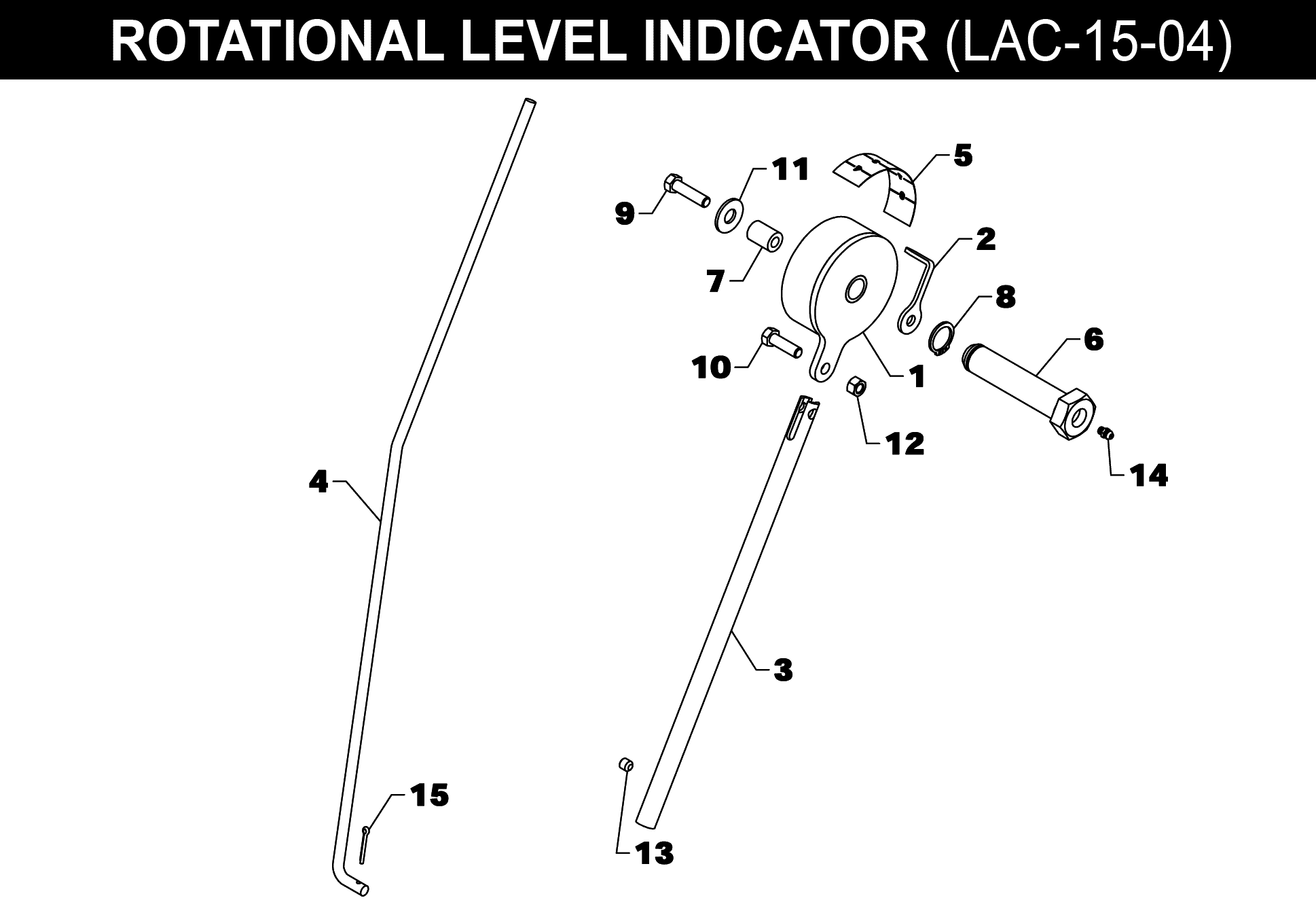

Bucket Indicator - LAC-15-04 exploded diagram

Ref	Part #	Description	Qty	Price
1	GRD-121AS	BUCKET INDICATOR	1	$49.64
2	GRD-123	POINTER FOR ROTATIONAL INDICATOR	1	$47.82
3	GRD-105	GAUGE ROD HOLDER	1	$22.62
4	GRD-125	GAUGE ROD	1	$22.62
5	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
6	RAF-224	PIN	1	$60.33
7	LM-4	NYLON BUSHING	1	$2.53
8	SR-C08	SNAP RING - EXTERNAL	1	$5.03
9	HHS0616024	BOLT - 3/8 X 1-1/2	1	$2.53
10	HHS0616020	BOLT - 3/8 X 1-1/4	1	$5.03
11	FWW08	FLAT WASHER - 1/2	1	$2.53
12	HTN0616	LOCK NUT - 3/8	1	$2.53
13	AHS0616006	SET SCREW	1	$10.07
14	ZER1805	GREASE FITTING	1	$2.53
15	CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77

Height Indicator - LAC-25-09

Open on its own page

Click a number on the diagram to find the part.

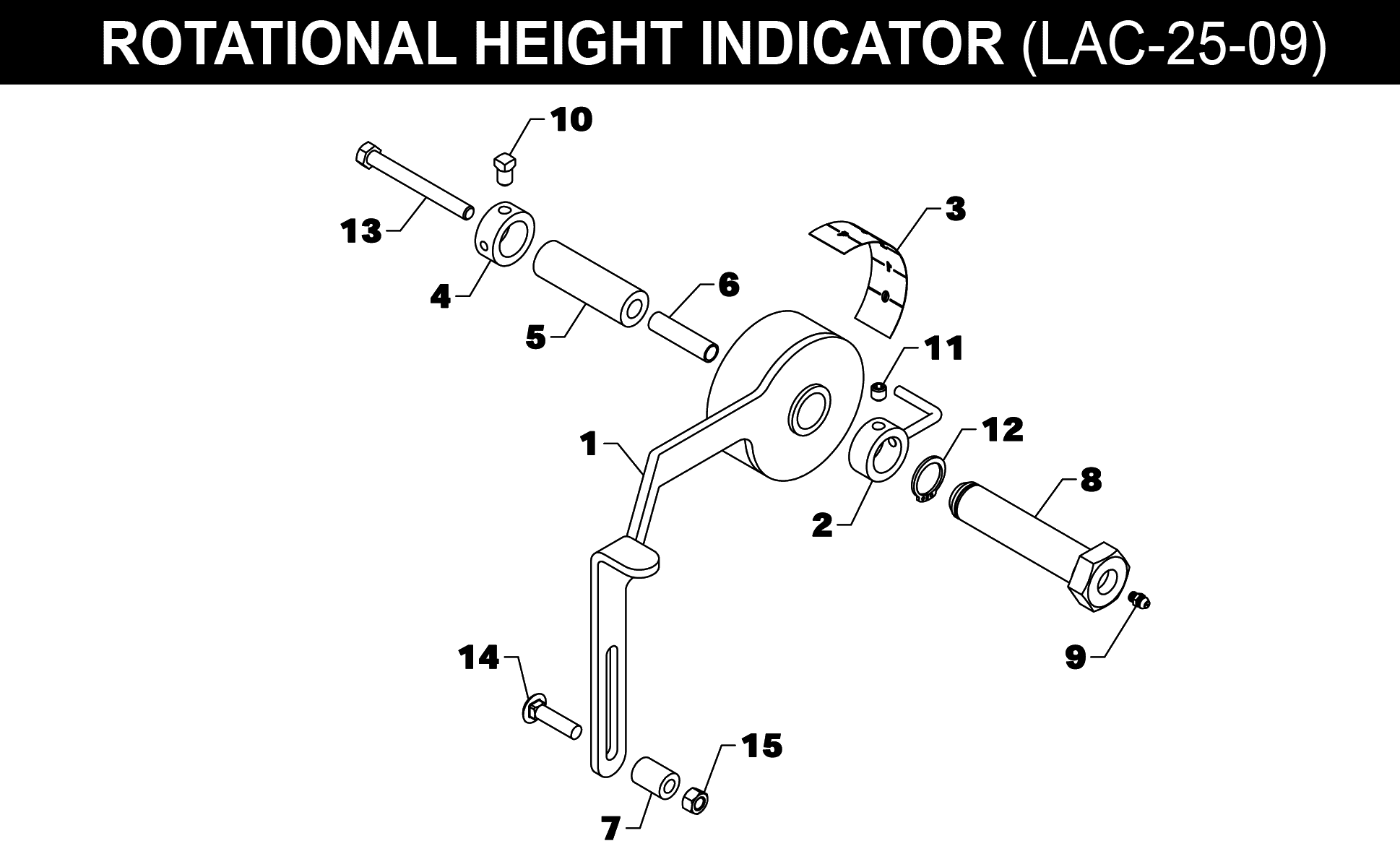

Height Indicator - LAC-25-09 exploded diagram

Ref	Part #	Description	Qty	Price
1	GRD-11AS	HEIGHT INDICATOR	1	$43.35
2	GRD-2AS	POINTER FOR ROTATIONAL HEIGHT INDICATOR	1	$47.82
3	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
4	BUS-105	BUSHING	1	$20.13
5	BUS-106	BUSHING	1	$12.58
6	BUS-107	INSERT BUSHING	1	$12.58
7	LM-4	NYLON BUSHING	1	$2.53
8	RAF-224	PIN	1	$60.33
9	ZER1805	GREASE FITTING	1	$2.53
10	SHS0616008	SQUARE HEAD SET SCREW	1	$5.03
11	AHS0616006	SET SCREW	1	$10.07
12	SR-C08	SNAP RING - EXTERNAL	1	$5.03
13	HHS0616056	BOLT - 3/8 X 3-1/2	1	$7.57
14	CBF0616024	CARRIAGE BOLT - 3/1 X 1-1/2	1	$7.54
15	HTN0616	LOCK NUT - 3/8	1	$2.53

TA-26/TA-26 Plus Hydraulics

Open on its own page

Click a number on the diagram to find the part.

TA-26/TA-26 Plus Hydraulics exploded diagram

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	1	$67.91
4	OLT-132	OIL LINE	1	$67.91
5	OLT-133	OIL LINE	1	$67.91
6	OLT-630	OIL LINE	1	$100.56
7	OLT-631	OIL LINE	1	$62.80
8	OLT-632	OIL LINE	1	$40.22
9	OLT-633	OIL LINE	2	$35.23
10	OLT-634	OIL LINE	1	$37.70
11	OH-3	OIL LINE PROTECTOR	2	$12.58
12	OH-6	OIL LINE PROTECTOR	1	$12.04
13	OH-9	OIL LINE PROTECTOR	1	$50.19
14	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	2	$47.82
15	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	5	$50.22
16	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	1	$65.36
17	HTN0616	LOCK NUT - 3/8	5	$2.53

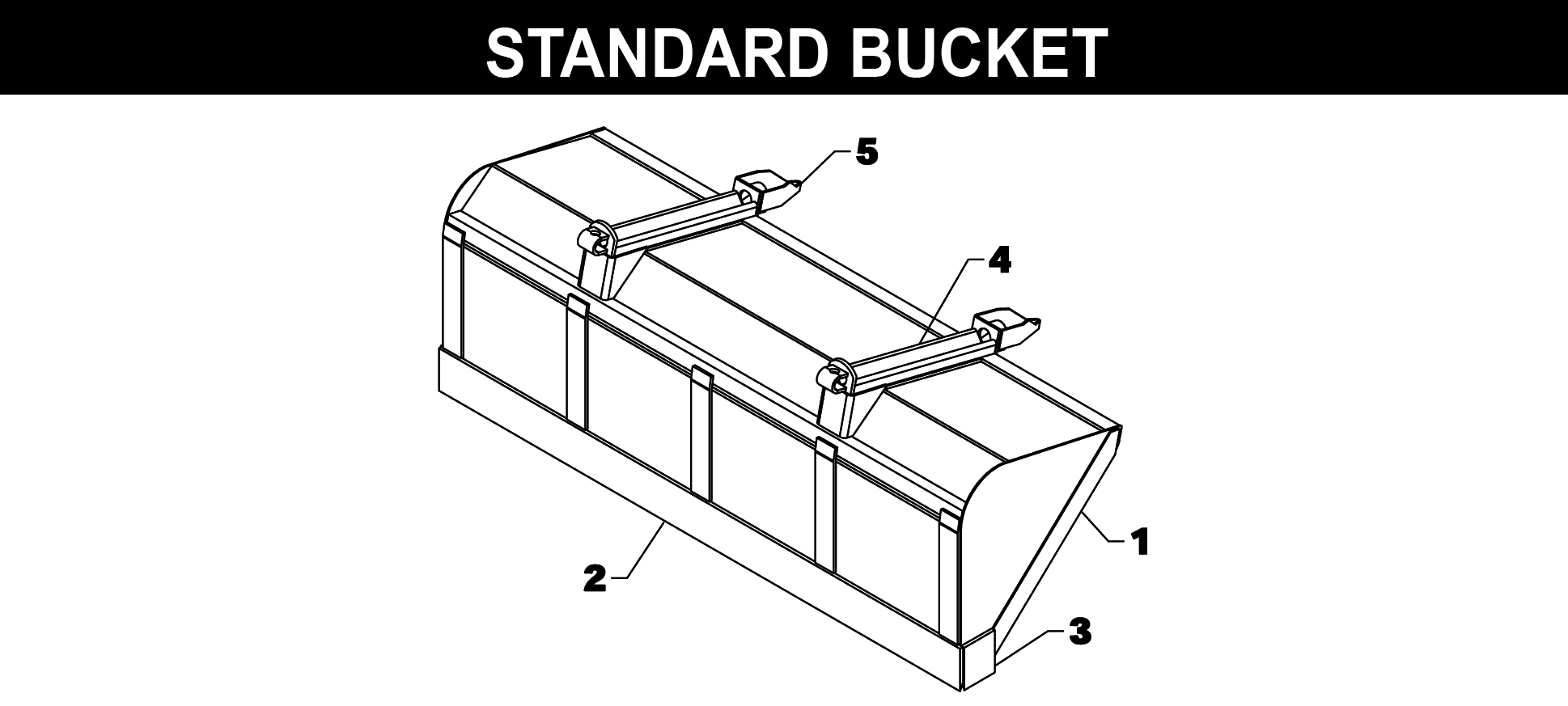

TA-26 Series Buckets

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	72Q214	BUCKET-72 WITH SNAP-ATTACH ADAPTERS	1	$2,006.04
1	84Q216	BUCKET-84 WITH SNAP-ATTACH ADAPTERS	1	$2,176.65
2	JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

SKID STEER COUPLER - C-30

Open on its own page

Click a number on the diagram to find the part.

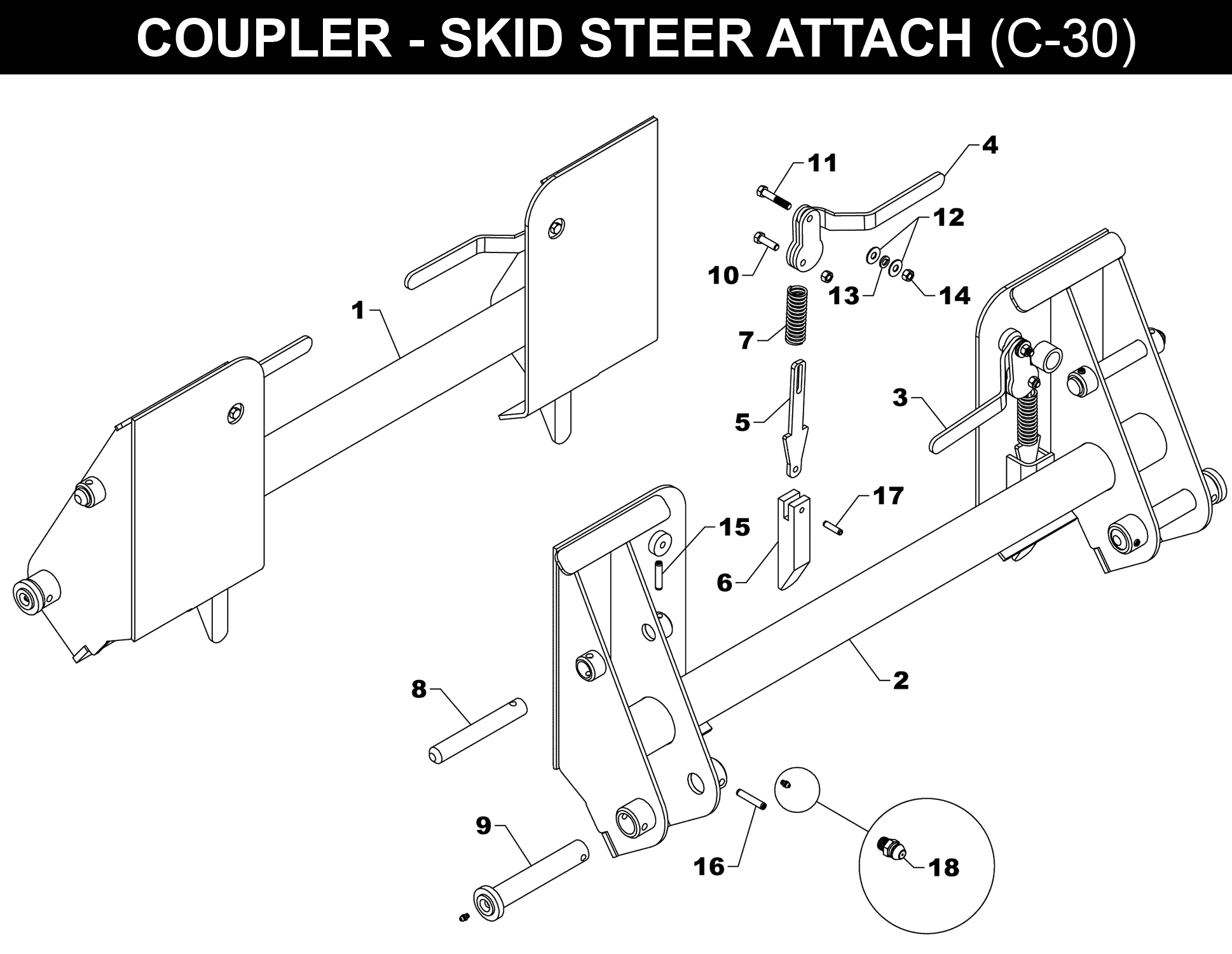

SKID STEER COUPLER - C-30 exploded diagram

Ref	Part #	Description	Qty	Price
1	C-30	COUPLER-SKID STEER ATTACH	1	$1,247.34
2	QC-300AS	ADAPTER-SNAP-ATTACH BOLT ON (1 PC)	1	$150.61
3	QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4	QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5	QC-2010	LINKAGE	2	$27.12
6	QC-2011	LATCH	2	$73.08
7	QC-12	SPRING FOR COUPLER	2	$17.62
8	LF-51	PIN - LINKAGE	2	$17.62
9	XAF-55AS	LINKAGE PIN	2	$67.91
10	HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
11	HHS0616032	BOLT - 3/8 X 2	2	$2.53
12	FWW06	FLAT WASHER - 3/8	4	$0.95
13	LWM06	LOCK WASHER - 3/8	2	$0.37
14	HFN0616	HEX NUT - 3/8	4	$0.67
15	DRP0600028	DOUBLE ROLL PIN	2	$2.53
16	DRP0600032	DOUBLE ROLL PIN	2	$2.53
17	RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
18	ZER1805	GREASE FITTING	4	$2.53

SNAP-ATTACH™ COUPLER - C-4B

Open on its own page

Click a number on the diagram to find the part.

SNAP-ATTACH™ COUPLER - C-4B exploded diagram

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53

Bucket Indicator - LAC-15-23

Open on its own page

Click a number on the diagram to find the part.

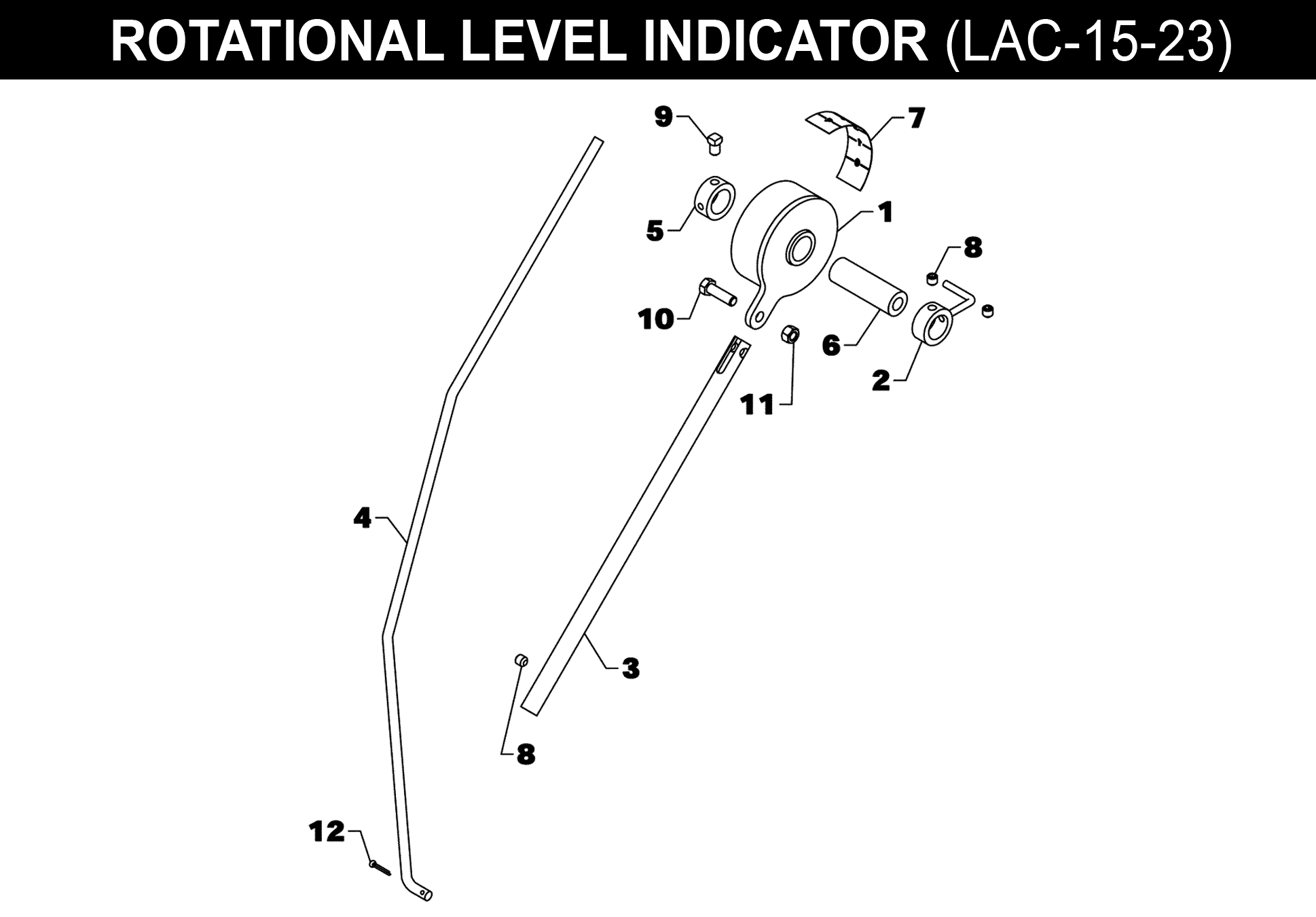

Bucket Indicator - LAC-15-23 exploded diagram

Ref	Part #	Description	Qty	Price
1	GRD-101AS	BUCKET INDICATOR	1	$20.64
2	GRD-2AS	POINTER FOR ROTATIONAL HEIGHT INDICATOR	1	$47.82
3	GRD-105	GAUGE ROD HOLDER	1	$22.62
4	GRD-155	GAUGE ROD	1	$52.80
5	BUS-105	BUSHING	1	$20.13
6	BUS-106	BUSHING	1	$12.58
7	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
8	AHS0616006	SET SCREW	3	$10.07
9	SHS0616008	SQUARE HEAD SET SCREW	1	$5.03
10	HHS0616020	BOLT - 3/8 X 1-1/4	1	$5.03
11	HTN0616	LOCK NUT - 3/8	1	$2.53
12	CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77

Height Indicator - LAC-25-16

Open on its own page

Click a number on the diagram to find the part.

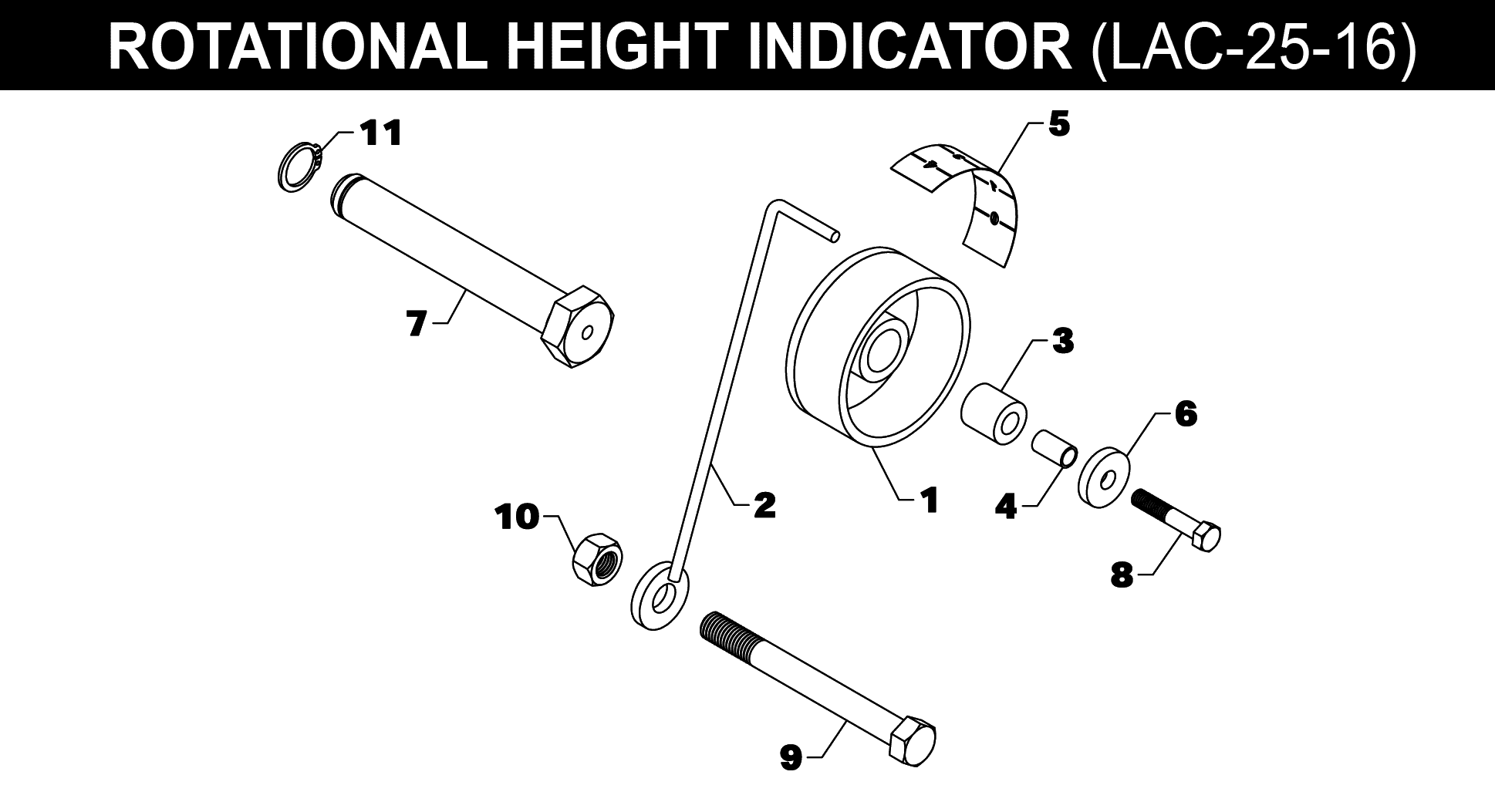

Height Indicator - LAC-25-16 exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	GRD-23AS	HEIGHT INDICATOR	1	—	Call to order
2	GRD-22AS	POINTER	1	—	Call to order
3	BUS-163	BUSHING	1	—	Call to order
4	BUS-164	INSERT BUSHING	1	—	Call to order
5	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
6	MF-47	GAUGE ROD WASHER	1	—	Call to order
7	RAF-141	SELF-LEVELING PIN	1	—	Call to order
8	HHS0616032	BOLT - 3/8 X 2	1	$2.53
9	HHS1011096	BOLT - 5/8 X 6	1	$10.07
10	SR-C08	SNAP RING - EXTERNAL	1	$5.03
11	HTN1011	LOCK NUT - 5/8	1	$5.03

TA-26 & TA-26 PLUS ADD-ON SELF LEVELING

Open on its own page

Click a number on the diagram to find the part.

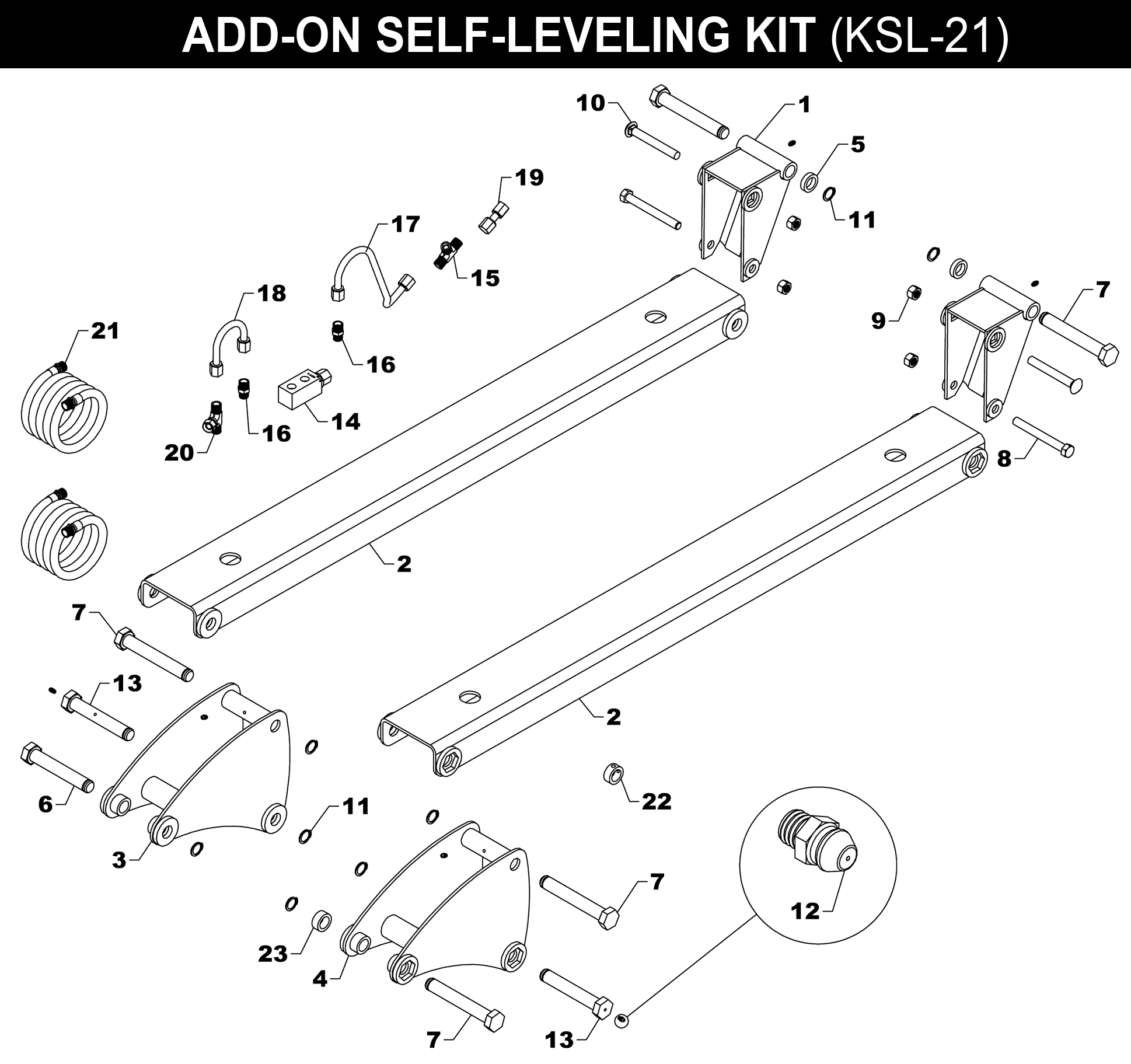

TA-26 & TA-26 PLUS ADD-ON SELF LEVELING exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	RAT-26AS	SELF-LEVELING BRACKET (WELD ON)	2	$120.65
2	RAF-23AS	SELF-LEVELING - TOP LINK	2	$444.96
3	RAF-429AS-R	HINGE PLATE - RIGHT	1	$178.48
4	RAF-429AS-L	HINGE PLATE - LEFT	1	$178.48
5	RAT-30	SPACER BUSHING	2	$5.03
6	RAF-38	PIN-HEX HEAD	1	$38.16
7	RAF-41	PIN-HEX HEAD FOR SELF-LEVELING	5	$42.71
8	HHS1011088	BOLT - 5/8 X 5-1/2	2	$7.54
9	HTN1011	LOCK NUT - 5/8	4	$5.03
10	CBF1011080	CARRIAGE BOLT - 5/8 X 5	2	$15.12
11	SR-C08	SNAP RING - EXTERNAL	8	$5.03
12	ZER1805	GREASE FITTING	6	$2.53
13	RAF-39	PIN-HEX HEAD WITH ZERK	2	$52.80
14	SLV-2A	RELIEF VALVE	1	—	Call to order
15	PF-8-JU-S	MALE TEE FITTING	1	$10.95
16	PF-FMC0608	PIPE FITTING - 1/2 TUBE TO 3/8 NPT	2	$8.02
17	OLT-150	OIL LINE	1	$26.10
18	OLT-654	OIL LINE	1	$50.91
19	OLT-439	OIL LINE	1	$27.63
20	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	1	$75.47
21	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	2	$65.36
22	BUS-105	BUSHING	1	$20.13
23	BF-60	SPACER	1	$7.54
