TA-29 FRAME

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

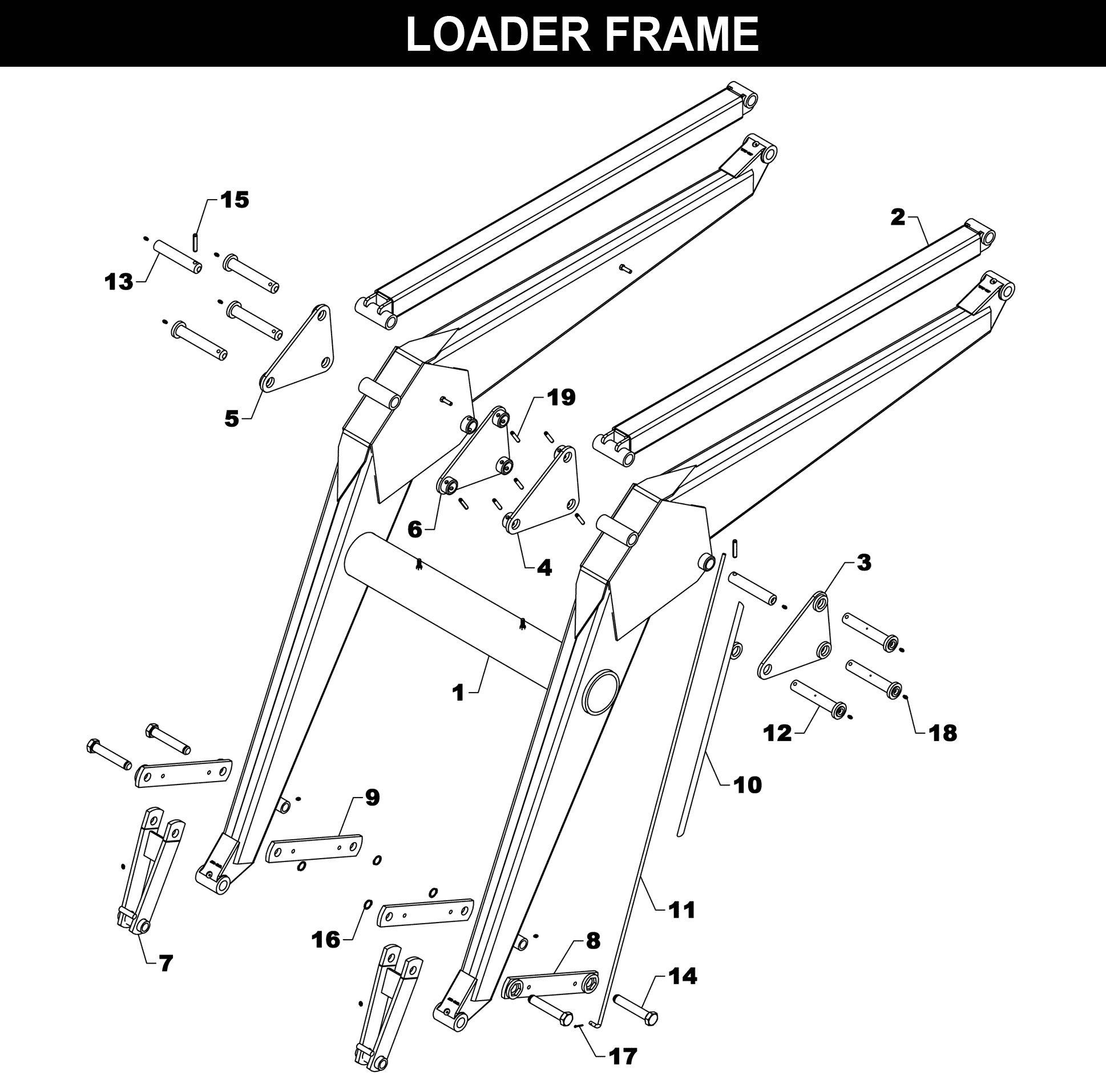

1	RCF-4AS	FRAME (TA-29)	1	$6,900.79
2	RCF-23AS	SELF-LEVELING TUBE	2	$384.61
3	RCF-30AS-L	SELF-LEVELING PLATE-LEFT	1	$88.02
4	RCF-29AS-L	SELF-LEVELING PLATE-LEFT	1	$100.56
5	RCF-30AS-R	SELF-LEVELING PLATE-RIGHT	1	$88.02
6	RCF-29AS-R	SELF-LEVELING PLATE-RIGHT	1	$100.56
7	RAF-15AS	BUCKET PIVOT	2	$105.61
8	RCF-10AS	OUTSIDE BUCKET LINKAGE	2	$148.32
9	RCF-10	BUCKET LINKAGE STRAP	2	$120.65
10	RCF-31AS	GAUGE ROD HOLDER	1	$30.17
11	RCF-47	GAUGE ROD	1	$30.17
12	XAF-55AS	LINKAGE PIN	6	$67.91
13	XAF-54	PIN	2	$54.23
14	RAF-26	HEX HEAD PIN	4	$37.71
15	RLP0700036	ROLL PIN - 7/16	2	$3.31
16	SR-C08	SNAP RING - EXTERNAL	4	$5.03
17	CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77
18	ZER1805	GREASE FITTING	12	$2.53
19	DRP0600032	DOUBLE ROLL PIN	6	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

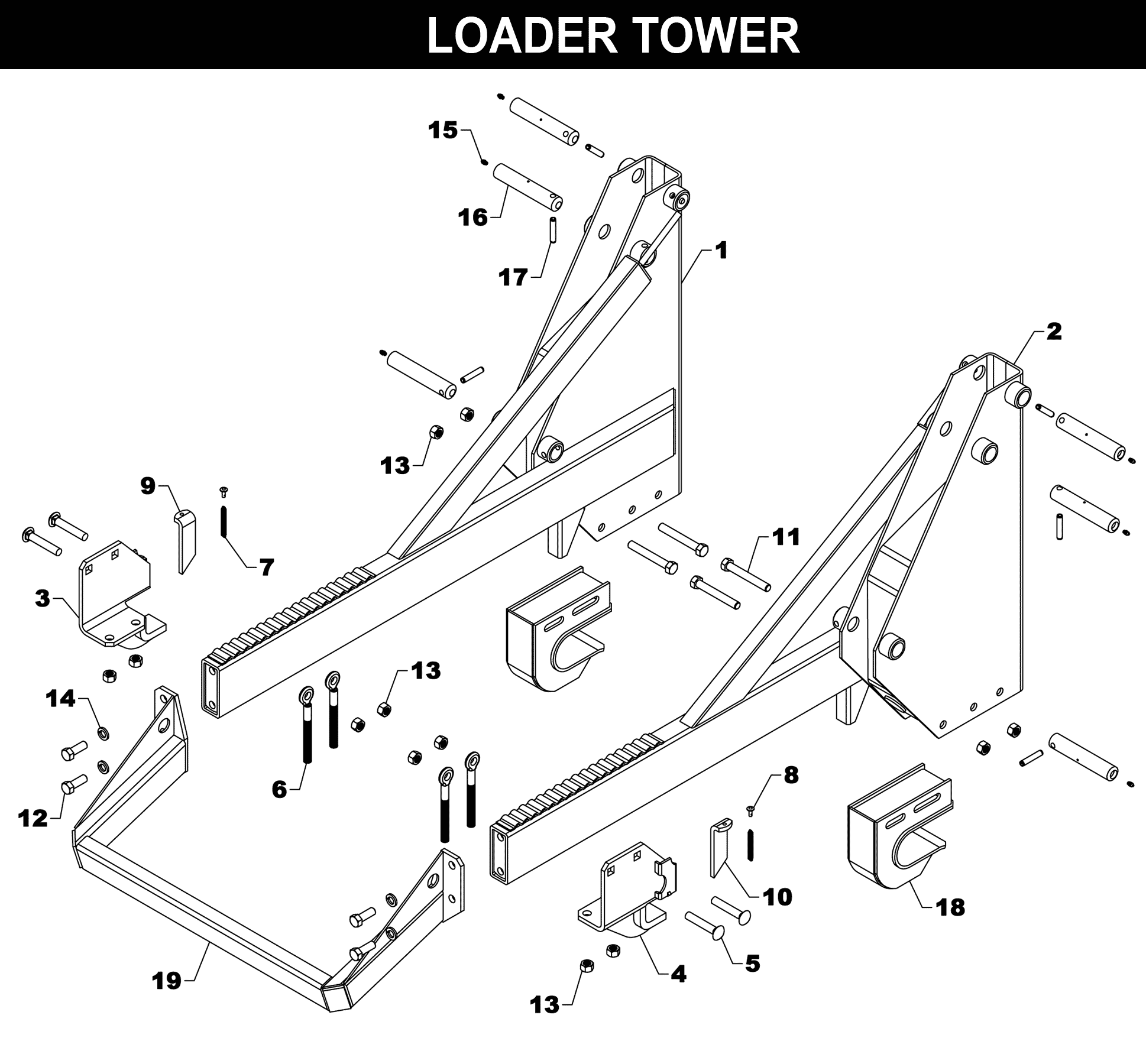

1	RCT-12AS-R	TOWER (TA-29) - RIGHT	1	$2,518.25
2	RCT-12AS-L	TOWER (TA-29) - LEFT	1	$2,518.25
3	NAT-120AS-R	SLIDE LOCK - RIGHT	1	$143.32
4	NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
5	CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	4	$7.54
6	NAT-140	BAR CLAMP BOLT	4	$17.62
7	RLG-51	SPRING	2	$7.54
8	NAT-126	RIVET	2	$2.53
9	NAT-106-R	DROP LOCK - RIGHT	1	$15.12
10	NAT-106-L	DROP LOCK - LEFT	1	$15.12
11	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
12	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
13	HTN1011	LOCK NUT - 5/8	12	$5.03
14	LWM10	LOCK WASHER -5/8	4	$0.77
15	ZER1805	GREASE FITTING	6	$2.53
16	XAF-54	PIN	6	$54.23
17	RLP0700036	ROLL PIN - 7/16	6	$3.31
18	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
19	0H004	FRONT WRAP	1	$666.17
20	GP-2	CANISTER TO STORE MANUAL	1	$44.94
21	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

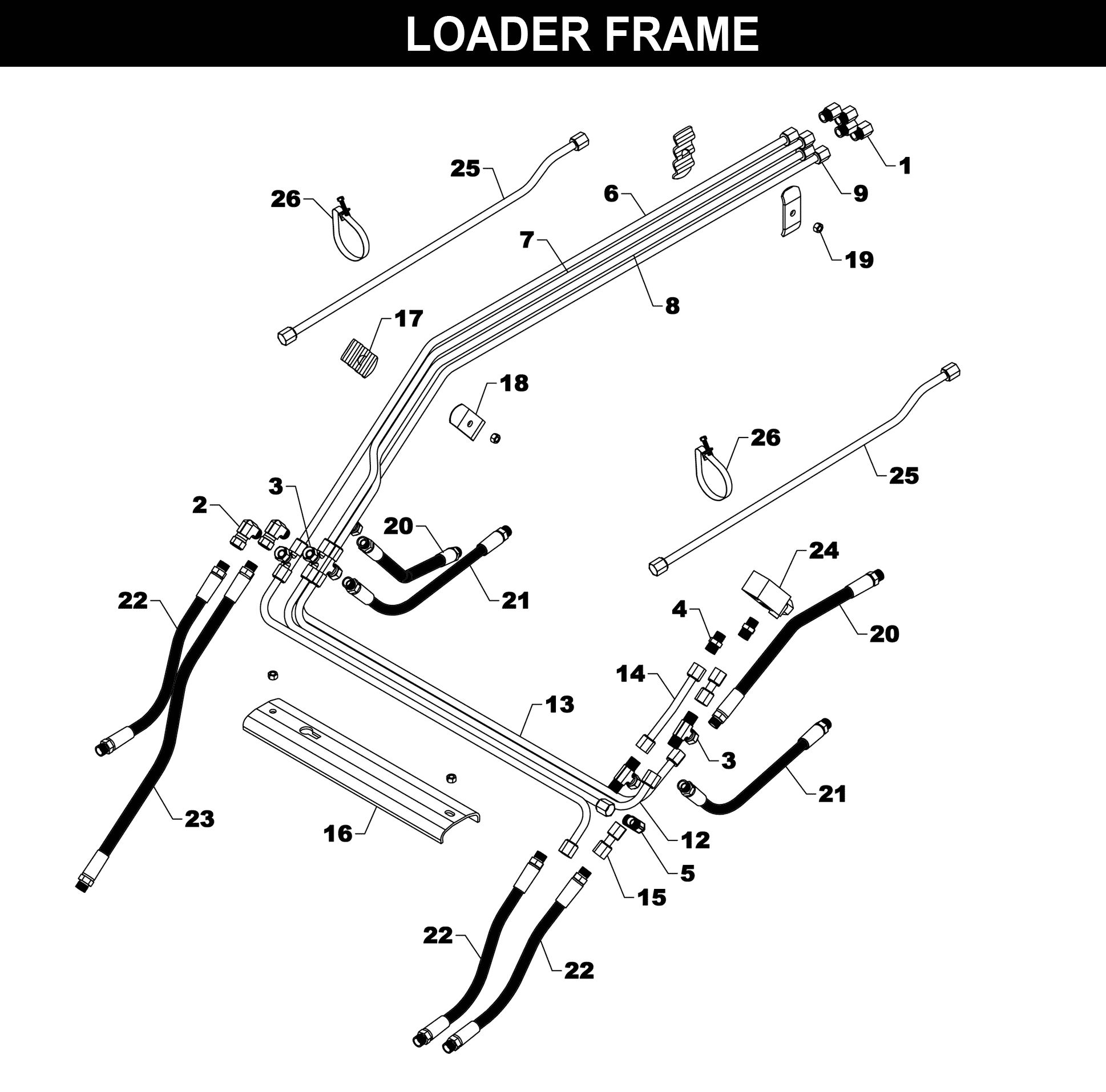

1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	2	$67.91
3	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	6	$75.47
4	PF-FMC0608	PIPE FITTING - 1/2 TUBE TO 3/8 NPT	2	$8.02
5	PF-8-EBU-S	UNION ELBOW	1	$101.25
6	OLT-430	OIL LINE	1	$45.26
7	OLT-431	OIL LINE	1	$65.36
8	OLT-432	OIL LINE	1	$60.33
9	OLT-433	OIL LINE	1	$45.26
10	OLT-434	OIL LINE	1	$50.27
11	OLT-435	OIL LINE	1	$42.71
12	OLT-436	OIL LINE	1	$50.27
13	OLT-437	OIL LINE	1	$50.27
14	OLT-438	OIL LINE	1	$40.16
15	OLT-439	OIL LINE	2	$27.63
16	OH-9	OIL LINE PROTECTOR	1	$50.19
17	OH-14	OIL LINE PROTECTOR	2	$8.03
18	OH-3	OIL LINE PROTECTOR	2	$12.58
19	HTN0616	LOCK NUT - 3/8	4	$2.53
20	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	2	$47.82
21	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	2	$50.22
22	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	3	$65.36
23	H06040-FF	HYDRAULIC HOSE - 3/8 X 40	1	$88.02
24	SLV-2	VALVE - SELF-LEVELING	1	$274.00
25	OLT-440	OIL LINE	2	$47.82
26	BAND-12	METAL BAND	2	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

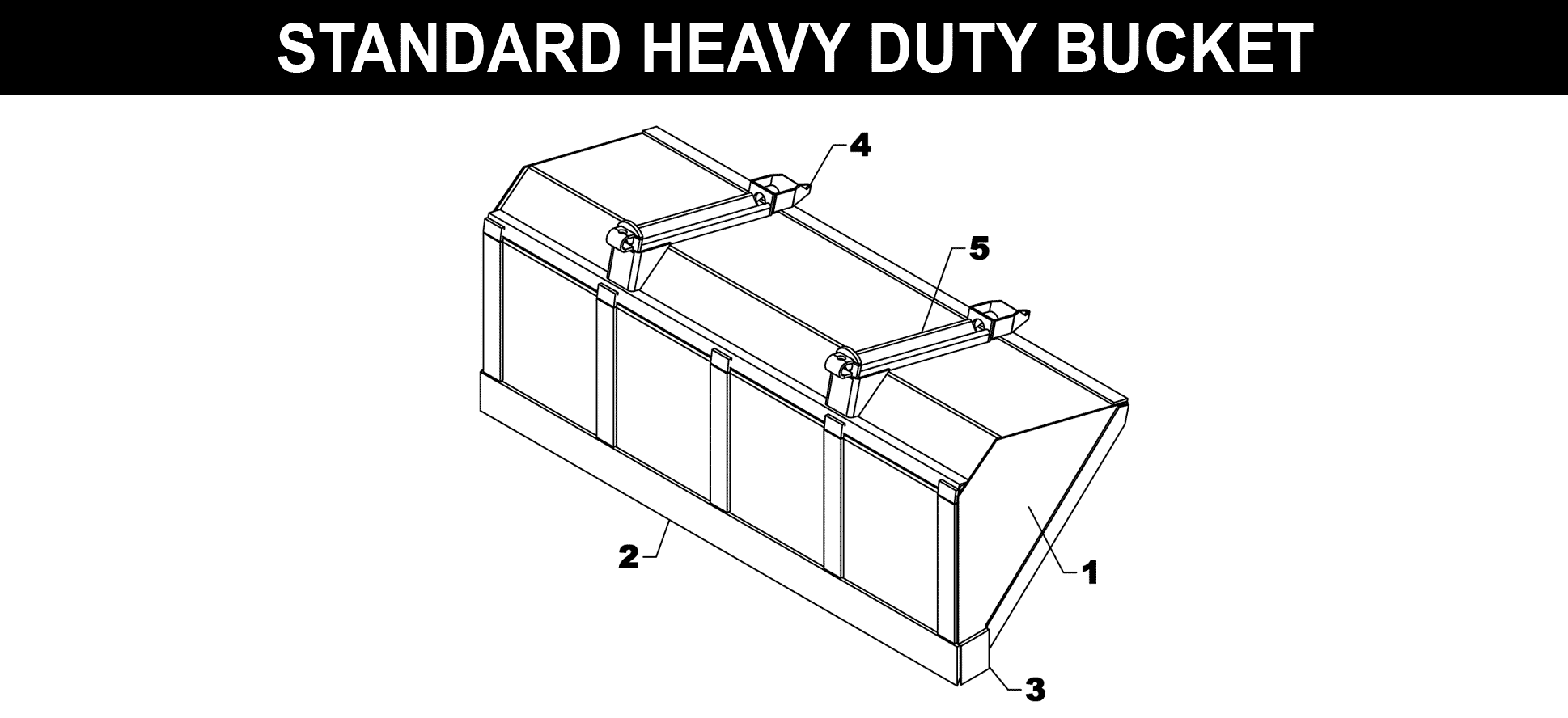

1	84Q216	BUCKET-84 WITH SNAP-ATTACH ADAPTERS	1	$2,176.65
1	84Q225	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,377.42
1	90Q225	BUCKET-90LARGE CAPACITY WITH SNAP-ATTACH	1	$2,501.80
1	96Q229	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39
5	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
