420L-440L FRAME

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	RZF-304AS	FRAME (420L)	1	—	Call to order
1	RZF-404AS	FRAME (440L)	1	—	Call to order
2	RZF-110	BUCKET LINKAGE	2	$82.29
3	RZF-110AS-R	BUCKET LINKAGE (RIGHT)	1	$92.05
4	RZF-110AS-L	BUCKET LINKAGE (LEFT)	1	$92.05
5	RZF-315AS	BUCKET LINKAGE STRAP	2	—	Call to order
6	XCF-47AS	CROSS PIPE CAP	2	$57.84
7	RAF-26	HEX HEAD PIN	10	$37.71
8	BUS-284	BUSHING - INSERT	6	—	Call to order
9	ZER1805	GREASE FITTING	6	$2.53
10	SR-C08	SNAP RING - EXTERNAL	10	$5.03
11	RAF-100	PIN - DISMOUNT	1	$20.45
12	LAC-15-32	ROTATIONAL BUCKET INDICATOR	1	$123.15
13	LMF-17	HEAD FOR PIN - 1	4	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RZT-11AS-R	OUTSIDE TOWER UPRIGHT (MAX) - RIGHT	1	$296.49
2	RZT-11AS-L	OUTSIDE TOWER UPRIGHT (MAX) - LEFT	1	$296.49
3	RZT-12AS-R	INSIDE TOWER UPRIGHT (MAX) - RIGHT	1	$296.49
4	RZT-12AS-L	INSIDE TOWER UPRIGHT (MAX) - LEFT	1	$296.49
5	RZT-25AS	SMART-LOCK	2	$135.73
6	RZT-27	FLIPPER	2	$5.23
7	RZT-29	BUSHING	2	$1.05
8	RZT-30	WASHER	2	$4.16
9	RZF-226	WASHER	2	$2.44
10	RZF-227	PIN LOCK	4	$2.53
11	FMF-254	LINKAGE PIN	4	$111.89
12	SR-B10	WIRE RING - 1-3/8	4	$3.13
13	SR-C48	SNAP RING - 3 DIA.	4	$15.67
14	HHS0616016	BOLT - 3/8 X 1	4	$2.53
15	HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
16	LWM06	LOCK WASHER - 3/8	4	$0.37
17	HTN0616	LOCK NUT - 3/8	2	$2.53
18	ZER1805	GREASE FITTING	4	$2.53
19	FMF-254 KIT-1	PIN KIT - (FM/MAX)	1	$114.67

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	GRD-364	SLIDE BLOCK	1	—	Call to order
2	GRD-360	GAUGE ROD	1	—	Call to order
3	GRD-363	ROD	1	—	Call to order
4	GRD-361	GAUGE ROD POINTER	1	—	Call to order
5	HHS0616024	BOLT - 3/8 X 1-1/2	1	$2.53
6	FWW06	FLAT WASHER - 3/8	1	$0.95
7	HFN0616	HEX NUT - 3/8	1	$0.67
8	HTN0616	LOCK NUT - 3/8	3	$2.53
9	AHS0420008	SET SCREW - 1/4 X 1/2	2	—	Call to order
10	FSS0616028	FLAT HEAD ALLEN SCREW - 3/8 X 1-3/4	1	—	Call to order
11	FSS0616024	FLAT HEAD ALLEN SCREW - 3/8 X 1-1/2	1	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	2	$75.47
3	PF-8-JU-S	MALE TEE FITTING	2	$10.95
4	OLT-740	OIL LINE	1	—	Call to order
5	OLT-741	OIL LINE	1	$67.91
6	OLT-749	OIL LINE	1	—	Call to order
7	OLT-750	OIL LINE	1	$111.16
8	OLT-751	OIL LINE	1	—	Call to order
9	OLT-752	OIL LINE	1	—	Call to order
10	OLT-746	OIL LINE	1	—	Call to order
11	OLT-747	OIL LINE	1	—	Call to order
12	OLT-748	OIL LINE	1	—	Call to order
13	OLT-753	OIL LINE	1	—	Call to order
14	OH-33	OIL LINE HOLDER	1	—	Call to order
15	OH-34	OIL LINE HOLDER	1	$12.58
16	OH-35	OIL LINE HOLDER	3	$12.58
17	OH-36	OIL LINE HOLDER	1	—	Call to order
18	EC-M21	SELF-TAPPING SCREW - 1-1/4	8	—	Call to order
19	BAND-15	METAL BAND	2	$5.03
20	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	6	$47.82
21	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	2	$50.22
22	HK-122	HOSE KIT	1	$177.10

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	72Q217	BUCKET-72 WITH SNAP-ATTACH - FOR MAX	1	$1,910.11
1	84Q220	BUCKET-84 WITH SNAP-ATTACH - FOR MAX	1	$2,245.97
1	84Q420	BUCKET-84 WITH SNAP-ATTACH - FOR MAX	1	$2,245.97
1	90Q225M	BUCKET-90 LARGE CAPACITY WITH SNAP-ATTACH - FOR MAX	1	$2,501.80
1	90Q425M	BUCKET-90 LARGE CAPACITY WITH SNAP-ATTACH - FOR MAX	1	$2,503.57
2	JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53

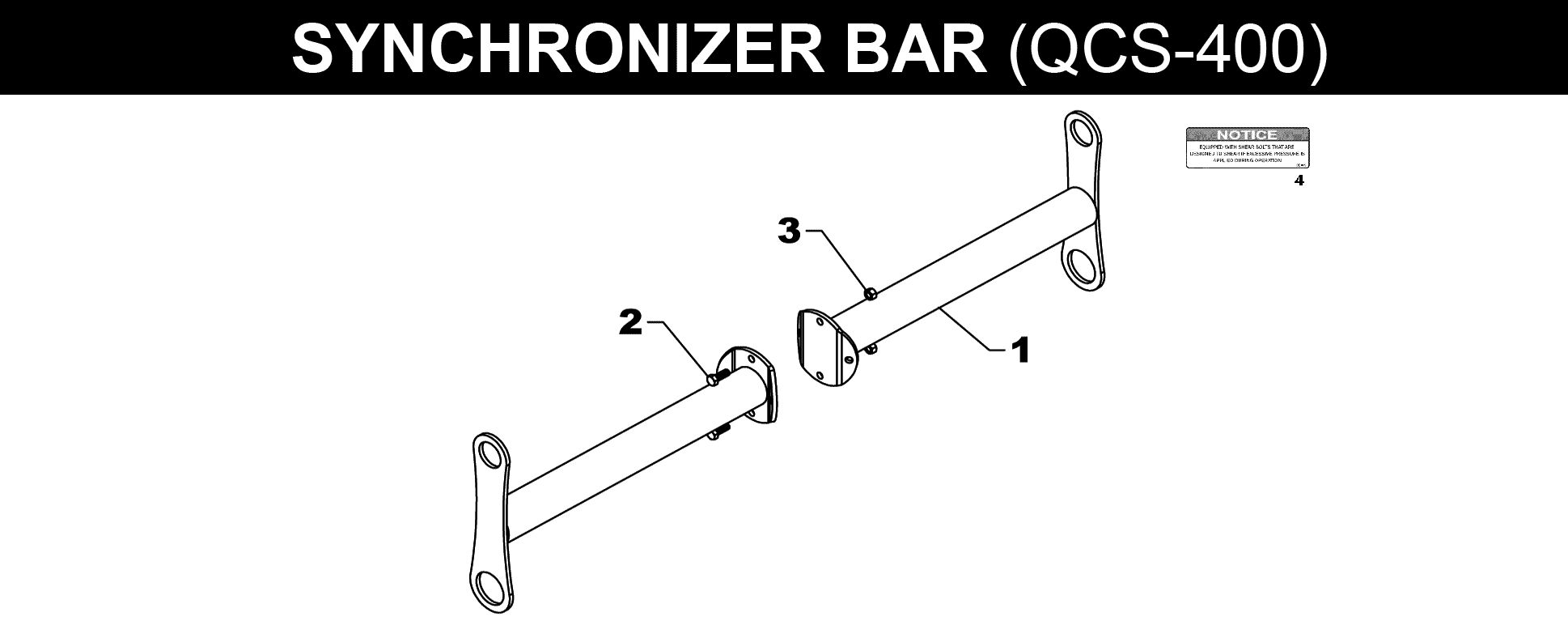

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	QC-4052AS	SYNCHRONIZER BAR (ONE SIDE FOR 40 SERIES)	2	$97.93
2	HHS0616016	BOLT - 3/8 X 1	2	$2.53
3	HTN0616	LOCK NUT - 3/8	2	$2.53
4	DE-QCS	NOTICE - Synchronizer Bar	1	—	Call to order
