ta-45

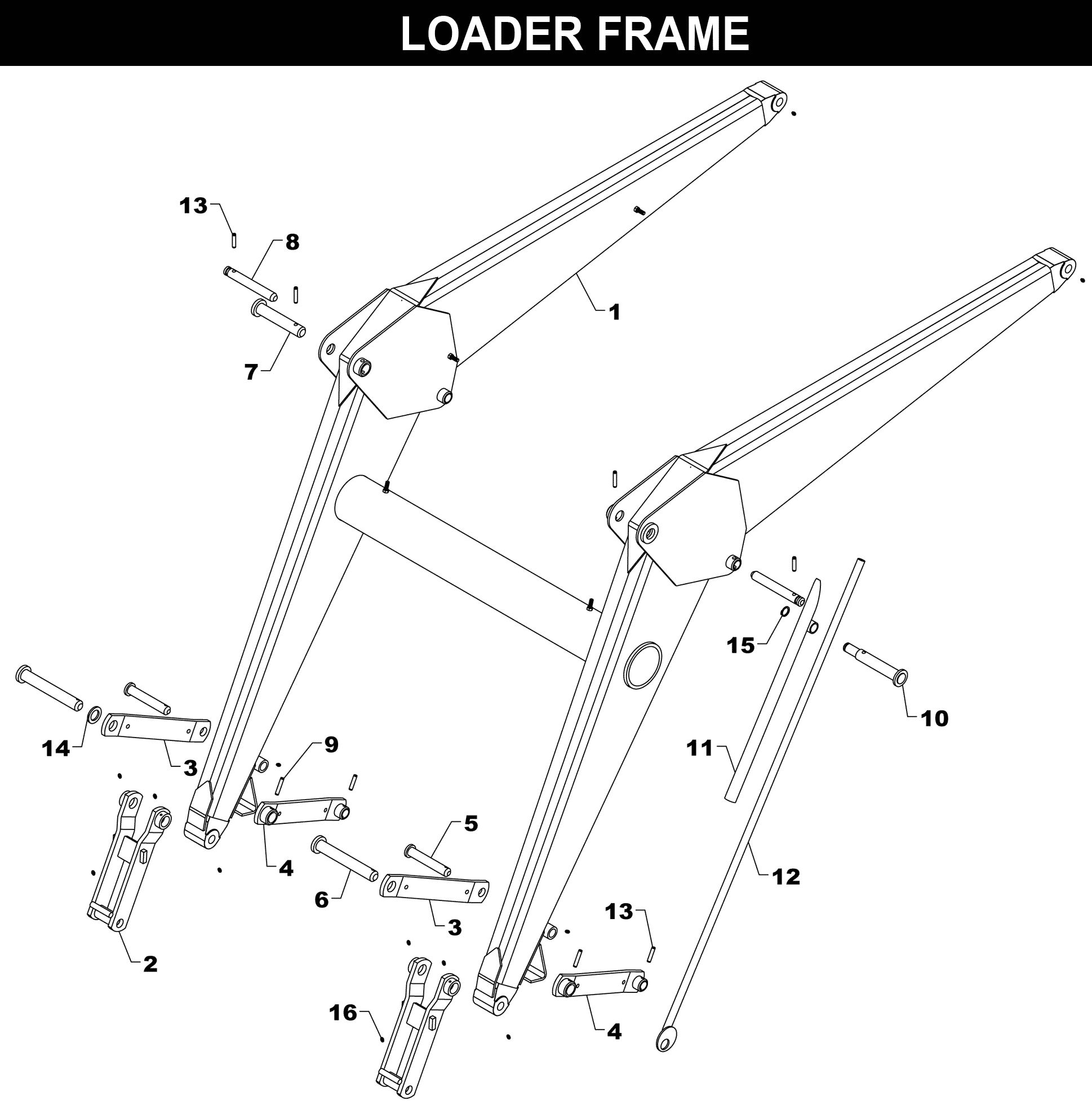

TA-45 FRAME

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	NCF-4AS	FRAME	1	$7,504.15
2	NAF-15AS	LINKAGE CONNECTOR	2	$115.64
3	NAF-10	OUTSIDE BUCKET PIVOT	2	$50.20
4	NAF-10AS	BUCKET PIVOT ASSEMBLY	2	$67.91
5	LMF-28AS	PIVOT PIN	2	$27.63
6	LMF-125AS	ROUND HEAD PIN	2	$57.84
7	NAF-56AS	PIN - ROUND HEAD	1	$60.33
8	LF-82	LIFT PIN	2	$24.08
9	DRP0600032	DOUBLE ROLL PIN	4	$2.53
10	NAF-57AS	PIN - GAUGE ROD ROUND HEAD	1	$82.95
11	LMF-31AS	GAUGE ROD HOLDER	1	$42.71
12	LMF-47AS	GAUGE ROD	1	$42.71
13	DRP0600028	DOUBLE ROLL PIN	4	$2.53
14	NAF-217	SPACER WASHER	1	$1.31
15	SR-C08	SNAP RING - EXTERNAL	1	$5.03
16	ZER1805	GREASE FITTING	12	$2.53

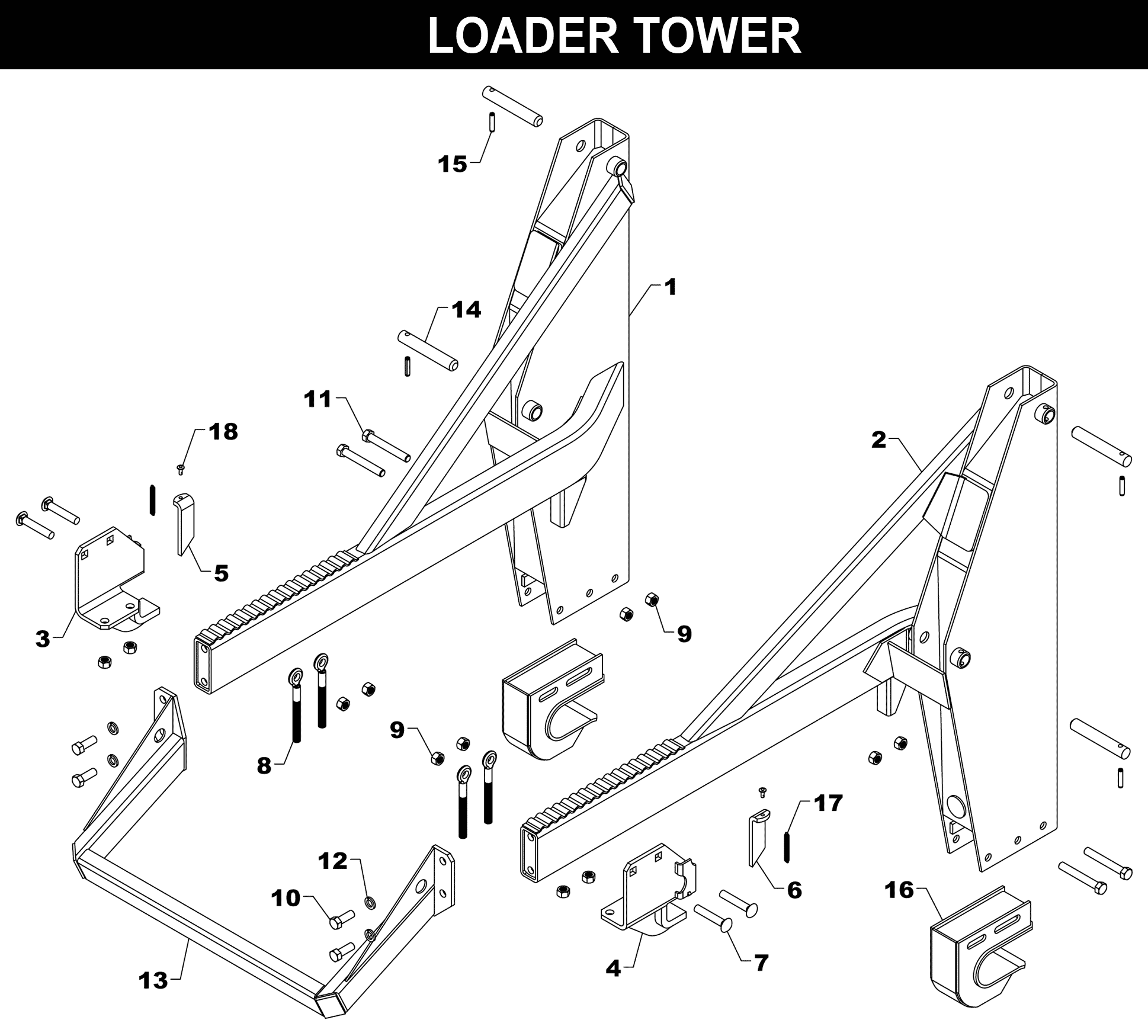

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	NCT-12AS-R	TOWER - RIGHT	1	$2,506.42
2	NCT-12AS-L	TOWER - LEFT	1	$2,506.42
3	NAT-120COM-R	SLIDE LOCK - RIGHT KIT WITH HARDWARE	1	$291.64
4	NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
5	NAT-106-R	DROP LOCK - RIGHT	1	$15.12
6	NAT-106-L	DROP LOCK - LEFT	1	$15.12
7	CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	4	$7.54
8	NAT-140	BAR CLAMP BOLT	4	$17.62
9	HTN1011	LOCK NUT - 5/8	12	$5.03
10	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
11	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
12	LWM10	LOCK WASHER -5/8	4	$0.77
13	0H032	FRONT WRAP	1	$666.17
14	JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	4	$18.57
15	DRP0600028	DOUBLE ROLL PIN	4	$2.53
16	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
17	RLG-51	SPRING	2	$7.54
18	NAT-126	RIVET	2	$2.53

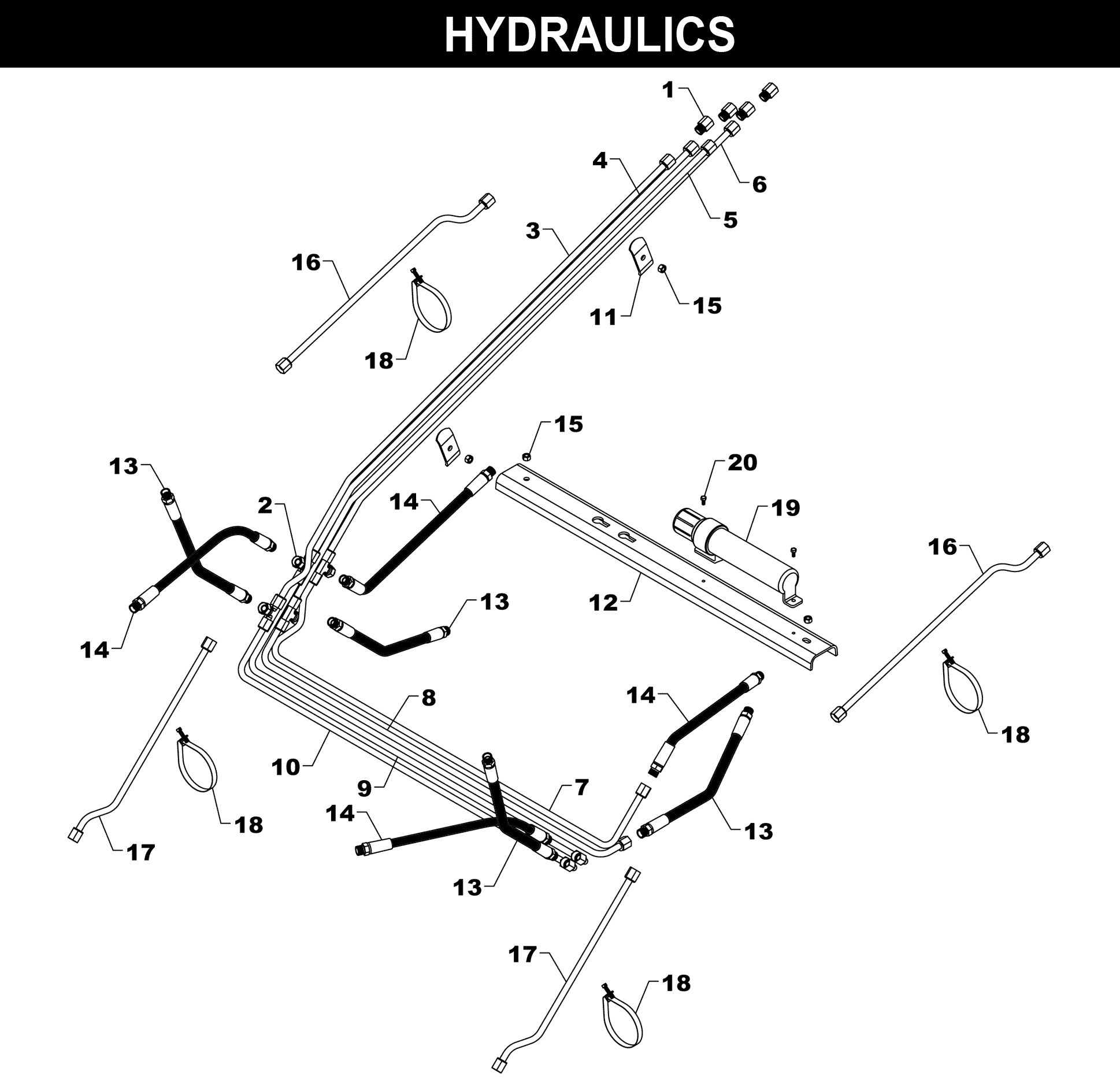

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	OLT-32	OIL LINE	1	$35.23
4	OLT-33	OIL LINE	1	$25.13
5	OLT-34	OIL LINE	1	$27.63
6	OLT-35	OIL LINE	1	$27.63
7	OLT-36	OIL LINE	1	$42.71
8	OLT-37	OIL LINE	1	$32.68
9	OLT-38	OIL LINE	1	$35.23
10	OLT-39	OIL LINE	1	$32.68
11	OH-3	OIL LINE PROTECTOR	2	$12.58
12	OH-1	OIL LINE PROTECTOR	1	$105.61
13	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	4	$47.82
14	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	4	$50.22
15	HTN0616	LOCK NUT - 3/8	4	$2.53
16	OLT-1	OIL LINE	2	$19.77
17	OLT-143	OIL LINE	2	$27.63
18	BAND-15	METAL BAND	4	$5.03
19	GP-2	CANISTER TO STORE MANUAL	1	$44.94
20	EC-M03	SELF-TAPPING SCREW	2	$1.56

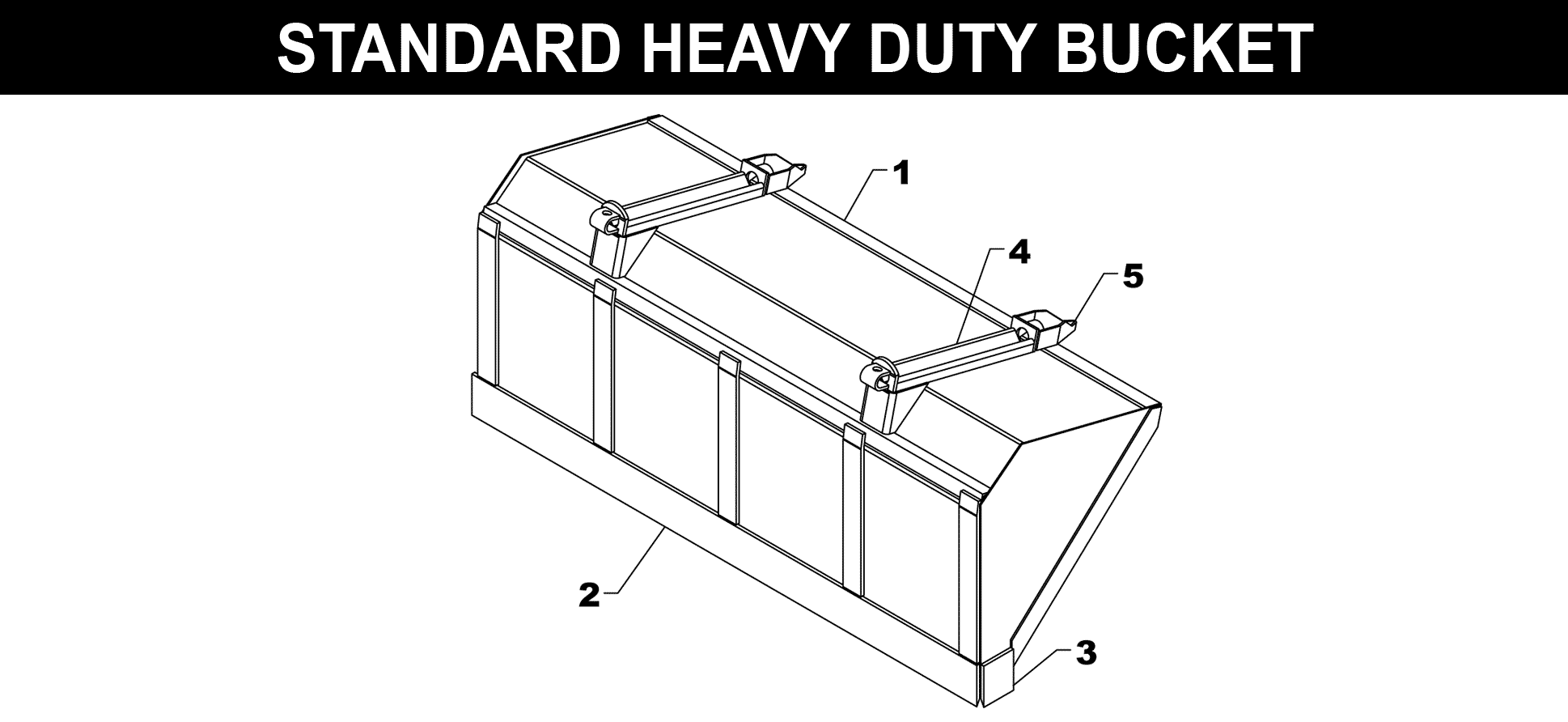

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	90Q425	BUCKET-90 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,503.57
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22B	GRAB FORK-TIE DOWN BRACKET	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
