TA-48 FRAME

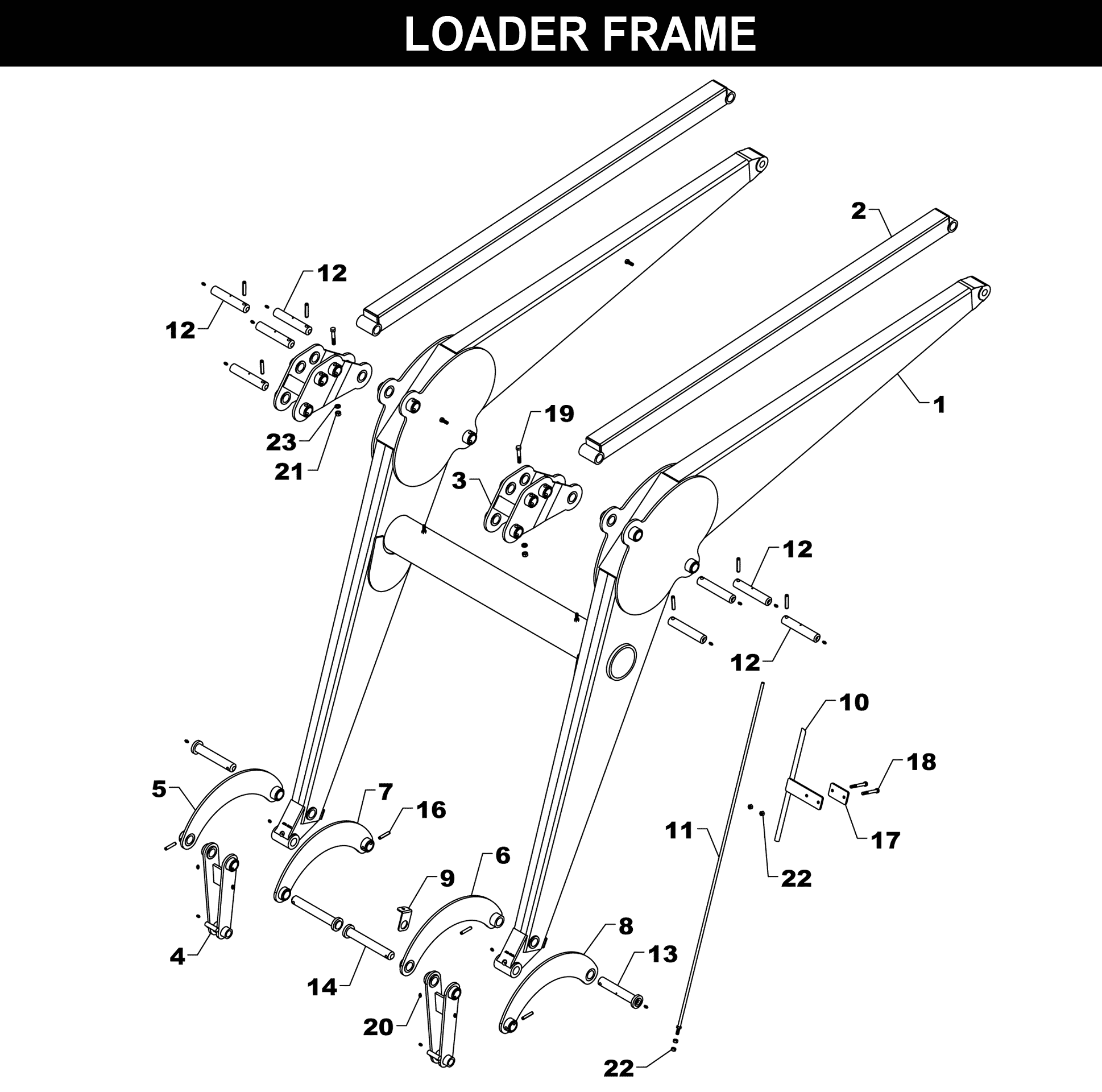

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	NDF-4AS	FRAME	1	$7,504.15
2	NDF-23AS	SELF-LEVELING TUBE	2	$643.55
3	NDF-29AS	HINGE PLATE	2	$401.55
4	NDF-15AS	LINNKAGE CONNECTOR	2	$153.38
5	NDF-10AS-R	OUTSIDE LINKAGE - RIGHT	1	$251.42
6	NDF-11AS-R	INSIDE LINKAGE - RIGHT	1	$261.46
7	NDF-11AS-L	INSIDE LINKAGE - LEFT	1	$261.46
8	NDF-10AS-L	OUTSIDE LINKAGE - LEFT	1	$251.42
9	NDF-16	GAUGE ROD END	1	—	Call to order
10	NDF-31AS	GUAGE ROD HOLDER	1	$50.27
11	NDF-47AS	GAUGE ROD	1	$52.80
12	XAF-54	PIN	8	$54.23
13	XAF-55AS	LINKAGE PIN	2	$67.91
14	LMF-125AS	ROUND HEAD PIN	2	$57.84
15	RLP0700036	ROLL PIN - 7/16	6	$3.31
16	DRP0600032	DOUBLE ROLL PIN	4	$2.53
17	NDF-50	CLAMP PLATE	1	—	Call to order
18	HHS0616048	BOLT -3/8 X 3	2	$5.03
19	HHS0714040	BOLT - 7/16 X 2-1/2	2	$3.01
20	ZER1805	GREASE FITTING	18	$2.53
21	HFN0714	NUT - 7/16	2	—	Call to order
22	HTN0616	LOCK NUT - 3/8	4	$2.53
23	LWM07	LOCK WASHER - 7/16	2	$0.37

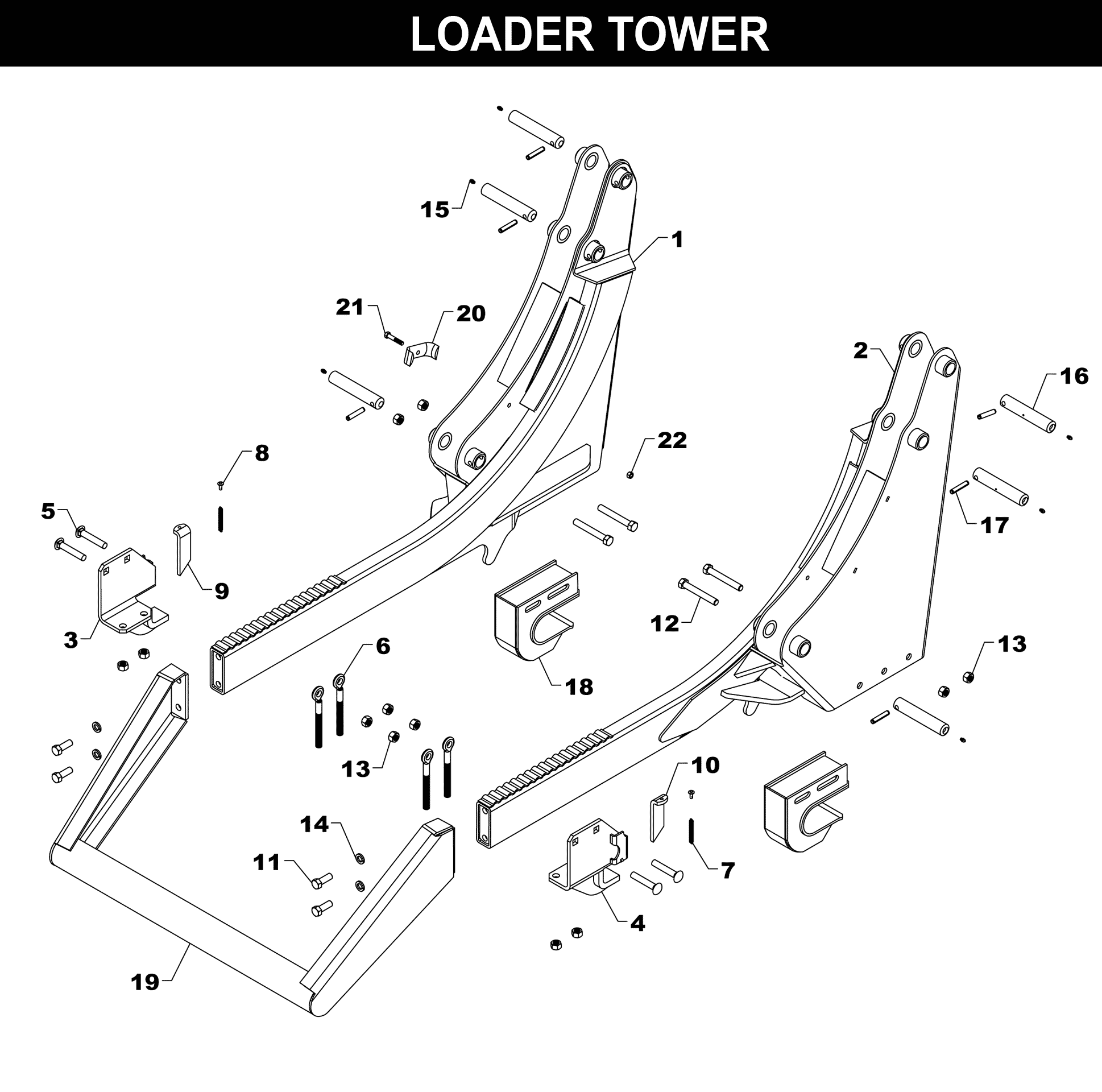

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	NDT-12AS-R	TA-48 TOWER - RIGHT	1	$2,031.86
2	NDT-12AS-L	TA-48 TOWER - LEFT	1	$2,031.86
3	NAT-120COM-R	SLIDE LOCK - RIGHT KIT WITH HARDWARE	1	$291.64
3	NAT-120AS-R	SLIDE LOCK - RIGHT	1	$143.32
4	NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
4	NAT-120COM-L	SLIDE LOCK - LEFT KIT WITH HARDWARE	1	$291.64
5	CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	4	$7.54
6	NAT-140	BAR CLAMP BOLT	4	$17.62
7	RLG-51	SPRING	2	$7.54
8	NAT-126	RIVET	2	$2.53
9	NAT-106-R	DROP LOCK - RIGHT	1	$15.12
10	NAT-106-L	DROP LOCK - LEFT	1	$15.12
11	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
12	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
13	HTN1011	LOCK NUT - 5/8	12	$5.03
14	LWM10	LOCK WASHER -5/8	4	$0.77
15	ZER1805	GREASE FITTING	6	$2.53
16	XAF-54	PIN	6	$54.23
17	RLP0700036	ROLL PIN - 7/16	6	$3.31
18	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
19	0H010	FRONT WRAP	1	$666.18
20	OH-19	OIL LINE PROTECTOR	1	$20.13
21	HHS0616032	BOLT - 3/8 X 2	1	$2.53
22	HTN0616	LOCK NUT - 3/8	1	$2.53

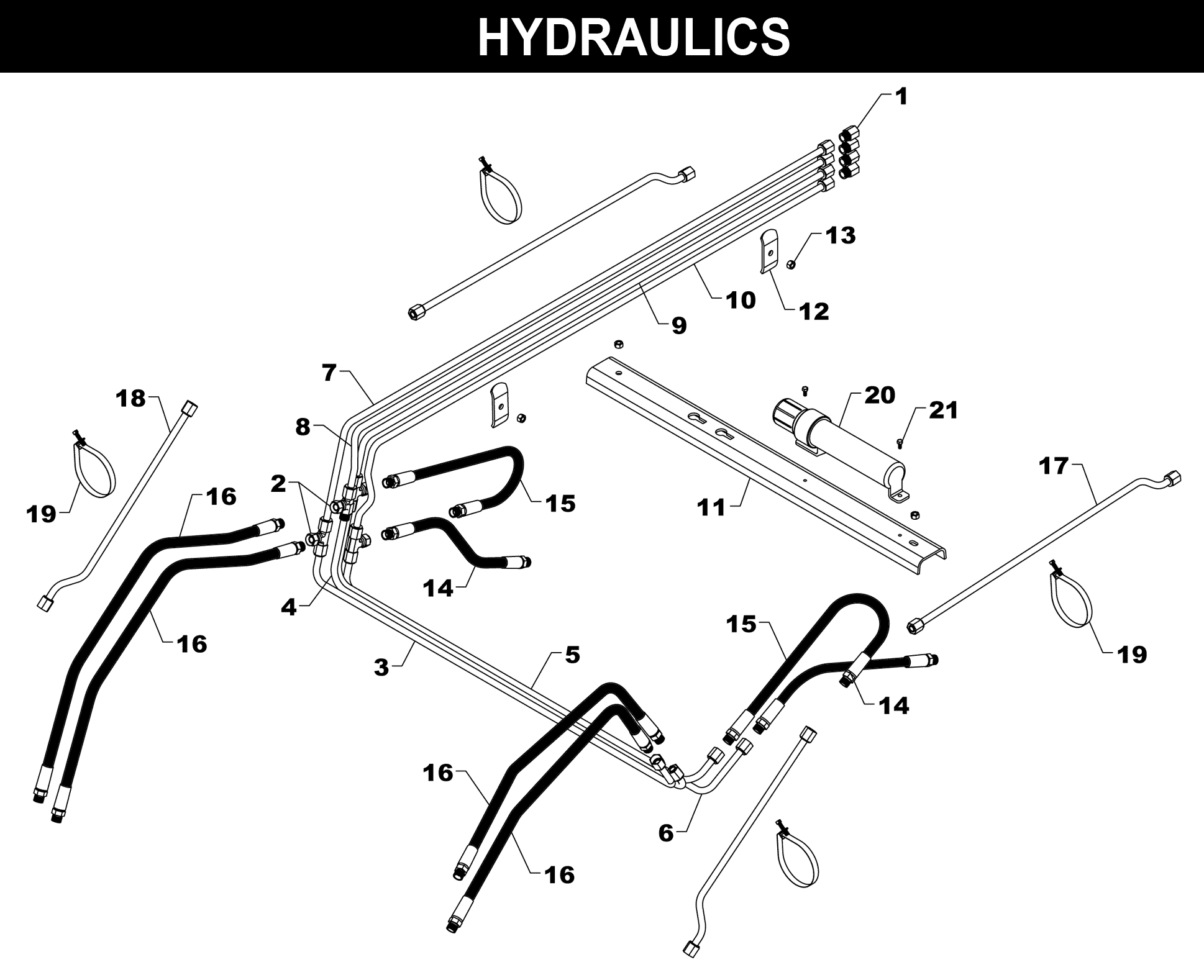

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	OLT-473	OIL LINE	1	$37.70
4	OLT-142	OIL LINE	1	$37.70
5	OLT-141	OIL LINE	1	$37.70
6	OLT-474	OIL LINE	1	$37.70
7	OLT-469	OIL LINE	1	$47.82
8	OLT-470	OIL LINE	1	$55.35
9	OLT-471	OIL LINE	1	$45.26
10	OLT-472	OIL LINE	1	$65.36
11	OH-1	OIL LINE PROTECTOR	1	$105.61
12	OH-3	OIL LINE PROTECTOR	2	$12.58
13	HTN0616	LOCK NUT - 3/8	4	$2.53
14	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	2	$50.22
15	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	2	$65.36
16	H06040-FF	HYDRAULIC HOSE - 3/8 X 40	4	$88.02
17	OLT-2	OIL LINE	2	$22.62
18	OLT-143	OIL LINE	2	$27.63
19	BAND-15	METAL BAND	4	$5.03
20	GP-2	CANISTER TO STORE MANUAL	1	$44.94
21	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	90Q425	BUCKET-90 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,503.57
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22B	GRAB FORK-TIE DOWN BRACKET	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
