TA-28 PLUS FRAME

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy

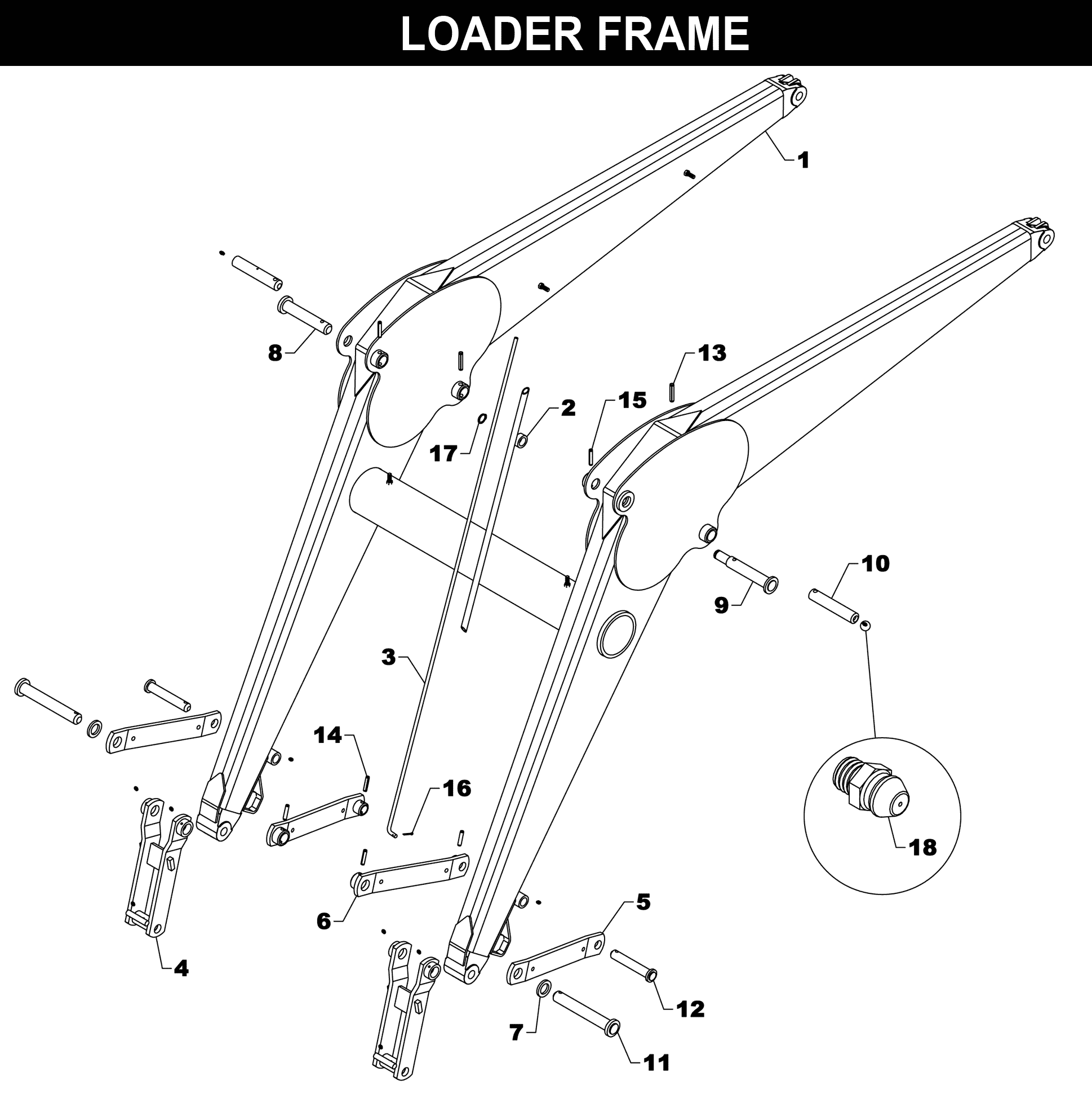

1	RDF-4AS	FRAME (TA-28 PLUS)	1	—	Call to order
2	RAF-66AS	GAUGE ROD HOLDER	1	$22.62

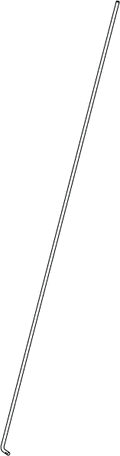

3	RCF-47	GAUGE ROD	1	$30.17
4	NAF-15AS	LINKAGE CONNECTOR	2	$115.64
5	NAF-10	OUTSIDE BUCKET PIVOT	2	$50.20
6	NAF-10AS	BUCKET PIVOT ASSEMBLY	2	$67.91
7	NAF-217	SPACER WASHER	2	$1.31
8	NAF-56AS	PIN - ROUND HEAD	1	$60.33
9	NAF-57AS	PIN - GAUGE ROD ROUND HEAD	1	$82.95
10	XAF-54	PIN	2	$54.23
11	LMF-125AS	ROUND HEAD PIN	2	$57.84
12	LMF-28AS	PIVOT PIN	2	$27.63
13	RLP0700036	ROLL PIN - 7/16	2	$3.31
14	DRP0600028	DOUBLE ROLL PIN	4	$2.53
15	DRP0600032	DOUBLE ROLL PIN	2	$2.53
16	CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77
17	SR-C08	SNAP RING - EXTERNAL	1	$5.03
18	ZER1805	GREASE FITTING	10	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

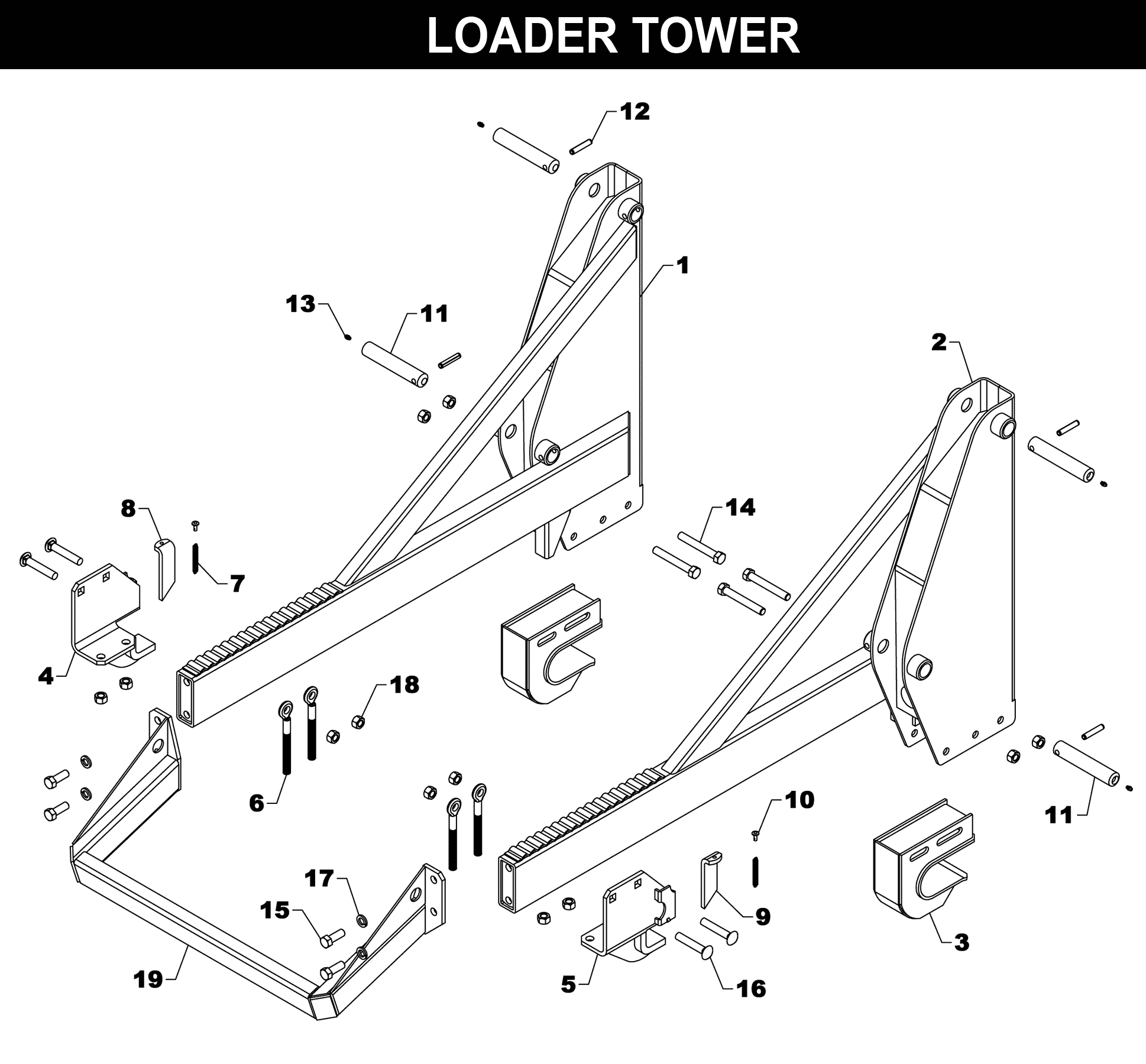

1	RDT-12AS-R	TOWER - RIGHT (TA-28 PLUS)	1	$1,957.58
2	RDT-12AS-L	TOWER - LEFT (TA-28 PLUS)	1	$1,957.58
3	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
4	NAT-120AS-R	SLIDE LOCK - RIGHT	1	$143.32
5	NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
6	NAT-140	BAR CLAMP BOLT	4	$17.62
7	RLG-51	SPRING	2	$7.54

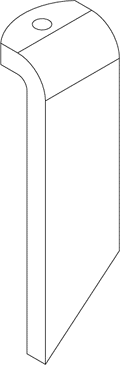

8	NAT-106-R	DROP LOCK - RIGHT	1	$15.12
9	NAT-106-L	DROP LOCK - LEFT	1	$15.12
10	NAT-126	RIVET	2	$2.53
11	XAF-54	PIN	4	$54.23
12	RLP0700036	ROLL PIN - 7/16	4	$3.31
13	ZER1805	GREASE FITTING	4	$2.53
14	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
15	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
16	CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	4	$7.54
17	LWM10	LOCK WASHER -5/8	4	$0.77
18	HTN1011	LOCK NUT - 5/8	12	$5.03
19	0H004	FRONT WRAP	1	$666.17
20	GP-2	CANISTER TO STORE MANUAL	1	$44.94
21	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

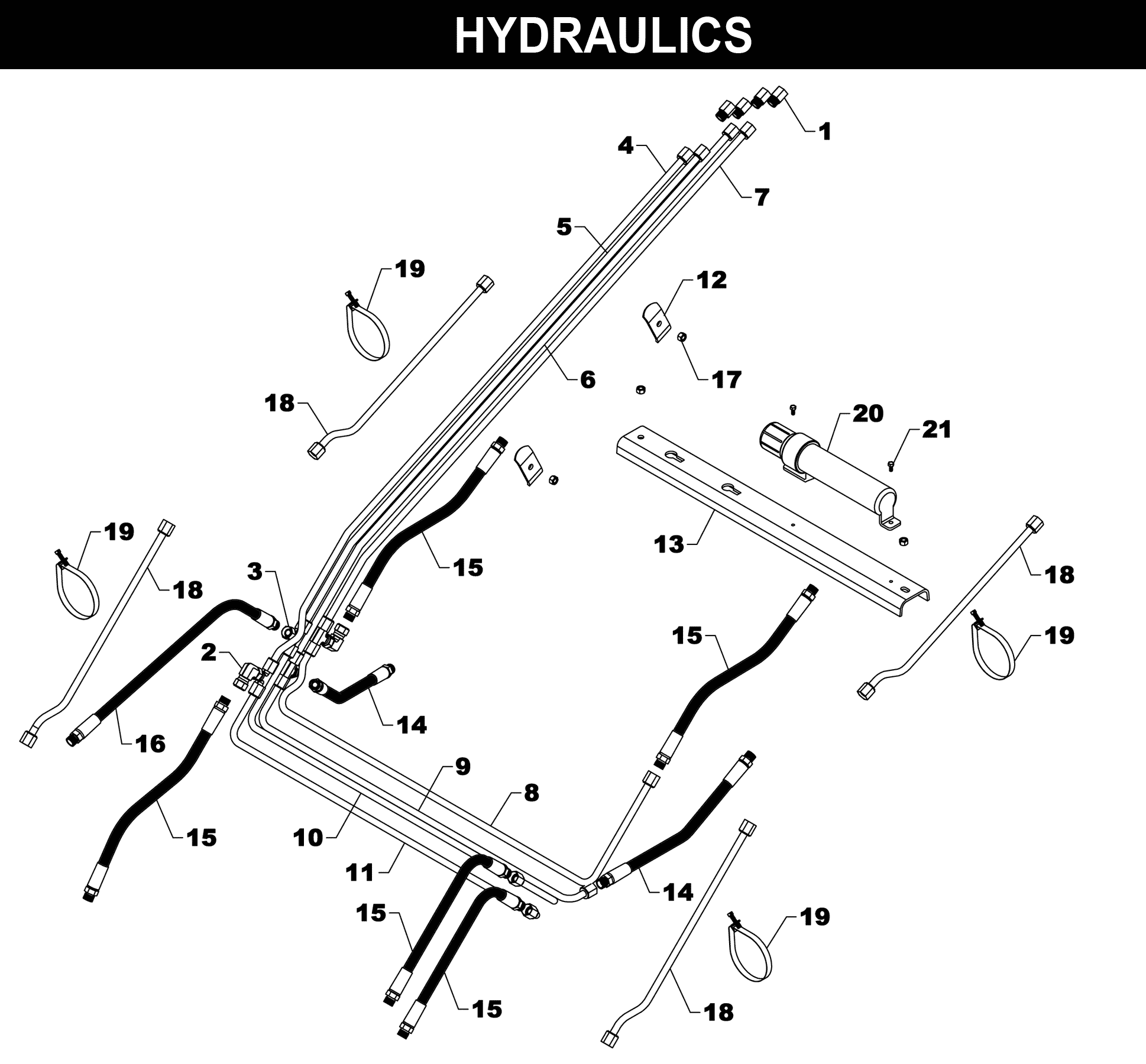

1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	2	$67.91
3	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
4	OLT-14	OIL LINE	1	$27.63
5	OLT-15	OIL LINE	1	$25.13
6	OLT-16	OIL LINE	1	$25.13
7	OLT-17	OIL LINE	1	$25.13
8	OLT-190	OIL LINE	1	$50.27
9	OLT-191	OIL LINE	1	$35.23
10	OLT-192	OIL LINE	1	$30.17
11	OLT-193	OIL LINE	1	$27.63
12	OH-3	OIL LINE PROTECTOR	2	$12.58
13	OH-2	OIL LINE HOLDER	1	$85.49
14	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	2	$47.82
15	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	5	$50.22
16	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	1	$65.36
17	HTN0616	LOCK NUT - 3/8	4	$2.53
18	OLT-143	OIL LINE	4	$27.63
19	BAND-15	METAL BAND	4	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price

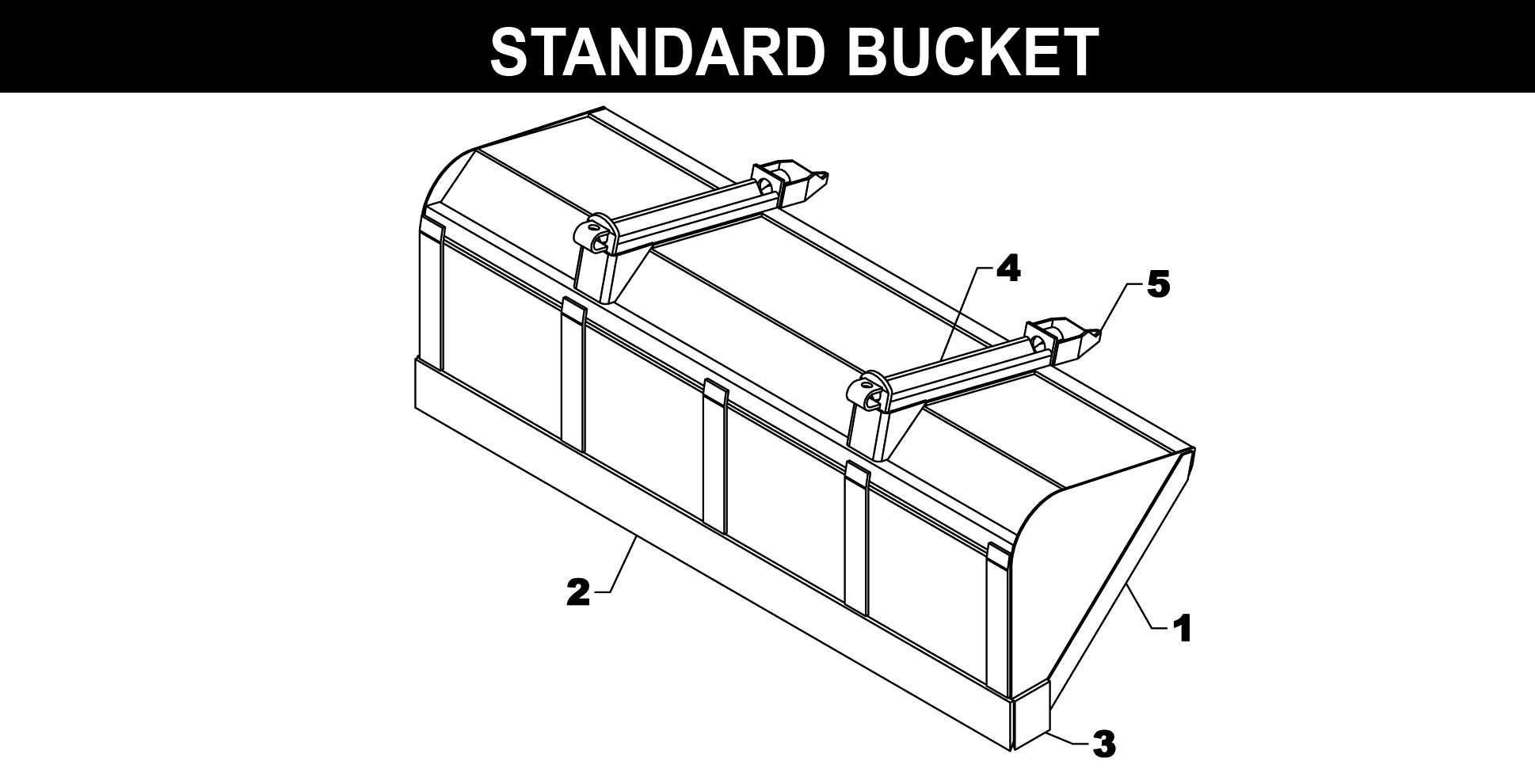

1	84Q216	BUCKET-84 WITH SNAP-ATTACH ADAPTERS	1	$2,176.65
1	84Q225	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,377.42
1	84Q225	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,377.42
1	96Q229	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-1201COM	COUPLER-SNAP-ATTACH WITH 1 IN. UPPER 1.25 IN. LOWER GFTE PINS (1 PC)	1	$663.66
2	QC-1201AS	COUPLER-SNAP ATTACH SHELL ONLY	1	$532.95
3	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
4	QC-8	SNAP-ATTACH LATCH	1	$52.80
5	QC-12	SPRING FOR COUPLER	1	$17.62
6	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7	HHS0518016	BOLT - 5/16 X 1	2	$3.94
8	HTN0518	LOCK NUT - 5/16	2	$0.82
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LF-51	PIN - LINKAGE	1	$17.62
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
