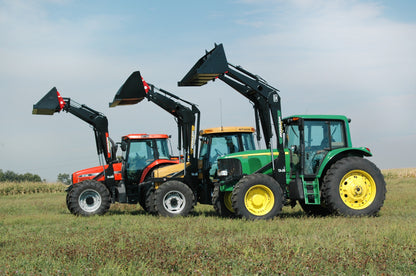

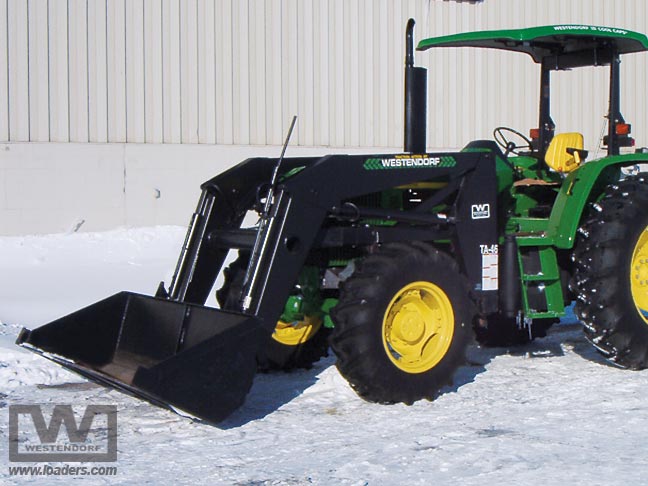

TA-46 Traction Action Series Loader

The TA-26's Big Brother

2WD: UP TO 190 HP

4WD: UP TO 165 HP

7560 LBS. AT 13’10”

The TA-46 is ideal for the heavy-duty cattle producer. It has longer arms to get over the front tires to allow excellent digging depths. It is an excellent loader for the heavy-duty cattle guy who has a bigger tractor with bigger tires. It maintains a low-profile position even with the add-on mechanical self-leveling upgrade.

Call us today at 1-866-423-2762 or email us at sales@westendorfmfg.com to find out about this Loader and other great American made products from Westendorf Manufacturing

Advantages of the TA-46:

• Large Capacity Bucket that holds nearly 1.2 cubic yards of material.
• Low-profile fit increases visibility and sightlines while working.
• 3" lift and bucket cylinders for help with heavy duty loads. The cylinders are lightweight, compact, and highly reliable. Metal piston rings and chrome-plated piston rods add more protection from rust corrosion and stroke wear.
• Able to lift loads to a height of nearly 14 feet.
• Power-Mount™ is standard. Mount or dismount your loader hydraulically in less than two minutes without the use of tools or dangerous stands.
• Lightweight double-tapered arm construction resists twisting and increases strength allowing you to lift large payloads.
• Easy handling with quick loader action allows excellent turning radius and tire clearance.
• Snap-Attach™ system automatically Snap-Locks attachments into place for fast and efficient bucket swaps.
• Adjustable Uni-Fit mounting bracket is designed for a custom fit adjustments.
• All the hoses your tractor will require are included in the loader package.
• Can be easily adjusted to fit several different tractors allowing you to use your loader on multiple tractors. This feature also allows you to retain amazing resale value on your Westendorf loader.

STANDARD LOADER PACKAGE

3” Lift & Bucket Cylinders, Hydraulic Power-Mount™, Snap-Attach™, Hose Kit, Standard Mounting Kit, MA-40 Hydraulic Manifold, Bucket Gauge Rod and Standard 84” Large Capacity Bucket.

PACKAGE OPTIONS & UPGRADES

Add-on Mechanical Self-Leveling, Lift Cylinder Upgrade, 90"- 96" Large Capacity Buckets, 3rd Steel Line for hydraulic attachments, Radiator Grill Guard, Rotational Indicators, Hydra-Snap™, Level UP Advantage and complete line of attachments.
