ww-2416

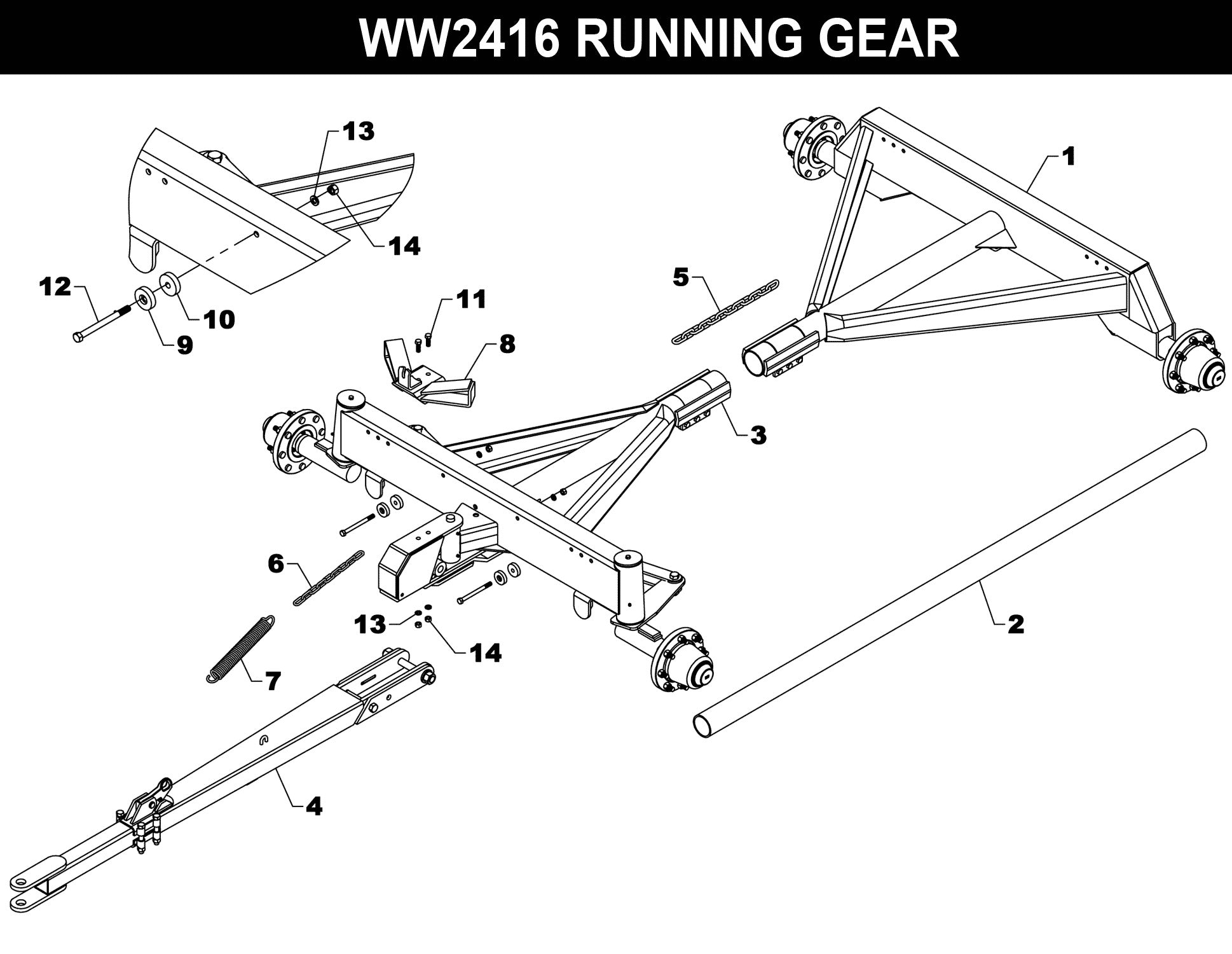

WW-2416 Running Gear

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	AW-45COM	REAR AXLE ASSEMBLY	1	$3,451.65
2	AW-43	STD REACH PIPE	1	$309.22
3	AW-1COM	FRONT AXLE	1	$4,801.66
4	ECT-124	TONGUE	1	$1,249.42
5	HW-61	SAFETY CHAIN	1	$27.63
6	ET-126	TONGUE CHAIN	1	$18.54
7	S11	TONGUE SPRING	1	$80.43
8	AW-63AS	TONGUE STOP	1	$106.41
9	AW-61	FRONT STOP PAD	2	$7.54
10	AW-62	REAR STOP PAD	2	$5.03
11	HHS0813024	BOLT - 1/2 X 1-1/2	2	$2.53
12	HHS0813096	BOLT - 1/2 X 6	2	$7.54
13	LWM08	LOCK WASHER - 1/2	4	$0.37
14	HFN0813	NUT - 1/2	4	$0.95

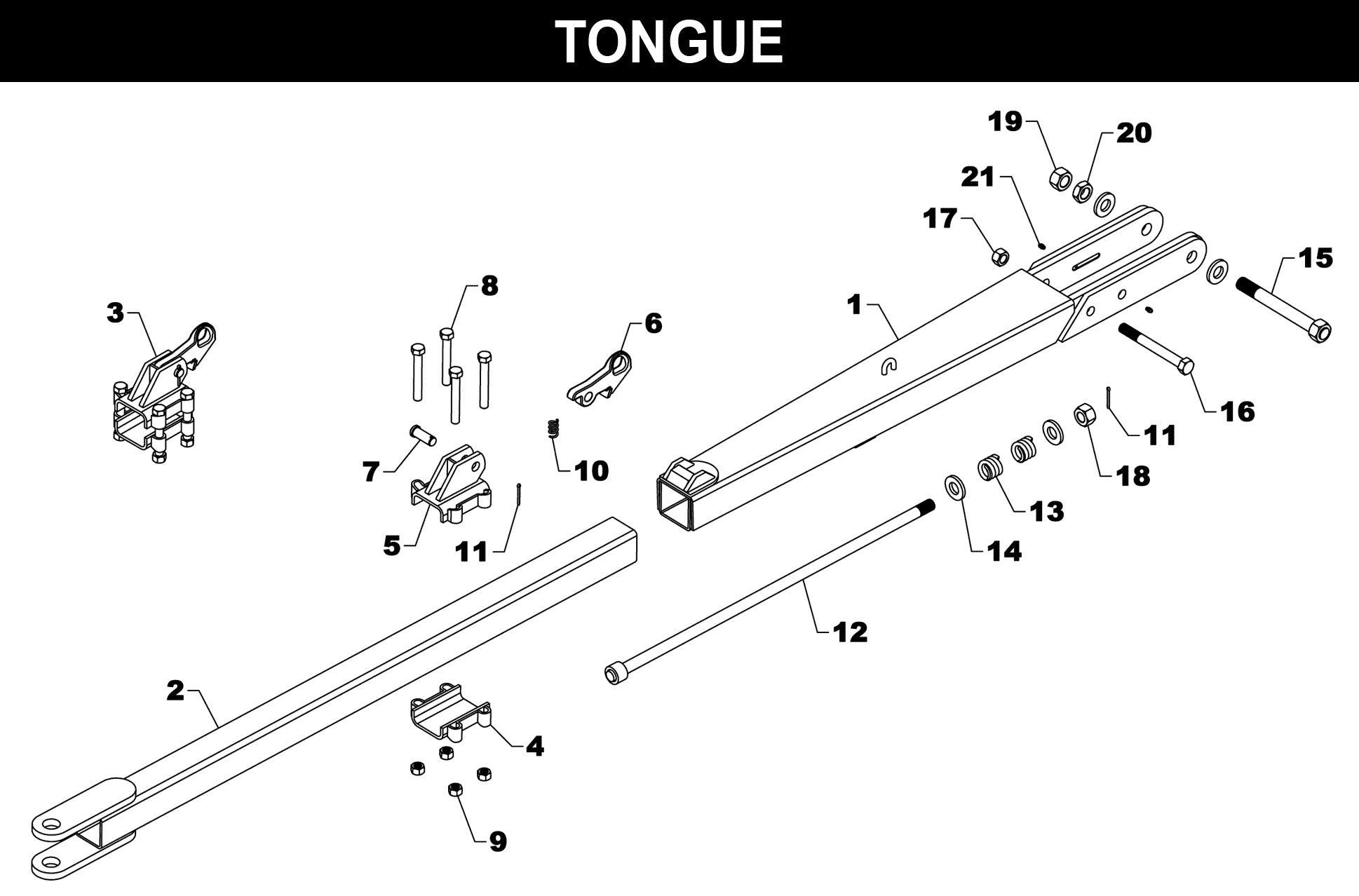

WW-2416 Tongue

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	ET-217AS	REAR TONGUE ASSEMBLY	1	$791.91
2	ET-105AS	FRONT TONGUE	1	$344.38
3	ET-170COM	TONGUE HOOK COMPLETE	1	$188.55
4	ET-170SUB	TONGUE CLAMP - BOTTOM	1	$52.80
5	ET-170AS	TONGUE CLAMP - TOP	1	$103.05
6	ET-66	STEEL HOOK	1	$62.80
7	CLP1200040	CLEVIS PIN - 3/4 X 2-1/2	1	$10.07
8	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
9	HTN1011	LOCK NUT - 5/8	4	$5.03
10	S3	SPRING-HOOK	1	$5.03
11	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
12	ET-31AS	SAFETY ROD	1	$62.43
13	S1	SAFETY ROD SPRING	2	$10.07
14	ET-209	WASHER	4	$12.58
15	ET-208AS	TONGUE BOLT	1	$110.63
16	HHS1210112	BOLT -3/4 X 7	1	$45.26
17	HTN1210	LOCK NUT - 3/4	1	$5.03
18	HFN1414	NUT - 7/8	1	$7.54
19	HFN1614	NUT - 1	1	$5.07
20	HJN1614	HEX JAM NUT - 1	1	$17.62
21	ZER1805	GREASE FITTING	2	$2.53

WW-2416 Front Axle

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	AW-1AS	FRONT AXLE	1	$3,245.21
2	AW-328COM-R	SPINDLE RIGHT	1	$444.65
3	AW-328COM-L	SPINDLE LEFT	1	$444.65
4	AW-42COM	TIE ROD COMPLETE	1	$98.05
5	AW-42AS	TIE ROD	1	$94.02
6	AW-38	WAGON - TIE ROD END	1	$82.96
7	WW-251COM	HUB COMPLETE WITH 5/8 WHEEL BOLTS	2	$754.18
8	AW-34	FRONT SPINDLE CAP	2	$5.03
9	AW-41	TIE ROD BUSHING	1	$20.13
10	AW-90	SPINDLE SLEEVE	2	$30.17
11	AW-92	THRUST WASHER	4	$65.36
12	AW-93	SPINDLE BUSHING	8	$88.02
13	BUS-90	STEERING ARM BUSHING	2	$5.03
14	FWS20	HUB WASHER	2	$5.03
15	HHS0616016	BOLT - 3/8 X 1	2	$2.53
16	HHS0813048	BOLT - 1/2 X 3	3	$5.03
17	HHS1210048	BOLT -3/4 X 3	2	$7.54
18	HHS1608064	BOLT -1 X 4	1	$42.71
19	HTN0813	LOCKNUT - 1/2	3	$5.03
20	HTN1210	LOCK NUT - 3/4	2	$5.03
21	HSN2012	SLOTTED NUT - 1	2	$27.63
22	HFN1614	NUT - 1	1	$5.07
23	HTN1608	LOCK NUT - 1	1	$5.03
24	CTK0400032	COTTER KEY - 1/4 X 2	2	$0.87
25	ZER1805	GREASE FITTING	8	$2.53

WW-2416 Rear Axle

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	AW-45AS	REAR AXLE	1	—	Call to order
2	HHS0813048	BOLT - 1/2 X 3	3	$5.03
3	HTN0813	LOCKNUT - 1/2	3	$5.03
4	WW-251COM	HUB COMPLETE WITH 5/8 WHEEL BOLTS	2	$754.18
5	FWS20	HUB WASHER	2	$5.03
6	CTK0400032	COTTER KEY - 1/4 X 2	2	$0.87
7	HSN2012	SLOTTED NUT - 1	2	$27.63
8	AW-47SUB	REAR SPINDLE	1	$364.48
9	605524	HUB CAP	1	$10.07
10	AW-590	BEARING	1	$123.20
11	AW-520	BEARING CUP	1	$62.80
12	58WN	5/8 WAGON NUT	8	$5.03
13	58WB	5/8 WAGON BOLT	8	$10.07
14	WW-251	HUB	1	$550.56
14	WW-251RB	HUB	1	—	Call to order
15	AW-920	INSIDE BEARING CUP	1	$62.80
16	AW-985	INSIDE BEARING	1	$123.20
17	AW-799	GREASE SEAL	1	$55.35

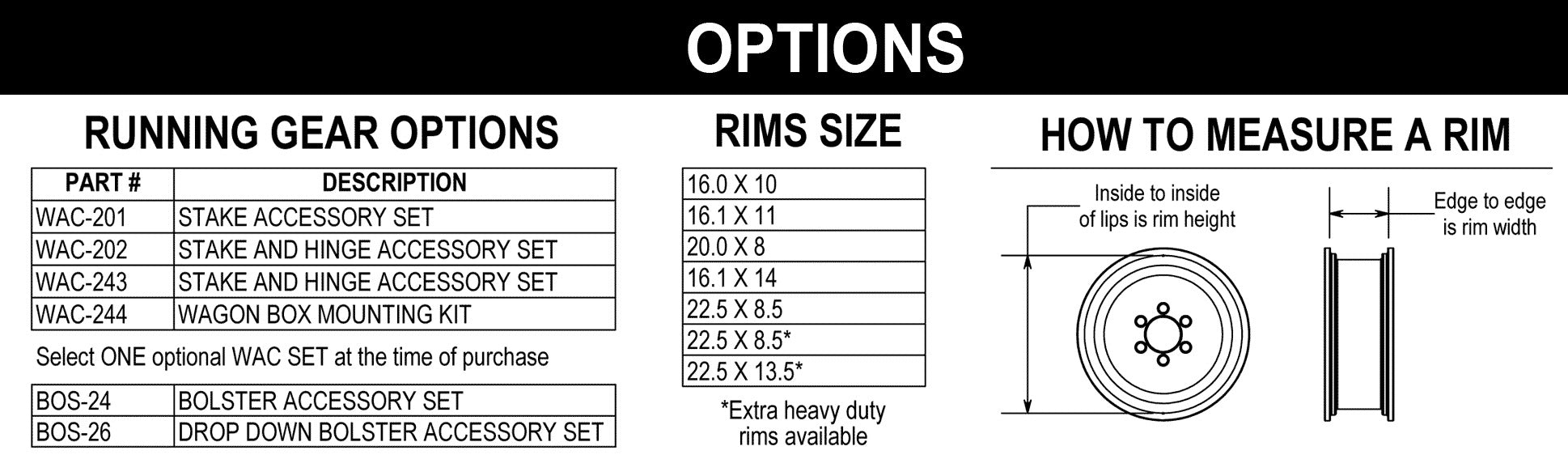

Gear Options - WW-2416

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	WAC-201	STAKE SET	1	$294.12
2	WAC-202	STAKE AND HINGE SET	1	$417.31
3	WAC-243	STAKE & HINGE SET-SPECIAL	1	$369.56
4	WAC-244	WAGON BOX MOUNTING KIT	1	$492.73
5	BOS-24	BOLSTER PACKAGE-FRONT RR SADDLE	1	$872.42
6	BOS-26	DROP DOWN BOLSTER ACCESSORY SET	1	$864.79

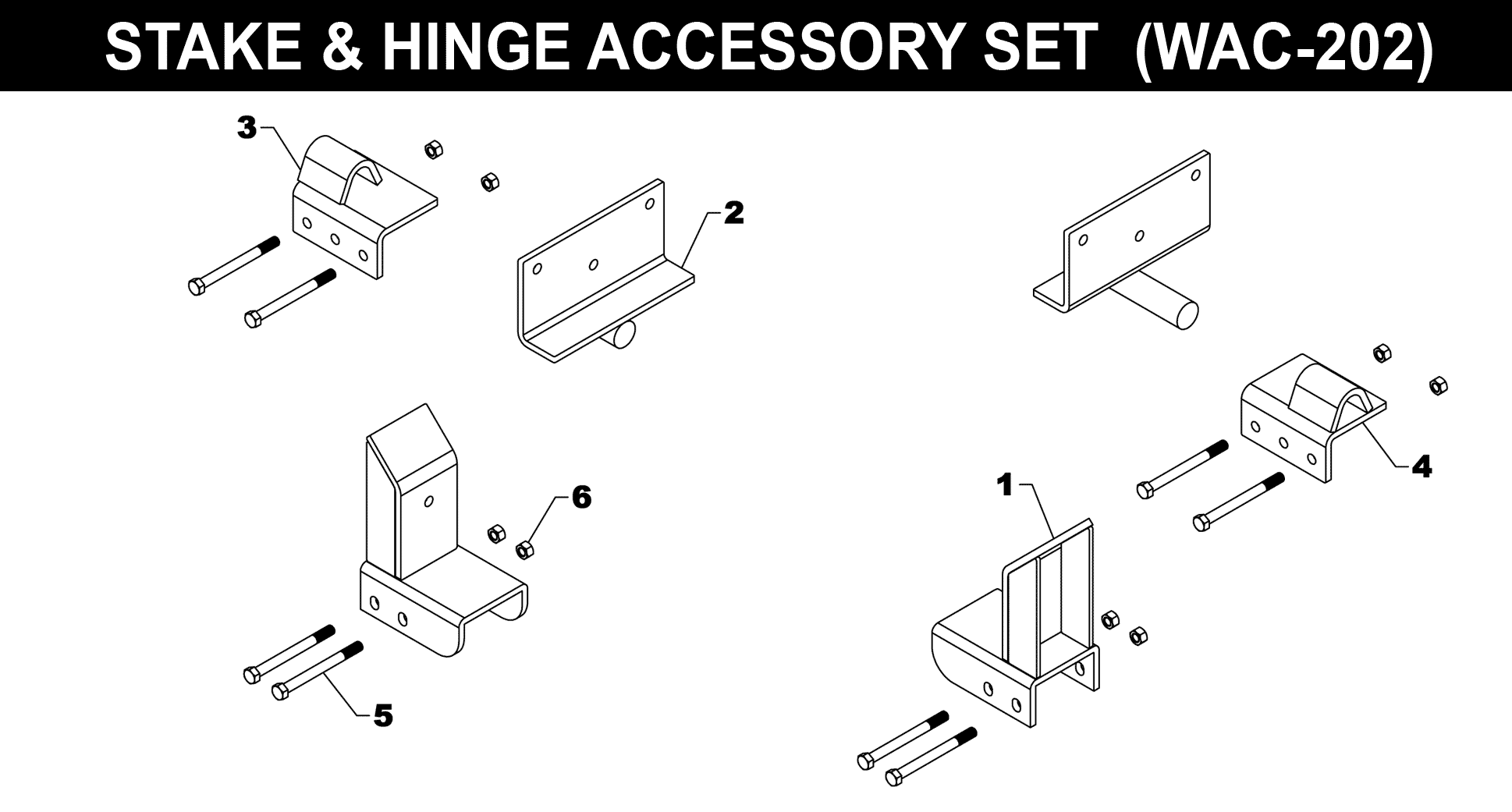

Stake & Hinge Accessory Set - WAC-202

Open on its own page

Click a number on the diagram to find the part.

Stake & Hinge Accessory Set - WAC-202 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-69AS	STAKE	2	$62.80
2	AW-71AS	HINGE PLATE	2	$67.91
3	AW-73AS-R	AXLE CLAMP-RIGHT	1	$45.26
4	AW-73AS-L	AXLE CLAMP-LEFT	1	$45.26
5	HHS0813088	BOLT - 1/2 X 5-1/2	8	$5.03
6	HTN0813	LOCKNUT - 1/2	8	$5.03

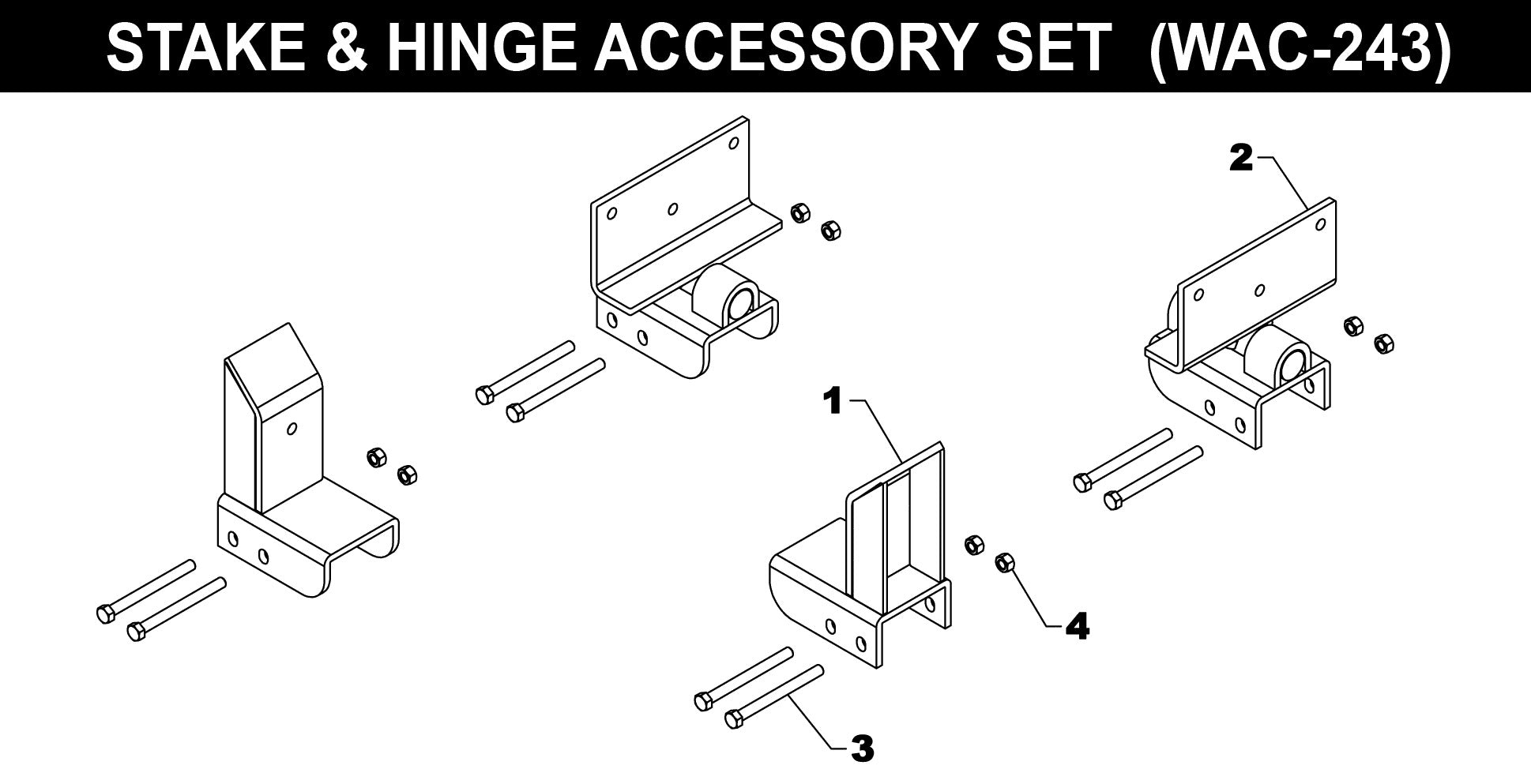

Stake & Hinge Accessory Set - WAC-243

Open on its own page

Click a number on the diagram to find the part.

Stake & Hinge Accessory Set - WAC-243 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-69AS	STAKE	2	$62.80
2	AWD-71AS	HINGE (DOUBLE PIN)	2	$128.22
3	HHS0813088	BOLT - 1/2 X 5-1/2	8	$5.03
4	HTN0813	LOCKNUT - 1/2	8	$5.03

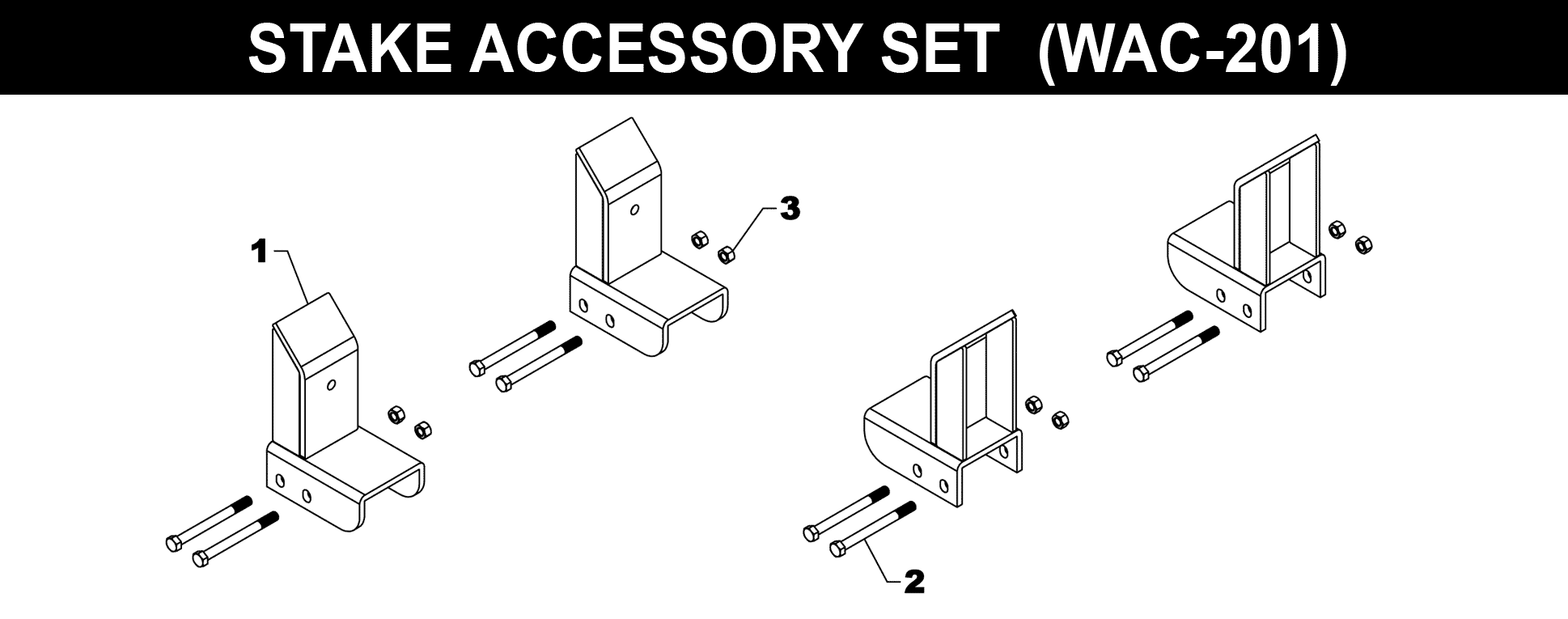

Stake Accessory Set - WAC-201

Open on its own page

Click a number on the diagram to find the part.

Stake Accessory Set - WAC-201 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-69AS	STAKE	4	$62.80
2	HHS0813088	BOLT - 1/2 X 5-1/2	8	$5.03
3	HTN0813	LOCKNUT - 1/2	8	$5.03

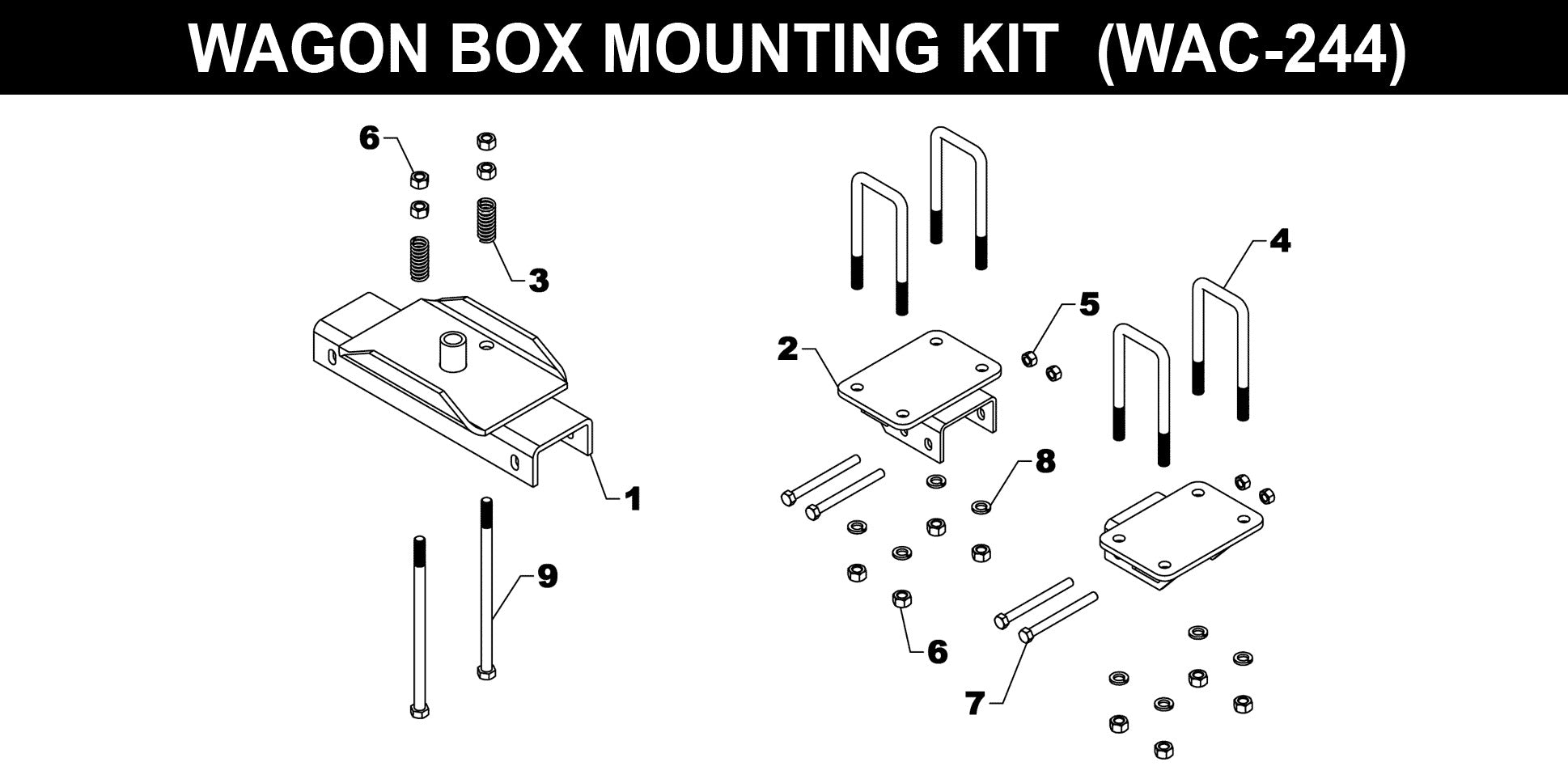

Wagon Box Mounting - WAC-244

Open on its own page

Click a number on the diagram to find the part.

Wagon Box Mounting - WAC-244 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-77AS	SADDLE	1	$211.19
2	BB-1AS	REAR BOLSTER PLATE (EA.)	2	$50.27
3	S4	SPRING-FRONT BOLSTER	2	$5.03
4	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	4	$27.63
5	HTN0813	LOCKNUT - 1/2	4	$5.03
6	HFN1011	NUT - 5/8	12	$1.26
7	HHS0813088	BOLT - 1/2 X 5-1/2	4	$5.03
8	LWM10	LOCK WASHER -5/8	8	$0.77
9	HHS1011192	BOLT -5/8 X 12	2	$45.26

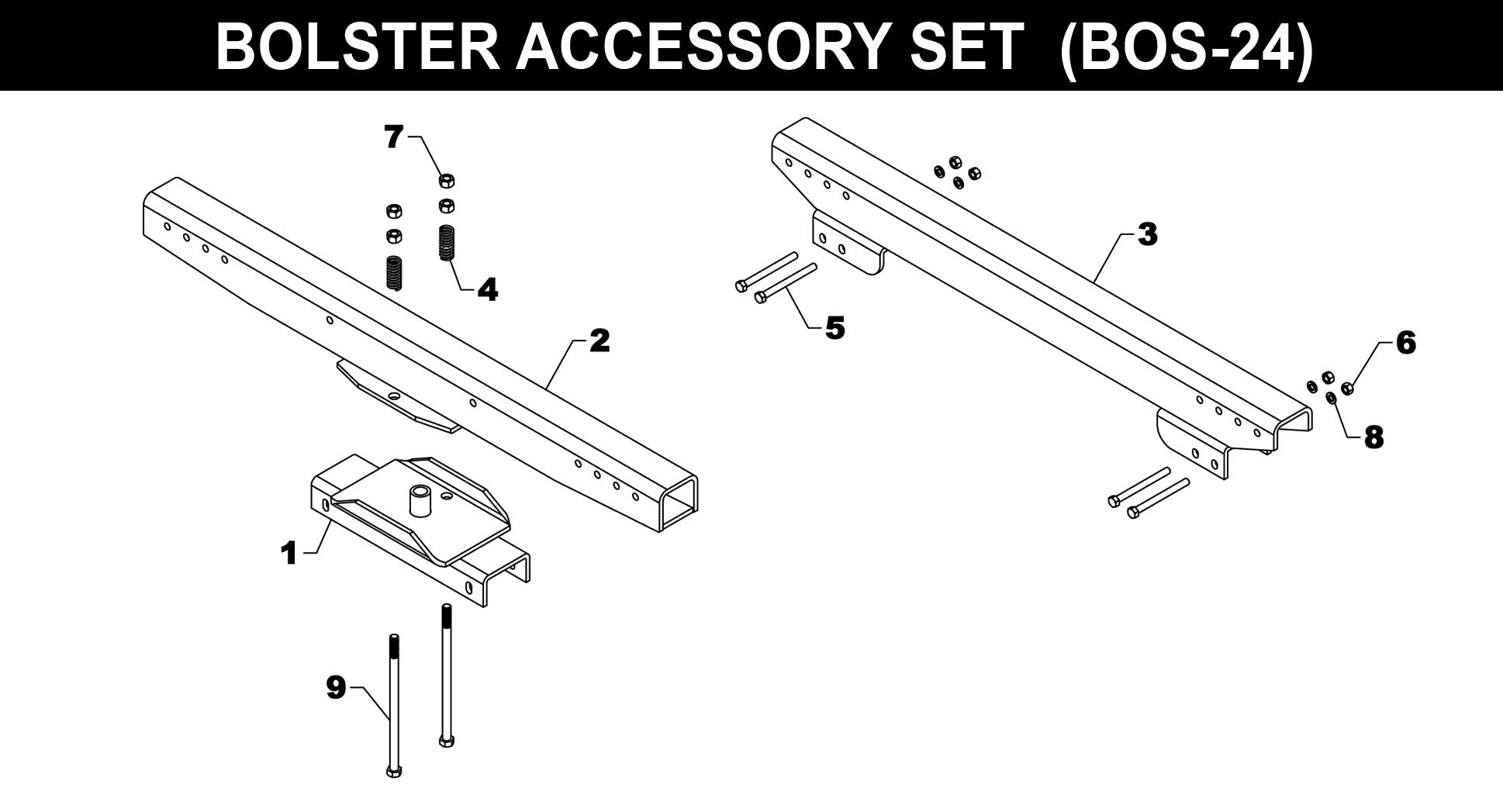

Bolster Accessory Set - BOS-24

Open on its own page

Click a number on the diagram to find the part.

Bolster Accessory Set - BOS-24 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-77AS	SADDLE	1	$211.19
2	AW-80AS	FRONT BOLSTER	1	$404.71
3	AW-83AS	REAR BOLSTER	1	$364.48
4	S4	SPRING-FRONT BOLSTER	2	$5.03
5	HHS0813088	BOLT - 1/2 X 5-1/2	4	$5.03
6	HFN0813	NUT - 1/2	4	$0.95
7	HFN1011	NUT - 5/8	4	$1.26
8	LWM08	LOCK WASHER - 1/2	4	$0.37
9	HHS1011192	BOLT -5/8 X 12	2	$45.26

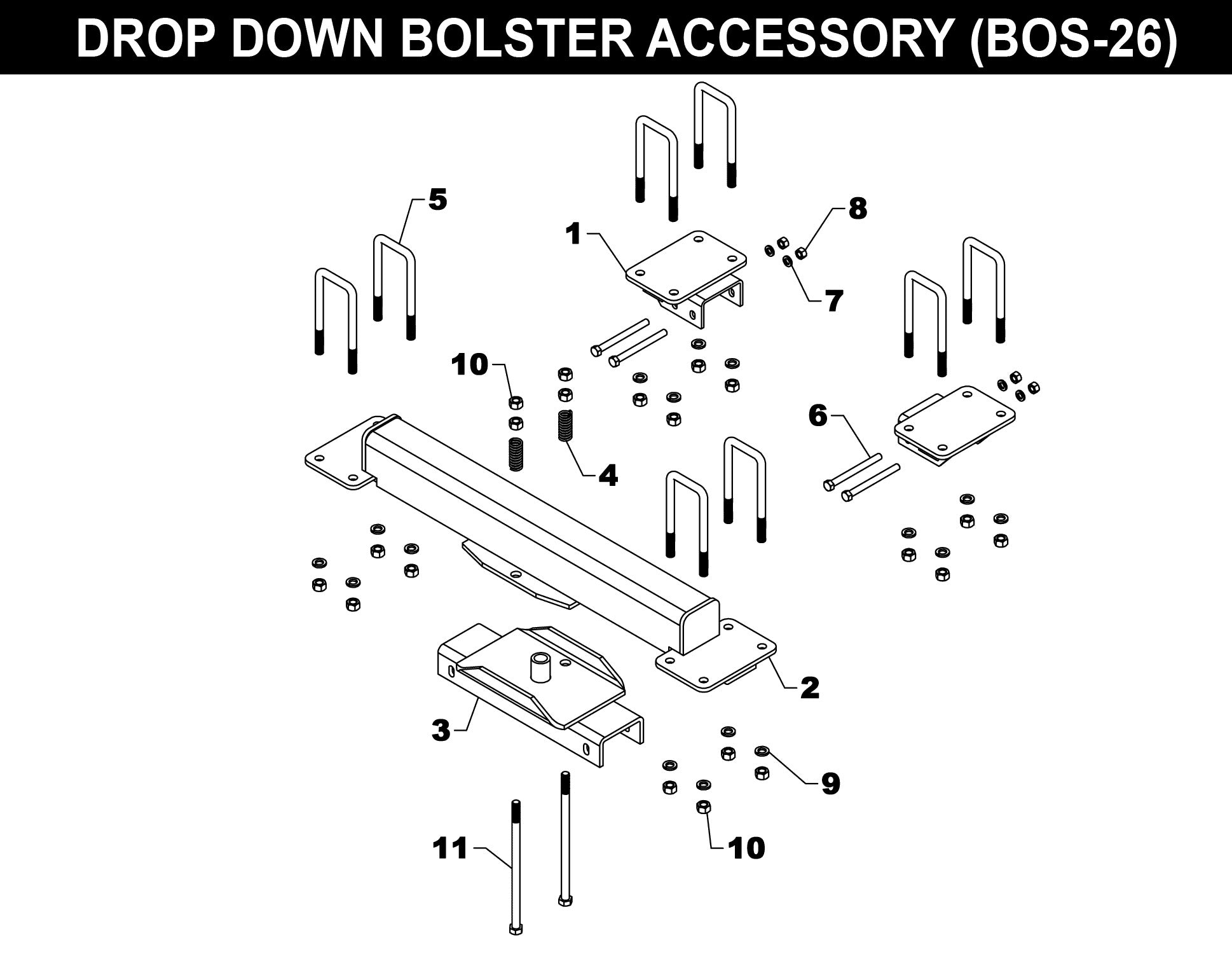

Drop Down Bolster Accessory Set - BOS-26

Open on its own page

Click a number on the diagram to find the part.

Drop Down Bolster Accessory Set - BOS-26 exploded diagram

Ref	Part #	Description	Qty	Price
1	BB-1AS	REAR BOLSTER PLATE (EA.)	2	$50.27
2	BB-4AS	FRONT BOLSTER	1	$379.61
3	AW-77AS	SADDLE	1	$211.19
4	S4	SPRING-FRONT BOLSTER	2	$5.03
5	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	8	$27.63
6	HHS0813088	BOLT - 1/2 X 5-1/2	4	$5.03
7	LWM08	LOCK WASHER - 1/2	4	$0.37
8	HFN0813	NUT - 1/2	4	$0.95
9	LWM10	LOCK WASHER -5/8	16	$0.77
10	HFN1011	NUT - 5/8	20	$1.26
11	HHS1011192	BOLT -5/8 X 12	2	$45.26
