| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|

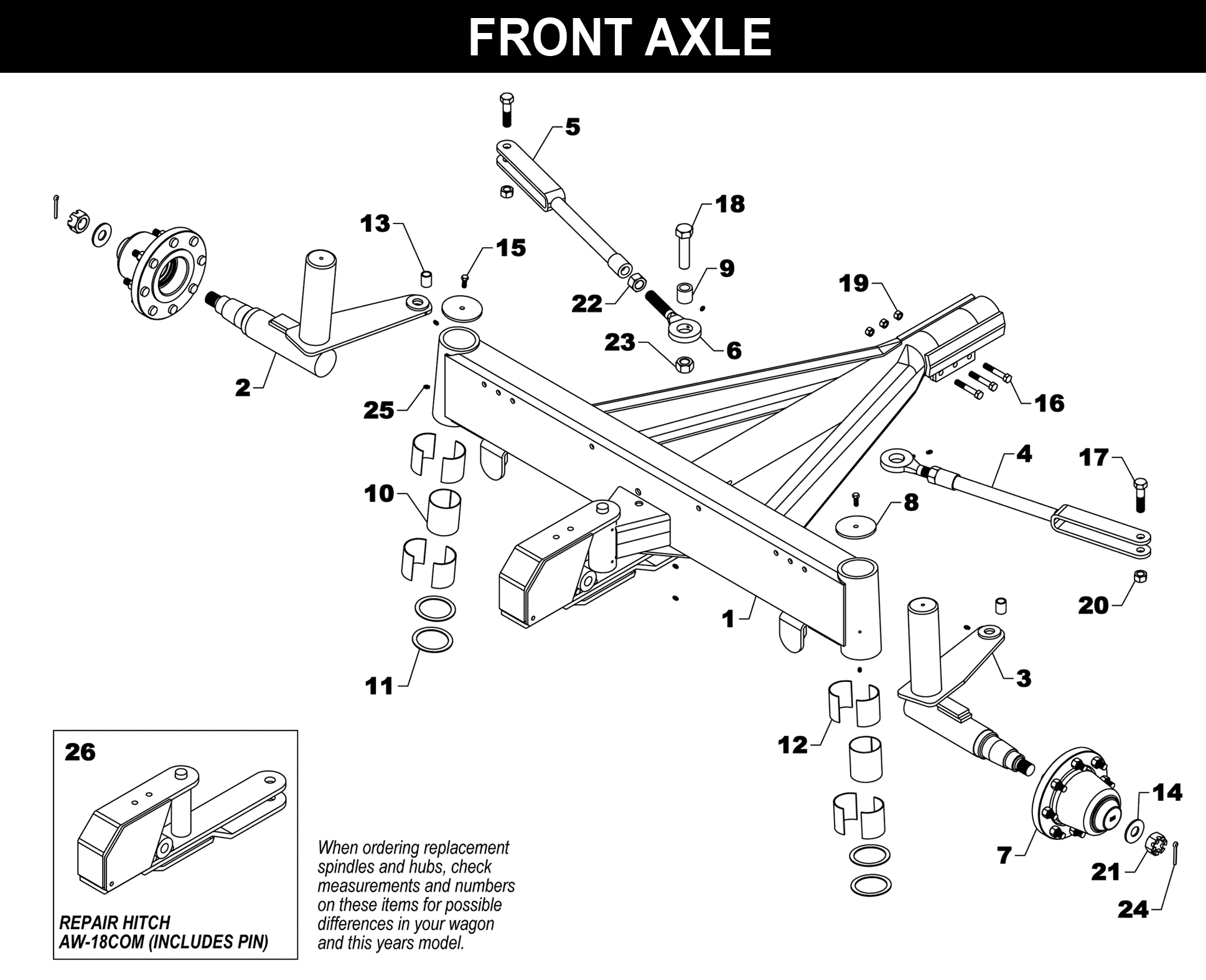

| 1 |  | AW-1AS | FRONT AXLE | 1 | $3,245.21 | |
| 2 | AW-328COM-R | SPINDLE RIGHT | 1 | $444.65 | ||
| 3 | AW-328COM-L | SPINDLE LEFT | 1 | $444.65 | ||
| 4 |  | AW-42COM | TIE ROD COMPLETE | 1 | $98.05 | |
| 5 |  | AW-42AS | TIE ROD | 1 | $94.02 | |
| 6 |  | AW-38 | WAGON - TIE ROD END | 1 | $82.96 | |
| 7 |  | WW-251COM | HUB COMPLETE WITH 5/8 WHEEL BOLTS | 2 | $754.18 | |
| 8 |  | AW-34 | FRONT SPINDLE CAP | 2 | $5.03 | |
| 9 |  | AW-41 | TIE ROD BUSHING | 1 | $20.13 | |
| 10 |  | AW-90 | SPINDLE SLEEVE | 2 | $30.17 | |
| 11 |  | AW-92 | THRUST WASHER | 4 | $65.36 | |
| 12 |  | AW-93 | SPINDLE BUSHING | 8 | $88.02 | |
| 13 |  | BUS-90 | STEERING ARM BUSHING | 2 | $5.03 | |
| 14 |  | FWS20 | HUB WASHER | 2 | $5.03 | |
| 15 |  | HHS0616016 | BOLT - 3/8 X 1 | 2 | $2.53 | |
| 16 |  | HHS0813048 | BOLT - 1/2 X 3 | 3 | $5.03 | |
| 17 |  | HHS1210048 | BOLT -3/4 X 3 | 2 | $7.54 | |

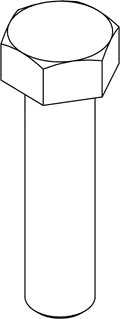

| 18 |  | HHS1608064 | BOLT -1 X 4 | 1 | $42.71 | |
| 19 |  | HTN0813 | LOCKNUT - 1/2 | 3 | $5.03 | |
| 20 |  | HTN1210 | LOCK NUT - 3/4 | 2 | $5.03 | |
| 21 |  | HSN2012 | SLOTTED NUT - 1 | 2 | $27.63 | |
| 22 |  | HFN1614 | NUT - 1 | 1 | $5.07 | |
| 23 |  | HTN1608 | LOCK NUT - 1 | 1 | $5.03 | |
| 24 |  | CTK0400032 | COTTER KEY - 1/4 X 2 | 2 | $0.87 | |
| 25 |  | ZER1805 | GREASE FITTING | 8 | $2.53 |
