Parts Lookup › Wagon Parts › Wagon Gears

WW-2214 Parts

7 assemblies · choose one below

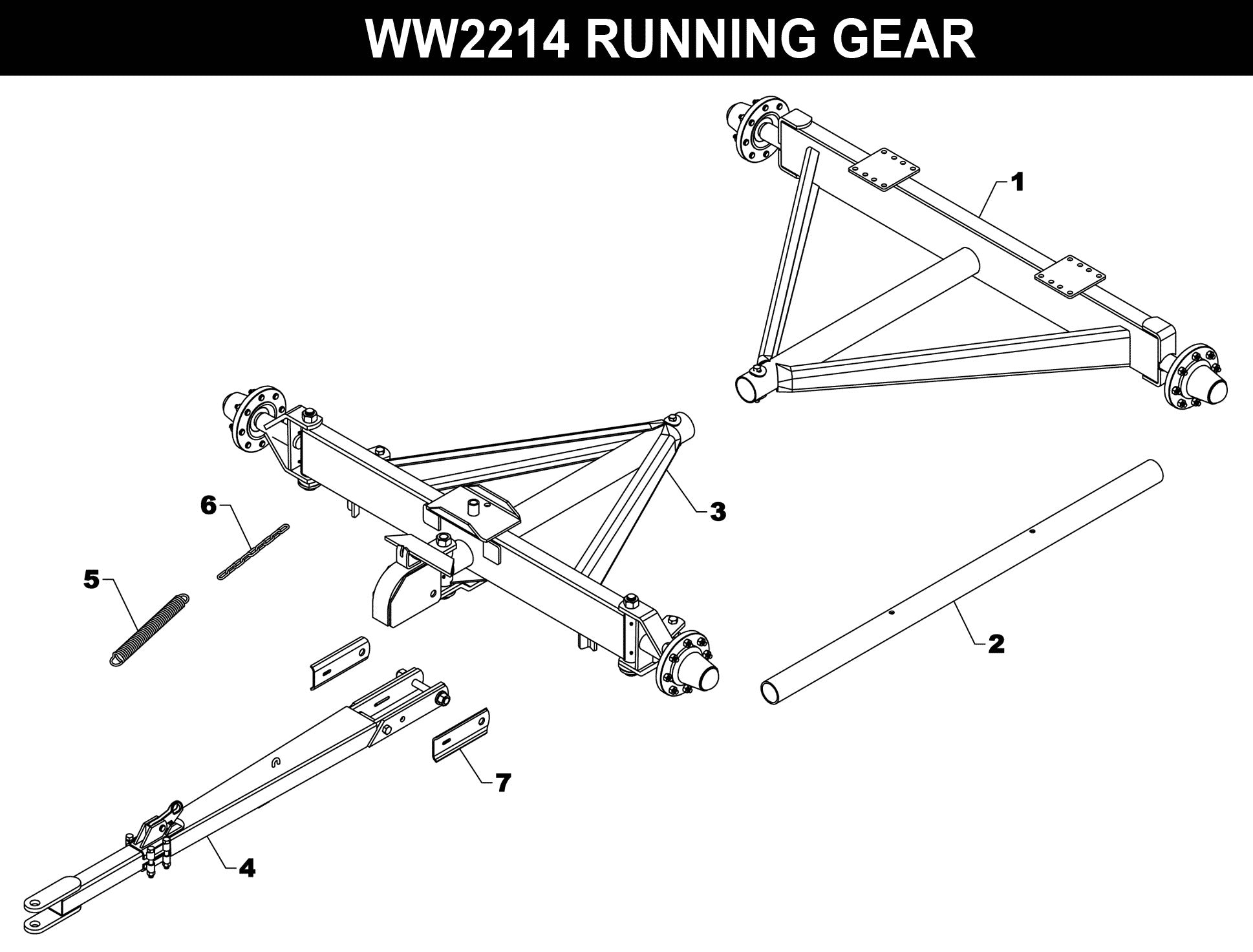

WW-2214 Running Gear

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	LW-43COM	REAR AXLE	1	$2,768.72
2	LW-42	CENTER REACH	1	$206.80
3	LW-1COM	FRONT AXLE	1	$3,796.12
4	ECT-124	TONGUE	1	$1,249.42
5	S11	TONGUE SPRING	1	$80.43
6	ET-126	TONGUE CHAIN	1	$18.54
7	LW-70	FILLER PLATE	2	$26.10

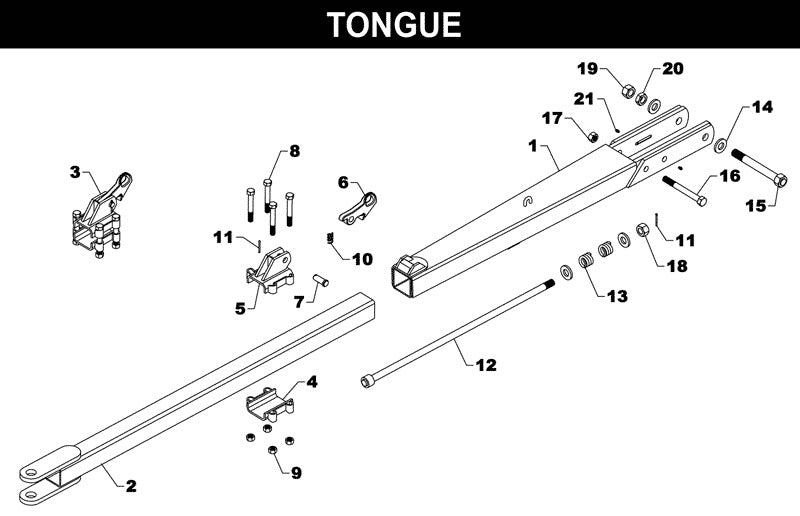

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	ET-217AS	REAR TONGUE ASSEMBLY	1	$791.91
2	ET-105AS	FRONT TONGUE	1	$344.38
3	ET-170COM	TONGUE HOOK COMPLETE	1	$188.55
4	ET-170SUB	TONGUE CLAMP - BOTTOM	1	$52.80
5	ET-170AS	TONGUE CLAMP - TOP	1	$103.05
6	ET-66	STEEL HOOK	1	$62.80
7	CLP1200040	CLEVIS PIN - 3/4 X 2-1/2	1	$10.07
8	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
9	HTN1011	LOCK NUT - 5/8	4	$5.03
10	S3	SPRING-HOOK	1	$5.03
11	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
12	ET-31AS	SAFETY ROD	1	$62.43
13	S1	SAFETY ROD SPRING	2	$10.07
14	ET-209	WASHER	4	$12.58
15	ET-208AS	TONGUE BOLT	1	$110.63
16	HHS1210112	BOLT -3/4 X 7	1	$45.26
17	HTN1210	LOCK NUT - 3/4	1	$5.03
18	HFN1414	NUT - 7/8	1	$7.54
19	HFN1614	NUT - 1	1	$5.07
20	HFN1614	NUT - 1	1	$5.07
21	ZER1805	GREASE FITTING	2	$2.53

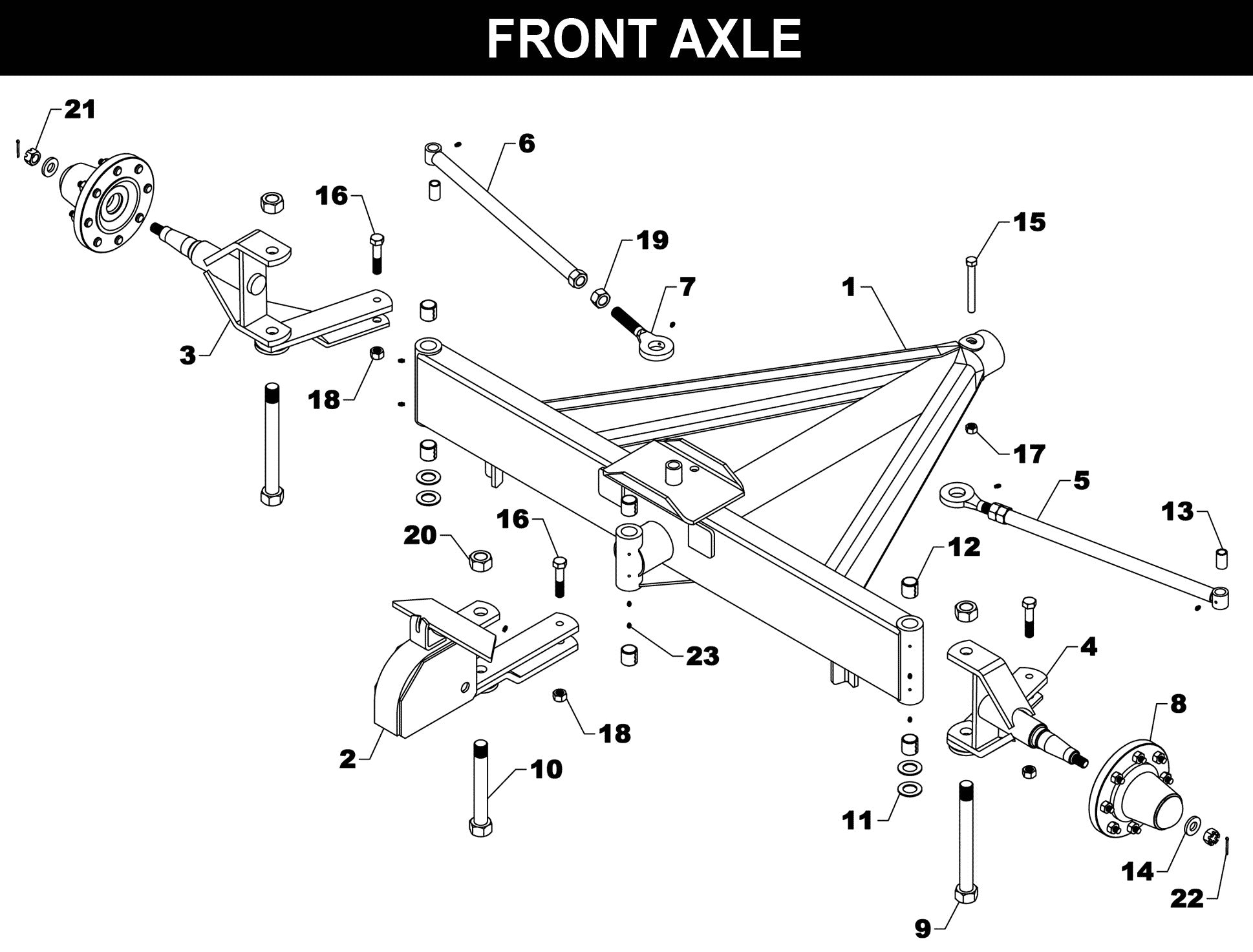

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	LW-1AS	FRONT AXLE	1	—	Call to order
2	LW-22AS	HITCH	1	$357.38
3	LW-25COM-R	RIGHT FRONT SPINDLE	1	$459.56
4	LW-25COM-L	LEFT FRONT SPINDLE	1	$459.56
5	LW-41COM	TIE ROD COMPLETE	1	$143.32
6	LW-41AS	TIE ROD	1	$67.91
7	AW-38	WAGON - TIE ROD END	1	$82.96
8	WW-20COM	HUB COMPLETE	2	$600.82
9	LW-60AS	SPINDLE BOLT	2	$52.22
10	LW-61AS	HITCH BOLT	1	$47.82
11	LW-30	THRUST WASHER	4	$17.62
12	LW-32	INSERT BUSHING	6	$35.23
13	LW-40	INSERT BUSHING	2	$5.03
14	PW-26	HUB WASHER	2	$5.03
15	HHS1011088	BOLT - 5/8 X 5-1/2	1	$7.54

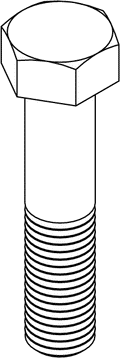

16	HHS1210056	BOLT -3/4 X 3-1/2	3	$7.54
17	HTN1011	LOCK NUT - 5/8	1	$5.03
18	HTN1210	LOCK NUT - 3/4	3	$5.03
19	HFN1614	NUT - 1	1	$5.07
20	HTN2012	LOCK NUT - 1-1/4	3	$7.94
21	HSN1414	SLOTTED NUT - 7/8	2	$23.83
22	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
23	ZER1805	GREASE FITTING	11	$2.53

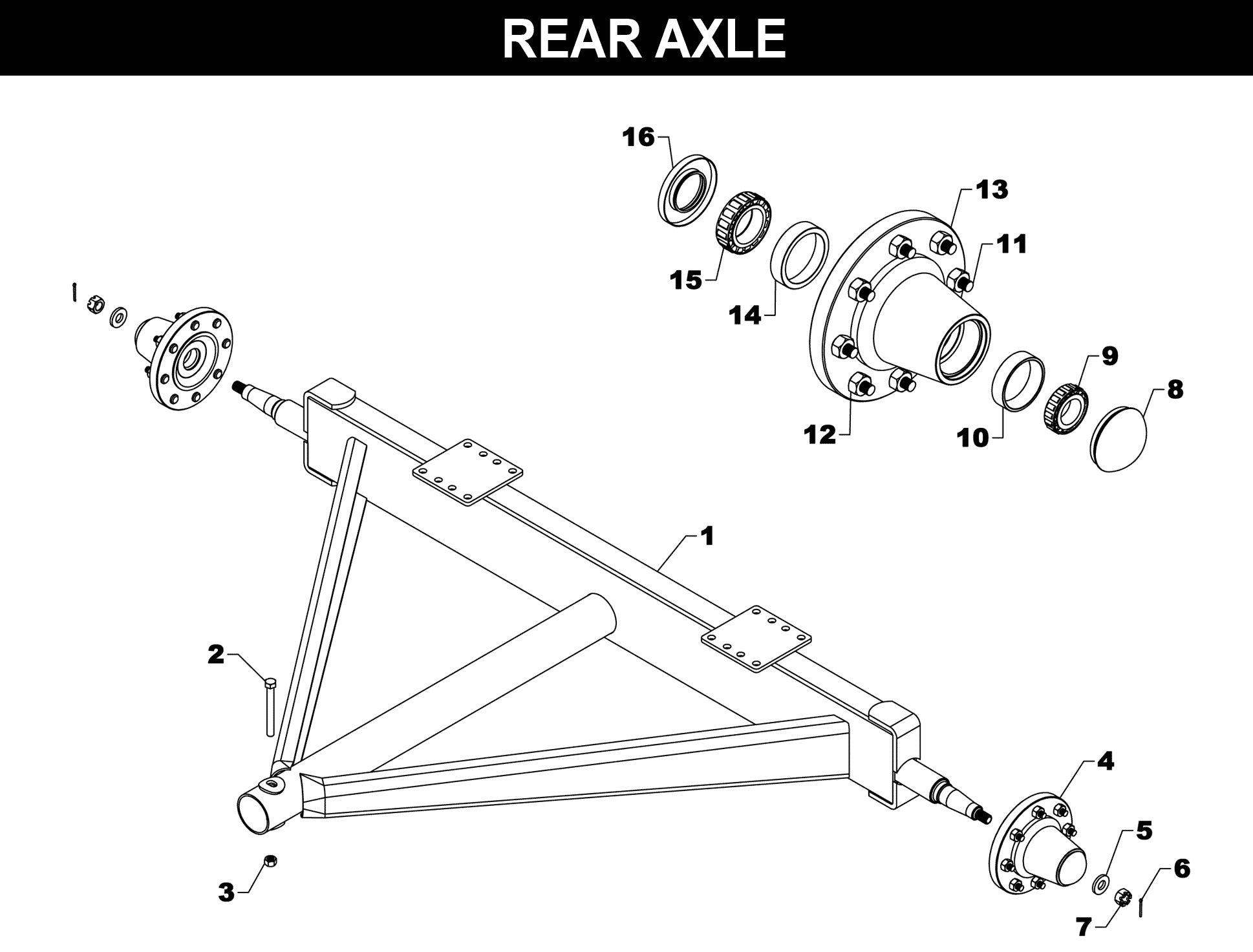

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	LW-43AS	REAR AXLE	1	—	Call to order
2	HHS1011088	BOLT - 5/8 X 5-1/2	1	$7.54
3	HTN1011	LOCK NUT - 5/8	1	$5.03
4	WW-20COM	HUB COMPLETE	2	$600.82
5	PW-26	HUB WASHER	2	$5.03
6	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
7	HSN1414	SLOTTED NUT - 7/8	2	$23.83
8	615126	HUB CAP	1	$10.07
9	AW-877	OUTSIDE BEARING	1	$62.80
10	AW-821	OUTSIDE BEARING CUP	1	$32.68
11	916WB	WHEEL BOLT	8	$7.54
12	916WN	WHEEL NUT	8	$5.03
13	WW-20RB	HUB	1	—	Call to order
13	WW-20	HUB	1	—	Call to order
14	AW-520	BEARING CUP	1	$62.80
15	AW-590	BEARING	1	$123.20
16	AW-726	GREASE SEAL	1	$52.19

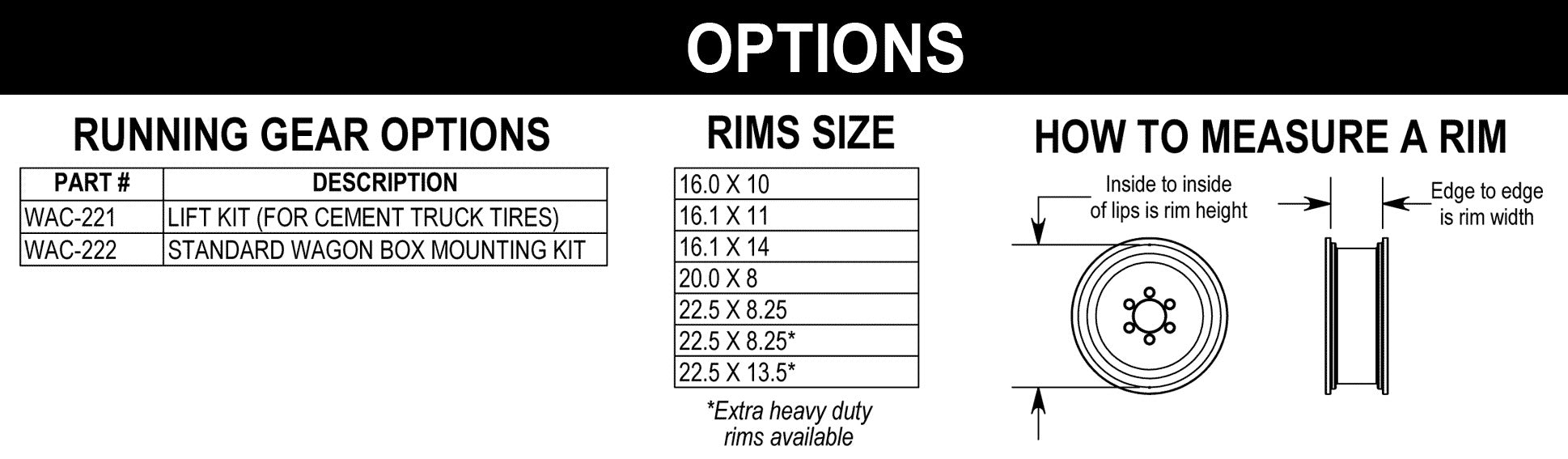

Click a number on the diagram to find the part.

Ref	Photo	Part #	Description	Qty	Price	Buy
1		WAC-221	LIFT KIT FOR WW425 BOX	1	$897.47
2		WAC-222	WAGON BOX BOLSTER (WW2214)	1	$125.27

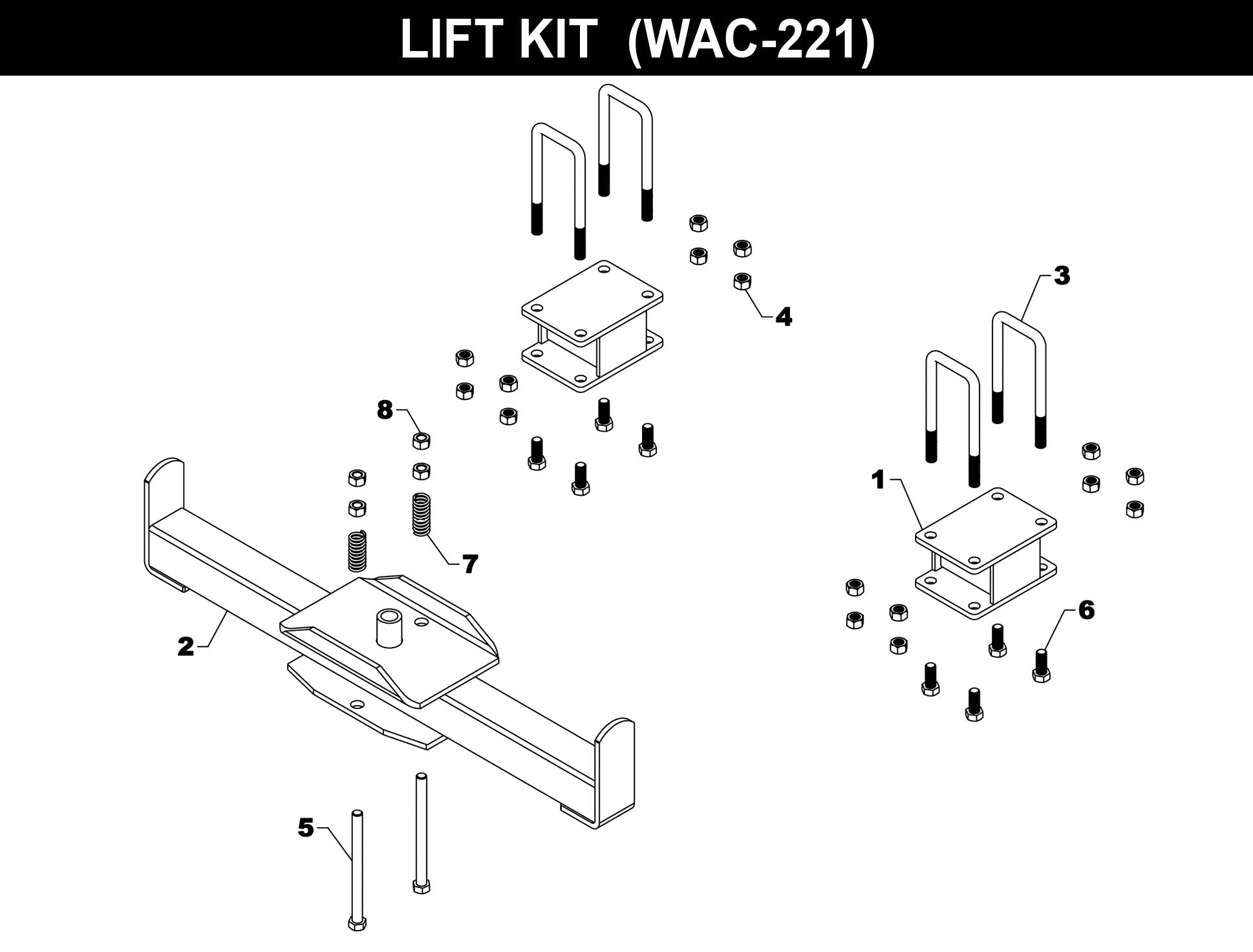

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	LW-104AS	REAR TUBE	2	$82.95
2	LW-101AS	FRONT TUBE	1	$702.71

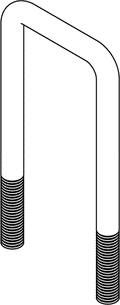

3	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	4	$27.63
4	HTN1011	LOCK NUT - 5/8	16	$5.03
5	HHS1011128	BOLT -5/8 X 8	2	$35.23
6	HHS1011024	BOLT - 5/8 X 1-1/2	8	$5.03
7	S4	SPRING-FRONT BOLSTER	2	$5.03
8	HFN1011	NUT - 5/8	4	$1.26

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	S4	SPRING-FRONT BOLSTER	2	$5.03
2	HHS1011064	BOLT - 5/8 X 4	2	$5.51
3	HTN1011	LOCK NUT - 5/8	10	$5.03
4	FU-8	FLARELESS UNION CONNECTOR	4	$30.17
