Parts Lookup › Wagon Gears

Wagon Box Mounting Kit - WAC-222

Fits:WW-2214
Click a number on the diagram to find the part.
Wagon Box Mounting Kit - WAC-222 exploded diagram
RefPart # Description Qty Price
1S4 SPRING-FRONT BOLSTER 2 $5.03

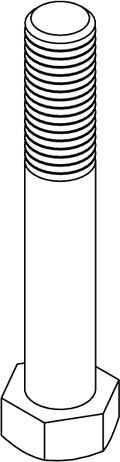

2HHS1011064 BOLT - 5/8 X 4 2 $5.51
3HTN1011 LOCK NUT - 5/8 10 $5.03
4FU-8 FLARELESS UNION CONNECTOR 4 $30.17
