WL-42B Parts

2 assemblies · choose one below

WL-42B

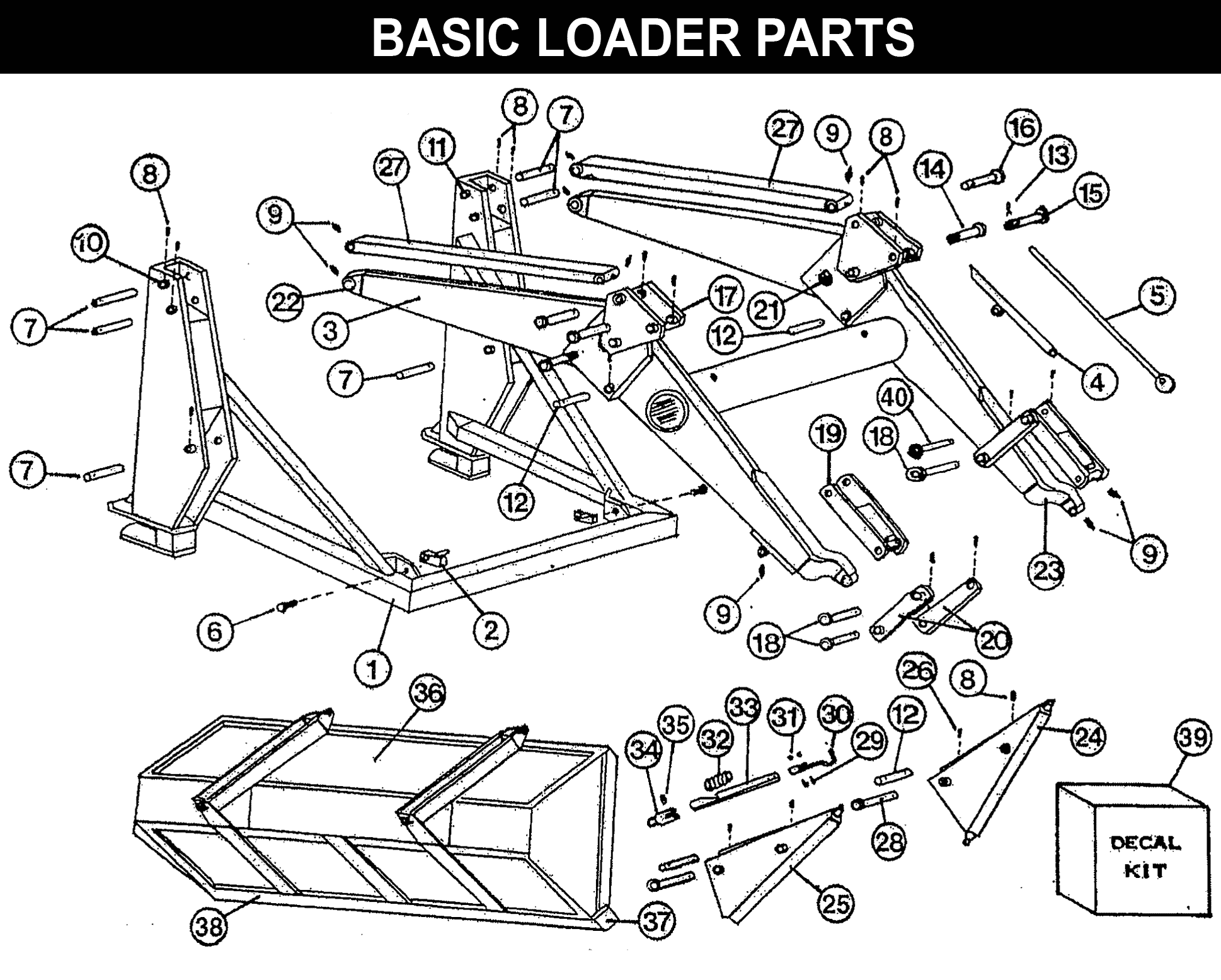

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BT-201AS	TOWER	1	$4,917.29
2	BT-18AS	FLOP LOCK	2	$65.37
3	BJF-4AS	FRAME ONLY (SL-CYL)	1	$7,089.36
4	LMF-31AS	GAUGE ROD HOLDER	1	$42.71
5	BF-47	GAUGE ROD CLEVIS	1	$42.71
6	HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
7	JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	6	$18.57
8	DRP0600028	DOUBLE ROLL PIN	18	$2.53
9	ZER1805	GREASE FITTING	16	$2.53
10	SB-7	PIN BUSHING - 1	16	$14.50
11	JB-5	BUSHING - 1 NO HOLE	12	$30.17
12	LF-82	LIFT PIN	4	$24.08
13	CTK0400032	COTTER KEY - 1/4 X 2	1	$0.87
14	LMF-24AS	ROUND HEAD BOLT	2	$78.30
15	LMF-26CAS	PIN (UPPER GA. ROD-1)	1	$30.17
16	LMF-25AS	LINKAGE PIN	3	$26.10
17	TF-29AAS	HINGE PLATE	4	$258.96
18	LMF-18AS	PIN	3	$46.15
19	LMF-14AS	CONNECTOR LINKAGE	2	$198.60
20	LMF-10AS	HINGE LINKAGE	4	$82.95
21	HFN1614	NUT - 1	2	$5.07
22	WW-300	CASTING-ARM END - 1	2	$163.39
23	WW-310	ARM END S-CASTING	2	$258.96
24	QC-201COM	COUPLER-SNAP-ATTACH - 1 IN. UPPER 1.25 LOWER PIN (1 PC)	1	$566.93
25	QC-201AS	COUPLER-SHELL	2	$512.86
26	DRP0600032	DOUBLE ROLL PIN	2	$2.53
27	BJF-23AAS	LINKAGE-TOP BAR	2	$243.86
28	QC-206AS	LINKAGE PIN	2	$32.68
29	HHS0518016	BOLT - 5/16 X 1	4	$3.94
30	QC-7AS	HANDLE	2	$22.62
31	HTN0518	LOCK NUT - 5/16	4	$0.82
32	QC-12	SPRING FOR COUPLER	2	$17.62
33	QC-8	SNAP-ATTACH LATCH	2	$52.80
34	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	2	$52.80
35	RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
36	66Q421	66 BUCKET	1	$2,624.15
36	84Q427	BUCKET-84 HD CONTOURED BUCKET	1	$2,466.26
36	96Q431	96 BUCKET	1	$2,704.46
37	SB-15	SIDE BLADE	2	$52.80
38	IB-14	BUCKET-CUTTING EDGE - 66	1	$525.39
38	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
38	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
39	DEC-42B	DECAL KIT FOR WL-42B	1	$67.90
40	QC-306AS	PIN	1	$30.17

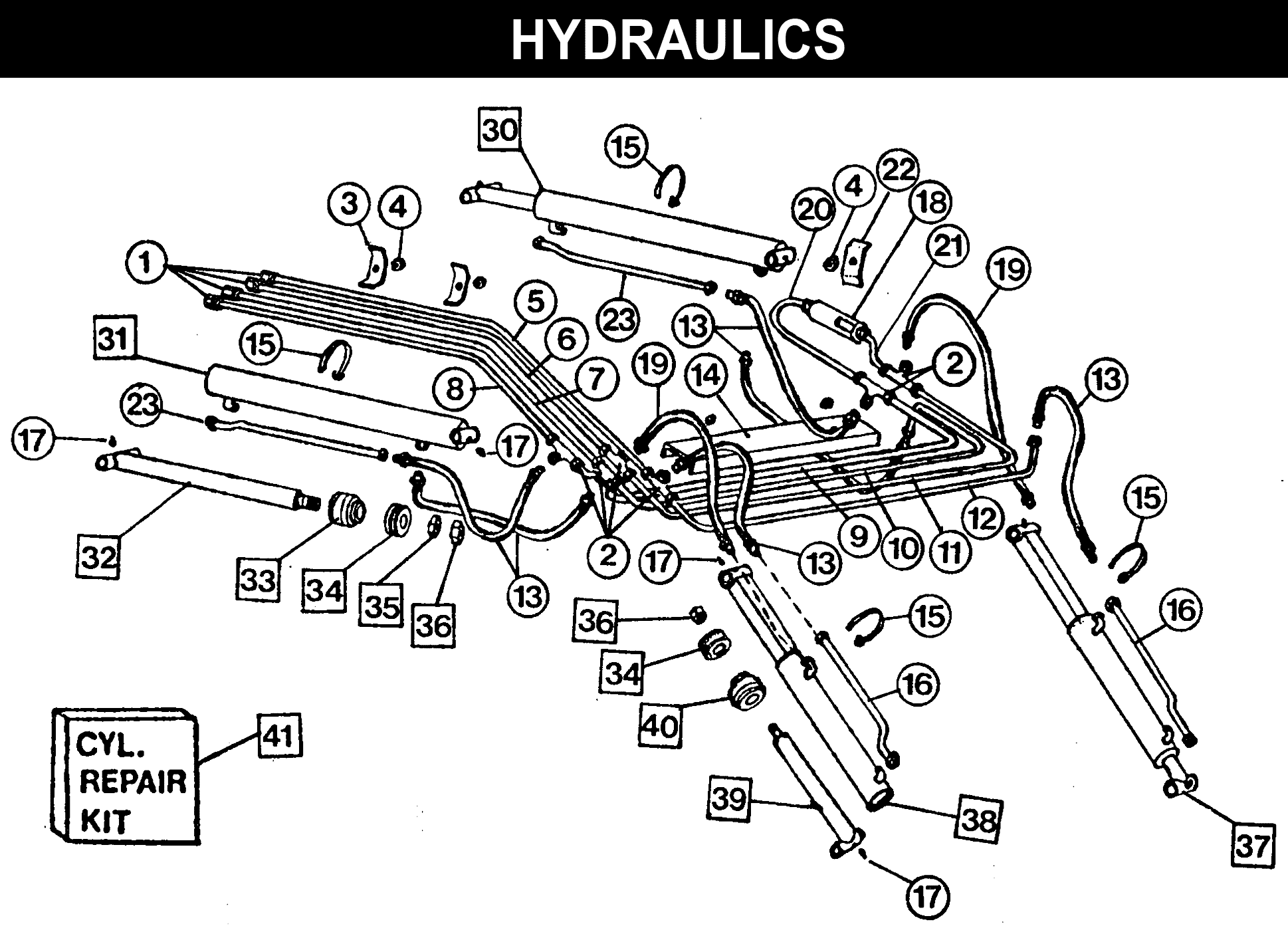

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	FSBT-8	FLARELESS SWIVEL NUT TEE	6	$75.47
3	OH-3	OIL LINE PROTECTOR	2	$12.58
4	HFN0616	HEX NUT - 3/8	5	$0.67
5	OLT-24	OIL LINE	1	$27.63
6	OLT-25	OIL LINE	1	$35.23
7	OLT-26	OIL LINE	1	$27.63
8	OLT-27	OIL LINE	1	$25.13
9	OLT-28	OIL LINE	1	$47.82
10	OLT-29	OIL LINE	1	$40.22
11	OLT-30	OIL LINE	1	$35.23
12	OLT-31	OIL LINE	1	$32.68
13	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	6	$50.22
14	OH-1	OIL LINE PROTECTOR	1	$105.61
14	OLT-1	OIL LINE	1	$19.77
15	BAND-15	METAL BAND	4	$5.03
17	ZER1805	GREASE FITTING	8	$2.53
18	SLV-1	RELIEF VALVE	1	$274.00
19	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	2	$65.36
20	OLT-22	OIL LINE - HOOK	1	$17.62
21	OLT-23	OIL LINE	1	$12.58
22	OH-5	OIL LINE PROTECTOR	1	$10.07
23	OLT-2	OIL LINE	2	$22.62
30	L-19	CYLINDER-LIFT	2	$1,272.08
31	L-1001	CYLINDER-BARREL (L-10)	2	$515.33
32	L-1910	CYLINDER-RAM (L-19)	2	$558.11
33	G-B	GLAND (1-3/4 RAM)	2	$145.84
34	P-B	PISTON - 3 DIA.	4	$118.14
35	HJN1614	HEX JAM NUT - 1	2	$17.62
36	HFN1614	NUT - 1	4	$5.07
37	B-310	CYLINDER-RAM - 1.75 DIA. (B-3) (B-5)	2	—	Call to order
39	B-501	CYLINDER-BARREL - 3 DIA. (B-5)	2	$646.08
39	B-310	CYLINDER-RAM - 1.75 DIA. (B-3) (B-5)	2	—	Call to order
40	G-E	GLAND-TAPERED (1-3/4 RAM)	2	$155.86
41	#4CK	CYLINDER REPAIR SEAL KIT	4	$103.48
