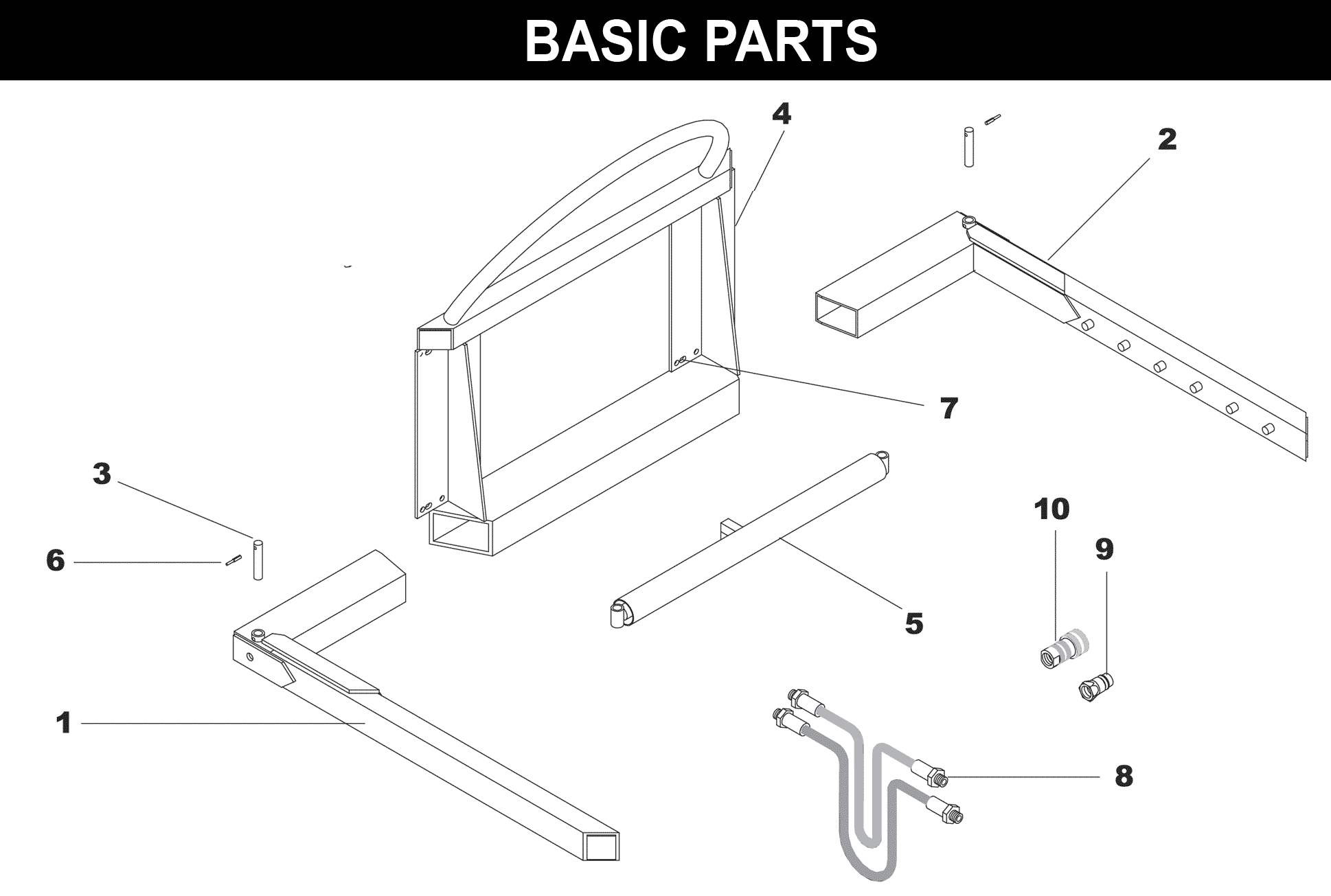

Squeezer™ Basic Parts
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | BA-1CAS-R | SQUEEZER ARM - RIGHT | 1 | $799.43 | |
| 2 |  | BA-1CAS-L | SQUEEZER ARM-LEFT | 1 | $799.42 | |
| 3 | BA-7B | CYLINDER PIN | 2 | $25.13 | ||
| 4 |  | BA-11EAS | SQUEEZER-FRAME | 1 | $2,790.49 | |

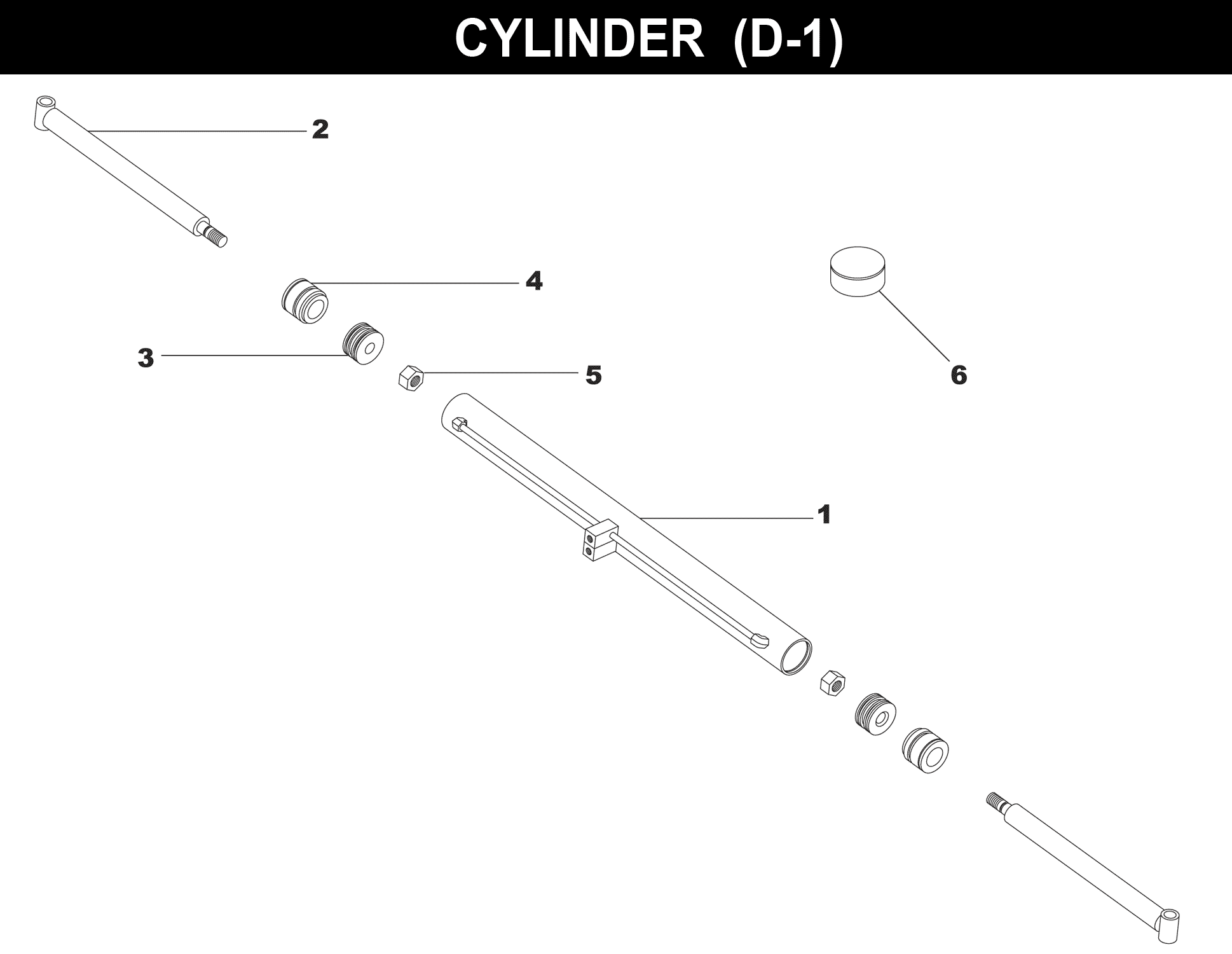

| 5 |  | D-1A | HYDRAULIC CYLINDER | 1 | $1,272.06 | |
| 6 |  | DRP0600028 | DOUBLE ROLL PIN | 2 | $2.53 | |
| 7 |  | ZER1805 | GREASE FITTING | 4 | $2.53 | |
| 8 |  | HK-21 | HOSE KIT | 1 | $422.34 | |
| 8 | HK-35 | HOSE KIT | 1 | $152.84 | ||
| 9 |  | LM-10 | MALE COUPLER | 1 | $62.70 | |
| 10 |  | LM-11 | FEMALE COUPLER | 1 | $55.35 | |
| 11 |  | QC-300AS | ADAPTER-SNAP-ATTACH BOLT ON (1 PC) | 2 | $150.61 | |
| 12 |  | HHS1011024 | BOLT - 5/8 X 1-1/2 | 8 | $5.03 | |
| 13 |  | LWM10 | LOCK WASHER -5/8 | 8 | $0.77 | |
| 14 |  | HFN1011 | NUT - 5/8 | 8 | $1.26 |
