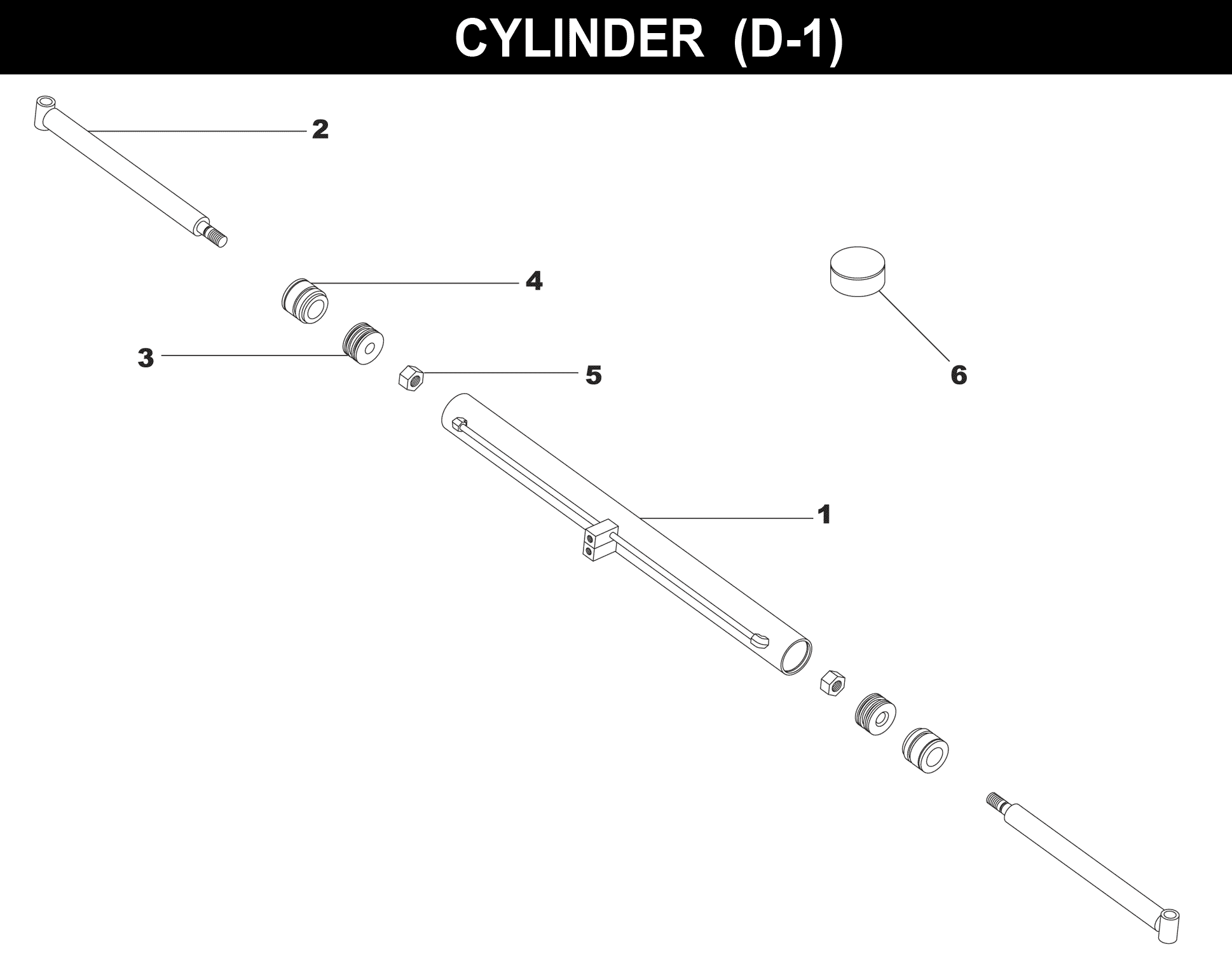

Cylinder - D-1

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	D-101B	CYLINDER-BARREL (D-1)	1	$481.87
2	D-110A	CYLINDER-RAM (D-1)	2	$481.87
3	P-B	PISTON - 3 DIA.	2	$118.14
4	G-B	GLAND (1-3/4 RAM)	2	$145.84
5	HFN1614	NUT - 1	2	$5.07
6	#4CK	CYLINDER REPAIR SEAL KIT	1	$103.48
