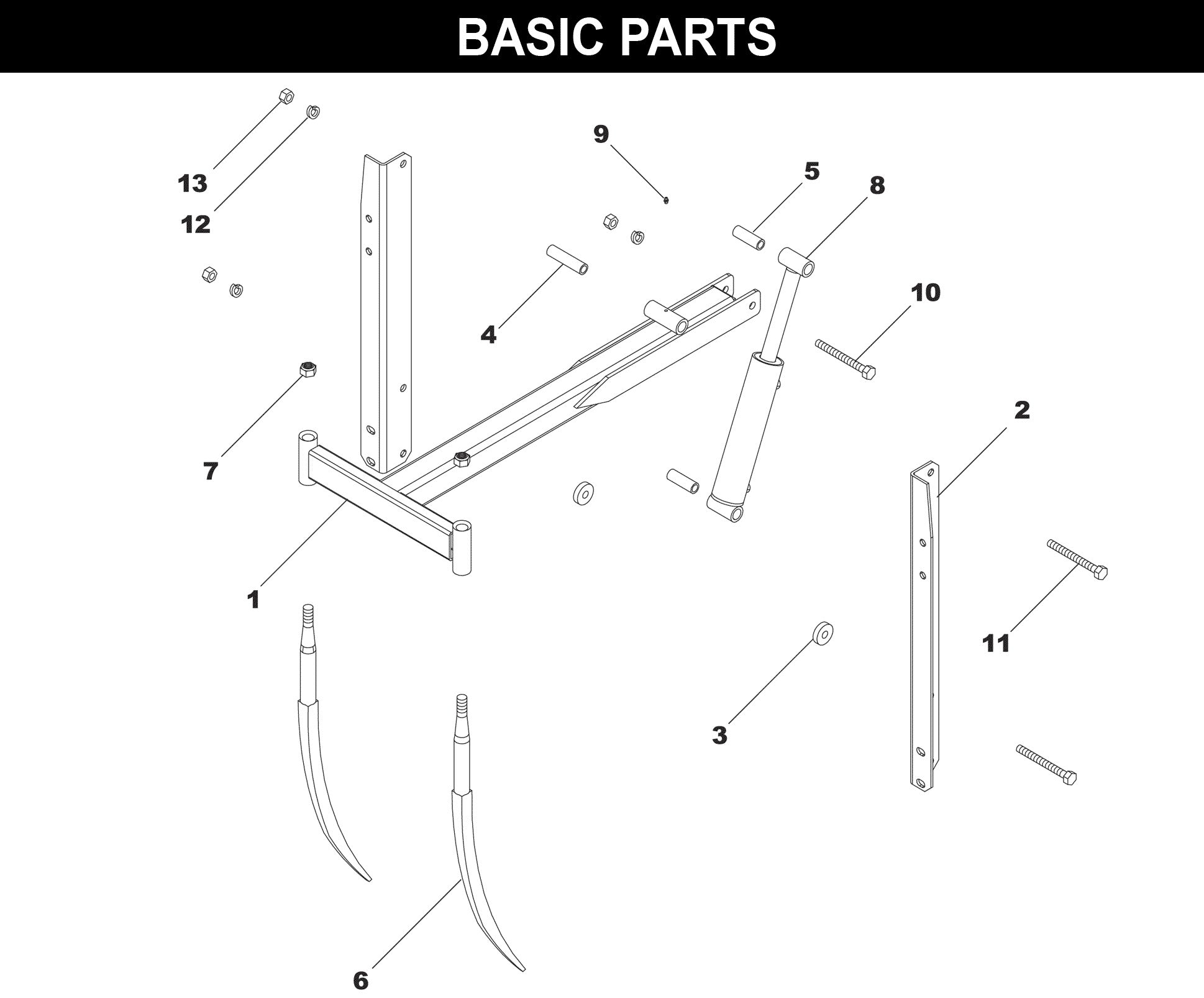

Sabretooth Grab Fork GF-32
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | GF-175AS | FRAME ASSEMBLY | 1 | — | Call to order | |
| 2 | GF-176 | ARM (1 RIGHT & 1 LEFT) | 2 | — | Call to order | |
| 3 | GF-177 | SPACER WASHER | 2 | — | Call to order | |
| 4 | GF-181 | BUSHING | 1 | — | Call to order | |
| 5 |  | GF-182 | BUSHING | 2 | $6.95 | |
| 6 |  | BC-140 | CURVED TINE | 2 | $206.18 | |
| 7 |  | TB-112 | TINE NUT | 2 | $32.68 | |

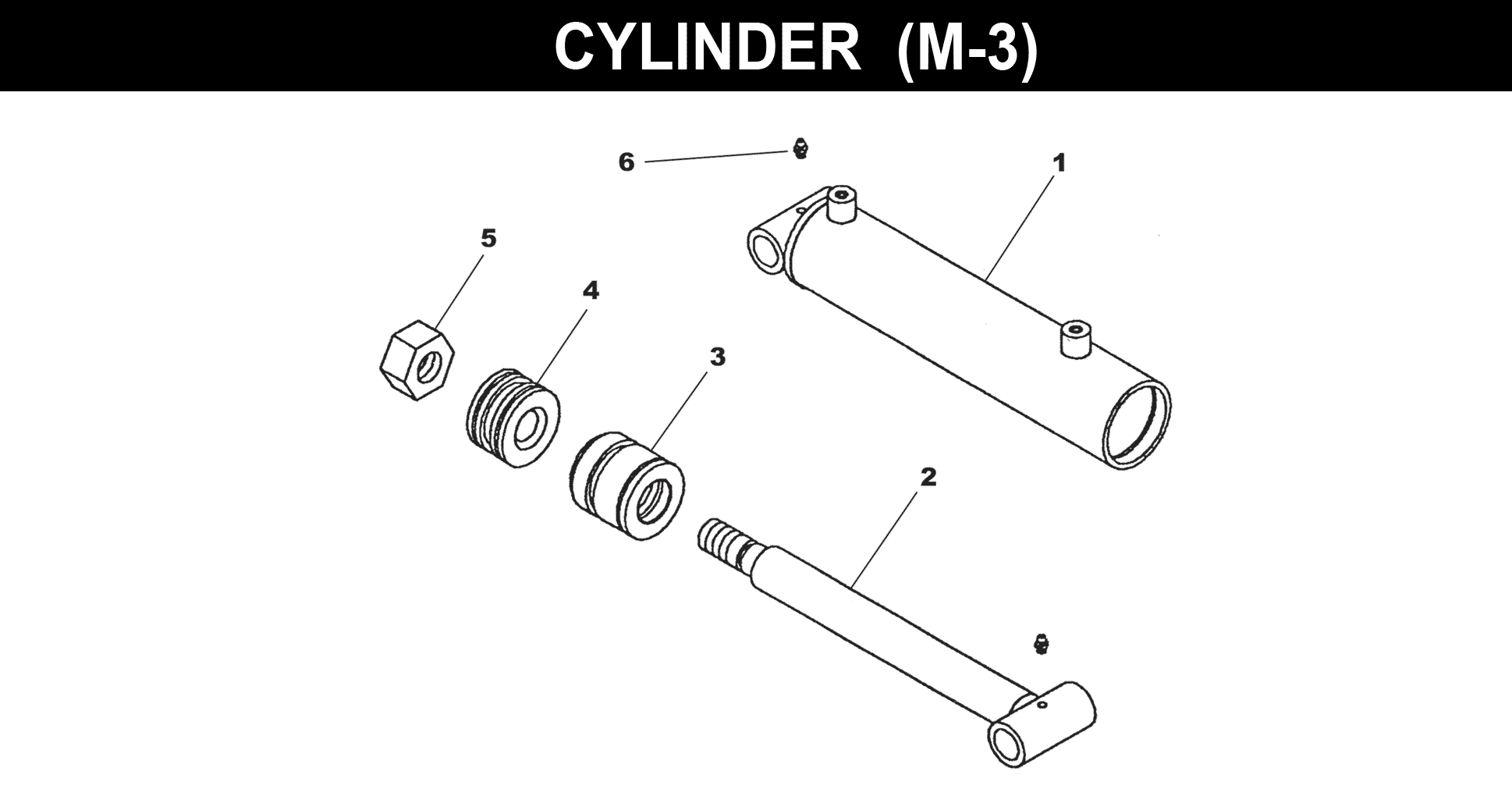

| 8 |  | M-3 | CYLINDER-HIGH LIFTER | 1 | $651.10 | |
| 9 |  | ZER1805 | GREASE FITTING | 1 | $2.53 | |
| 10 |  | HHS1011080 | BOLT - 5/8 X 5 | 1 | $7.54 | |
| 11 |  | HHS1011088 | BOLT - 5/8 X 5-1/2 | 2 | $7.54 | |
| 12 |  | LWM10 | LOCK WASHER -5/8 | 3 | $0.77 | |
| 13 |  | HFN1011 | NUT - 5/8 | 3 | $1.26 | |
| 14 |  | U-5 | U-BOLT -5 (4-1/2 INSIDE LEG) | 4 | $17.62 | |
| 15 | | LWM10 | LOCK WASHER -5/8 | 8 | $0.77 | |
| 16 | | HFN1011 | NUT - 5/8 | 8 | $1.26 | |
| 17 |  | HK-21 | HOSE KIT | 1 | $422.34 | |
| 18 |  | HK-27 | HOSE KIT | 1 | $261.46 |
