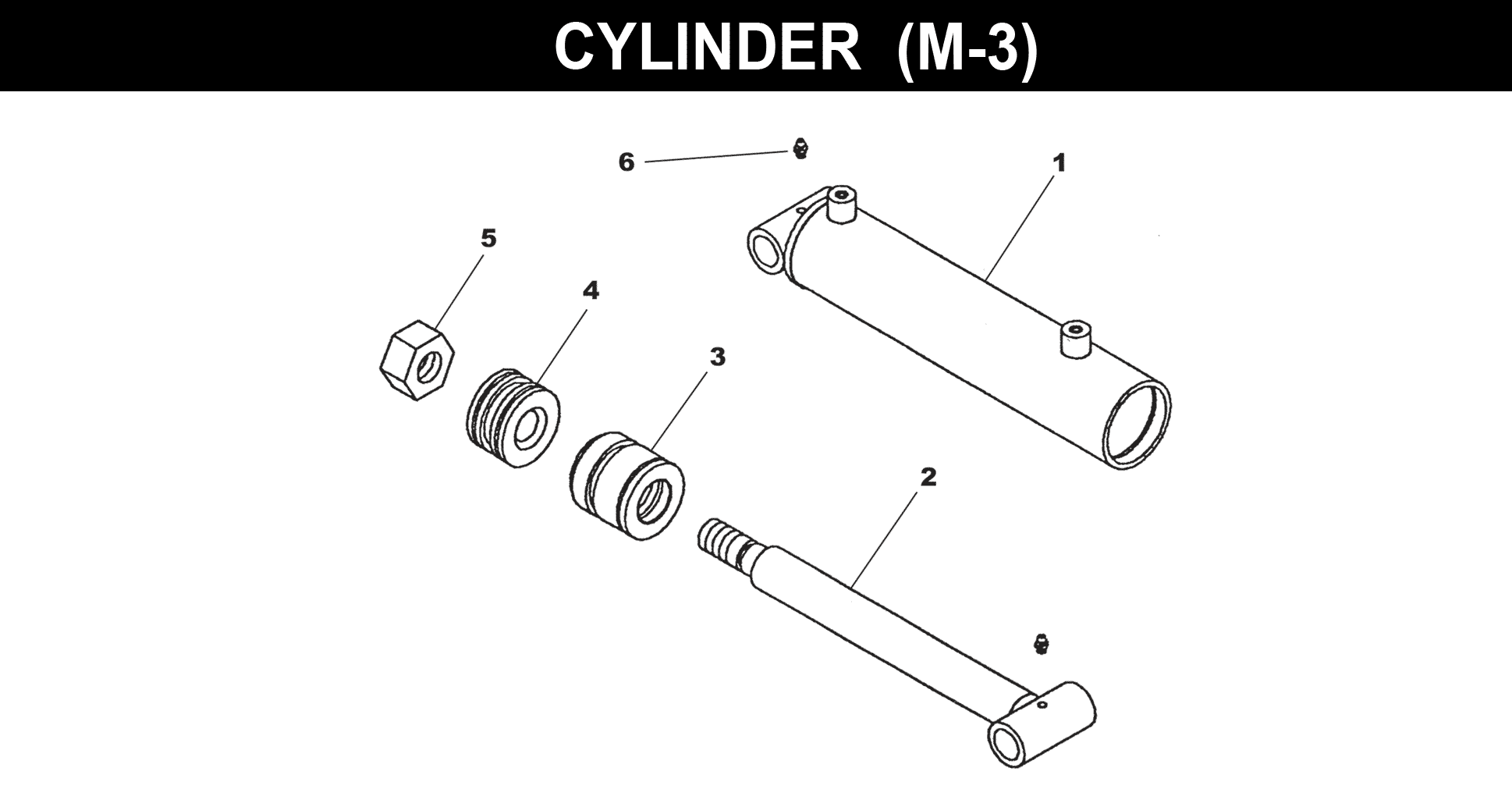

Cylinder - M-3

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	M-301	CYLINDER-BARREL (M-3)	1	$243.86
2	M-310	CYLINDER-RAM (M-3)	1	$175.94
3	G-A	GLAND (1-3/8 RAM)	1	$145.82
4	P-A	PISTON - 2.5 DIA.	1	$118.14
5	HFN1614	NUT - 1	1	$5.07
6	ZER1805	GREASE FITTING	2	$2.53
7	#1CK	CYLINDER REPAIR SEAL KIT	1	$118.14
