Cat Claw GF-184-3D Parts
2 assemblies · choose one below

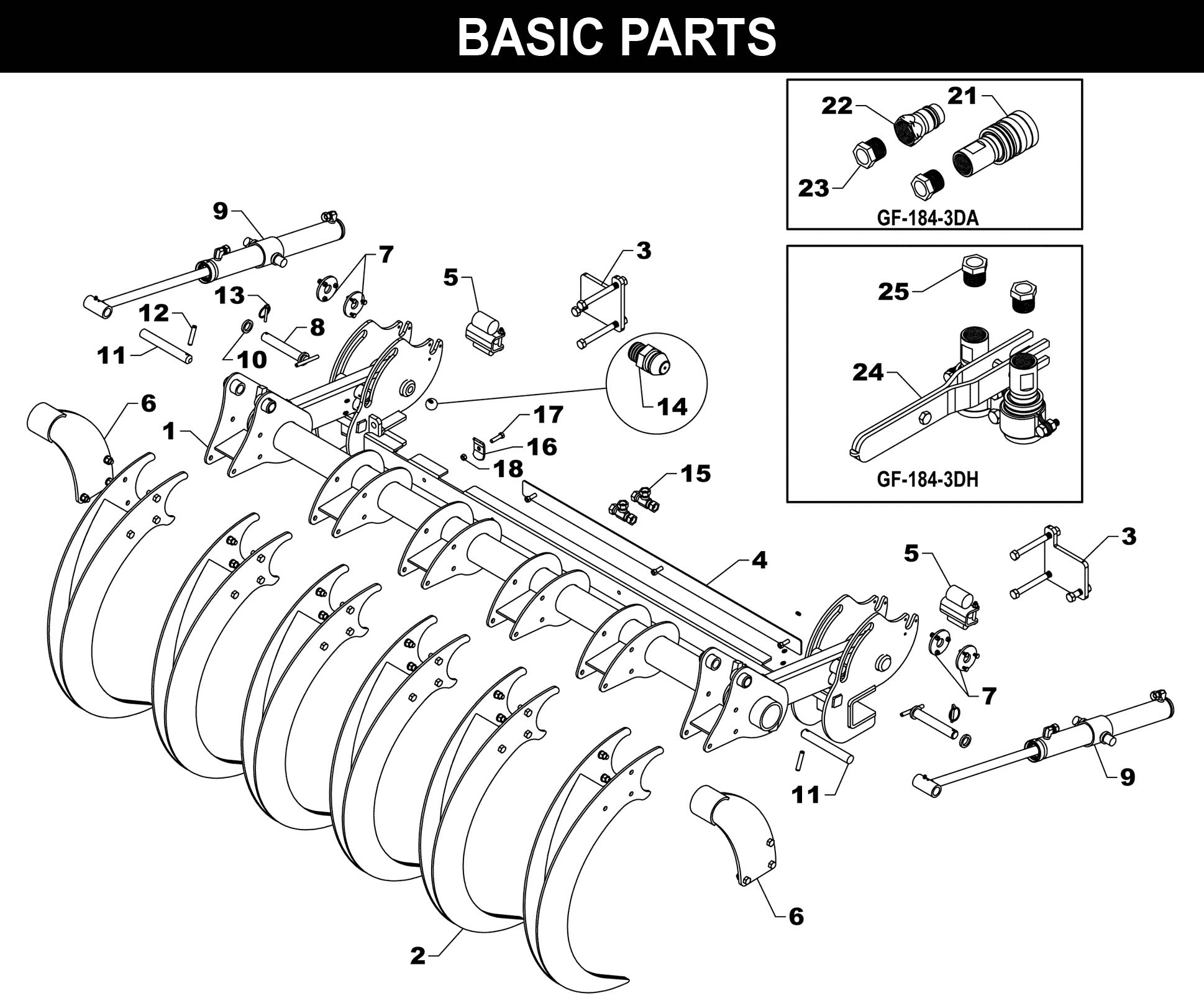

Triple Action Cat Claw GF-184-3D
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | GF-601AS | FRAME | 1 | $3,333.60 | |
| 2 |  | GF-637KIT | REPLACEMENT TOOK KIT FOR GF-184/196 | 6 | $341.96 | |
| 3 | GF-645KIT | BUCKET ATTACH KIT | 1 | — | Call to order | |
| 4 | GF-642KIT | HOSE COVER KIT | 1 | — | Call to order | |
| 5 | GF-613KIT | BUCKET STOP KIT | 1 | — | Call to order | |
| 6 | GF-640KIT | GRAB FORK STAND KIT | 1 | — | Call to order | |
| 7 |  | GF-414KIT | CYLINDER ATTACH KIT | 2 | $68.22 | |
| 8 | GF-646AS | PIN | 2 | — | Call to order | |

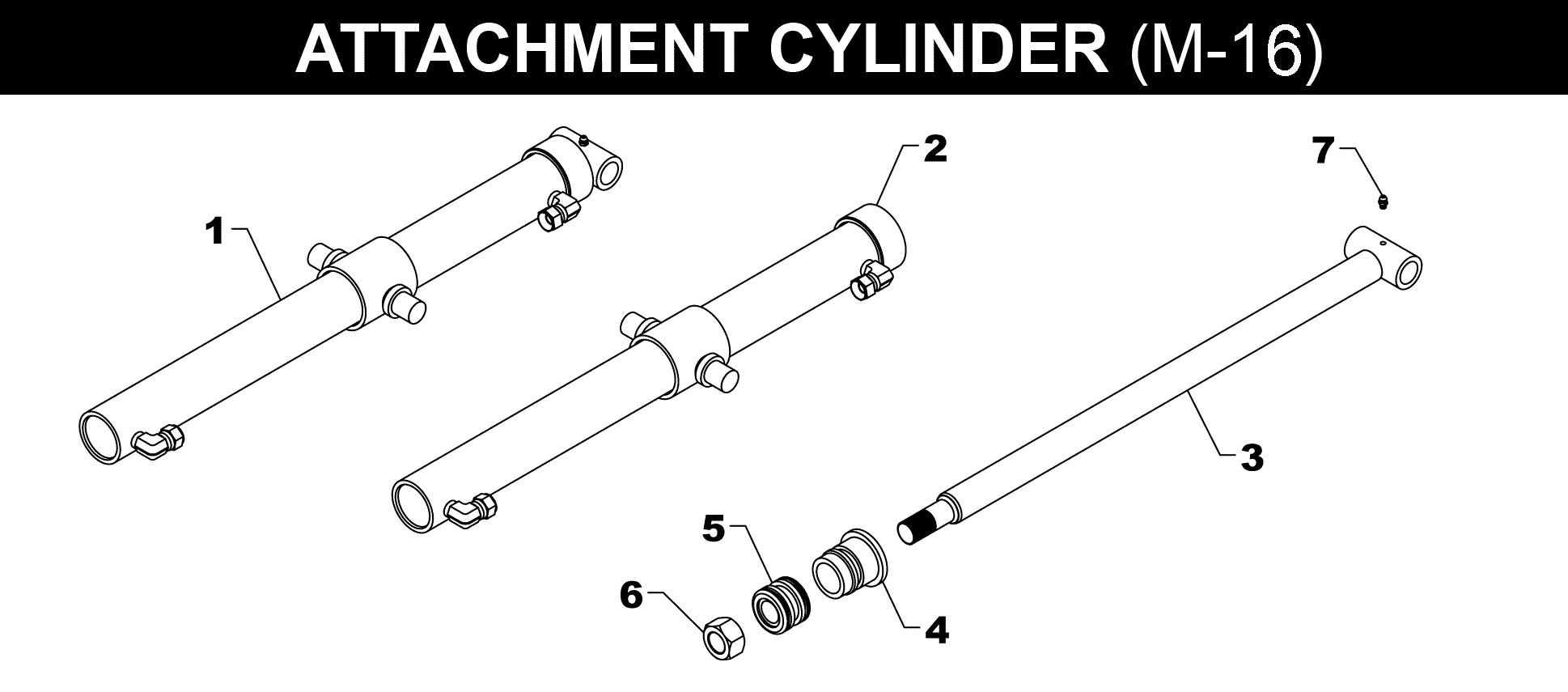

| 9 |  | M-16 | CYLINDER FOR CAT CLAW | 2 | $779.20 | |
| 10 |  | LMF-17 | HEAD FOR PIN - 1 | 2 | $5.03 | |
| 11 | LMF-18 | PIN | 2 | — | Call to order | |
| 12 |  | RLP0700036 | ROLL PIN - 7/16 | 2 | $3.31 | |
| 13 |  | QLP0400028 | LYNCH PIN | 2 | $5.03 | |
| 14 |  | ZER1805 | GREASE FITTING | 6 | $2.53 | |
| 15 |  | PF-HPFT06 | PIPE FITTING - SWIVEL NUT TEE 3/8 | 2 | $42.18 | |
| 16 |  | OH-6 | OIL LINE PROTECTOR | 1 | $12.04 | |
| 17 |  | HHS0616024 | BOLT - 3/8 X 1-1/2 | 1 | $2.53 | |
| 18 |  | HTN0616 | LOCK NUT - 3/8 | 1 | $2.53 | |
| 19 | HK-20 | HOSE KIT | 1 | $258.20 | ||
| 20 | HK-110 | HOSE KIT | 1 | $238.17 | ||
| 21 |  | LM-13 | FEMALE COUPLER - HIGH PRESSURE | 1 | $105.61 | |
| 22 |  | FLM-14AS | TOOTH ASSEMBLY | 1 | $521.17 | |
| 23 |  | PF-HB0608 | PIPE FITTING - HEX BUSHING 3/8 TO 1/2 | 2 | $3.77 | |
| 24 |  | LM-121COM | FEMALE RECEIVER | 1 | $203.47 | |
| 25 | | PF-HB0608 | PIPE FITTING - HEX BUSHING 3/8 TO 1/2 | 2 | $3.77 |
