Parts Lookup › Grab Forks

Cylinder - M-16

Fits:Cat Claw GF-184-3DCat Claw GF-196-3D
Click a number on the diagram to find the part.

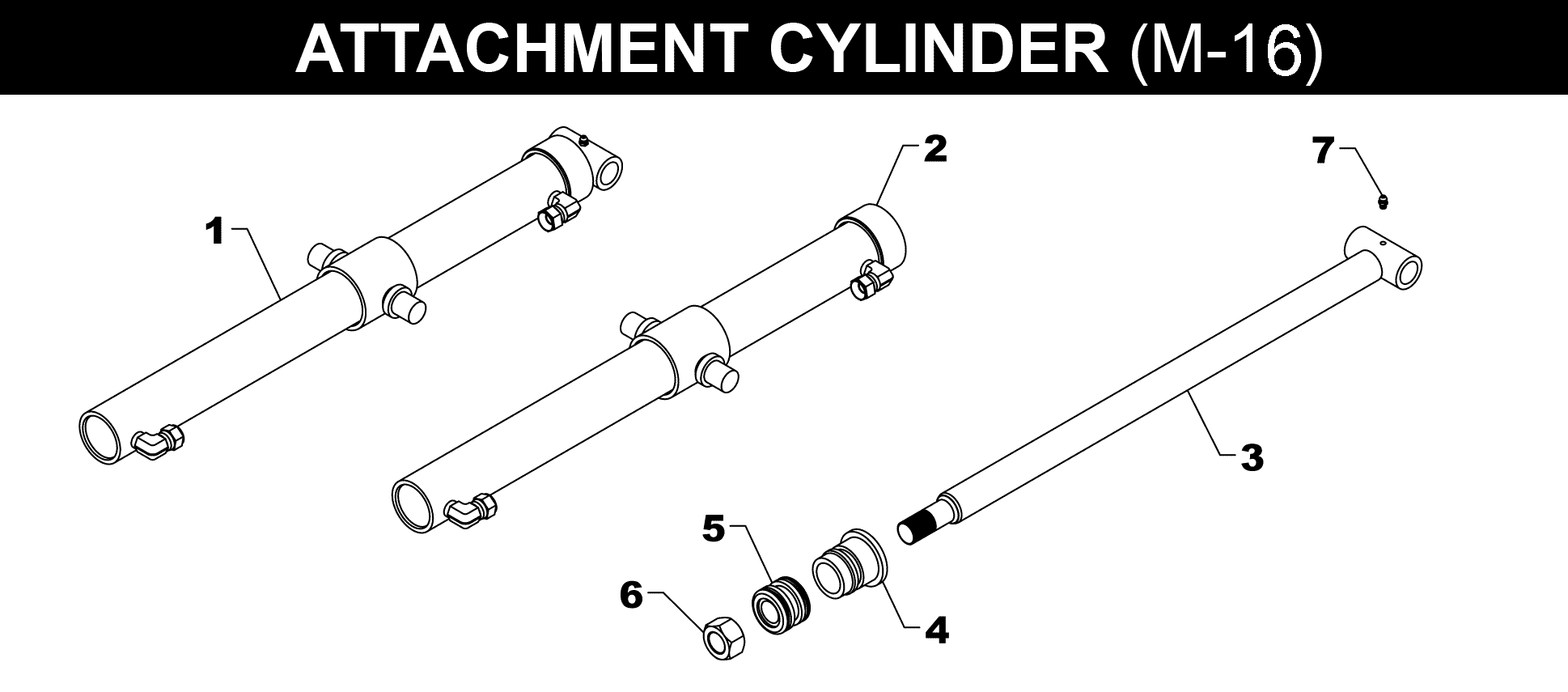

Cylinder - M-16 exploded diagram
RefPart # Description Qty Price
1M-1601 CYLINDER-BARREL (M-16) 1 — Call to order
2M-1610 CYLINDER-RAM (M-16) 1 $272.72
3G-V GLAND 1 $136.53
4P-J PISTON - NEW STYLE (B-15) 1 $155.86
5ZER1805 GREASE FITTING 1 $2.53
6#41CK CYLINDER REPAIR SEAL KIT 1 $201.12
