bc-5000

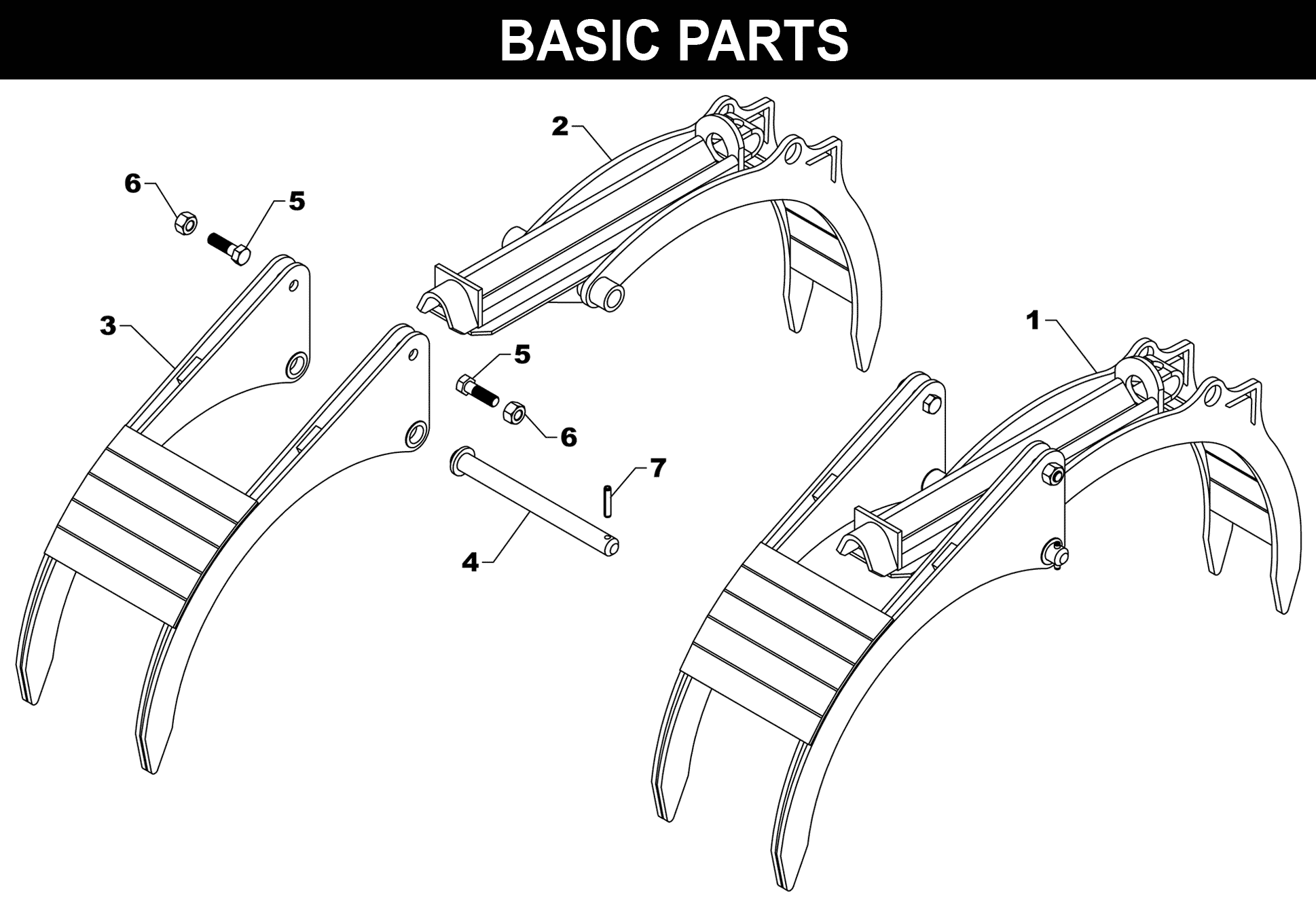

BC-5000 Brush Crusher

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-80COM	BRUSH CRUSHER UNIT - BC-5000 ONE SIDE	1	$1,369.59
2	BCP-80AS	TOOTH	1	$739.82
3	BCP-83AS	FRONT TEETH	1	$1,042.09
4	BCP-86AS	PIN	1	$100.56
5	HHS1210040	BOLT -3/4 X 2-1/2	2	$5.03
6	HFN1210	NUT - 3/4	2	$2.53
7	DRP0600032	DOUBLE ROLL PIN	1	$2.53

BCK-001 Tie Bar Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-34	ANGLE SUPPORT	1	$143.26
2	BCP-35	LOCK PLATE	2	$10.35
3	HHS0813016	BOLT - 1/2 X 1	2	$2.24
4	LWM08	LOCK WASHER - 1/2	2	$0.37

BCK-003 Tie Bar Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BCP-36	ANGLE SUPPORT	1	—	Call to order
2	BCP-35	LOCK PLATE	2	$10.35
3	HHS0813016	BOLT - 1/2 X 1	2	$2.24
4	LWM08	LOCK WASHER - 1/2	2	$0.37

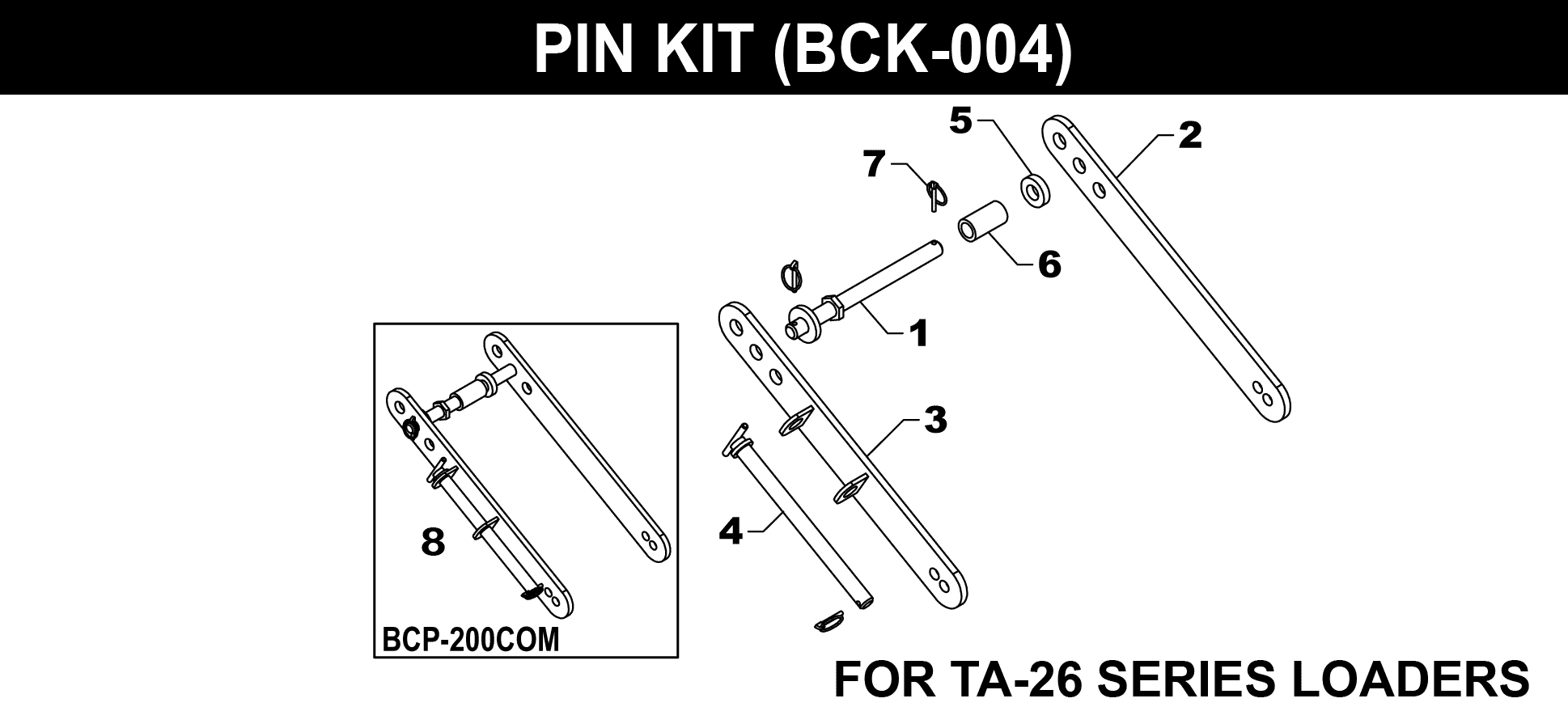

BCK-004 Pin Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-200AS	REAR PIVOT PIN	1	$65.46
2	BCP-112	STRAP	1	$120.65
3	BCP-112AS	STRAP	1	$126.49
4	BCP-204AS	STORAGE PIN	1	$40.22
5	BCP-197	SPACER WASHER	1	$5.03
6	BUS-96	BUSHING	1	$20.13
7	QLP0400028	LYNCH PIN	3	$5.03

BCK-005 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-227AS	BCP-227AS	1	$299.20
2	BCP-212AS	PIVOT STRAP	1	$108.42
3	BCP-204AS	STORAGE PIN	1	$40.22
4	QLP0400028	LYNCH PIN	1	$5.03
5	BCP-212	PIVOT STRAP	1	$120.65
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

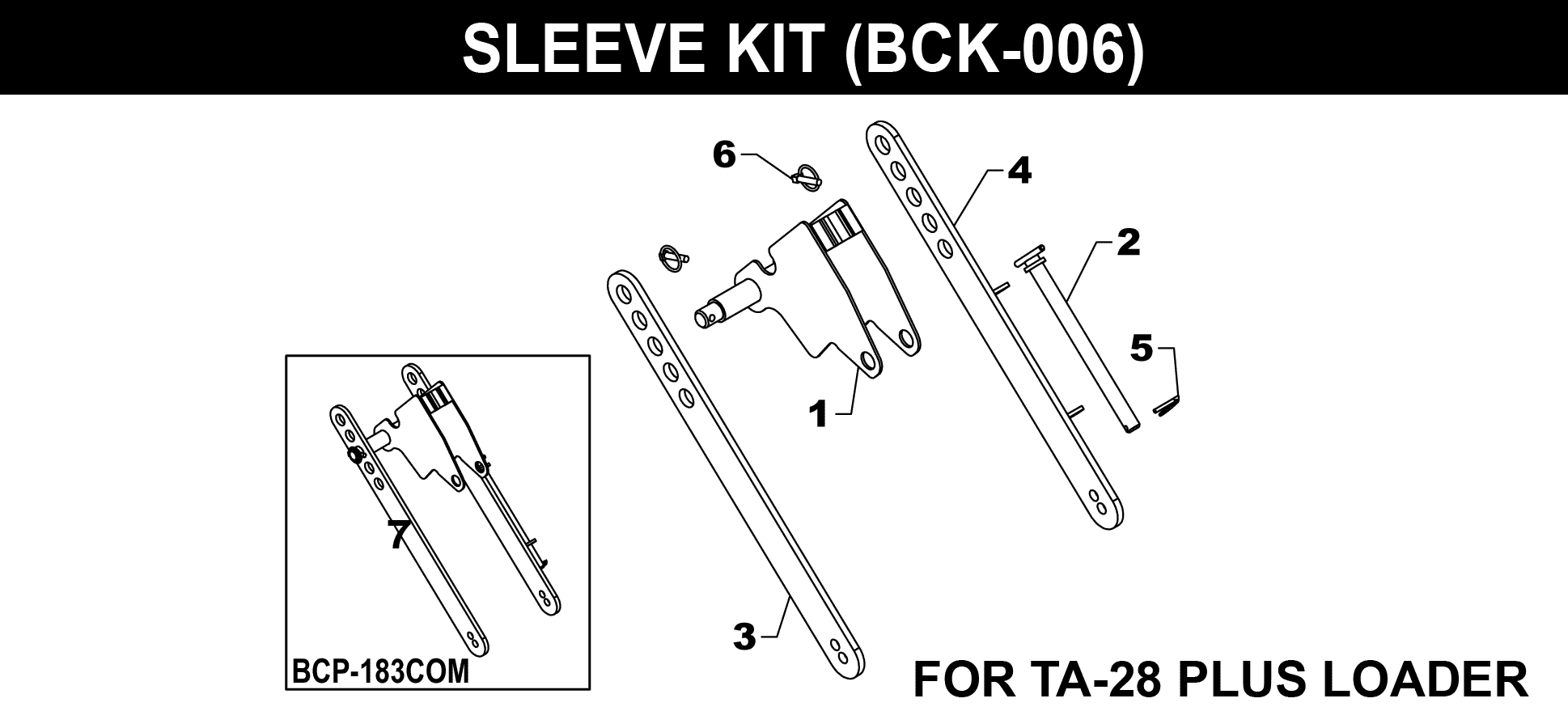

BCK-006 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-183AS	SLEEVE	1	$340.21
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212	PIVOT STRAP	1	$120.65
4	BCP-212AS	PIVOT STRAP	1	$108.42
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

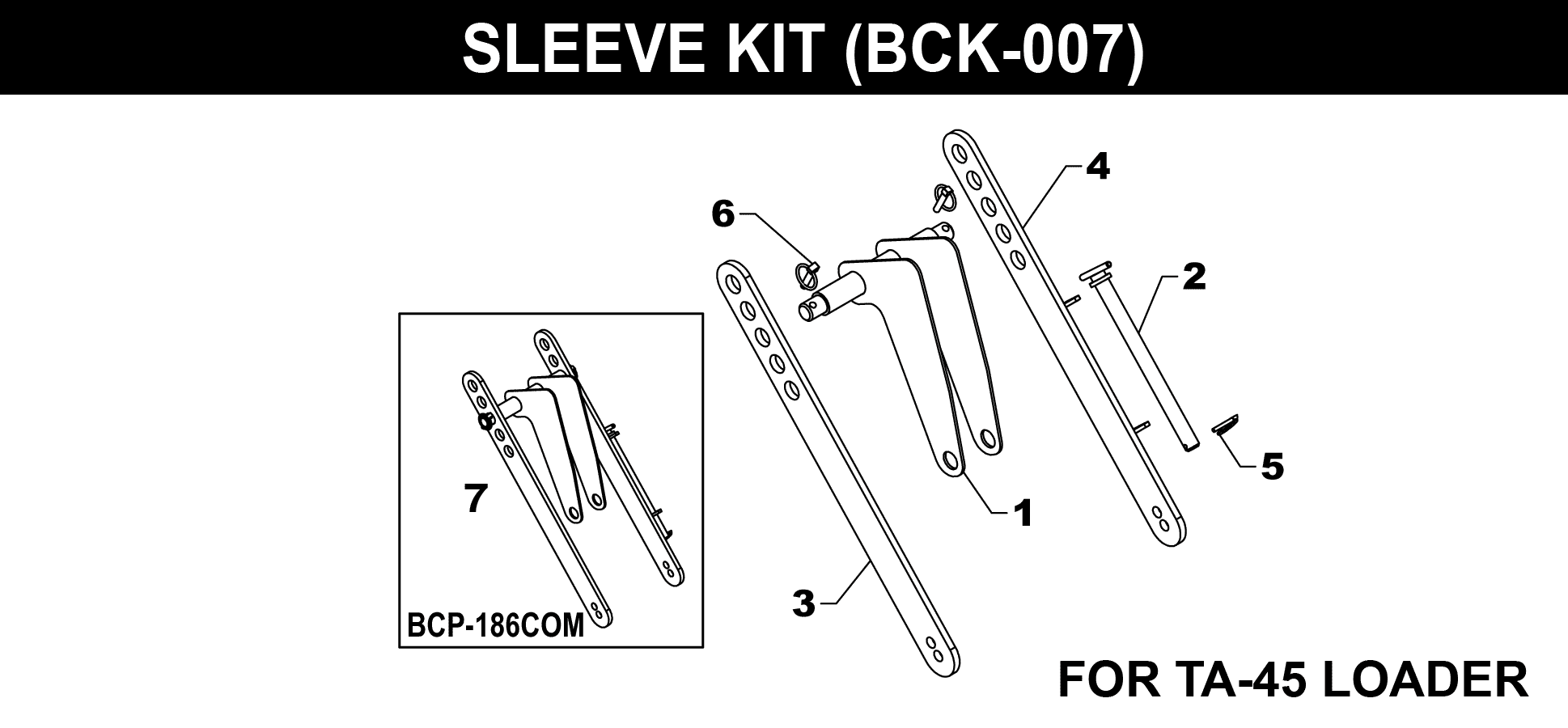

BCK-007 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BCP-186AS	SLEEVE	1	—	Call to order
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212	PIVOT STRAP	1	$120.65
4	BCP-212AS	PIVOT STRAP	1	$108.42
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

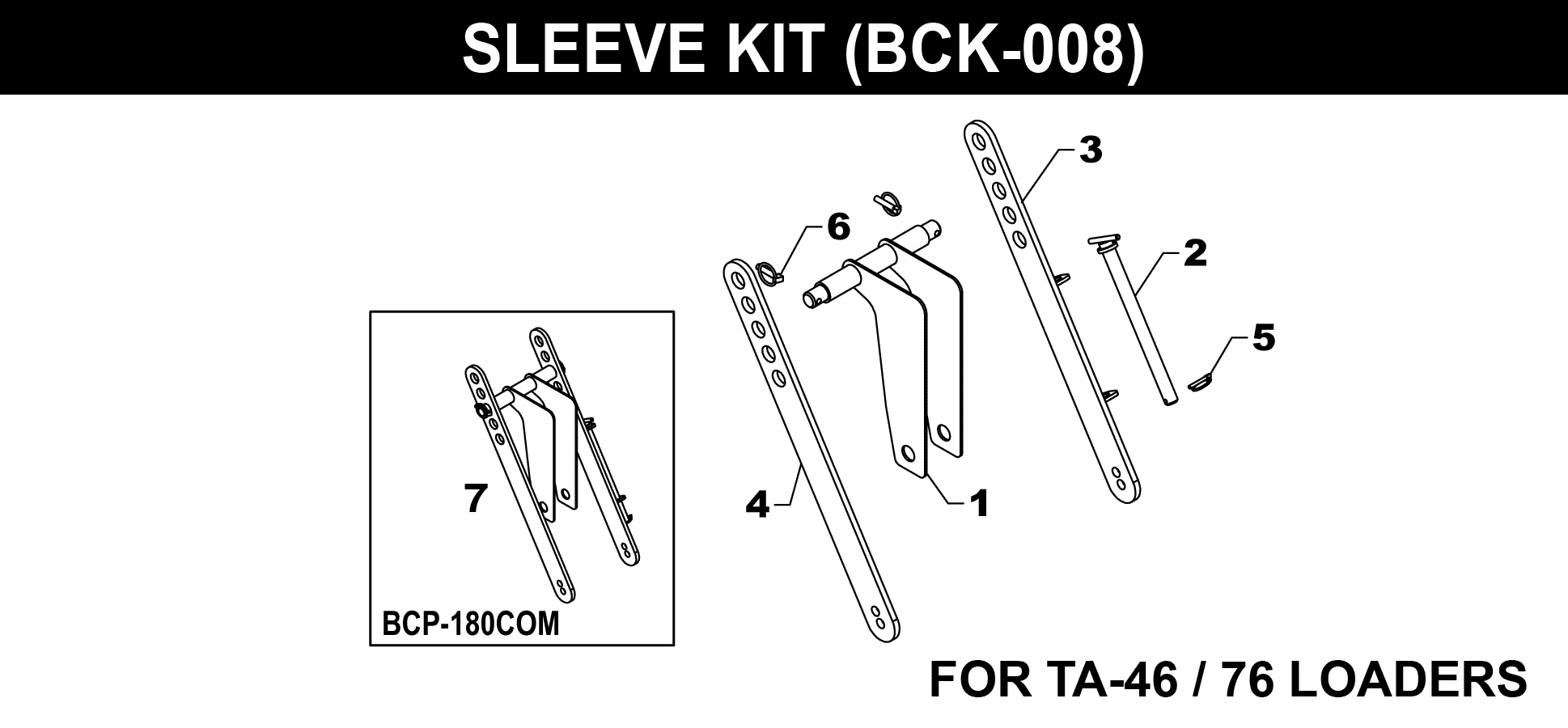

BCK-008 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-180AS	SLEEVE	1	$304.27
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212AS	PIVOT STRAP	1	$108.42
4	BCP-212	PIVOT STRAP	1	$120.65
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

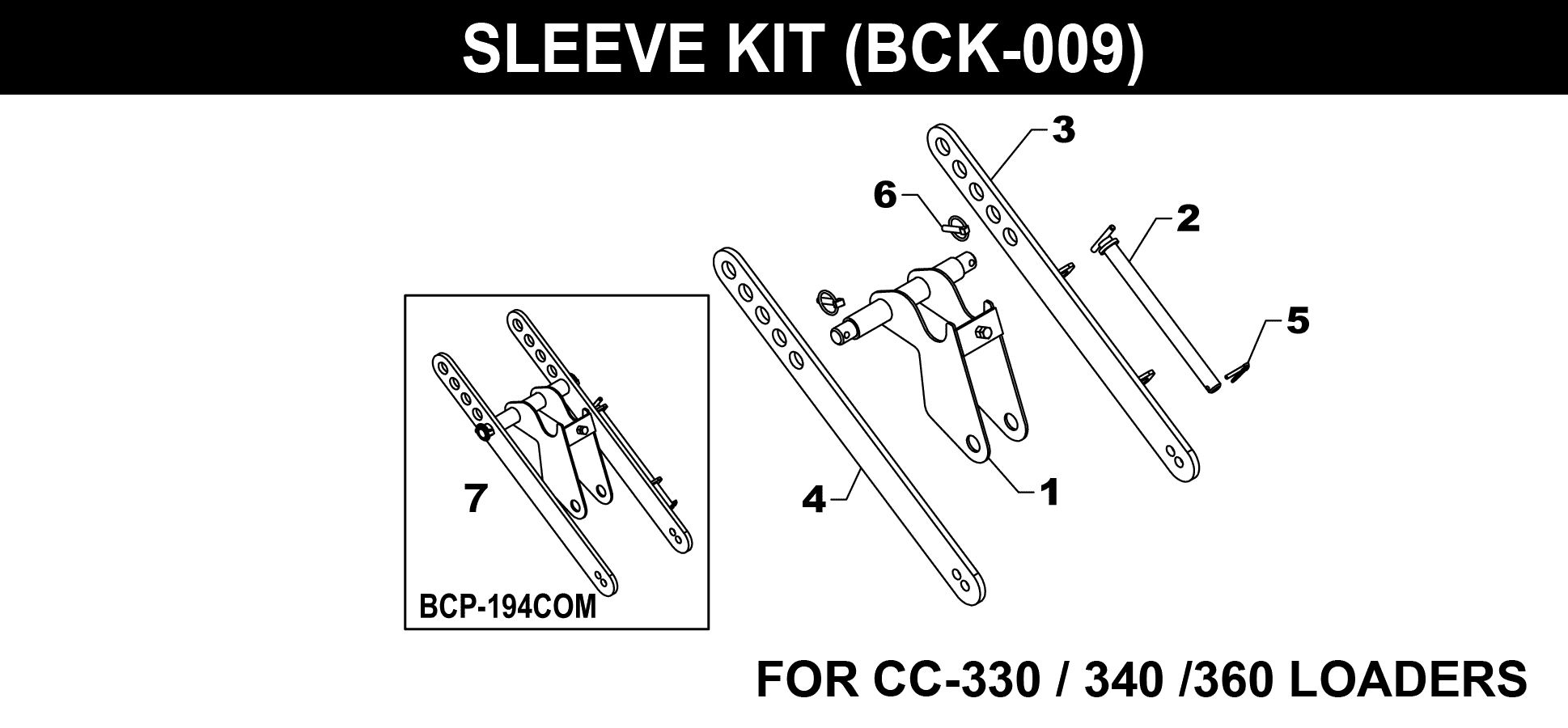

BCK-009 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BCP-194AS	SLEEVE	1	—	Call to order
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212AS	PIVOT STRAP	1	$108.42
4	BCP-212	PIVOT STRAP	1	$120.65
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

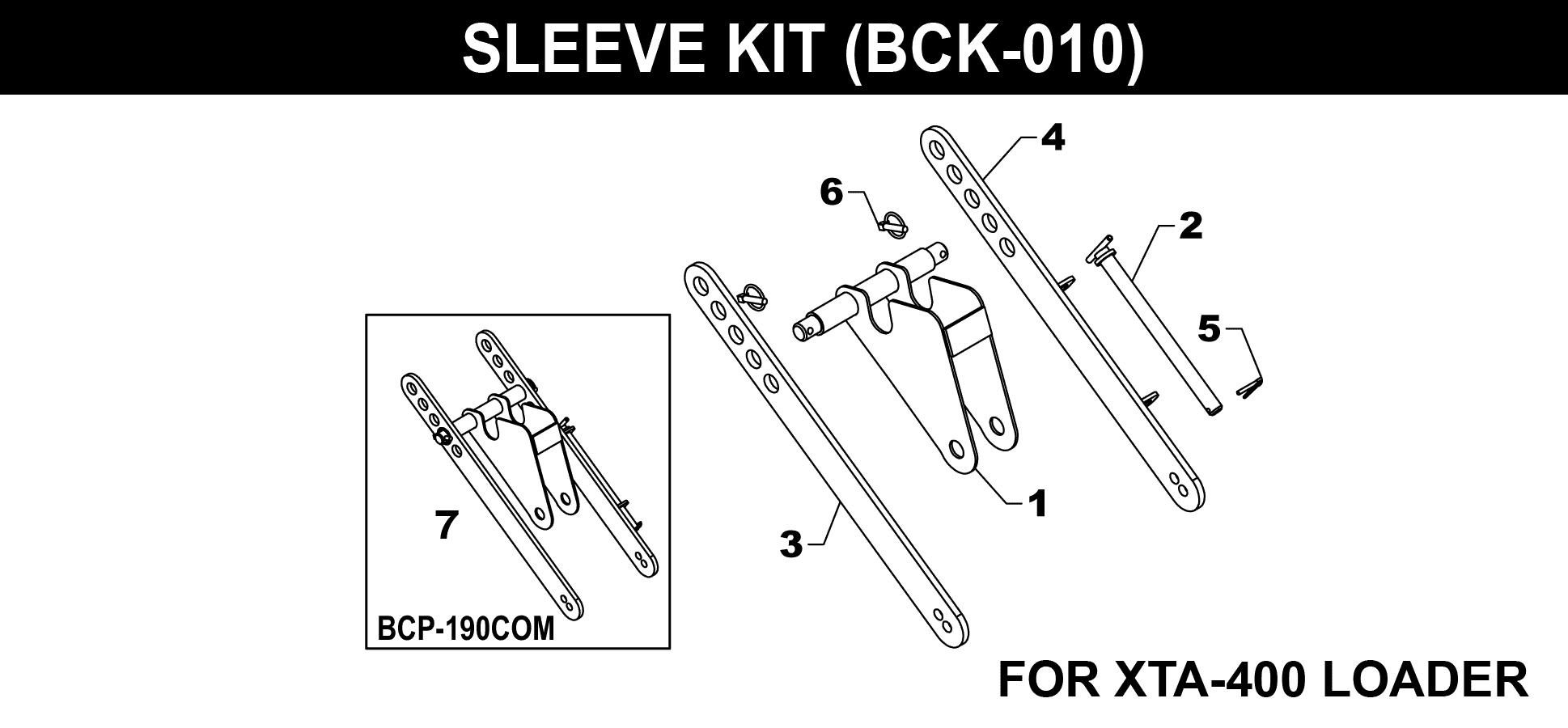

BCK-010 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BCP-190AS	SLEEVE	1	—	Call to order
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212	PIVOT STRAP	1	$120.65
4	BCP-212AS	PIVOT STRAP	1	$108.42
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

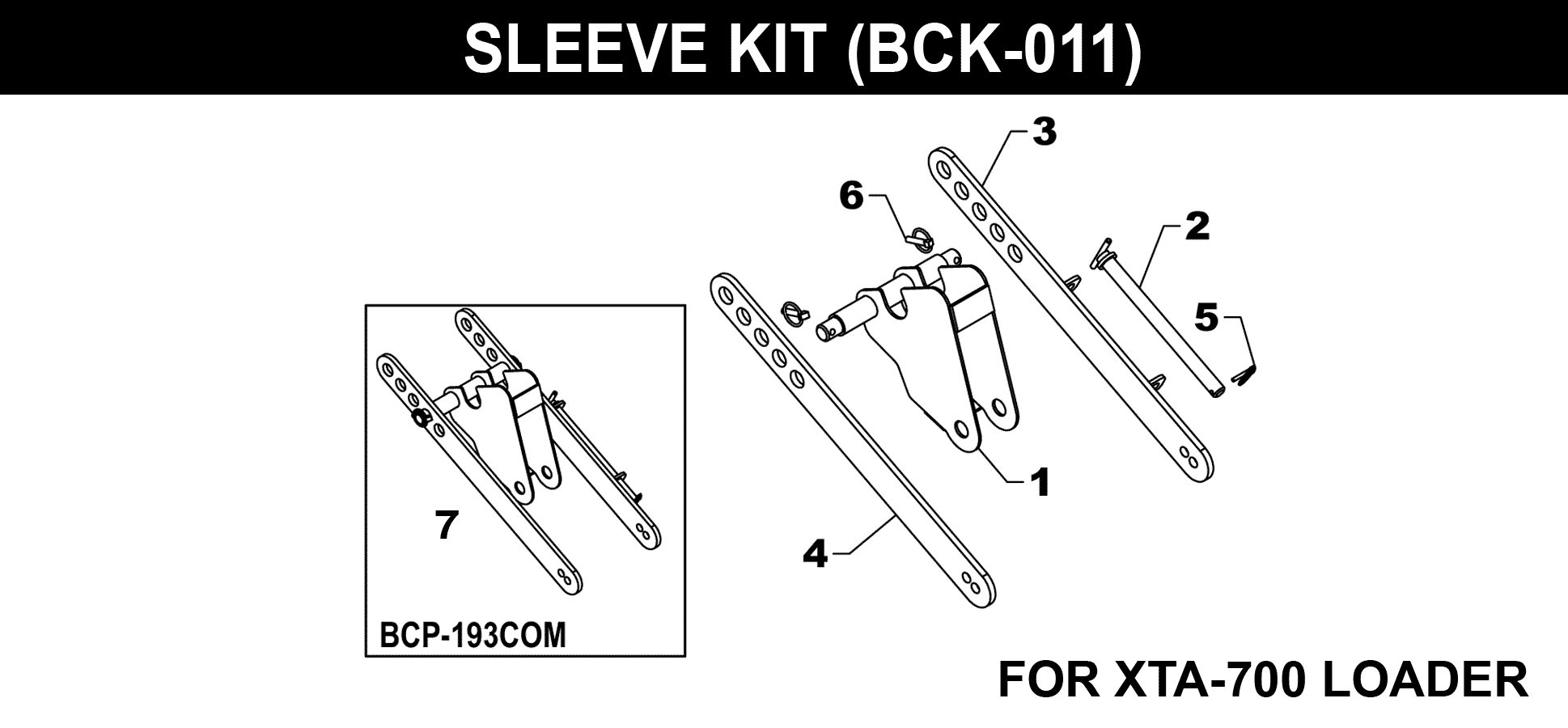

BCK-011 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BCP-193AS	SLEEVE	1	—	Call to order
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212AS	PIVOT STRAP	1	$108.42
4	BCP-212	PIVOT STRAP	1	$120.65
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

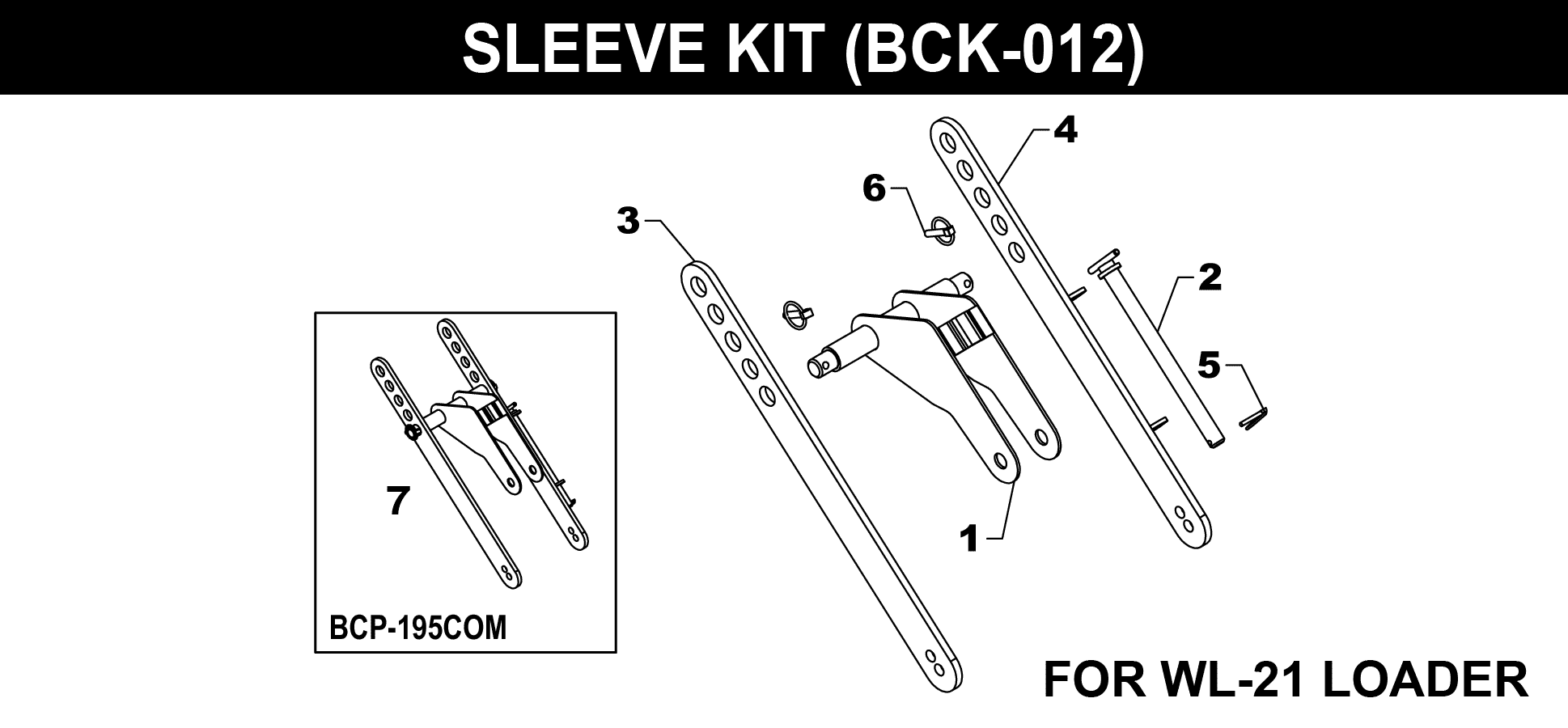

BCK-012 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-195AS	SLEEVE	1	$304.27
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212	PIVOT STRAP	1	$120.65
4	BCP-212AS	PIVOT STRAP	1	$108.42
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

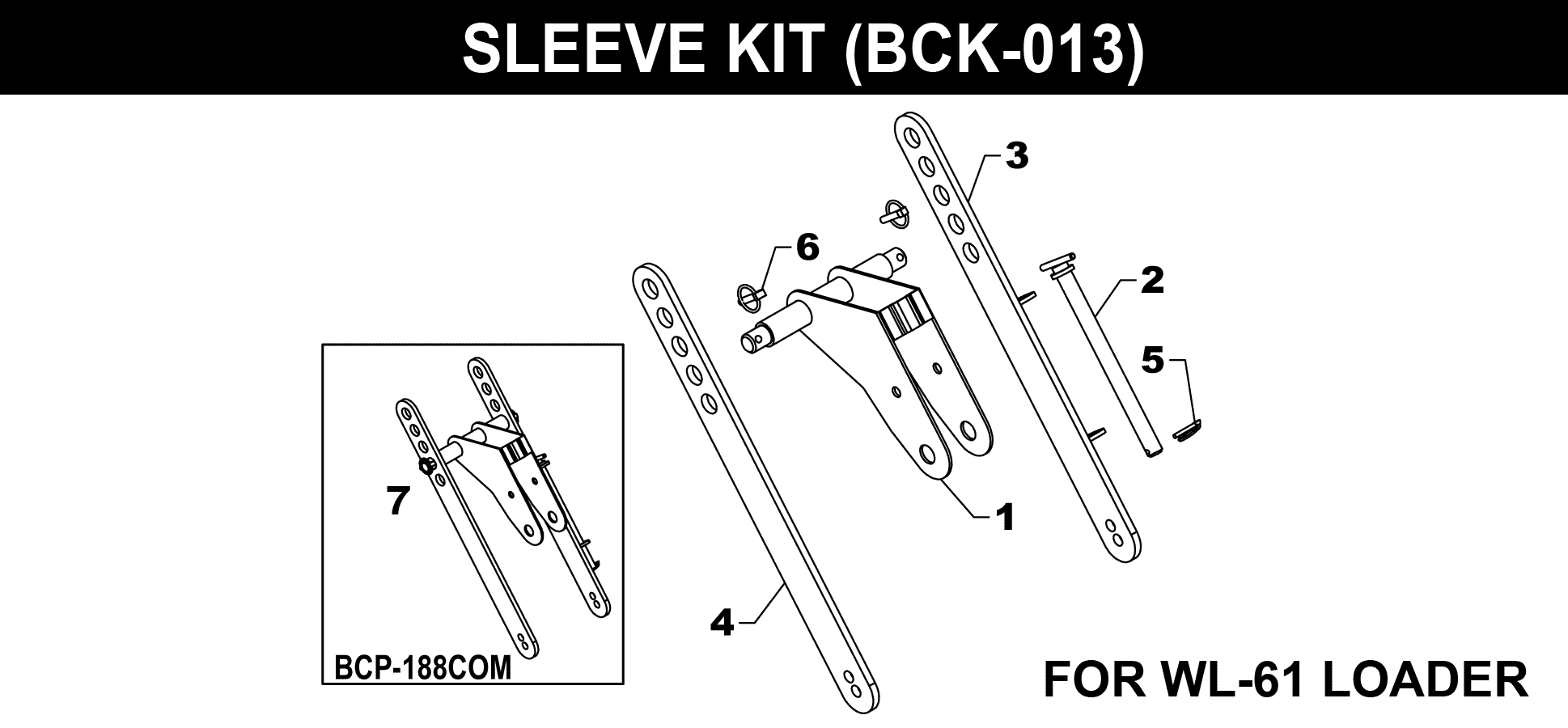

BCK-013 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-188AS	SLEEVE	1	$304.27
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212AS	PIVOT STRAP	1	$108.42
4	BCP-212	PIVOT STRAP	1	$120.65
5	QLP0400028	LYNCH PIN	1	$5.03
6	QLP0700024	QUICK LYNCH PIN	2	$5.03

BCK-015 Hinge Plate Kit

Open on its own page

Click a number on the diagram to find the part.

BCK-015 Hinge Plate Kit exploded diagram

Ref	Part #	Description	Qty	Price
1	BCP-100AS-R	HINGE PLATE - RIGHT	1	$226.28
2	BCP-100AS-L	HINGE PLATE - LEFT	1	$226.28
3	BCP-110	PIN	1	$52.80
4	BCP-111	STRAP	2	$120.65
5	BCP-112	STRAP	1	$120.65
6	BCP-112AS	STRAP	1	$126.49
7	BCP-116AS	CLAMP PLATE	1	$163.39
8	BCP-118AS	CLAMP	2	$27.63
9	BCP-121	CLAMP	1	$27.63
10	HFN1011	NUT - 5/8	2	$1.26
10	HTN1011	LOCK NUT - 5/8	2	$5.03
11	HTN0813	LOCKNUT - 1/2	4	$5.03
12	SR-C08	SNAP RING - EXTERNAL	2	$5.03
13	SR-C10	SNAP RING - EXTERNAL	4	$5.03
14	BCP-204AS	STORAGE PIN	1	$40.22
15	QLP0400028	LYNCH PIN	1	$5.03
16	QLP0700024	QUICK LYNCH PIN	2	$5.03
17	ZER1805	GREASE FITTING	1	$2.53

BCK-016 Hinge Plate Kit

Open on its own page

Click a number on the diagram to find the part.

BCK-016 Hinge Plate Kit exploded diagram

Ref	Part #	Description	Qty	Price
1	BCP-100AS-R	HINGE PLATE - RIGHT	1	$226.28
2	BCP-100AS-L	HINGE PLATE - LEFT	1	$226.28
3	BCP-110	PIN	1	$52.80
4	BCP-104AS	CLAMP	1	$163.39
5	BCP-108AS	CLAMP	2	$27.63
6	BCP-112	STRAP	1	$120.65
7	BCP-112AS	STRAP	1	$126.49
8	BCP-113	STRAP	2	$105.61
9	BCP-204AS	STORAGE PIN	1	$40.22
10	HTN0813	LOCKNUT - 1/2	4	$5.03
11	SR-C10	SNAP RING - EXTERNAL	4	$5.03
12	SR-C08	SNAP RING - EXTERNAL	2	$5.03
13	QLP0400028	LYNCH PIN	1	$5.03
14	QLP0700024	QUICK LYNCH PIN	2	$5.03
15	ZER1805	GREASE FITTING	1	$2.53

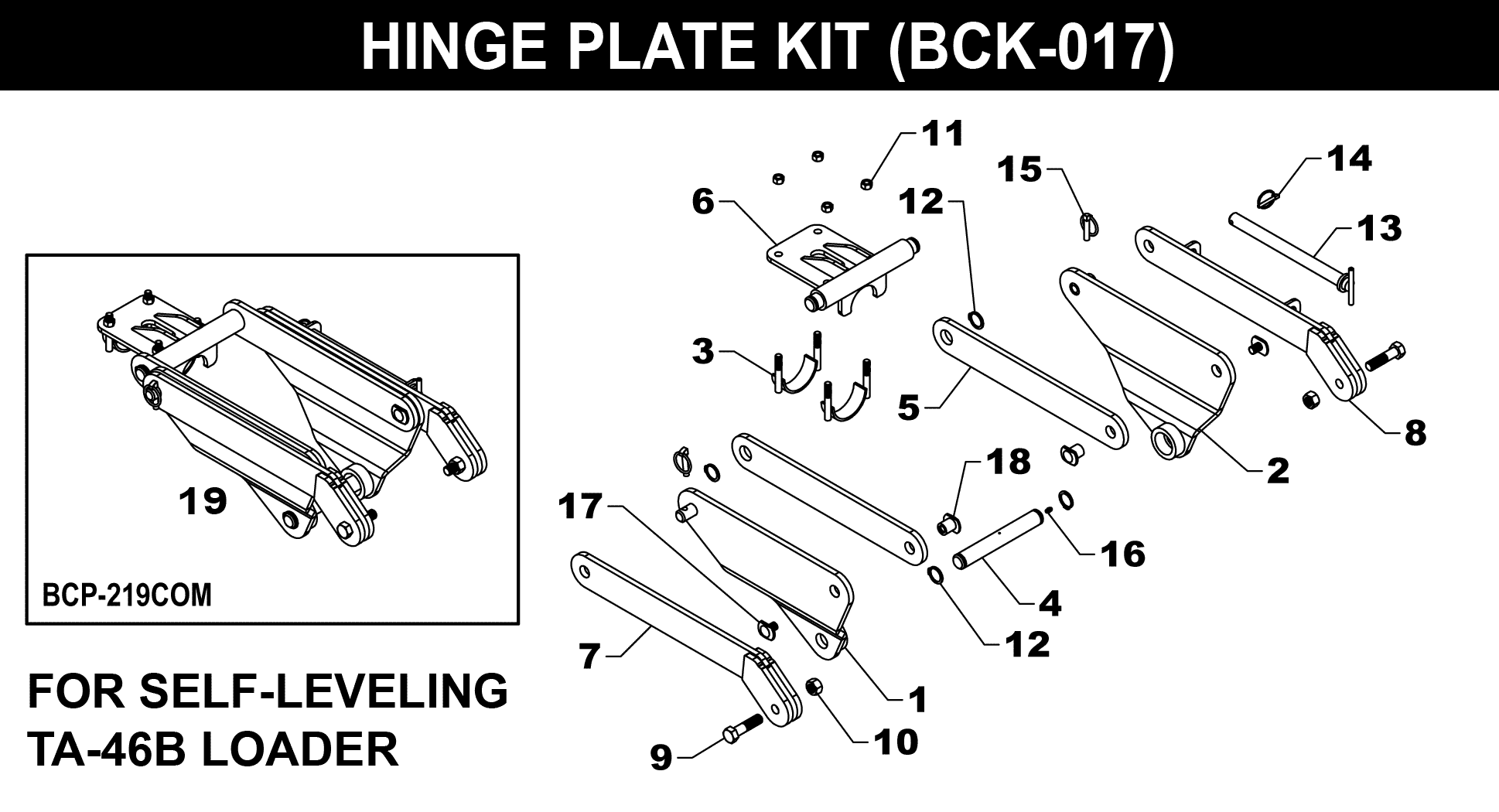

BCK-017 Hinge Plate Kit

Open on its own page

Click a number on the diagram to find the part.

BCK-017 Hinge Plate Kit exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	BCP-218AS-R	HINGE PLATE	1	—	Call to order
2	BCP-218AS-L	HINGE PLATE	1	—	Call to order
3	BCP-108AS	CLAMP	2	$27.63
4	BCP-110	PIN	1	$52.80
5	BCP-113	STRAP	2	$105.61
6	BCP-216AS	CLAMP	1	$198.37
7	BCP-219AS	PIVOT STRAP	1	—	Call to order
8	BCP-220AS	PIVOT STRAP	1	—	Call to order
9	HHS1210048	BOLT -3/4 X 3	2	$7.54
10	HTN1210	LOCK NUT - 3/4	2	$5.03
11	HTN0813	LOCKNUT - 1/2	4	$5.03
12	SR-C10	SNAP RING - EXTERNAL	4	$5.03
13	BCP-204AS	STORAGE PIN	1	$40.22
14	QLP0400028	LYNCH PIN	1	$5.03
15	QLP0700024	QUICK LYNCH PIN	2	$5.03
16	ZER1805	GREASE FITTING	1	$2.53
17	BCP-210	SEX BOLT - MALE	2	—	Call to order
18	BCP-211	SEX BOLT - FEMALE	2	—	Call to order

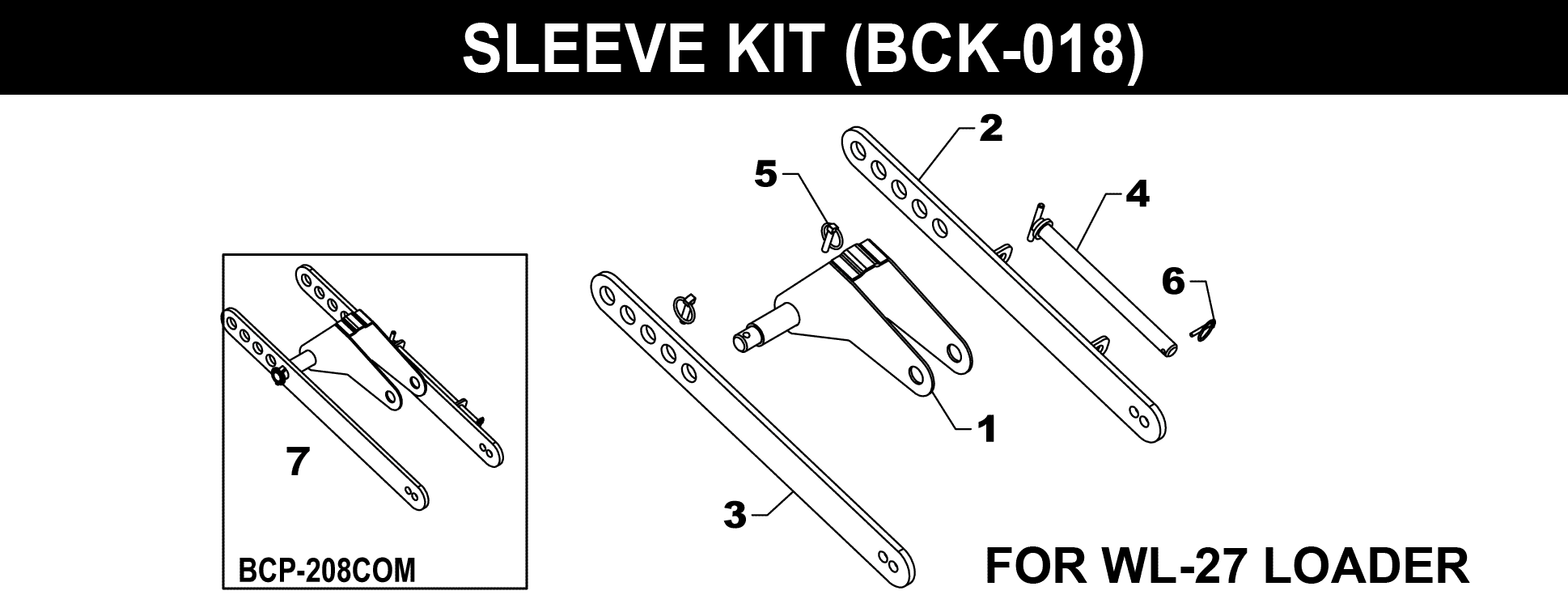

BCK-018 Sleeve Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-208AS	SLEEVE	1	$321.73
2	BCP-212AS	PIVOT STRAP	1	$108.42
3	BCP-212	PIVOT STRAP	1	$120.65
4	BCP-204AS	STORAGE PIN	1	$40.22
5	QLP0700024	QUICK LYNCH PIN	2	$5.03
6	QLP0400028	LYNCH PIN	1	$5.03

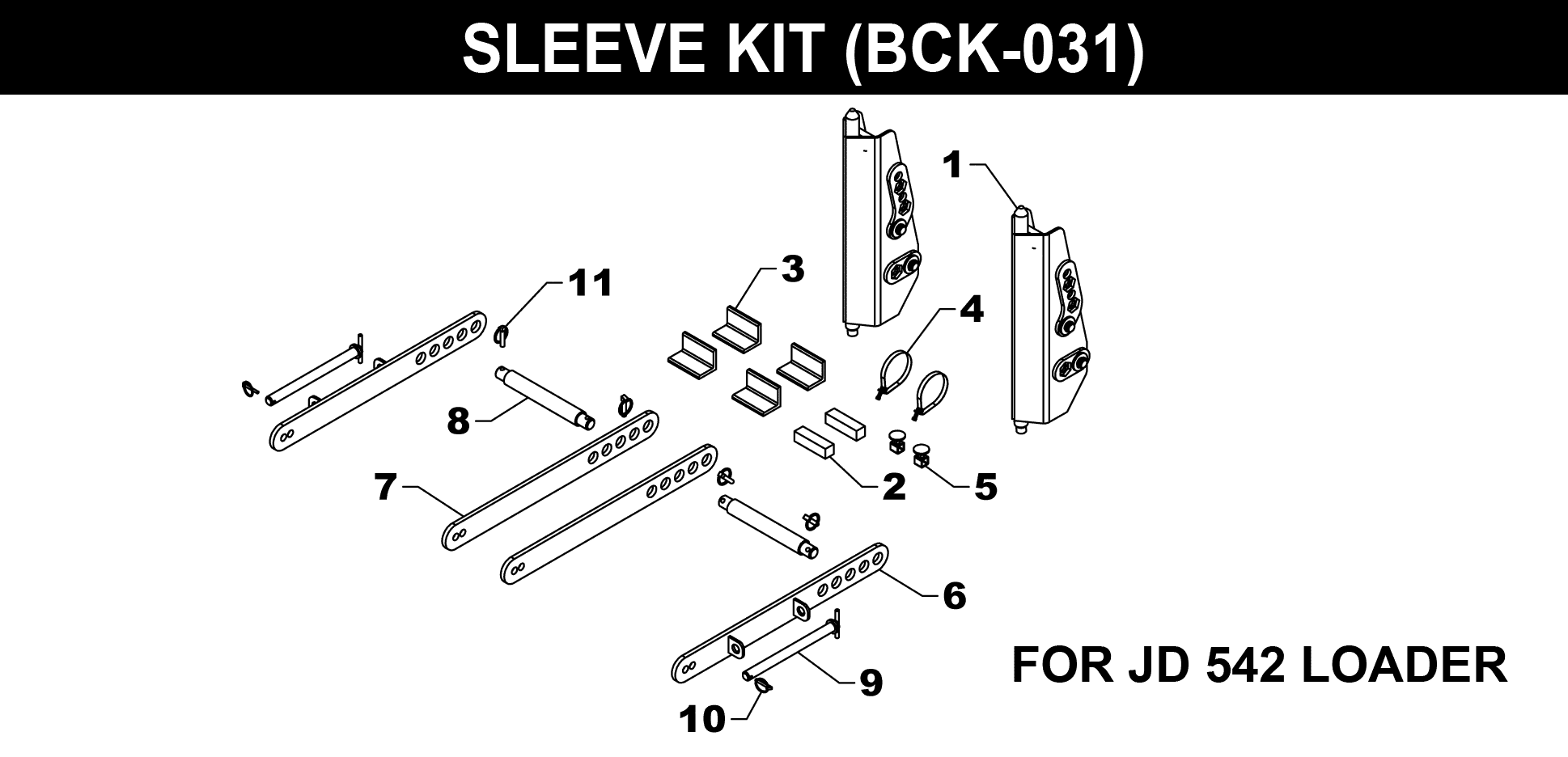

BCK-031 Sleeve Kit for JD 542 Loader

Open on its own page

Click a number on the diagram to find the part.

BCK-031 Sleeve Kit for JD 542 Loader exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	QC-3501COM	MALE COUPLER	2	—	Call to order
2	QC-1508	PLATE BRACE	2	$22.62
2	BCP-212	PIVOT STRAP	2	$120.65
3	QC-1513	ANGLE IRON STOP	4	$25.13
4	BAND-15	METAL BAND	2	$5.03
5	QC-1506AS	TRIP BLOCK	2	$22.62
6	BCP-212AS	PIVOT STRAP	2	$108.42
7	BCP-212	PIVOT STRAP	2	$120.65
8	BCP-184	STEP PIN	2	$100.56
9	BCP-204AS	STORAGE PIN	2	$40.22
10	QLP0400028	LYNCH PIN	2	$5.03
11	QLP0700024	QUICK LYNCH PIN	4	$5.03

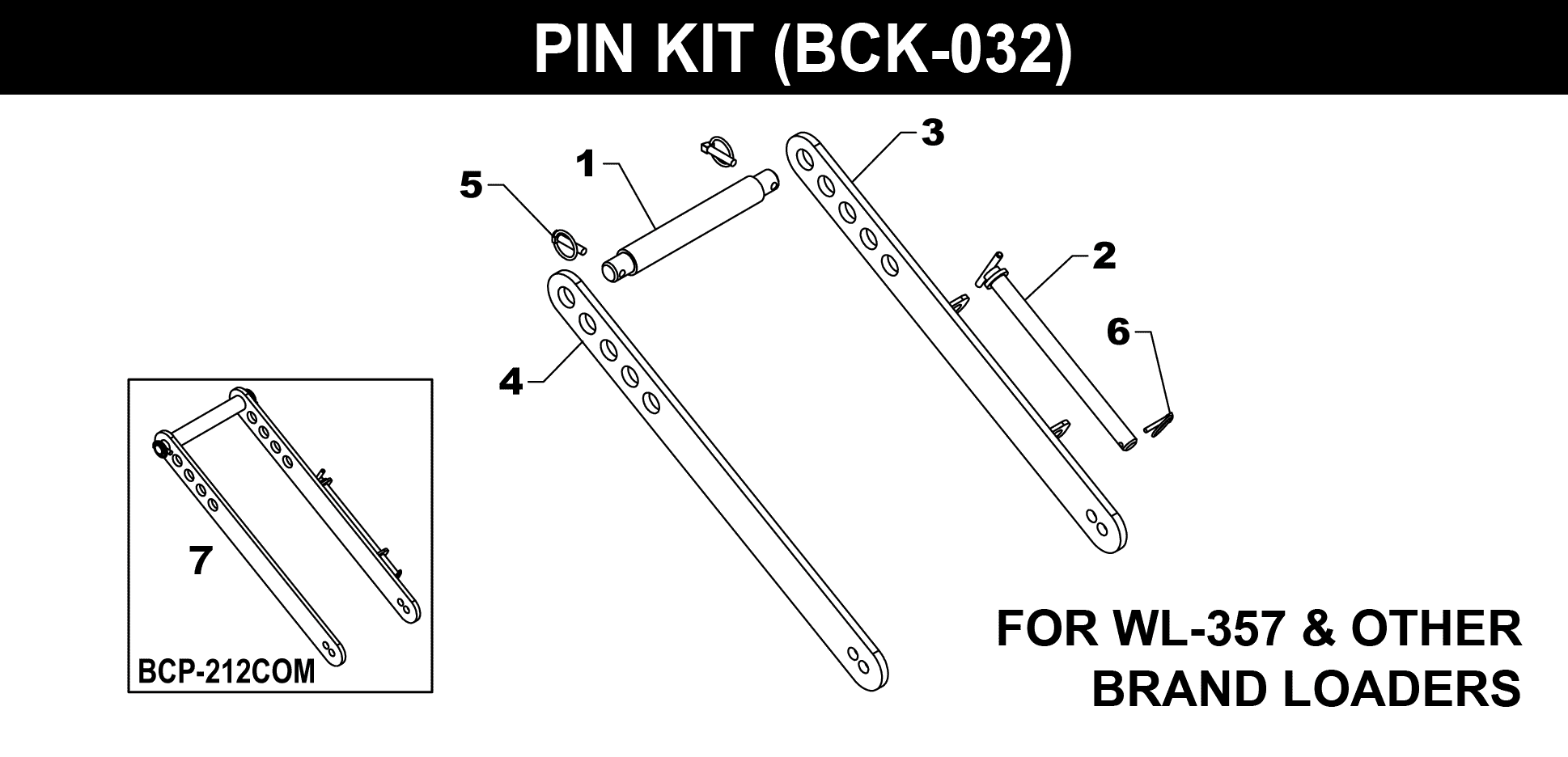

BCK-032 Pin Kit

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BCP-184	STEP PIN	1	$100.56
2	BCP-204AS	STORAGE PIN	1	$40.22
3	BCP-212AS	PIVOT STRAP	1	$108.42
4	BCP-212	PIVOT STRAP	1	$120.65
5	QLP0700024	QUICK LYNCH PIN	2	$5.03
6	QLP0400028	LYNCH PIN	1	$5.03
