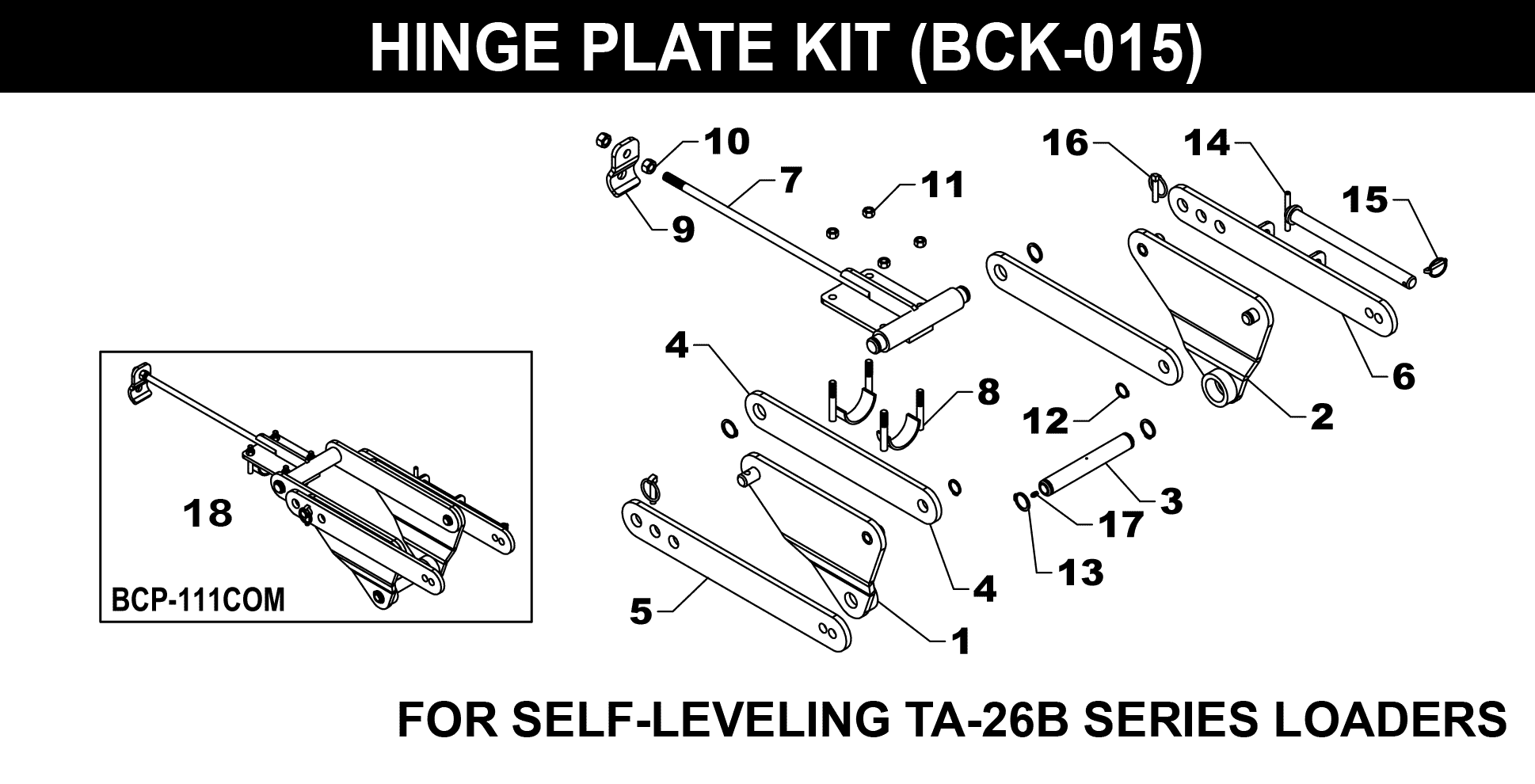

| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | BCP-100AS-R | HINGE PLATE - RIGHT | 1 | $226.28 | |
| 2 |  | BCP-100AS-L | HINGE PLATE - LEFT | 1 | $226.28 | |
| 3 |  | BCP-110 | PIN | 1 | $52.80 | |
| 4 |  | BCP-111 | STRAP | 2 | $120.65 | |
| 5 |  | BCP-112 | STRAP | 1 | $120.65 | |
| 6 |  | BCP-112AS | STRAP | 1 | $126.49 | |
| 7 |  | BCP-116AS | CLAMP PLATE | 1 | $163.39 | |
| 8 |  | BCP-118AS | CLAMP | 2 | $27.63 | |
| 9 |  | BCP-121 | CLAMP | 1 | $27.63 | |
| 10 |  | HFN1011 | NUT - 5/8 | 2 | $1.26 | |
| 10 |  | HTN1011 | LOCK NUT - 5/8 | 2 | $5.03 | |
| 11 |  | HTN0813 | LOCKNUT - 1/2 | 4 | $5.03 | |
| 12 |  | SR-C08 | SNAP RING - EXTERNAL | 2 | $5.03 | |
| 13 |  | SR-C10 | SNAP RING - EXTERNAL | 4 | $5.03 | |
| 14 |  | BCP-204AS | STORAGE PIN | 1 | $40.22 | |
| 15 |  | QLP0400028 | LYNCH PIN | 1 | $5.03 | |
| 16 |  | QLP0700024 | QUICK LYNCH PIN | 2 | $5.03 | |
| 17 |  | ZER1805 | GREASE FITTING | 1 | $2.53 |
