Bale Handler BH-15 Parts

3 assemblies · choose one below

BH-15 BALE HANDLER

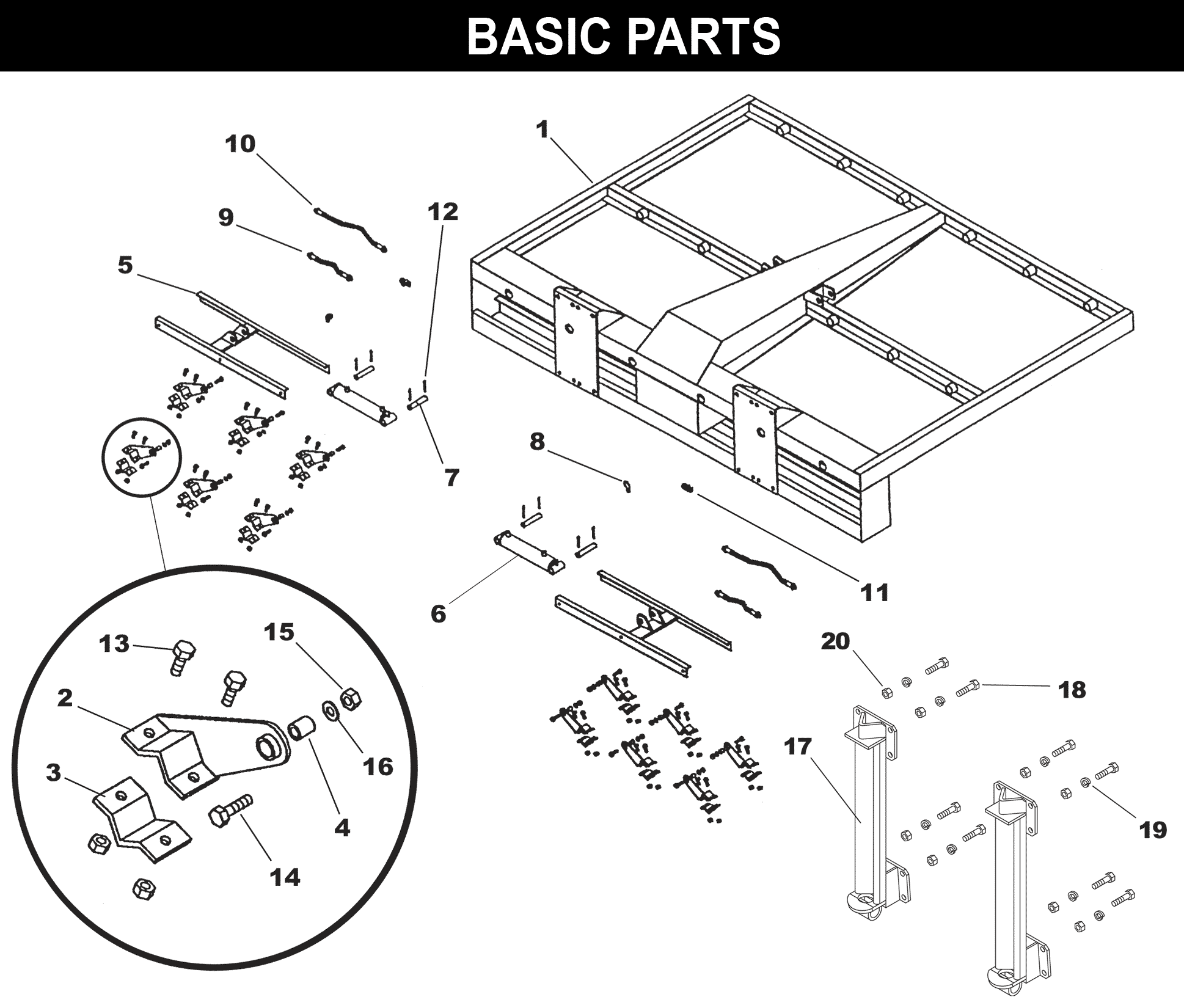

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BHA-1AS	BALE HANDLER FRAME	1	—	Call to order
2	BHA-40AS	PIVOT ARM ASSEMBLY	12	—	Call to order
3	BHA-41	PIVOT ARM PLATE	12	$27.63
4	BHA-43	INSIDE PIVOT BUSHING	12	$15.12
5	BHA-30AS	LINKAGE ASSEMBLY	2	—	Call to order
6	M-3	CYLINDER-HIGH LIFTER	2	$651.10
7	BHA-50	PIN	4	—	Call to order
8	PF-HPSE06	PIPE FITTING - STREET ELBOW SPECIAL TAPER 3/8	2	$22.62
9	H06012-66	HYDRAULIC HOSE - 3/8 X 12	2	$34.28
10	H06020-66	HYDRAULIC HOSE - 3/8 X 20	2	$37.30
11	PF-TA06	PIPE FITTING-TEE UNION 3/8	2	$55.35
12	CTK0400032	COTTER KEY - 1/4 X 2	8	$0.87
13	HHS0616016	BOLT - 3/8 X 1	24	$2.53
14	HHS0616024	BOLT - 3/8 X 1-1/2	12	$2.53
15	HTN0616	LOCK NUT - 3/8	36	$2.53
16	FWW06	FLAT WASHER - 3/8	12	$0.95
17	QC-300AS	ADAPTER-SNAP-ATTACH BOLT ON (1 PC)	2	$150.61
18	HHS1011024	BOLT - 5/8 X 1-1/2	8	$5.03
19	LWM10	LOCK WASHER -5/8	8	$0.77
20	HFN1011	NUT - 5/8	8	$1.26

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BHA-99A	TOOTH	30	$52.79
2	HHS0616040	BOLT -3/8 X 2-1/2	30	$2.53
3	BHA-98A	TOOTH CLAMP	30	$17.61
4	HTN0616	LOCK NUT - 3/8	30	$2.53
5	BHA-20	PIVOT TUBE	6	—	Call to order
6	BHA-25	SPACER WASHER	6	—	Call to order
7	CTK0400032	COTTER KEY - 1/4 X 2	6	$0.87
8	HFN1011	NUT - 5/8	8	$1.26
9	LWM10	LOCK WASHER -5/8	8	$0.77
10	HHS1011024	BOLT - 5/8 X 1-1/2	8	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	M-301	CYLINDER-BARREL (M-3)	1	$243.86
2	M-310	CYLINDER-RAM (M-3)	1	$175.94
3	G-A	GLAND (1-3/8 RAM)	1	$145.82
4	P-A	PISTON - 2.5 DIA.	1	$118.14
5	HFN1614	NUT - 1	1	$5.07
6	ZER1805	GREASE FITTING	2	$2.53
7	#1CK	CYLINDER REPAIR SEAL KIT	1	$118.14
