Parts Lookup › Plows & Blades

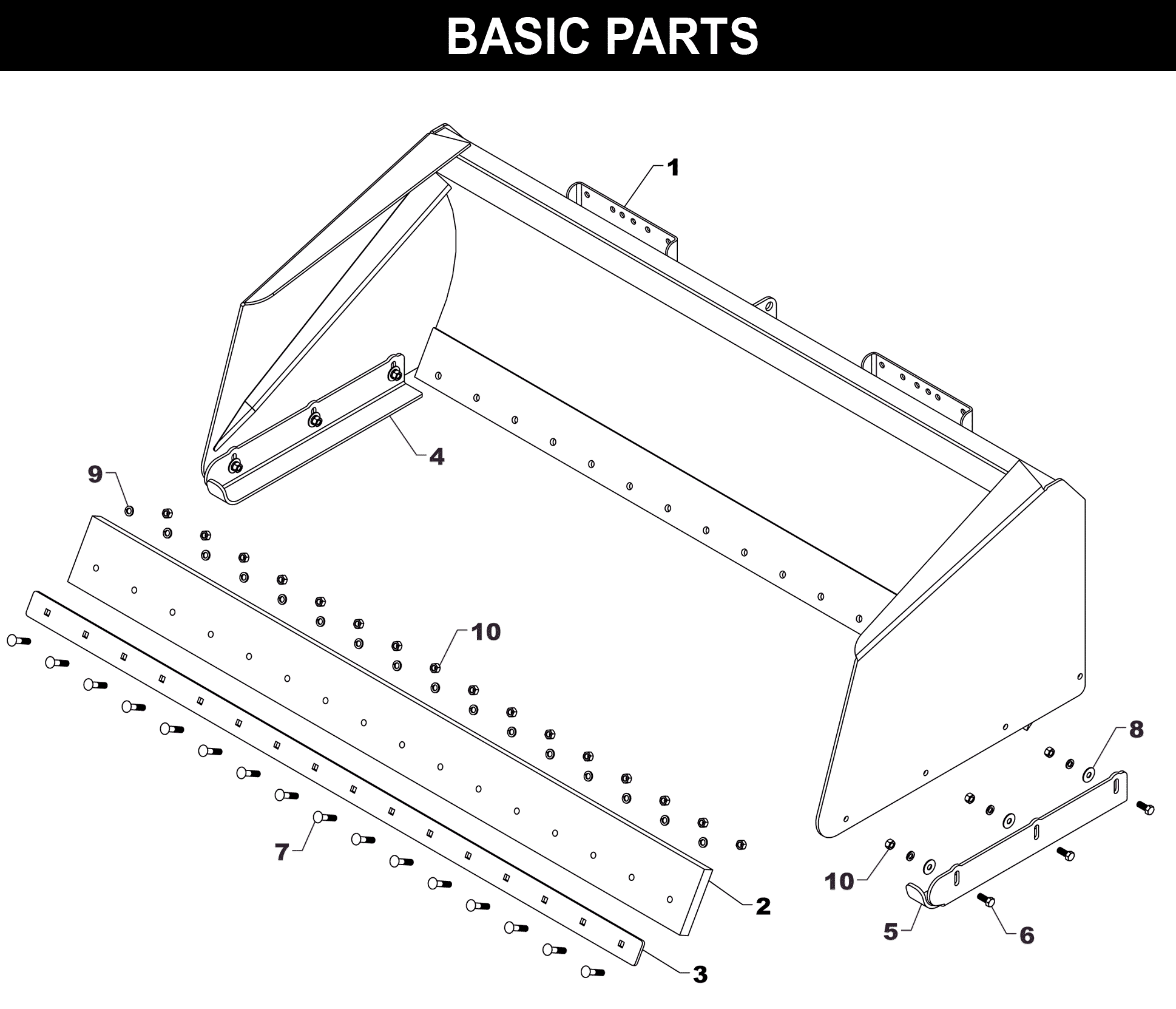

Snow Scrapers - Bolt-On Blade
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | DB-600AS | SNOW SCRAPER SHELL - 96 WITH POLY BLADE | 1 | — | Call to order | |
| 1 | DB-700AS | SNOW SCRAPER SHELL - 120 WITH POLY BLADE | 1 | — | Call to order | |
| 1 | DB-800AS | SNOW SCRAPER SHELL - 144 WITH POLY BLADE | 1 | — | Call to order | |
| 2 |  | DB-601 | POLY BLADE - 96 | 1 | $985.31 | |
| 2 |  | DB-701 | POLY BLADE - 120 | 1 | $1,149.53 | |
| 2 |  | DB-801 | POLY BLADE - 144 | 1 | $1,313.75 | |
| 3 |  | DB-611 | CLAMP PLATE - 96 | 1 | $208.55 | |
| 3 |  | DB-811 | CLAMP PLATE - 144 | 1 | $316.94 | |
| 3 | | DB-811 | CLAMP PLATE - 144 | 1 | $316.94 | |
| 4 |  | DB-810-R | SKID - RIGHT | 1 | $95.75 | |
| 5 |  | DB-810-L | SKID - LEFT | 1 | $95.75 | |
| 6 |  | HHS1011024 | BOLT - 5/8 X 1-1/2 | 6 | $5.03 | |
| 7 |  | CBF1011048 | CARRIAGE BOLT - 5/8 X 3 | 16 | $7.54 | |
| 8 |  | FWW10 | FLAT WASHER - 5/8 | 6 | $2.53 | |
| 9 |  | LWM10 | LOCK WASHER -5/8 | 22 | $0.77 | |
| 10 |  | HFN1011 | NUT - 5/8 | 22 | $1.26 |
