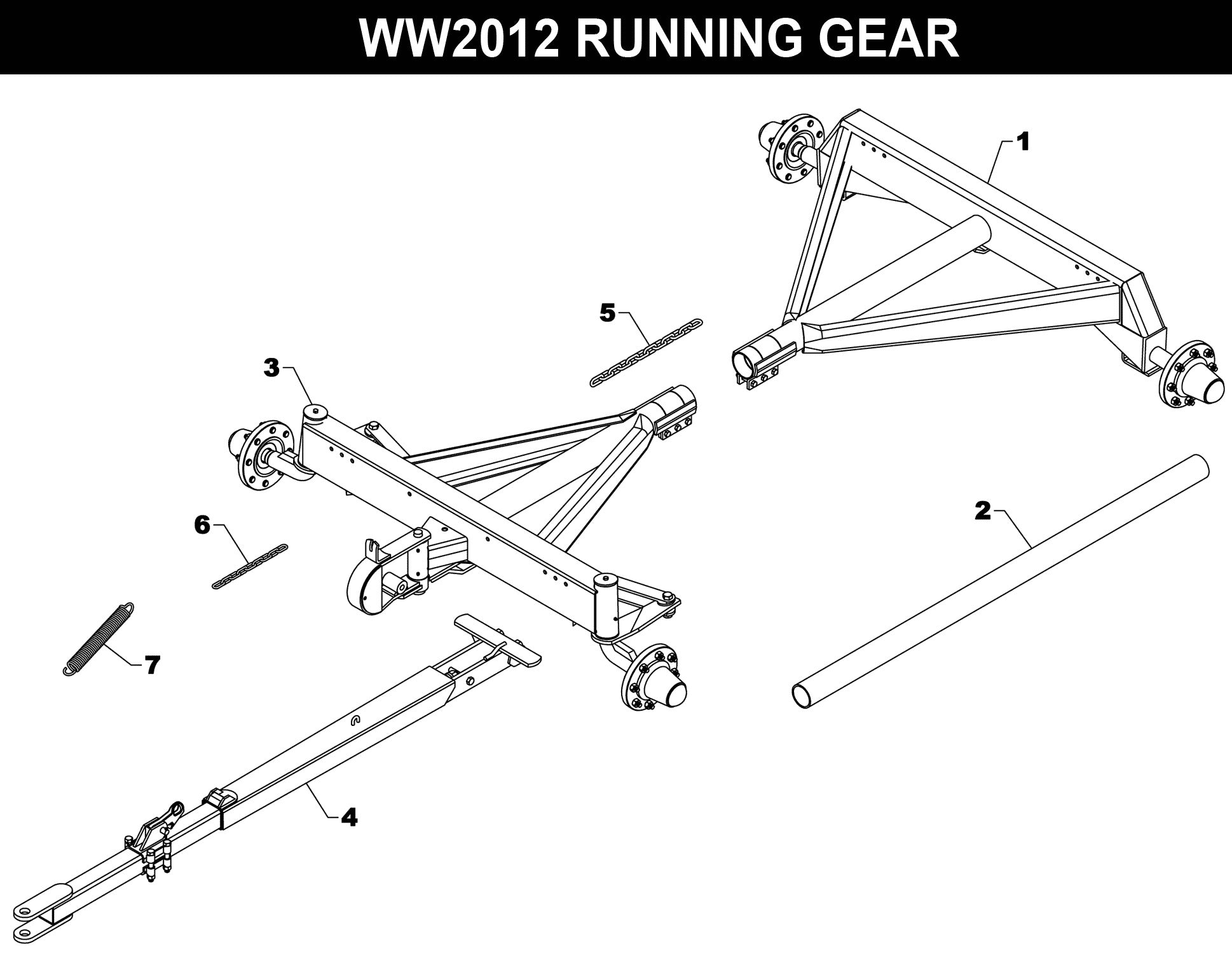

WW-2012 Running Gear

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PW-43COM	REAR AXLE COMPLETE	1	$3,270.65
2	HW-42	CENTER REACH PIPE	1	$221.23
3	PW-1COM	FRONT AXLE COMPLETE	1	$3,738.25
4	ECT-20	TONGUE	1	$975.44
5	HW-61	SAFETY CHAIN	1	$27.63
6	ET-126	TONGUE CHAIN	1	$18.54
7	S11	TONGUE SPRING	1	$80.43

WW-2012 Tongue

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	ET-117AS	REAR TONGUE ASSEMBLY	1	$603.34
2	ET-105AS	FRONT TONGUE	1	$344.38
3	ET-31AS	SAFETY ROD	1	$62.43
4	ET-55AS	TONGUE STOP	1	$52.21
5	ET-170COM	TONGUE HOOK COMPLETE	1	$188.55
6	ET-170AS	TONGUE CLAMP - TOP	1	$103.05
7	ET-170SUB	TONGUE CLAMP - BOTTOM	1	$52.80
8	ET-66	STEEL HOOK	1	$62.80
9	CLP1200040	CLEVIS PIN - 3/4 X 2-1/2	1	$10.07
10	S3	SPRING-HOOK	1	$5.03
11	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
12	HTN1011	LOCK NUT - 5/8	5	$5.03
13	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
14	HHS1011080	BOLT - 5/8 X 5	1	$7.54
15	HHS1210096	BOLT - 3/4 X 6	1	$40.22
16	LWM12	LOCK WASHER -3/4	1	$0.82
17	HFN1210	NUT - 3/4	1	$2.53
18	HFN1414	NUT - 7/8	1	$7.54
19	S1	SAFETY ROD SPRING	1	$10.07

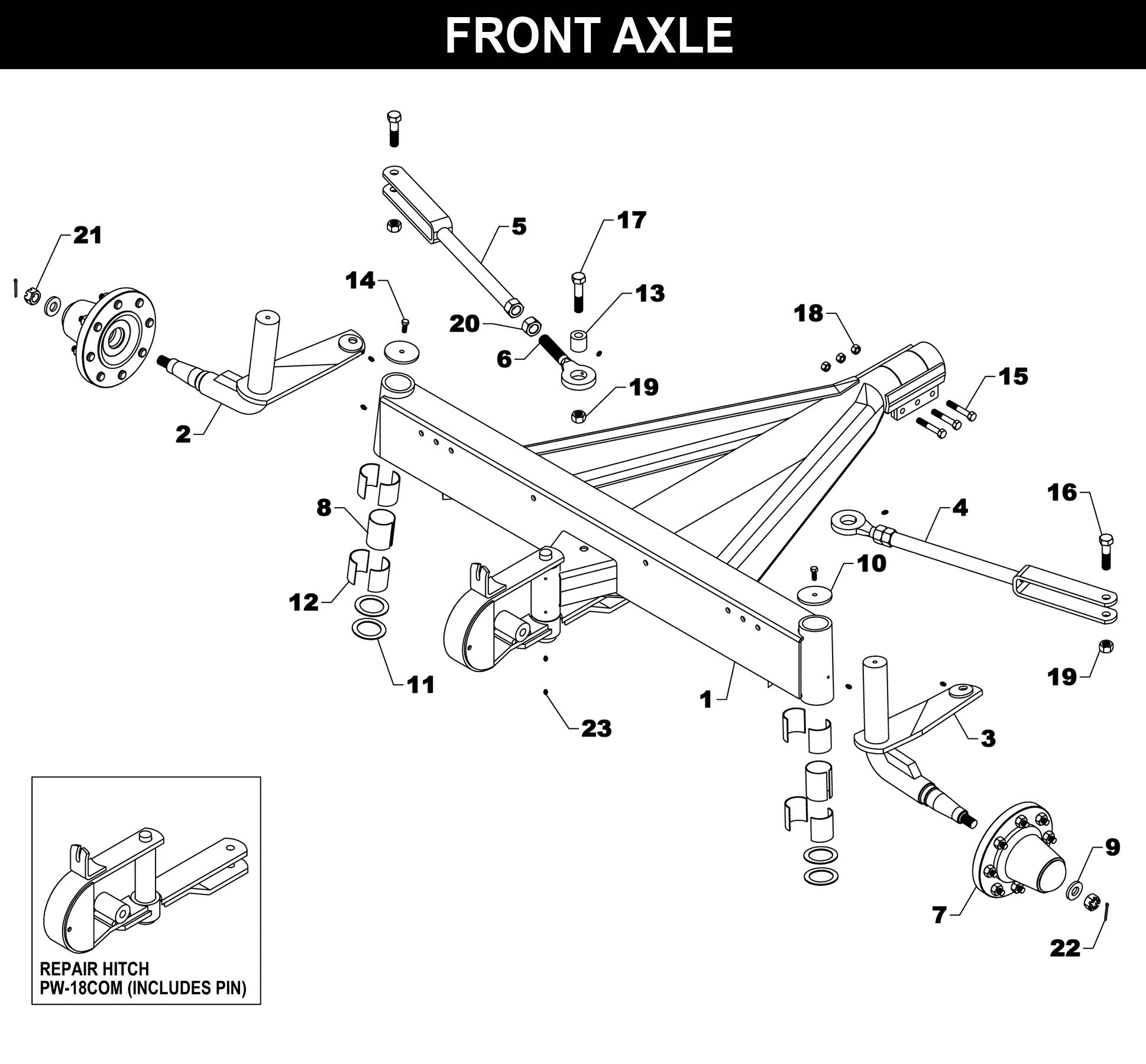

WW-2012 Front Axle

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PW-1AS	FRONT AXLE	1	$2,658.09
2	PW-125COM-R	SPINDLE COMPLETE - RIGHT	1	$250.72
3	PW-125COM-L	SPINDLE COMPLETE - LEFT	1	$250.72
4	PW-42COM	TIE ROD COMPLETE	1	$160.84
5	PW-42AS	TIE ROD CLEVIS	1	$140.54
6	AW-38	WAGON - TIE ROD END	1	$82.96
7	WW-20COM	HUB COMPLETE	2	$600.82
8	PW-13	LINER BUSHING INSERT	2	$35.23
9	PW-26	HUB WASHER	2	$5.03
10	PW-31	SPINDLE WASHER	2	$5.03
11	PW-92	THRUST WASHER	4	$22.62
12	PW-93	SPINDLE BUSHING (2 PC)	8	$67.91
13	HW-39	BUSHING	1	$17.62
14	HHS0616016	BOLT - 3/8 X 1	2	$2.53
15	HHS0813048	BOLT - 1/2 X 3	3	$5.03
16	HHS1210048	BOLT -3/4 X 3	2	$7.54
17	HHS1210056	BOLT -3/4 X 3-1/2	1	$7.54
18	HTN0813	LOCKNUT - 1/2	3	$5.03
19	HTN1210	LOCK NUT - 3/4	3	$5.03
20	HFN1614	NUT - 1	1	$5.07
21	HSN1414	SLOTTED NUT - 7/8	2	$23.83
22	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
23	ZER1805	GREASE FITTING	8	$2.53

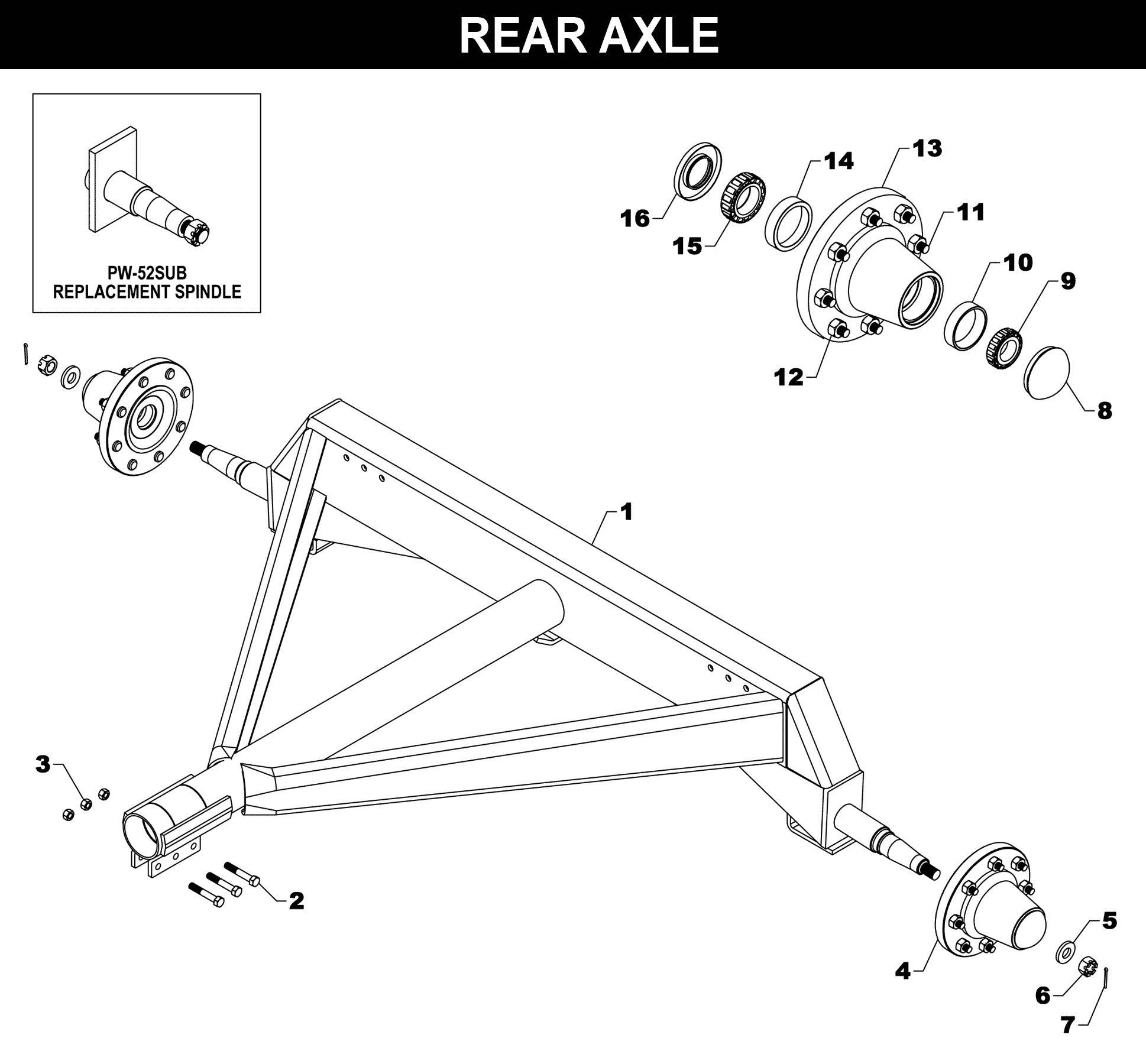

WW-2012 Rear Axle

Open on its own page

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	PW-43AS	REAR AXLE	1	—	Call to order
2	HHS0813048	BOLT - 1/2 X 3	3	$5.03
3	HTN0813	LOCKNUT - 1/2	3	$5.03
4	WW-20COM	HUB COMPLETE	2	$600.82
5	PW-26	HUB WASHER	2	$5.03
6	HSN1414	SLOTTED NUT - 7/8	2	$23.83
7	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
8	615126	HUB CAP	1	$10.07
9	AW-877	OUTSIDE BEARING	1	$62.80
10	AW-821	OUTSIDE BEARING CUP	1	$32.68
11	916WB	WHEEL BOLT	8	$7.54
12	916WN	WHEEL NUT	8	$5.03
13	36DU40	DU BUSHING (WW-20) 2 PCS.	1	$67.91
13	WW-20RB	HUB	1	—	Call to order
14	AW-520	BEARING CUP	1	$62.80
15	AW-590	BEARING	1	$123.20
16	AW-726	GREASE SEAL	1	$52.19

Stake & Hinge Accessory Set - WAC-202

Open on its own page

Click a number on the diagram to find the part.

Stake & Hinge Accessory Set - WAC-202 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-69AS	STAKE	2	$62.80
2	AW-71AS	HINGE PLATE	2	$67.91
3	AW-73AS-R	AXLE CLAMP-RIGHT	1	$45.26
4	AW-73AS-L	AXLE CLAMP-LEFT	1	$45.26
5	HHS0813088	BOLT - 1/2 X 5-1/2	8	$5.03
6	HTN0813	LOCKNUT - 1/2	8	$5.03

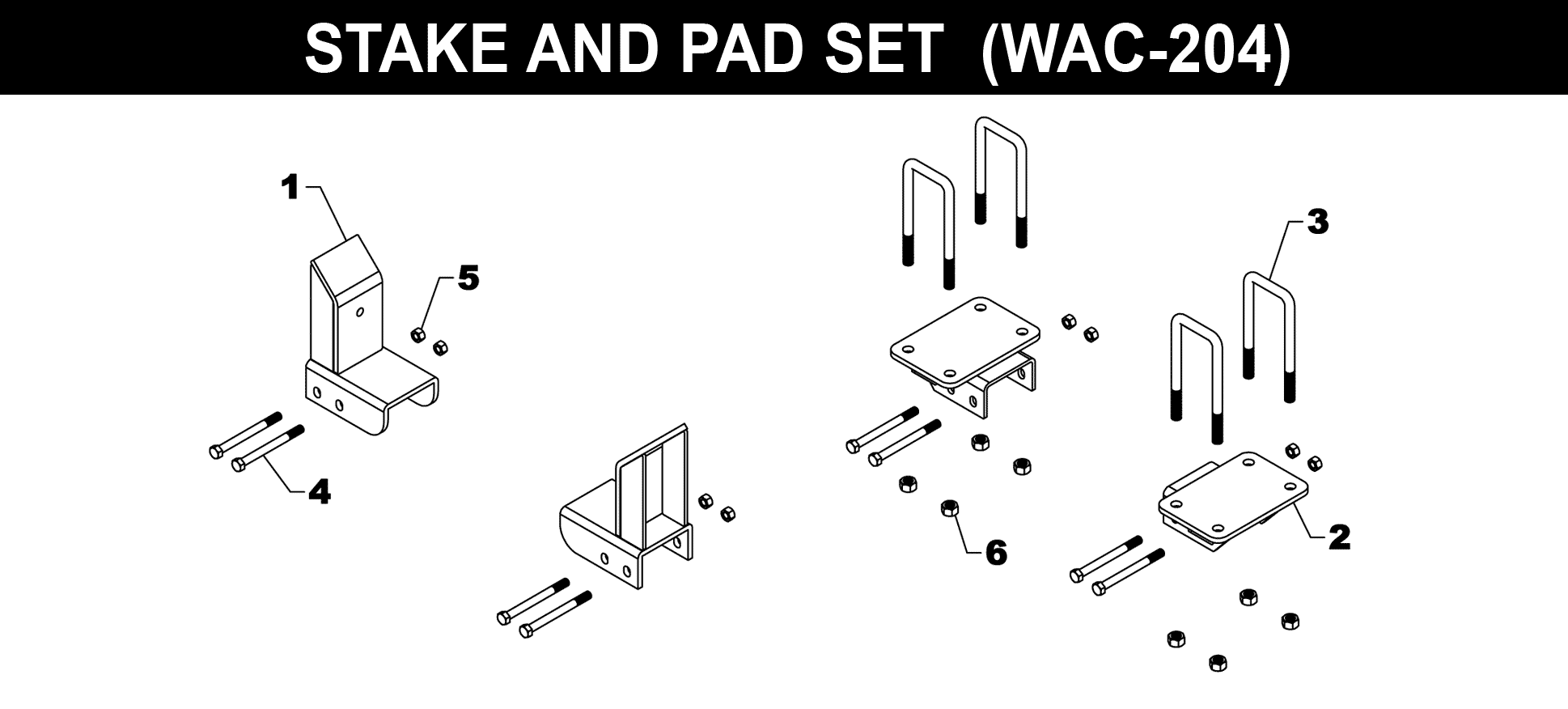

Stake & Pad Accessory Set - WAC-204

Open on its own page

Click a number on the diagram to find the part.

Stake & Pad Accessory Set - WAC-204 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-69AS	STAKE	2	$62.80
2	BB-1AS	REAR BOLSTER PLATE (EA.)	2	$50.27
3	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	4	$27.63
4	HHS0813088	BOLT - 1/2 X 5-1/2	8	$5.03
5	HTN0813	LOCKNUT - 1/2	8	$5.03
6	HTN1011	LOCK NUT - 5/8	8	$5.03

Stake Accessory Set - WAC-201

Open on its own page

Click a number on the diagram to find the part.

Stake Accessory Set - WAC-201 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-69AS	STAKE	4	$62.80
2	HHS0813088	BOLT - 1/2 X 5-1/2	8	$5.03
3	HTN0813	LOCKNUT - 1/2	8	$5.03

Wagon Box Mounting Set - WAC-203

Open on its own page

Click a number on the diagram to find the part.

Wagon Box Mounting Set - WAC-203 exploded diagram

Ref	Part #	Description	Qty	Price
1	BB-1AS	REAR BOLSTER PLATE (EA.)	2	$50.27
2	AW-77AS	SADDLE	1	$211.19
3	PW-164AS	TONGUE STOP	1	$143.32
4	HHS0813088	BOLT - 1/2 X 5-1/2	6	$5.03
5	HTN0813	LOCKNUT - 1/2	6	$5.03
6	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	4	$27.63
7	HTN1011	LOCK NUT - 5/8	8	$5.03
8	HHS1011192	BOLT -5/8 X 12	2	$45.26
9	S4	SPRING-FRONT BOLSTER	2	$5.03
10	HFN1011	NUT - 5/8	4	$1.26

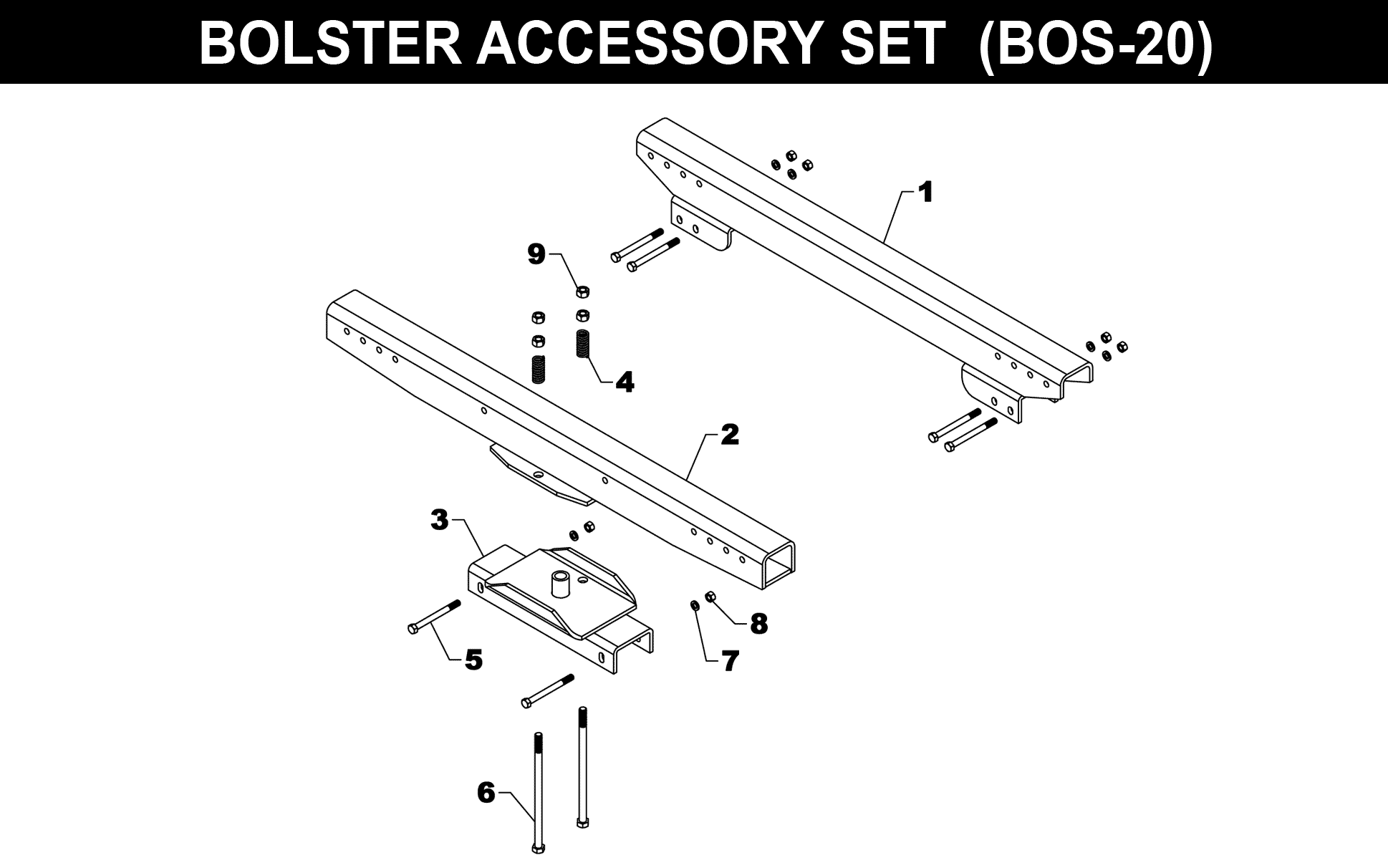

Bolster Accessory Set - BOS-20

Open on its own page

Click a number on the diagram to find the part.

Bolster Accessory Set - BOS-20 exploded diagram

Ref	Part #	Description	Qty	Price
1	AW-83AS	REAR BOLSTER	1	$364.48
2	AW-80AS	FRONT BOLSTER	1	$404.71
3	AW-77AS	SADDLE	1	$211.19
4	S4	SPRING-FRONT BOLSTER	2	$5.03
5	HHS0813088	BOLT - 1/2 X 5-1/2	6	$5.03
6	HHS1011192	BOLT -5/8 X 12	2	$45.26
7	LWM08	LOCK WASHER - 1/2	6	$0.37
8	HFN0813	NUT - 1/2	6	$0.95
9	HFN1011	NUT - 5/8	4	$1.26

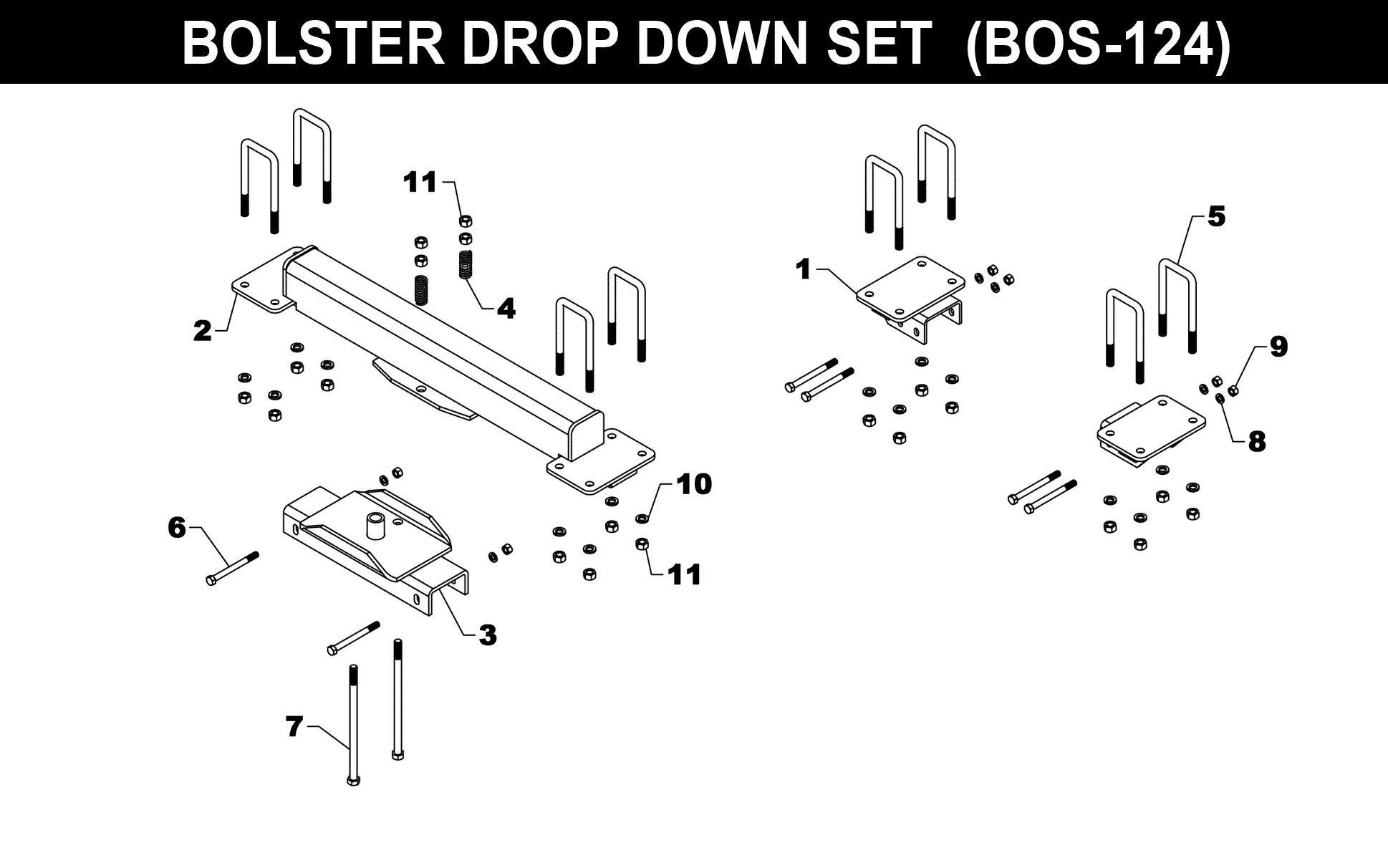

Drop Down Bolster Accessory Set - BOS-124

Open on its own page

Click a number on the diagram to find the part.

Drop Down Bolster Accessory Set - BOS-124 exploded diagram

Ref	Part #	Description	Qty	Price
1	BB-1AS	REAR BOLSTER PLATE (EA.)	2	$50.27
2	BB-4AS	FRONT BOLSTER	1	$379.61
3	AW-77AS	SADDLE	1	$211.19
4	S4	SPRING-FRONT BOLSTER	2	$5.03
5	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	8	$27.63
6	HHS0813088	BOLT - 1/2 X 5-1/2	6	$5.03
7	HHS1011192	BOLT -5/8 X 12	2	$45.26
9	HFN0813	NUT - 1/2	6	$0.95
10	LWM10	LOCK WASHER -5/8	16	$0.77
11	HFN1011	NUT - 5/8	20	$1.26
