Parts Lookup › Wagon Parts › Wagon Gears

WW-1610 Parts

8 assemblies · choose one below

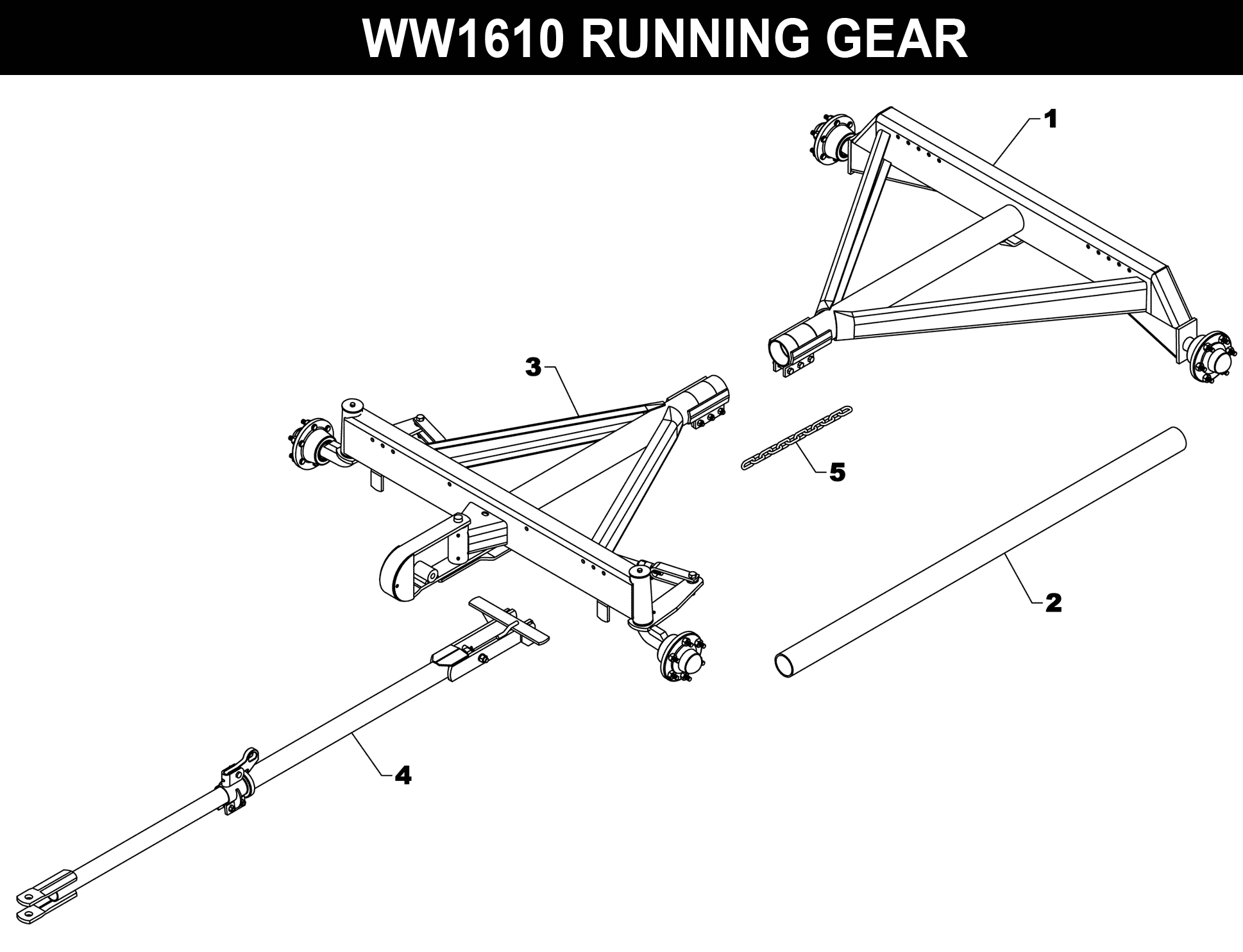

WW-1610 Running Gear

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	HW-43COM	REAR AXLE COMPLETE	1	$1,973.45
2	HW-42	CENTER REACH PIPE	1	$221.23
3	HW-1COM	FRONT AXLE	1	$2,601.96
4	ECT-16	TONGUE	1	$718.96
5	HW-61	SAFETY CHAIN	1	$27.63

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	ET-1AS	FRONT TONGUE	1	$148.32
2	ET-9AS	REAR TONGUE	1	$311.72
3	ET-31AS	SAFETY ROD	1	$62.43
4	HW-64AS	TONGUE STOP	1	$36.14
5	ET-35COM	TONGUE HOOK COMPLETE	1	$158.36
6	ET-35AS	CLAMP	1	$75.45
7	ET-38	CLEVIS PIN	1	$7.54
8	ET-44	TONGUE HOOK	1	$62.80
9	S3	SPRING-HOOK	1	$5.03
10	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
11	HHS0813040	BOLT - 1/2 X 2-1/2	2	$5.03
12	LWM08	LOCK WASHER - 1/2	2	$0.37
13	HFN0813	NUT - 1/2	2	$0.95
14	HHS1011080	BOLT - 5/8 X 5	1	$7.54
15	HHS1210096	BOLT - 3/4 X 6	1	$40.22
16	LWM10	LOCK WASHER -5/8	1	$0.77
17	LWM12	LOCK WASHER -3/4	1	$0.82
18	HFN1011	NUT - 5/8	1	$1.26
19	HFN1210	NUT - 3/4	1	$2.53
20	HFN1414	NUT - 7/8	1	$7.54
21	S1	SAFETY ROD SPRING	1	$10.07

Click a number on the diagram to find the part.

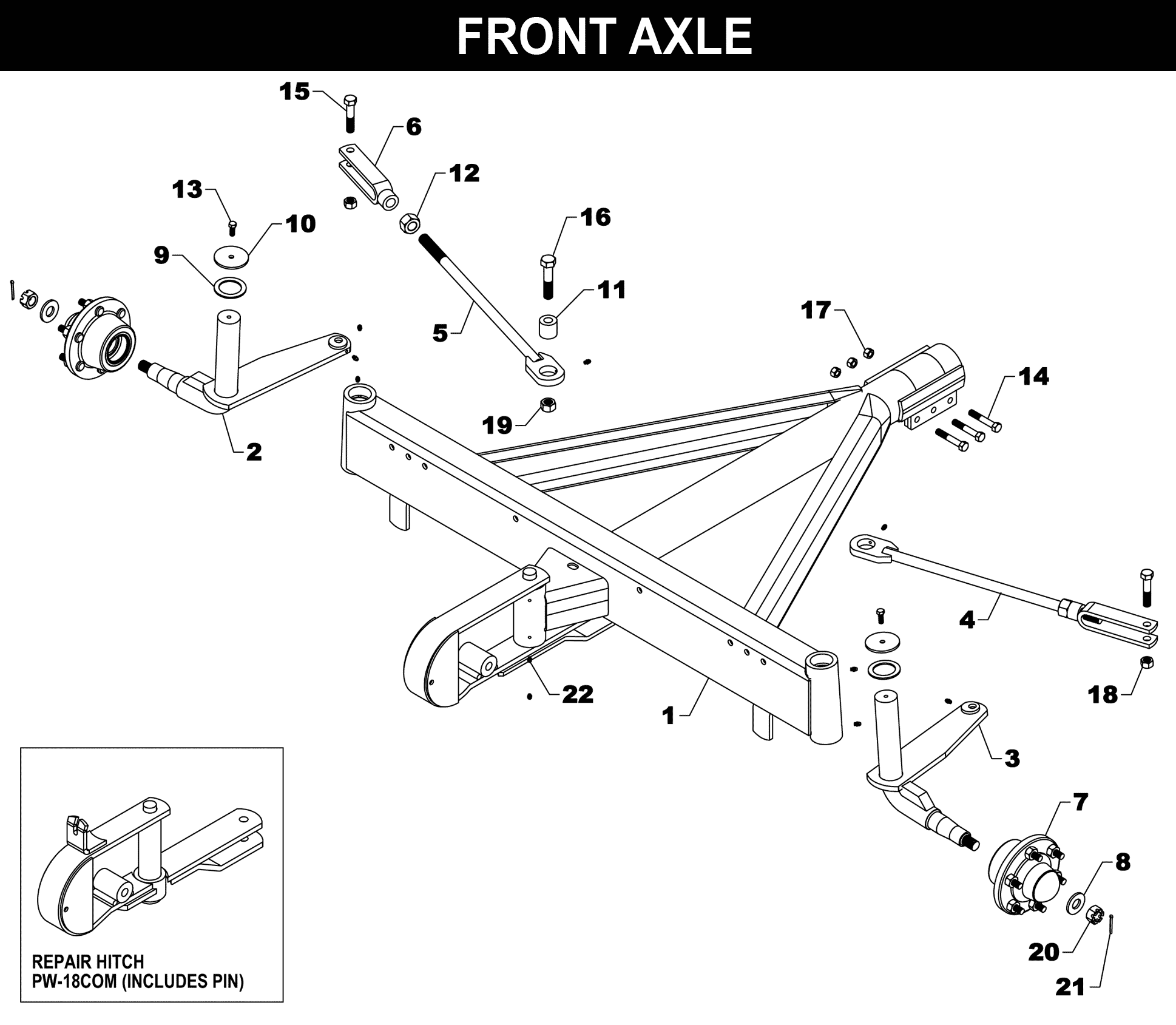

Ref	Part #	Description	Qty	Price	Buy
1	HW-1AS	FRONT AXLE	1	—	Call to order
2	HW-25COM-R	FRONT SPINDLE COMPLETE - RIGHT	1	$222.25
3	HW-25COM-L	FRONT SPINDLE COMPLETE - LEFT	1	$222.25
4	HW-34COM	TIE ROD COMPLETE	1	$100.56
5	HW-34AS	TIE ROD	1	$70.04
6	HW-37AS	CLEVIS	1	$38.16
7	WW-16COM	HUB COMPLETE	2	$439.93
8	HW-26	SPINDLE WASHER	2	$5.03
9	HW-30	THRUST WASHER	2	$12.58
10	HW-31	FRONT SPINDLE CAP	2	$5.03
11	HW-39	BUSHING	1	$17.62
12	HFN1414	NUT - 7/8	1	$7.54
13	HHS0616016	BOLT - 3/8 X 1	2	$2.53
14	HHS0813048	BOLT - 1/2 X 3	3	$5.03
15	HHS1011048	BOLT - 5/8 X 3	3	$5.03
16	HHS1210056	BOLT -3/4 X 3-1/2	1	$7.54
17	HTN0813	LOCKNUT - 1/2	3	$5.03
18	HTN1011	LOCK NUT - 5/8	2	$5.03
19	HTN1210	LOCK NUT - 3/4	1	$5.03
20	HSN1414	SLOTTED NUT - 7/8	2	$23.83
21	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
22	ZER1805	GREASE FITTING	10	$2.53

Click a number on the diagram to find the part.

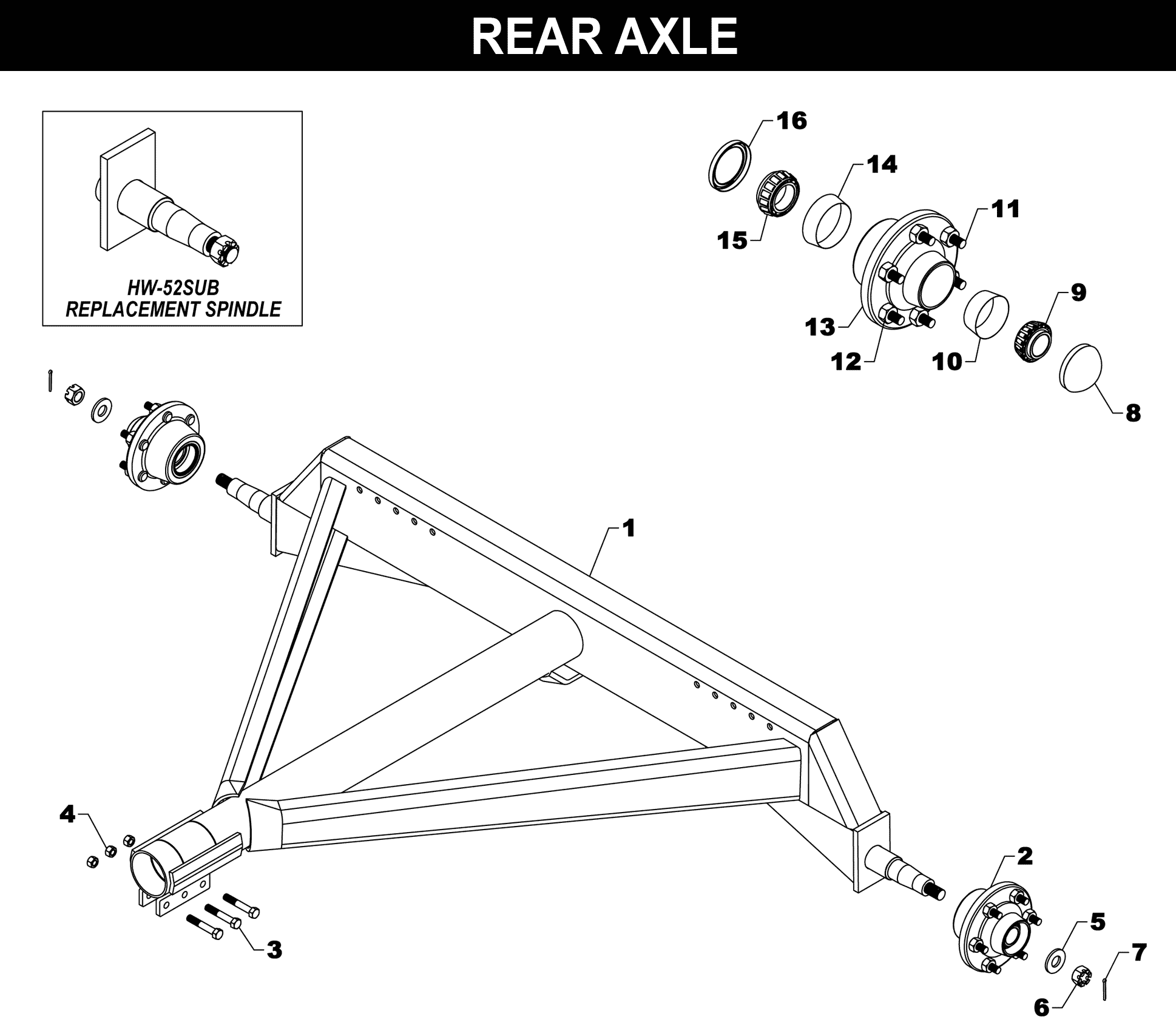

Ref	Part #	Description	Qty	Price	Buy
1	HW-43AS	REAR AXLE	1	—	Call to order
2	WW-16COM	HUB COMPLETE	2	$439.93
3	HHS0813048	BOLT - 1/2 X 3	3	$5.03
4	HTN0813	LOCKNUT - 1/2	3	$5.03
5	HW-26	SPINDLE WASHER	2	$5.03
6	HSN1414	SLOTTED NUT - 7/8	2	$23.83
7	CTK0250024	COTTER PIN - 5/32 X 1-1/2	2	$0.71
8	8034	HUB CAP	1	$10.07
9	HD-136	OUTSIDE BEARING	1	$60.33
10	HD-276	OUTSIDE RACE	1	$25.13
11	916WB	WHEEL BOLT	6	$7.54
12	916WN	WHEEL NUT	6	$5.03
13	DEC-WW16	DECAL KIT FOR WW-16	1	$67.91
14	HD-32	INSIDE RACE	1	$45.26
14	HD-42	INSIDE BEARING	1	$85.49
16	HD-35	GREASE SEAL	1	$22.62

Click a number on the diagram to find the part.

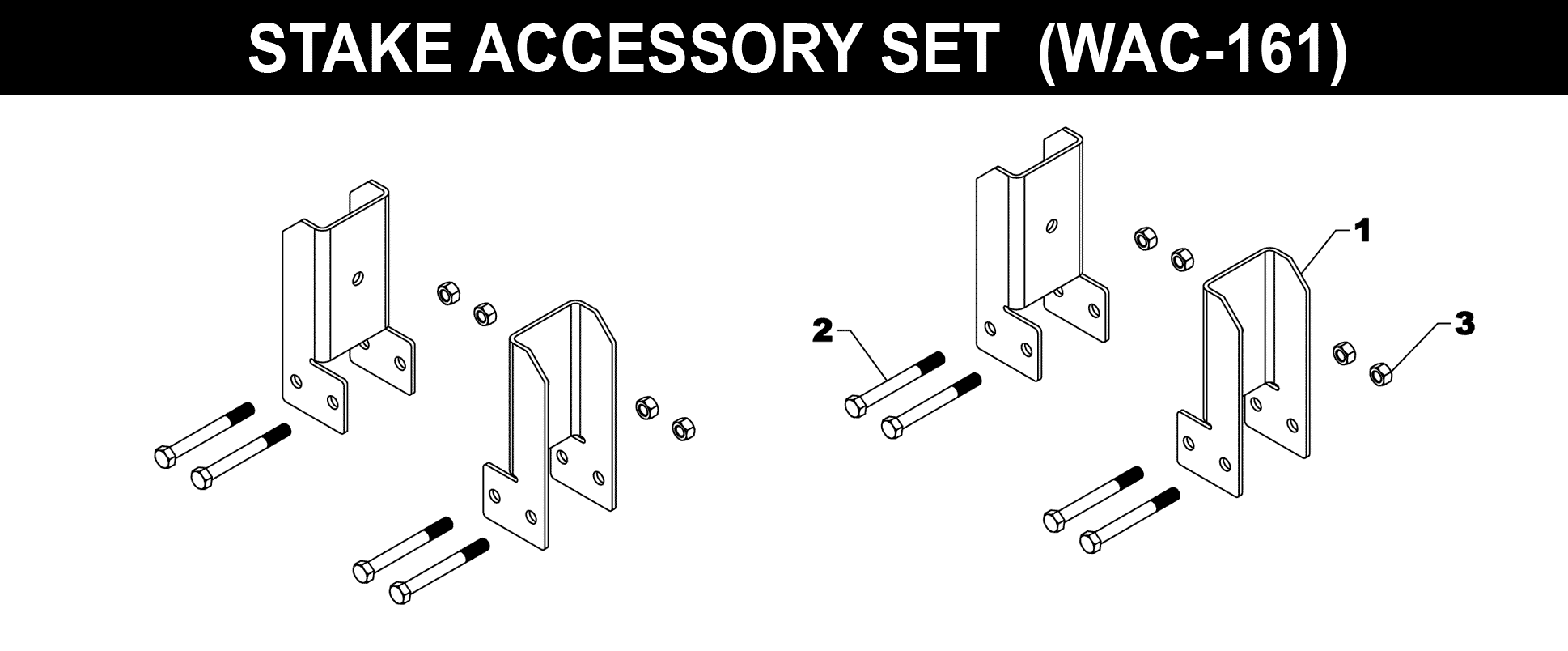

Ref	Part #	Description	Qty	Price
1	HW-56	STAKE	4	$35.23
2	HHS0813072	BOLT - 1/5 X 4-1/2	8	$5.03
3	HTN0813	LOCKNUT - 1/2	8	$5.03

Click a number on the diagram to find the part.

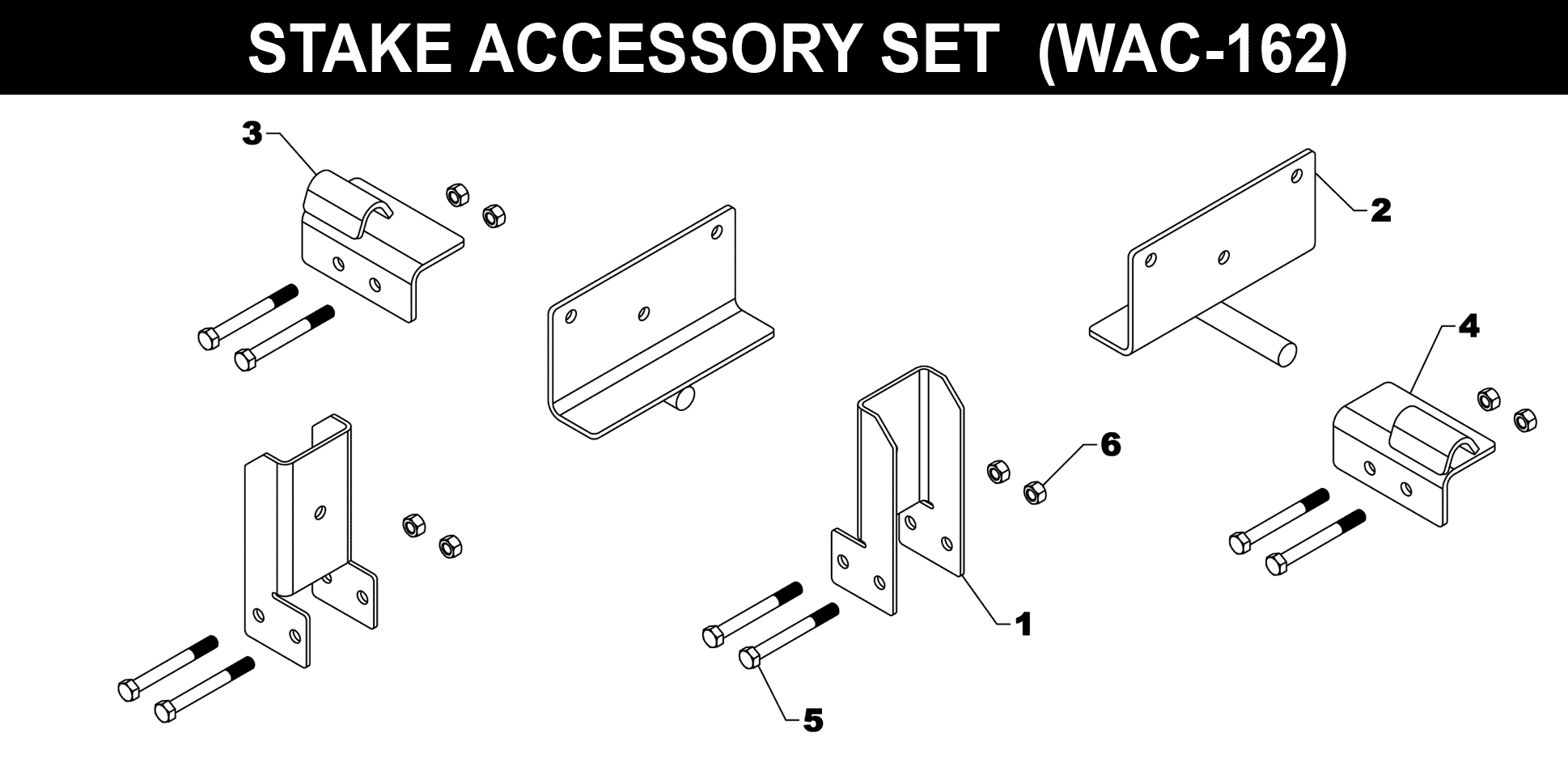

Ref	Part #	Description	Qty	Price
1	HW-56	STAKE	2	$35.23
2	HW-57AS	HINGE	2	$40.22
3	HW-59AS-R	AXLE CLAMP - RIGHT	1	$17.62
4	HW-59AS-L	AXLE CLAMP - LEFT	1	$17.62
5	HHS0813072	BOLT - 1/5 X 4-1/2	8	$5.03
6	HTN0813	LOCKNUT - 1/2	8	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	HW-171AS	SADDLE	1	$211.19
2	BB-1AS	REAR BOLSTER PLATE (EA.)	2	$50.27
3	HW-83	SPACER	4	—	Call to order
4	S4	SPRING-FRONT BOLSTER	2	$5.03
5	HHS0813080	BOLT - 1/2 X 5	2	$5.03
6	HHS0813088	BOLT - 1/2 X 5-1/2	4	$5.03
7	HHS1011064	BOLT - 5/8 X 4	2	$5.51
8	U-8	U-BOLT -8 (7-5/8 INSIDE LEG)	4	$27.63
9	LWM08	LOCK WASHER - 1/2	6	$0.37
10	LWM10	LOCK WASHER -5/8	8	$0.77
11	HFN0813	NUT - 1/2	6	$0.95
12	HFN1011	NUT - 5/8	12	$1.26

Click a number on the diagram to find the part.

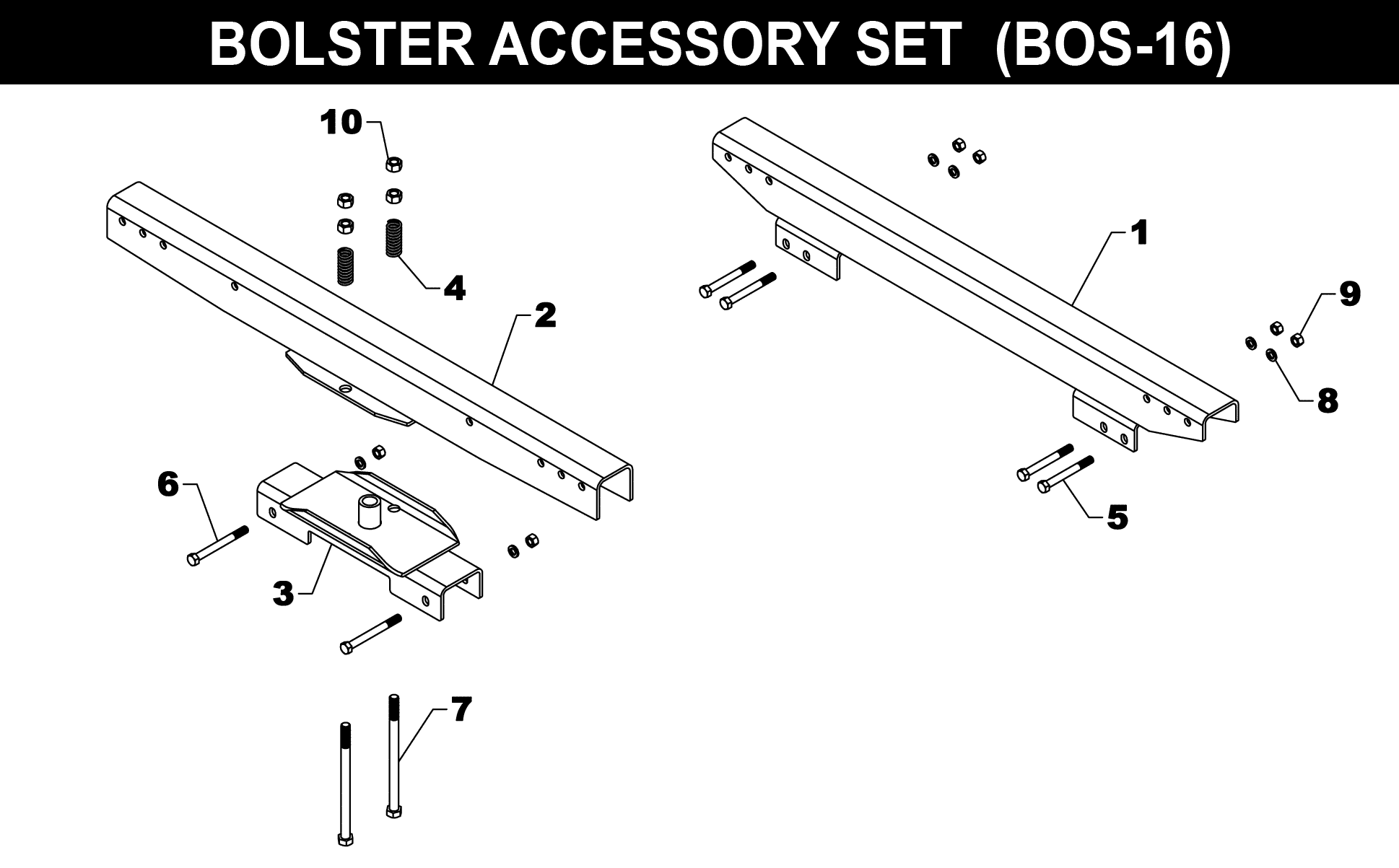

Ref	Part #	Description	Qty	Price
1	HW-80AS	REAR BOLSTER	1	$212.83
2	HW-76AS	FRONT BOLSTER	1	$275.07
3	HW-71AS	SADDLE	1	$122.48
4	S4	SPRING-FRONT BOLSTER	2	$5.03
5	HHS0813072	BOLT - 1/5 X 4-1/2	4	$5.03
6	HHS0813080	BOLT - 1/2 X 5	2	$5.03
7	HHS1011152	BOLT -5/8 X 9-1/2	2	$40.22
8	LWM08	LOCK WASHER - 1/2	6	$0.37
9	HFN0813	NUT - 1/2	6	$0.95
10	HFN1011	NUT - 5/8	4	$1.26
