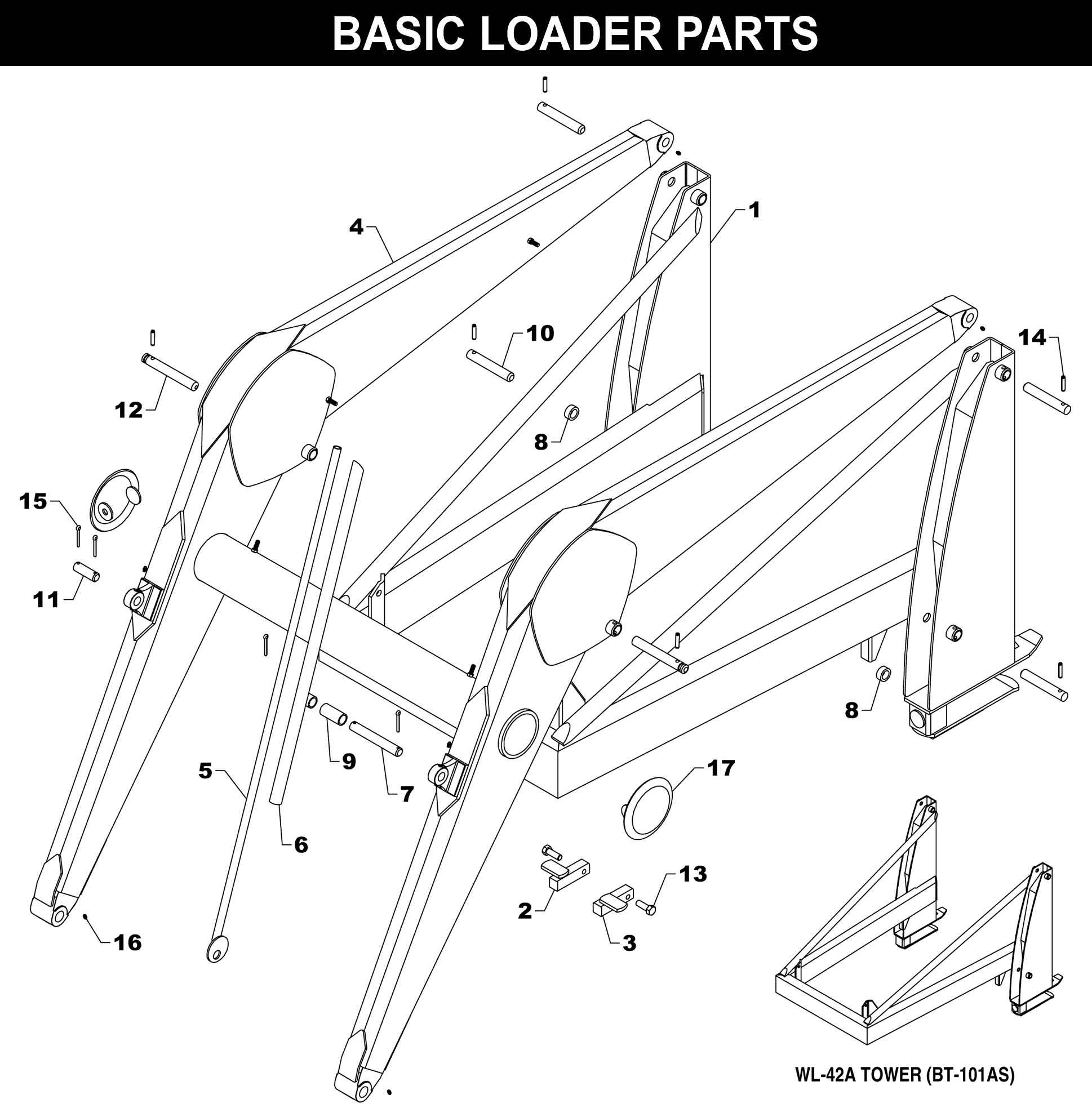

WL-42 Basic Loader Parts

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BT-1AS	TOWER	1	$4,635.71
1	BT-101AS	TOWER (WL-42A)	1	$4,635.73
2	BT-18AS-R	FLOP LOCK - RIGHT	1	$32.68
3	BT-18AS-L	FLOP LOCK - LEFT	1	$32.68
4	BF-4AS	FRAME WL-42	1	$7,034.09
5	BF-47AS	GAUGE ROD	1	$42.72
6	BF-50AS	GAUGE ROD HOLDER	1	$57.84
7	BF-59	PIN	1	$20.12
8	BF-60	SPACER	2	$7.54
9	BF-61	GAUGE ROD SPACER BUSHING	1	$12.57
10	JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	4	$18.57
11	LF-49	PIN - BUCKET CYLINDER	1	$12.58
12	LF-82	LIFT PIN	2	$24.08
13	HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
14	DRP0600028	DOUBLE ROLL PIN	6	$2.53
15	CTK0400032	COTTER KEY - 1/4 X 2	4	$0.87
16	ZER1805	GREASE FITTING	6	$2.53
17	FMF-43AS	CAP	2	$57.84

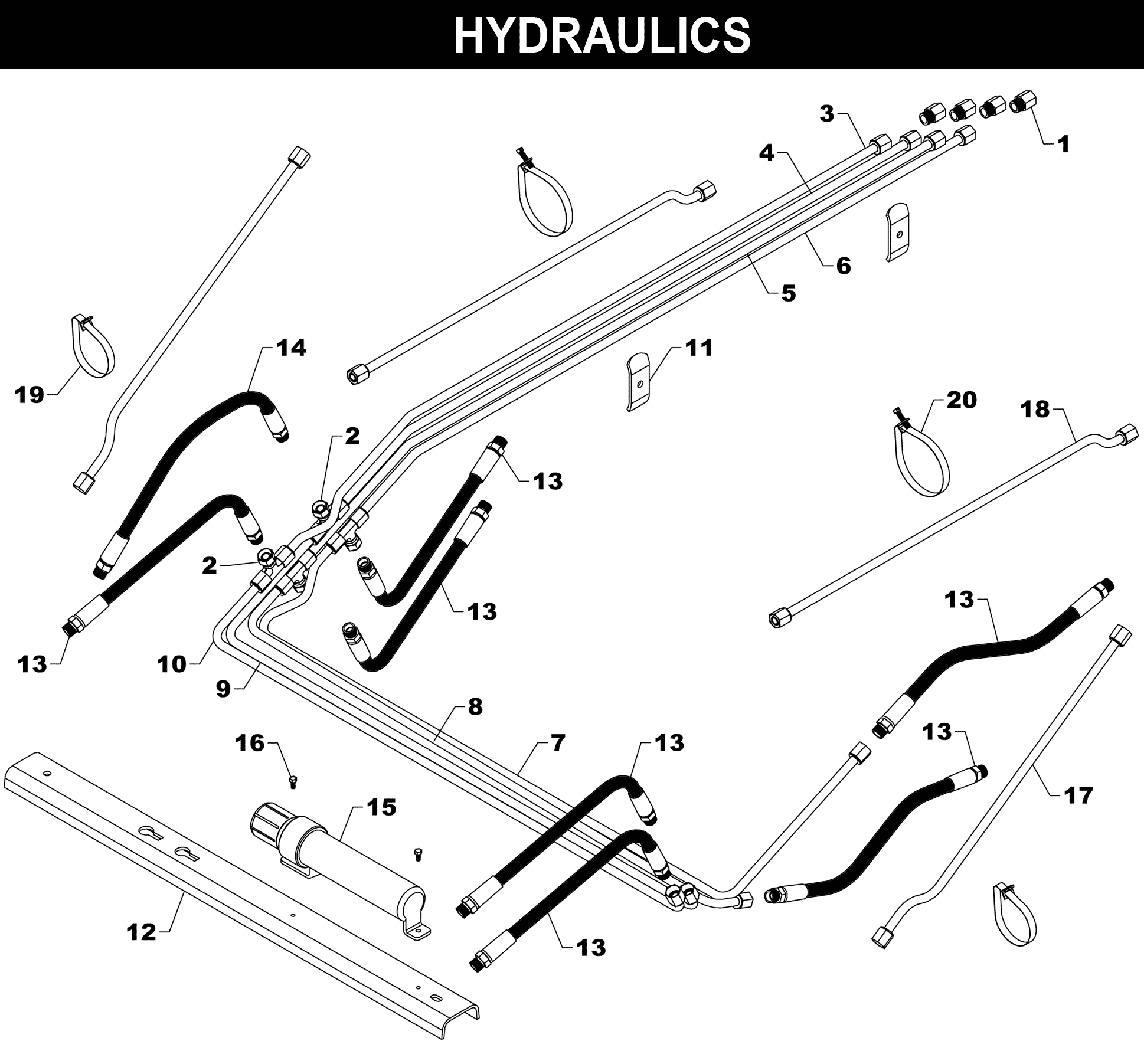

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	OLT-32	OIL LINE	1	$35.23
4	OLT-33	OIL LINE	1	$25.13
5	OLT-34	OIL LINE	1	$27.63
6	OLT-35	OIL LINE	1	$27.63
7	OLT-36	OIL LINE	1	$42.71
8	OLT-37	OIL LINE	1	$32.68
9	OLT-38	OIL LINE	1	$35.23
10	OLT-39	OIL LINE	1	$32.68
11	OH-3	OIL LINE PROTECTOR	2	$12.58
12	OH-1	OIL LINE PROTECTOR	1	$105.61
13	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	7	$50.22
14	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	1	$65.36
15	GP-2	CANISTER TO STORE MANUAL	1	$44.94
16	EC-M03	SELF-TAPPING SCREW	2	$1.56
17	OLT-1	OIL LINE	2	$19.77
18	OLT-2	OIL LINE	2	$22.62
19	BAND-12	METAL BAND	2	$5.03
20	BAND-15	METAL BAND	2	$5.03

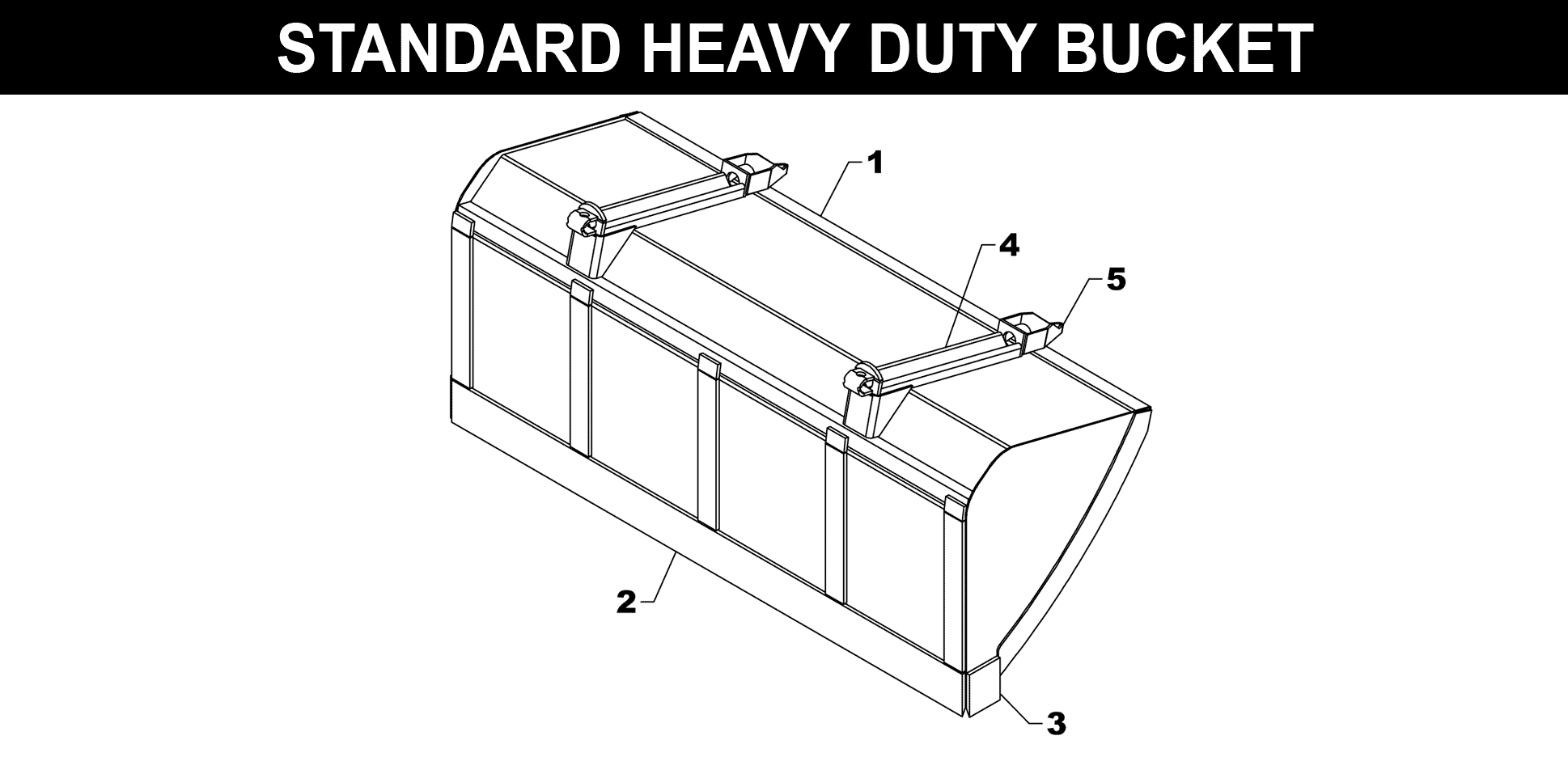

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

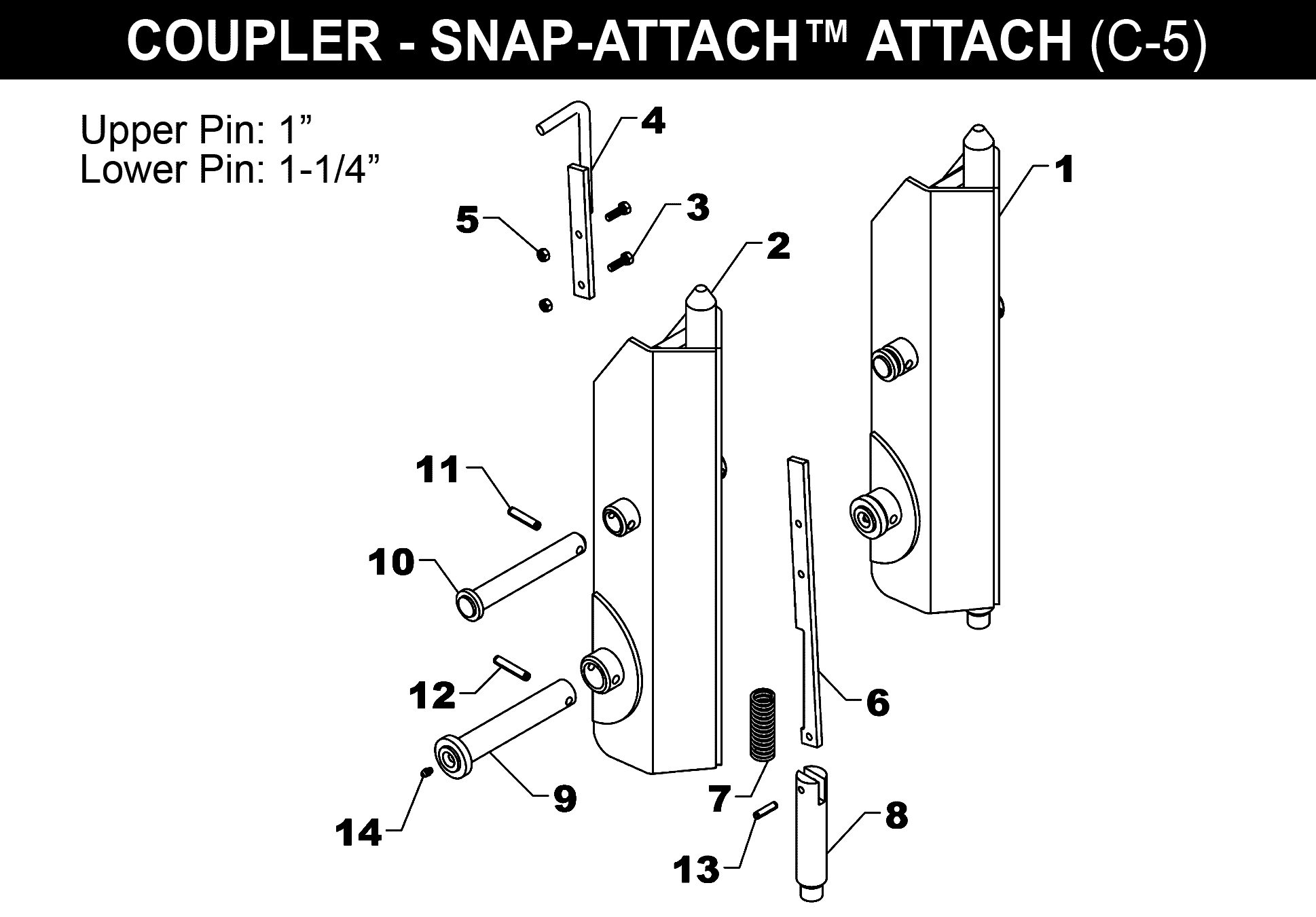

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	QC-501COM	COUPLER-SNAP-ATTACH - 1 IN. UPPER 1.25 LOWER PIN (1 PC)	1	$573.22
2	QC-501AS	COUPLER-SNAP-ATTACH SHELL WITH 1 IN. UPPER 1.25 LOWER PIN (1 PC)	1	—	Call to order
3	HHS0518016	BOLT - 5/16 X 1	2	$3.94
4	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
5	HTN0518	LOCK NUT - 5/16	2	$0.82
6	QC-8	SNAP-ATTACH LATCH	1	$52.80
7	QC-12	SPRING FOR COUPLER	1	$17.62
8	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LMF-18AS	PIN	1	$46.15
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
