wl-42-anniversary

WL-42 Anniversary Frame

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	BF-104AS	FRAME (WL-42 Anniversary Edition)	1	$7,446.09
2	RZF-110AS-R	BUCKET LINKAGE (RIGHT)	1	$92.05
3	RZF-110AS-L	BUCKET LINKAGE (LEFT)	1	$92.05
4	RZF-110	BUCKET LINKAGE	2	$82.29
5	RZF-315AS	BUCKET LINKAGE STRAP	2	—	Call to order
6	FMF-43AS	CAP	2	$57.84
7	LAC-15-32	ROTATIONAL BUCKET INDICATOR	1	$123.15
8	RAF-26	HEX HEAD PIN	8	$37.71
9	LF-82	LIFT PIN	2	$24.08
10	DRP0600028	DOUBLE ROLL PIN	2	$2.53
11	EC-M10	GROMMET	2	$1.19
12	SR-C08	SNAP RING - EXTERNAL	8	$5.03
13	ZER1805	GREASE FITTING	8	$2.53

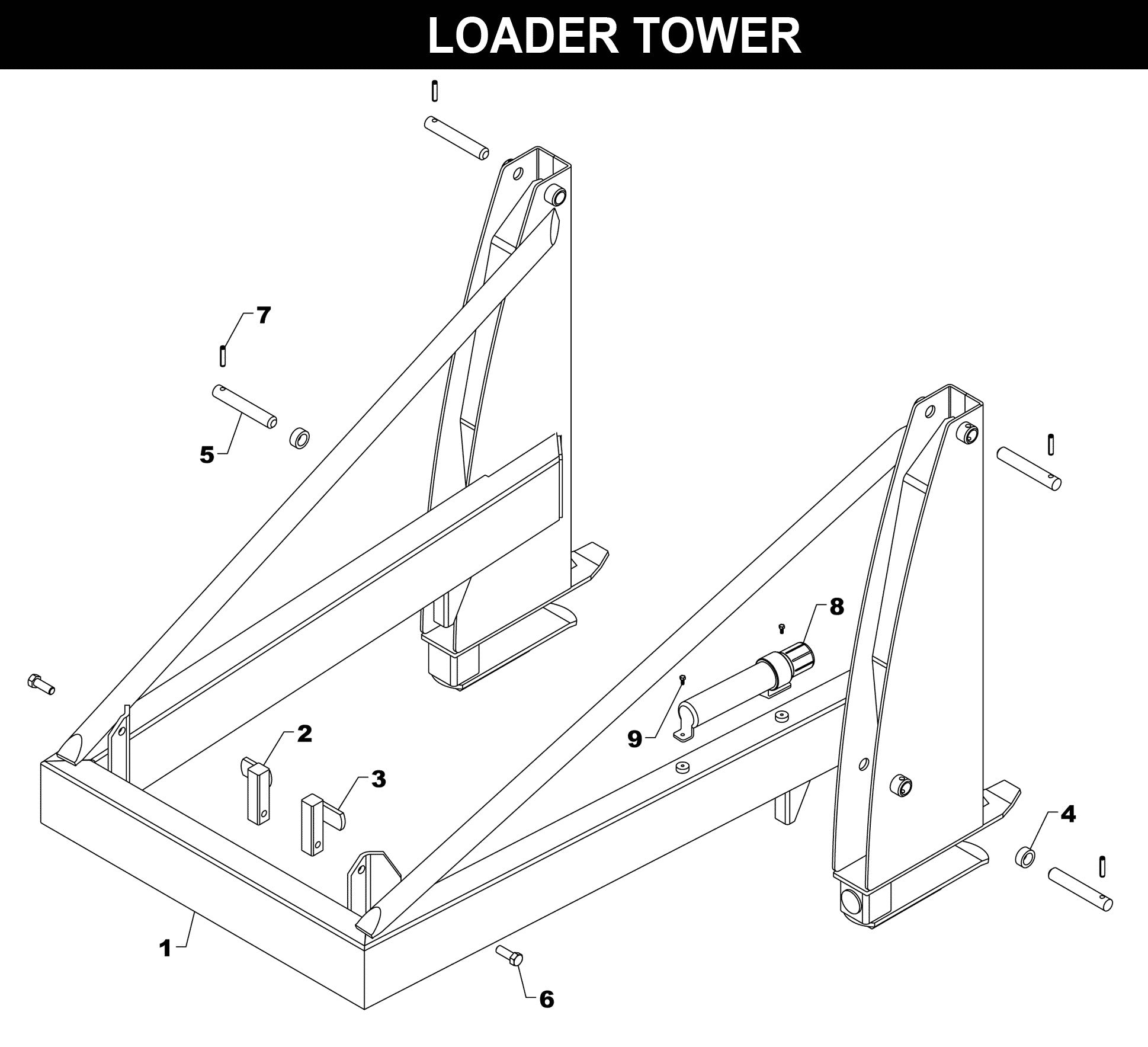

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	BT-1AS	TOWER	1	$4,635.71
2	BT-18AS-R	FLOP LOCK - RIGHT	1	$32.68
3	BT-18AS-L	FLOP LOCK - LEFT	1	$32.68
4	BF-60	SPACER	2	$7.54
5	JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	4	$18.57
6	HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
7	DRP0600028	DOUBLE ROLL PIN	4	$2.53
8	GP-2	CANISTER TO STORE MANUAL	1	$44.94
9	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	GRD-364	SLIDE BLOCK	1	—	Call to order
2	GRD-360	GAUGE ROD	1	—	Call to order
3	GRD-363	ROD	1	—	Call to order
4	GRD-361	GAUGE ROD POINTER	1	—	Call to order
5	HHS0616024	BOLT - 3/8 X 1-1/2	1	$2.53
6	FWW06	FLAT WASHER - 3/8	1	$0.95
7	HFN0616	HEX NUT - 3/8	1	$0.67
8	HTN0616	LOCK NUT - 3/8	3	$2.53
9	AHS0420008	SET SCREW - 1/4 X 1/2	2	—	Call to order
10	FSS0616028	FLAT HEAD ALLEN SCREW - 3/8 X 1-3/4	1	—	Call to order
11	FSS0616024	FLAT HEAD ALLEN SCREW - 3/8 X 1-1/2	1	$5.03

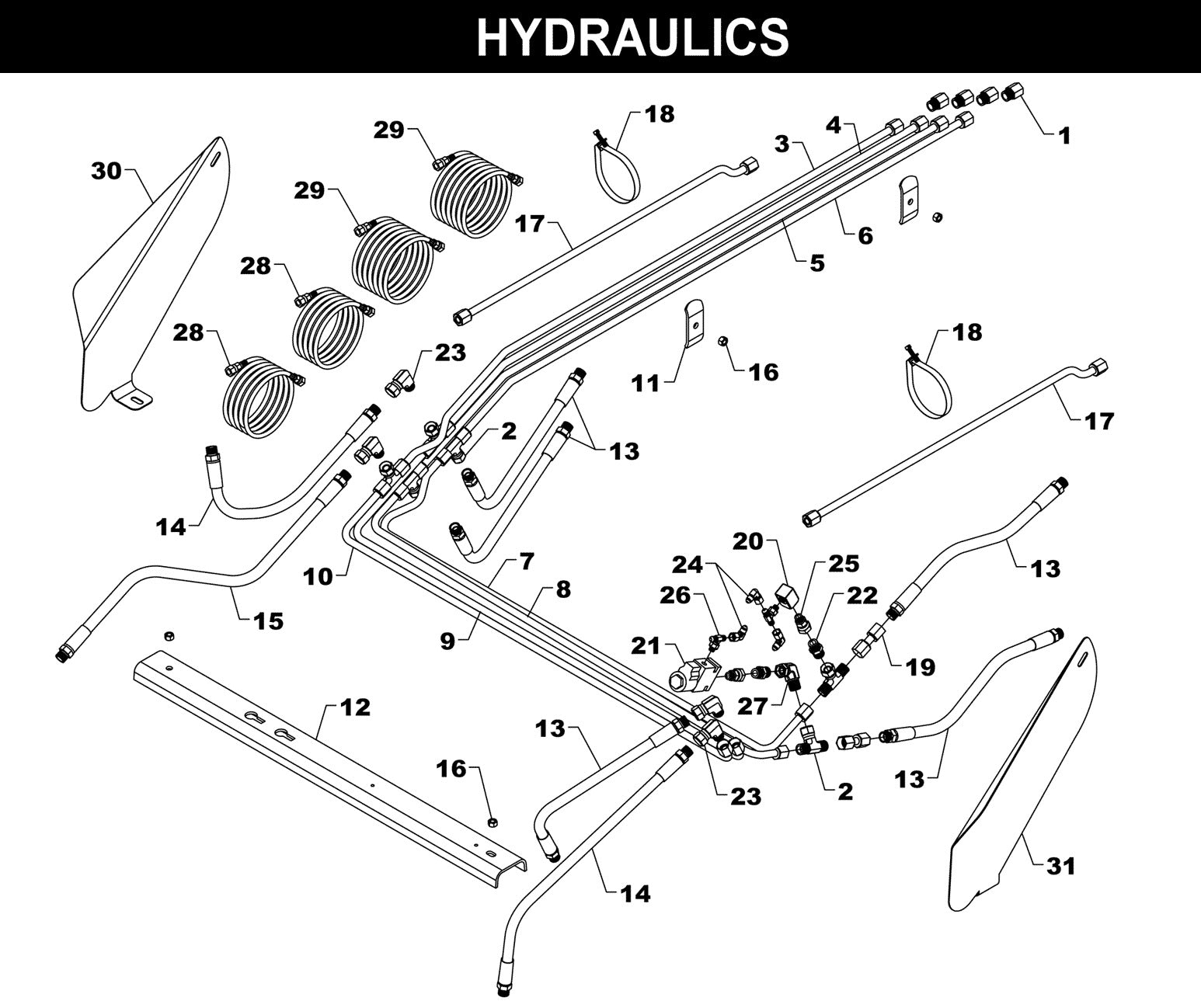

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	6	$75.47
3	OLT-32	OIL LINE	1	$35.23
4	OLT-33	OIL LINE	1	$25.13
5	OLT-34	OIL LINE	1	$27.63
6	OLT-35	OIL LINE	1	$27.63
7	OLT-36	OIL LINE	1	$42.71
8	OLT-37	OIL LINE	1	$32.68
9	OLT-38	OIL LINE	1	$35.23
10	OLT-39	OIL LINE	1	$32.68
11	OH-3	OIL LINE PROTECTOR	2	$12.58
12	OH-1	OIL LINE PROTECTOR	1	$105.61
13	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	5	$50.22
14	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	2	$65.36
15	H06040-FF	HYDRAULIC HOSE - 3/8 X 40	1	$88.02
16	HTN0616	LOCK NUT - 3/8	4	$2.53
17	OLT-2	OIL LINE	2	$22.62
18	BAND-15	METAL BAND	2	$5.03
19	OLT-439	OIL LINE	2	$27.63
20	VB-36	VALVE BLOCK	1	$19.19
21	VB-39	VALVE BLOCK	1	$407.17
22	PF-FMC0608	PIPE FITTING - 1/2 TUBE TO 3/8 NPT	2	$8.02
23	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	4	$67.91
24	PF-JSE04	7/16-20 JIC SWIVEL ELBOW	3	—	Call to order
25	PF-OS06	9/16' O-ring TO 3/8' FNPT SWIVEL	2	$20.13
26	PF-STBT04	PIPE FITTING - 7/16 JIC - O-RING BRANCH TEE	2	$24.09
27	PF-SWE0806	PIPE FITTING - 1/2 TO 3/8 90 DEGREE SWIVEL ELBOW	1	$27.63
28	H02080-RRDYNA	MICRO HOSE	2	$97.16
29	H02110-RRDYNA	MICRO HOSE	2	$98.00
30	BF-111	RIGHT OIL LINE COVER	1	—	Call to order
31	BF-112	LEFT OIL LINE COVER	1	—	Call to order

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q425	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH - STD	1	$2,377.42
1	96Q429	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
0	EC-C131 KIT	WIRING HARNESS KIT MA-381-382	1	$216.58
1	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
2	EC-C27	SCOTCHLOCK	4	$4.22
3	EC-C31	SWITCH WIRING HARNESS	1	$30.11
4	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
5	EC-M11	MOUNTING BRACKET	1	$25.08
6	STW0814016	SELF TAPPING SCREW - #8 X 1	3	—	Call to order
7	BAND-6R	PLASTIC BAND - 6 RED	1	$1.14
8	DE-ACK	DECAL	1	—	Call to order
10	DE-HOWTO-1	HOW TO CARD - Remote Control Coupler	1	—	Call to order
11	DE-HOWTO-2	HOW TO CARD - Smart-Lock	1	—	Call to order
12	DE-HOWTO-3	HOW TO CARD - FM Auto-Lock	1	—	Call to order
13	DE-HOWTO-4	HOW TO CARD - Hydra-Snap	1	—	Call to order
14	DE-HOWTO-5	HOW TO CARD - J-Hook Dismount	1	—	Call to order

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-4001COM	COUPLER - REMOTE CONTROL COMPLETE - (1 PC)	1	$1,139.90
2	QC-4001AS	COUPLER - REMOTE CONTROL SHELL - (1 PC)	1	$1,075.38
3	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
4	M-19	REPLACEMENT CYLINDER KIT FOR C-40 COUPLER	1	$430.87
5	XAF-55AS	LINKAGE PIN	1	$67.91
6	LF-51	PIN - LINKAGE	1	$17.62
7	HHS0813032	BOLT - 1/2 X 2	1	$2.53
8	DRP0600028	DOUBLE ROLL PIN	1	$2.53
9	DRP0600032	DOUBLE ROLL PIN	1	$2.53
10	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
11	ZER1805	GREASE FITTING	1	$2.53
12	QC-4009AS	CYLINDER STOP	1	$54.81
