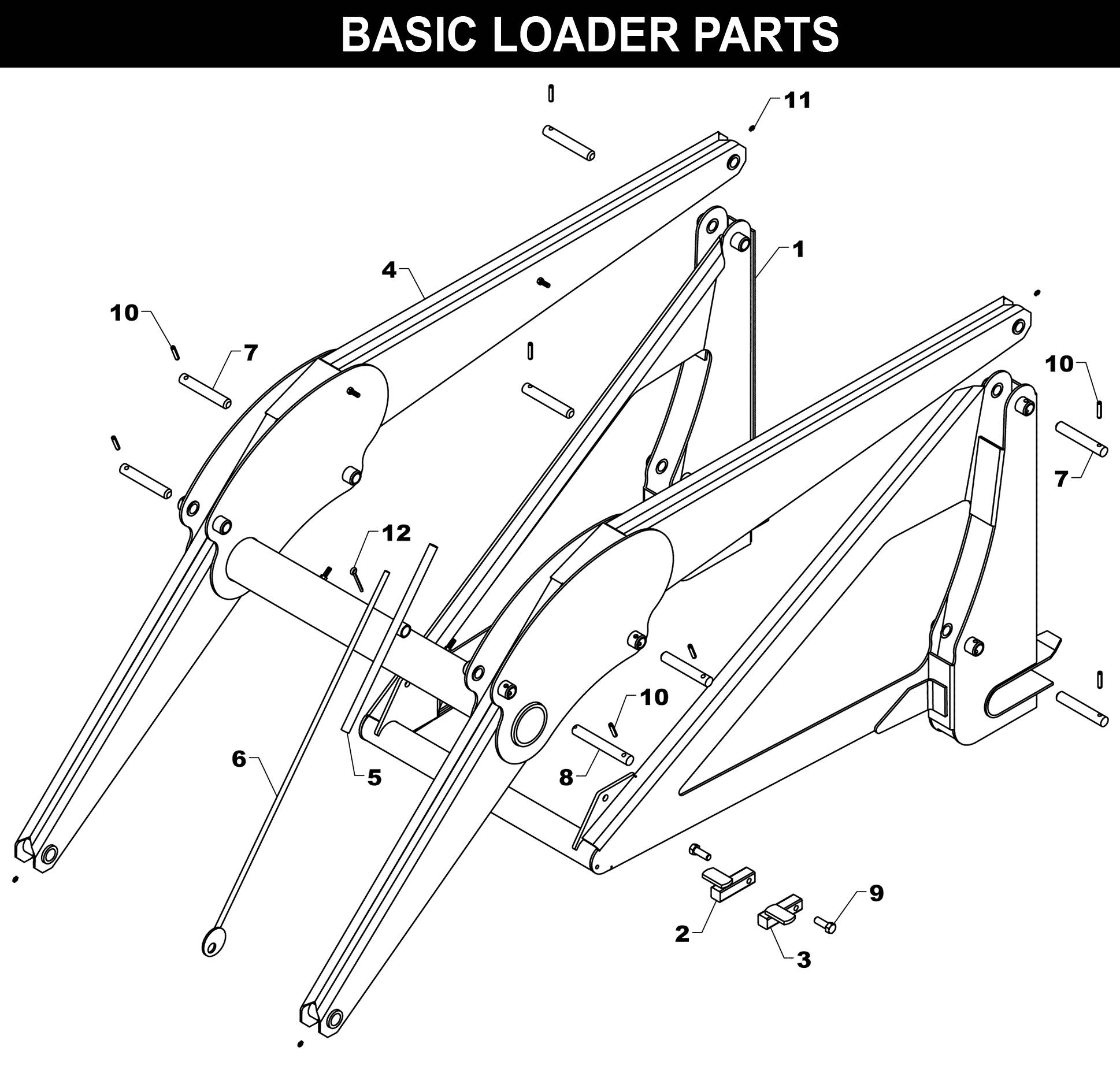

WL-27 Basic Loader Parts
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | JAT-12AS | TOWER (WL-27) | 1 | — | Call to order | |
| 2 |  | BT-18AS-R | FLOP LOCK - RIGHT | 1 | $32.68 | |
| 3 |  | BT-18AS-L | FLOP LOCK - LEFT | 1 | $32.68 | |
| 4 | JAF-4AS | FRAME (WL-27) | 1 | — | Call to order | |
| 5 |  | JF-56AS | GAUGE ROD HOLDER | 1 | $30.17 | |
| 6 |  | JF-57AS | GAUGE ROD | 1 | $30.17 | |
| 7 |  | JT-20 | PIN - 6-1/2 x 1' WITH 1 HOLE | 7 | $18.57 | |
| 8 |  | JF-65 | PIN - 7-1/2 | 1 | $20.13 | |
| 9 |  | HHS1011028 | BOLT - 5/8 X 1-3/4 | 2 | $4.55 | |
| 10 |  | DRP0600028 | DOUBLE ROLL PIN | 8 | $2.53 | |
| 11 |  | ZER1805 | GREASE FITTING | 4 | $2.53 | |
| 12 |  | CTK0400032 | COTTER KEY - 1/4 X 2 | 1 | $0.87 |

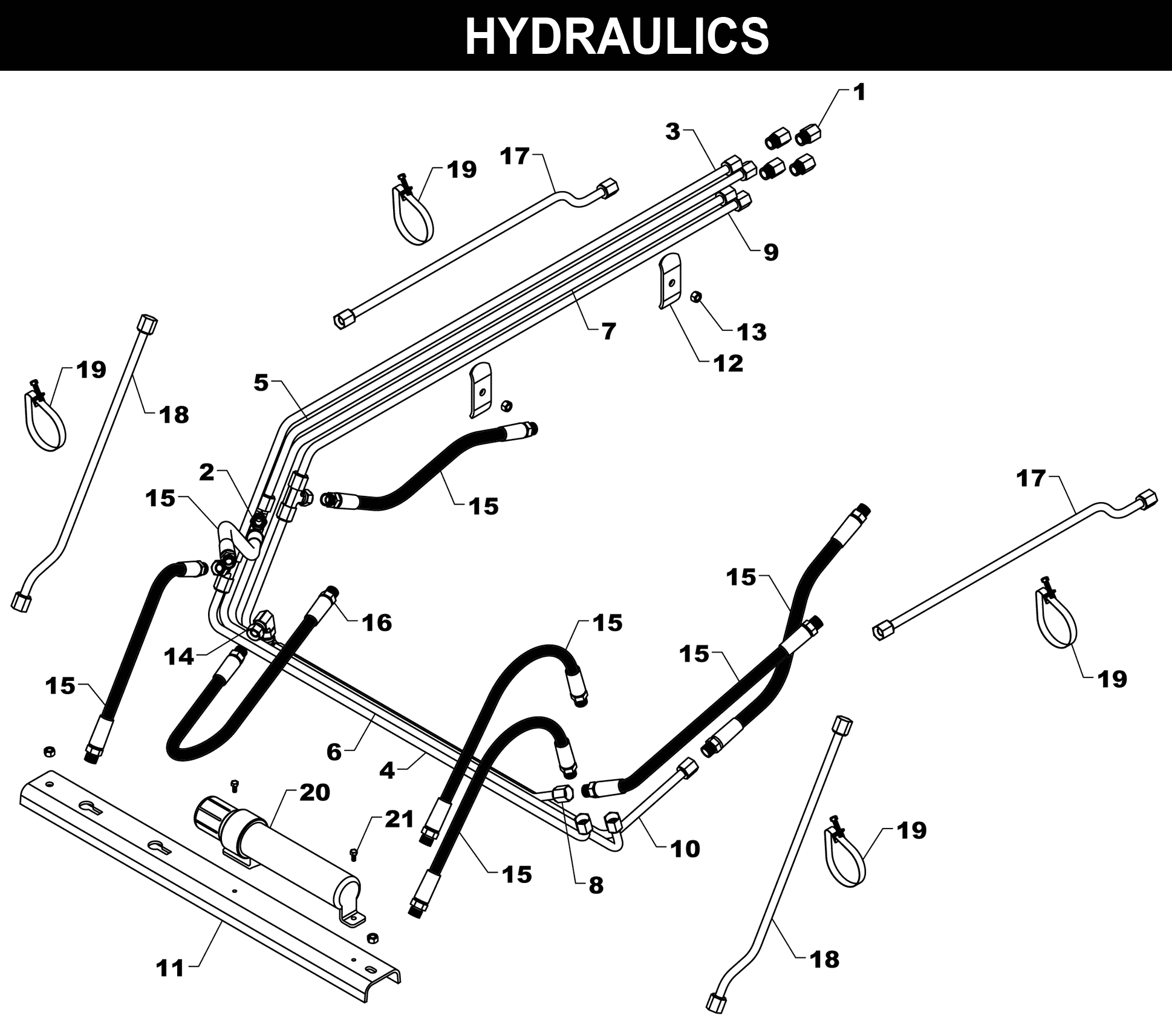

WL-27 Hydraulics
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | PF-FFC8 | PIPE FITTING - FEMALE CONNECTOR | 4 | $20.13 | |
| 2 |  | PF-FSBT8 | PIPE FITTING - SWIVEL NUT TEE | 4 | $75.47 | |
| 3 | OLT-460 | OIL LINE | 1 | $35.23 | ||
| 4 | OLT-461 | OIL LINE | 1 | $47.82 | ||
| 5 | OLT-462 | OIL LINE | 1 | $32.68 | ||
| 6 | OLT-463 | OIL LINE | 1 | $50.27 | ||
| 7 | OLT-464 | OIL LINE | 1 | — | Call to order | |
| 8 | OLT-465 | OIL LINE | 1 | $40.22 | ||
| 9 | OLT-466 | OIL LINE | 1 | $35.23 | ||
| 10 | OLT-467 | OIL LINE | 1 | $50.27 | ||
| 11 |  | OH-2 | OIL LINE HOLDER | 1 | $85.49 | |
| 12 |  | OH-3 | OIL LINE PROTECTOR | 2 | $12.58 | |
| 12 |  | EC-M03 | SELF-TAPPING SCREW | 2 | $1.56 | |
| 13 |  | HFN0616 | HEX NUT - 3/8 | 4 | $0.67 | |
| 14 |  | PF-FSE8 | PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG. | 1 | $67.91 | |
| 15 |  | H06020-FF | HYDRAULIC HOSE - 3/8 X 20 | 7 | $50.22 | |
| 16 |  | H06030-FF | HYDRAULIC HOSE STEEL LINE - 3/8 X 30 | 1 | $65.36 | |
| 17 |  | OLT-1 | OIL LINE | 2 | $19.77 | |
| 18 | OLT-143 | OIL LINE | 2 | $27.63 | ||
| 19 |  | BAND-12 | METAL BAND | 4 | $5.03 | |
| 20 |  | GP-2 | CANISTER TO STORE MANUAL | 1 | $44.94 |

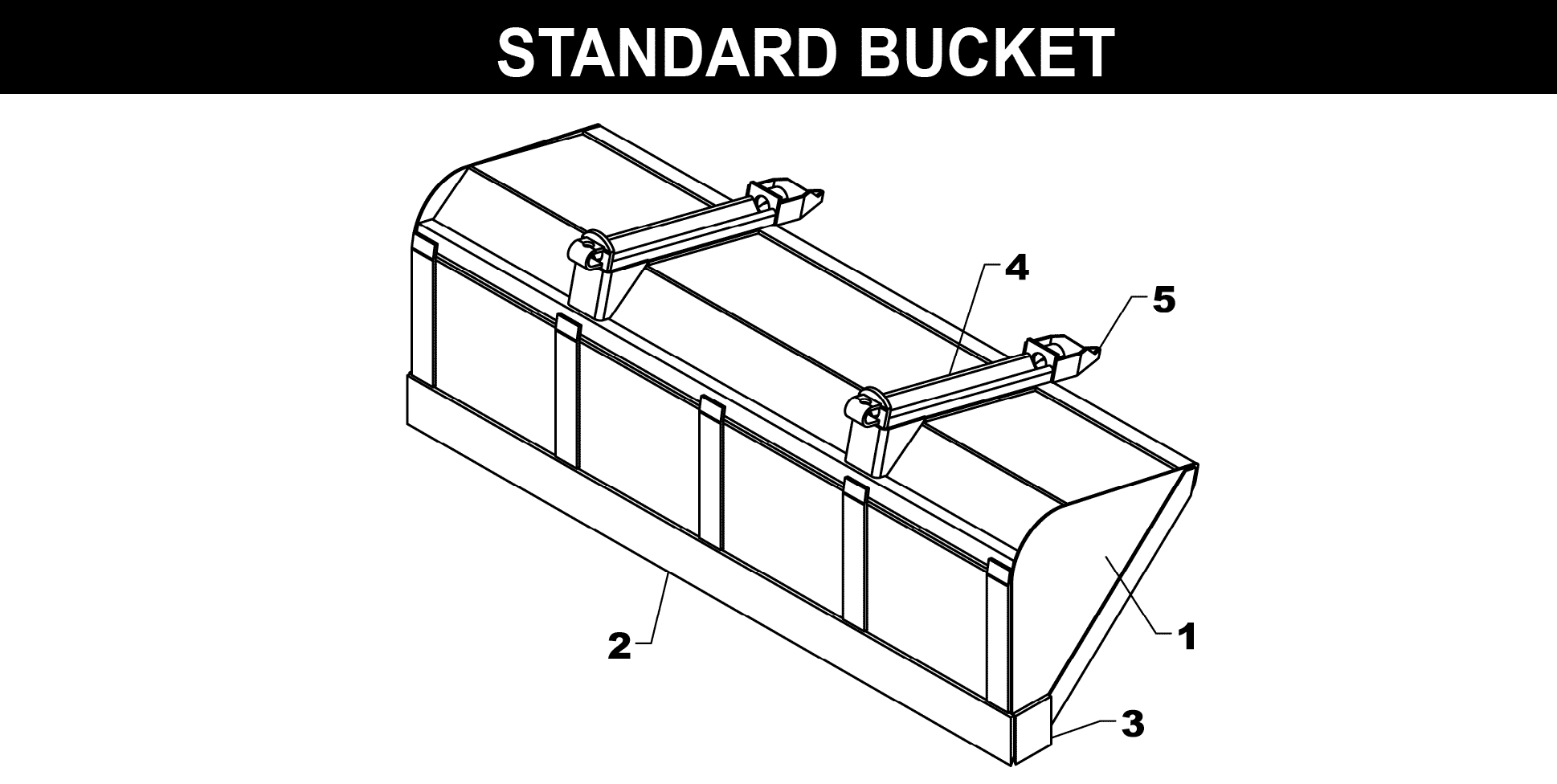

WL-27 Bucket
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | 72Q214 | BUCKET-72 WITH SNAP-ATTACH ADAPTERS | 1 | $2,006.04 | |
| 1 |  | 84Q216 | BUCKET-84 WITH SNAP-ATTACH ADAPTERS | 1 | $2,176.65 | |
| 2 |  | JB-14 | BUCKET-CUTTING EDGE - 72 | 1 | $676.25 | |
| 2 |  | SB-14 | BUCKET-CUTTING EDGE - 84 | 1 | $859.37 | |
| 3 |  | SB-15 | SIDE BLADE | 1 | $52.80 | |
| 4 |  | QC-13AS | ADAPTER-SNAP-ATTACH WELD ON (1 PC) | 2 | $130.52 | |
| 5 |  | JB-22A | BUCKET GUIDE OR TEPEE | 2 | $70.39 |
SNAP-ATTACH™ COUPLER - C-5
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | QC-501COM | COUPLER-SNAP-ATTACH - 1 IN. UPPER 1.25 LOWER PIN (1 PC) | 1 | $573.22 | |
| 2 | QC-501AS | COUPLER-SNAP-ATTACH SHELL WITH 1 IN. UPPER 1.25 LOWER PIN (1 PC) | 1 | — | Call to order | |
| 3 |  | HHS0518016 | BOLT - 5/16 X 1 | 2 | $3.94 | |
| 4 |  | QC-6AS | SNAP-ATTACH LATCH HANDLE | 1 | $22.62 | |
| 5 |  | HTN0518 | LOCK NUT - 5/16 | 2 | $0.82 | |
| 6 |  | QC-8 | SNAP-ATTACH LATCH | 1 | $52.80 | |
| 7 |  | QC-12 | SPRING FOR COUPLER | 1 | $17.62 | |
| 8 |  | QC-3 | SNAP-ATTACH BOTTOM LATCH PIN | 1 | $52.80 | |
| 9 |  | XAF-55AS | LINKAGE PIN | 1 | $67.91 | |
| 10 |  | LMF-18AS | PIN | 1 | $46.15 | |
| 11 | | DRP0600028 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 12 |  | DRP0600032 | DOUBLE ROLL PIN | 1 | $2.53 | |
| 13 |  | RLP0500020 | ROLL PIN - 5/16 X 1-1/4 | 1 | $0.89 | |
| 14 | | ZER1805 | GREASE FITTING | 1 | $2.53 |
