Parts Lookup › Loader Parts › WL Series

WL-21 Parts

5 assemblies · choose one below

WL-21 Basic Loader Parts

Open on its own page

Click a number on the diagram to find the part.

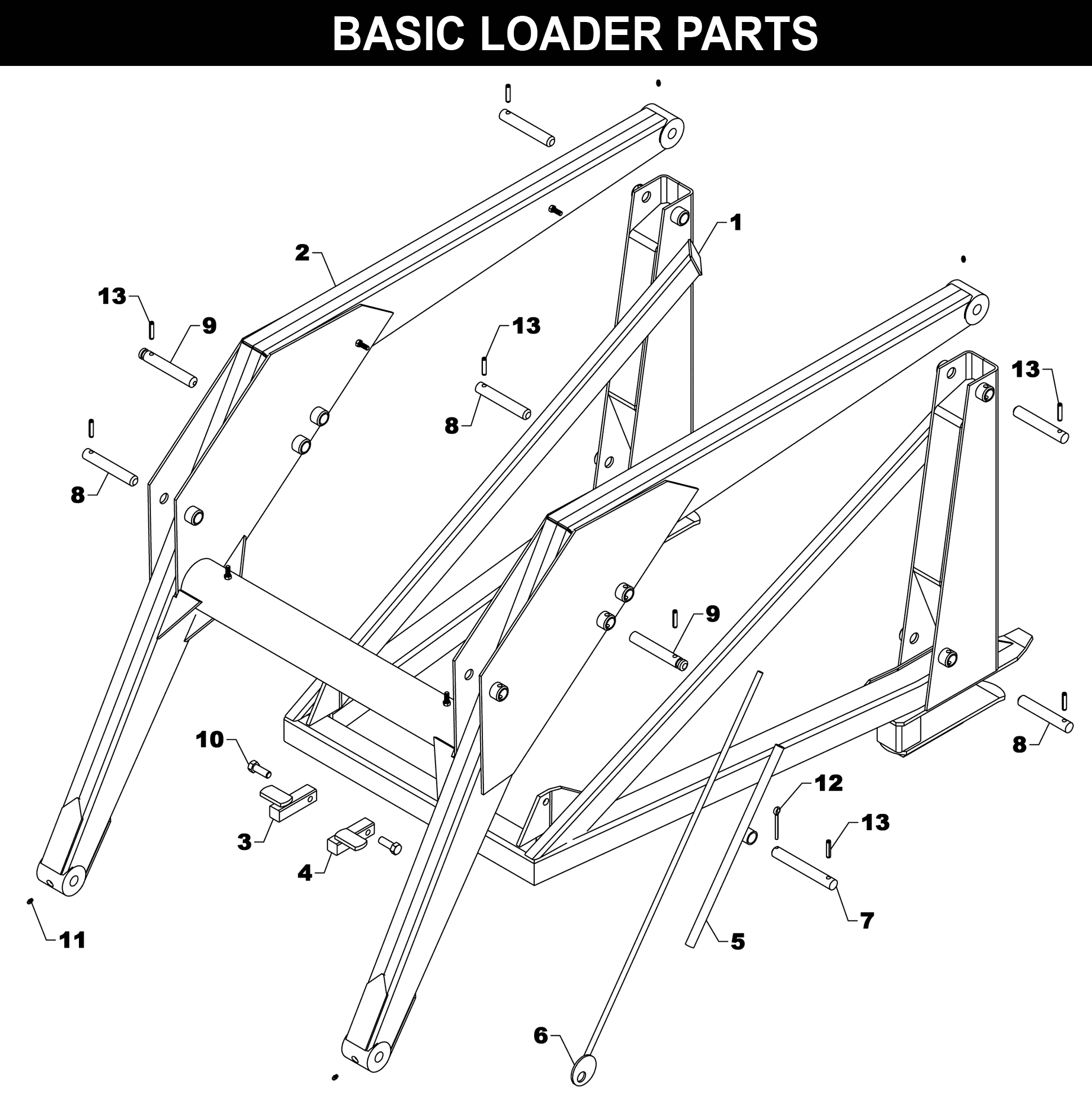

WL-21 Basic Loader Parts exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		JT-12AS	TOWER - WL-21	1	$3,146.18
2		BJF-4AS	FRAME ONLY (SL-CYL)	1	$7,089.36
3		BT-18AS-R	FLOP LOCK - RIGHT	1	$32.68
4		BT-18AS-L	FLOP LOCK - LEFT	1	$32.68
5		JF-56AS	GAUGE ROD HOLDER	1	$30.17
6		JF-57AS	GAUGE ROD	1	$30.17
7		JF-65	PIN - 7-1/2	1	$20.13
8		JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	5	$18.57
9		LF-81	LIFT PIN	2	$5.03
10		HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
11		ZER1805	GREASE FITTING	4	$2.53
12		CTK0400032	COTTER KEY - 1/4 X 2	1	$0.87
13		DRP0600028	DOUBLE ROLL PIN	8	$2.53

WL-21 Hydraulics

Open on its own page

Click a number on the diagram to find the part.

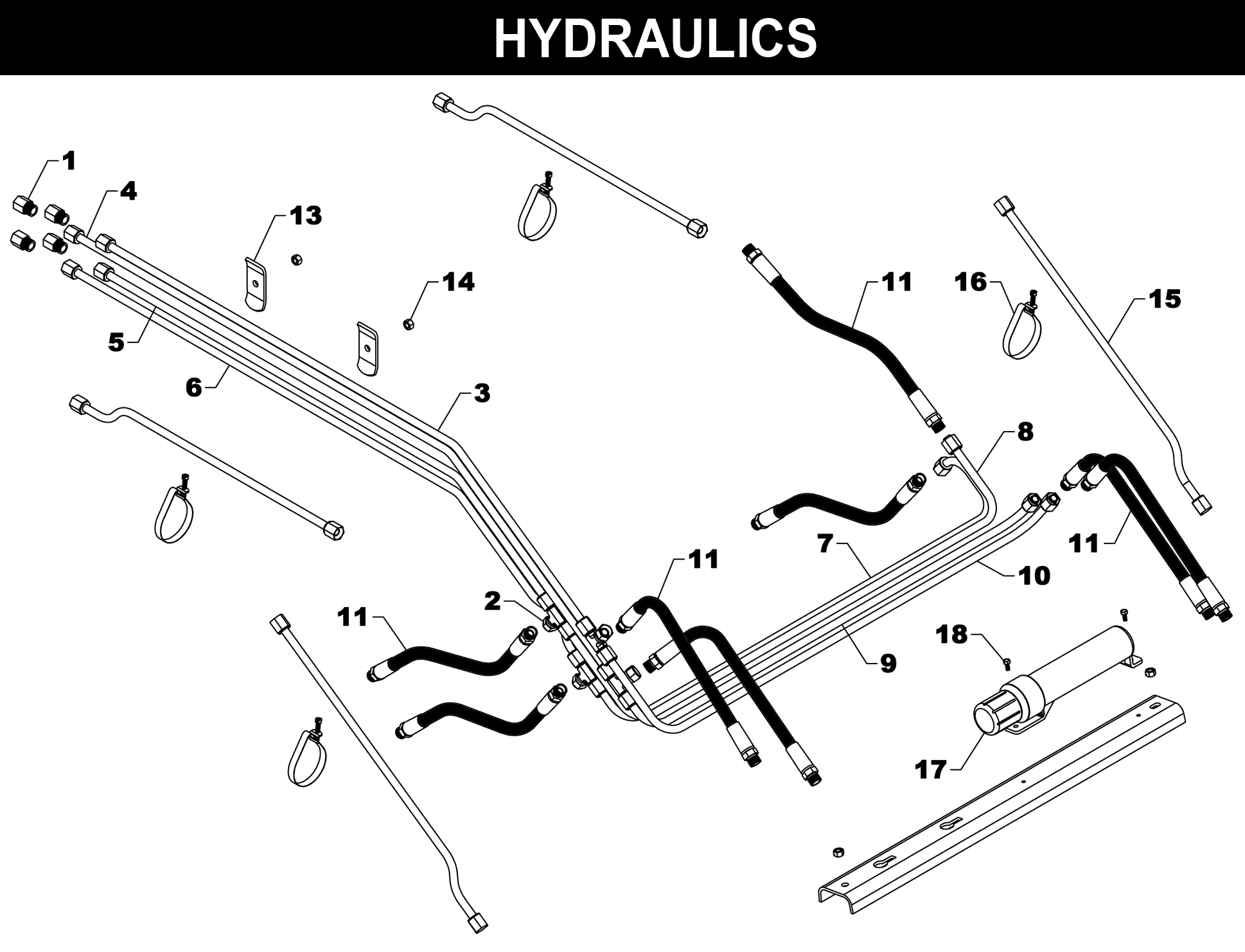

WL-21 Hydraulics exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2		PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3		OLT-4	OIL LINE	1	$27.63
4		OLT-5	OIL LINE	1	$27.63
5		OLT-6	OIL LINE	1	$25.13
6		OLT-7	OIL LINE	1	$27.63
7		OLT-8	OIL LINE	1	$40.22
8		OLT-9	OIL LINE	1	$32.68
9		OLT-10	OIL LINE	1	$32.68
10		OLT-11	OIL LINE	1	$32.68
11		H06020-FF	HYDRAULIC HOSE - 3/8 X 20	8	$50.22
12		OH-2	OIL LINE HOLDER	1	$85.49
13		OH-3	OIL LINE PROTECTOR	2	$12.58
14		HTN0616	LOCK NUT - 3/8	4	$2.53
15		OLT-1	OIL LINE	4	$19.77
16		BAND-12	METAL BAND	4	$5.03
17		GP-2	CANISTER TO STORE MANUAL	1	$44.94
18		EC-M03	SELF-TAPPING SCREW	2	$1.56

WL-21 Bucket

Open on its own page

Click a number on the diagram to find the part.

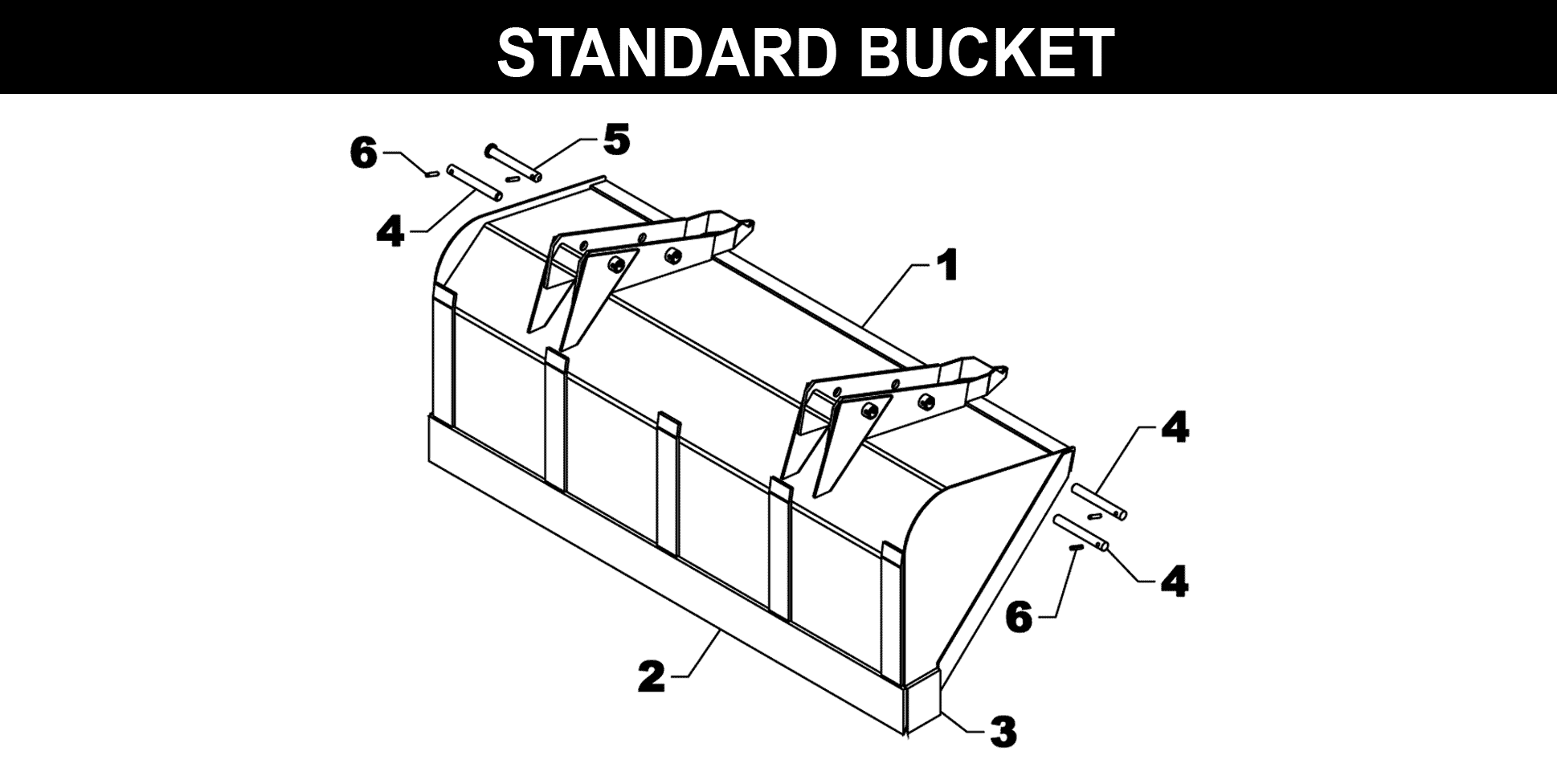

WL-21 Bucket exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		72P214	BUCKET-72 WITH PIN TYPE ADAPTERS	1	$2,006.04
1		84P216	BUCKET-84 WITH PIN TYPE ADAPTERS	1	$2,176.65
1		72Q214	BUCKET-72 WITH SNAP-ATTACH ADAPTERS	1	$2,006.04
1		84Q216	BUCKET-84 WITH SNAP-ATTACH ADAPTERS	1	$2,176.65
1		66QS14	BUCKET-66 WITH SKID STEER ATTACH	1	$1,412.59
1		72QS14	BUCKET-72 WITH SKID STEER ATTACH	1	$2,176.65
1		84QS16	BUCKET-84 WITH SKID STEER ATTACH	1	$2,352.56
2		JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25
2		IB-14	BUCKET-CUTTING EDGE - 66	1	$525.39
2		SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
3		SB-15	SIDE BLADE	2	$52.80
4		LF-52	PIN (HEADLESS)	3	$18.57
5		QC-306AS	PIN	1	$30.17
6		RLP0600028	ROLL PIN - 3/8 X 1-3/4	4	$0.89

OPTIONAL SKID-STEER COUPLER - C-31

Open on its own page

Click a number on the diagram to find the part.

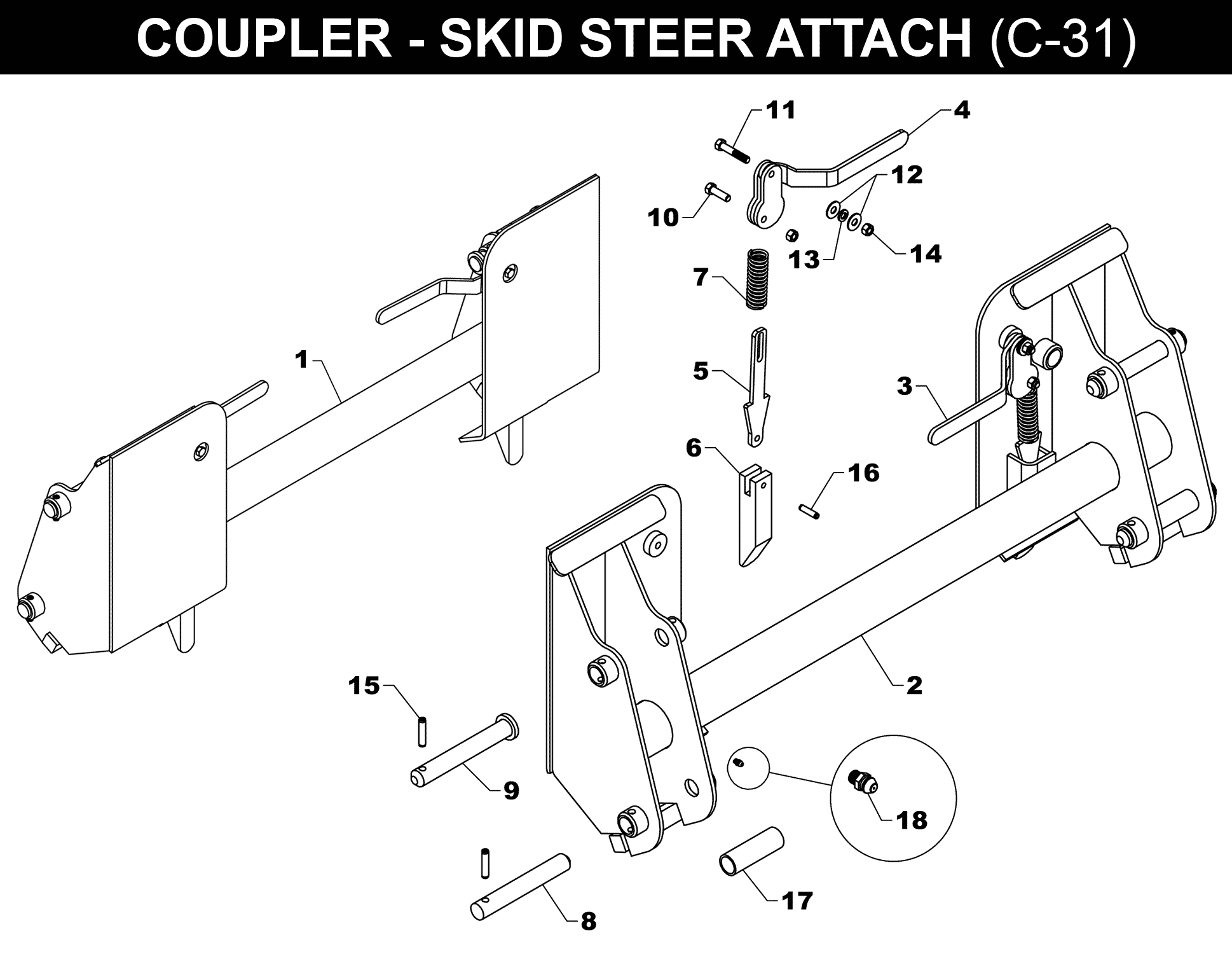

OPTIONAL SKID-STEER COUPLER - C-31 exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		C-31	COUPLER-SKID STEER ATTACH	1	$1,060.86
2		QC-3100AS	COUPLER-SKID STEER SHELL	1	—	Call to order
3		QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4		QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5		QC-2010	LINKAGE	2	$27.12
6		QC-2011	LATCH	2	$73.08
7		QC-12	SPRING FOR COUPLER	2	$17.62
8		LF-51	PIN - LINKAGE	3	$17.62
9		LMF-18AS	PIN	1	$46.15
10		HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
11		HHS0616032	BOLT - 3/8 X 2	2	$2.53
12		FWW06	FLAT WASHER - 3/8	4	$0.95
13		LWM06	LOCK WASHER - 3/8	2	$0.37
14		HTN0616	LOCK NUT - 3/8	4	$2.53
15		DRP0600028	DOUBLE ROLL PIN	4	$2.53
16		RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
17		BUS-211	BUSHING	2	$20.13
18		ZER1805	GREASE FITTING	2	$2.53

SNAP-ATTACH™ COUPLER - C-6

Open on its own page

Click a number on the diagram to find the part.

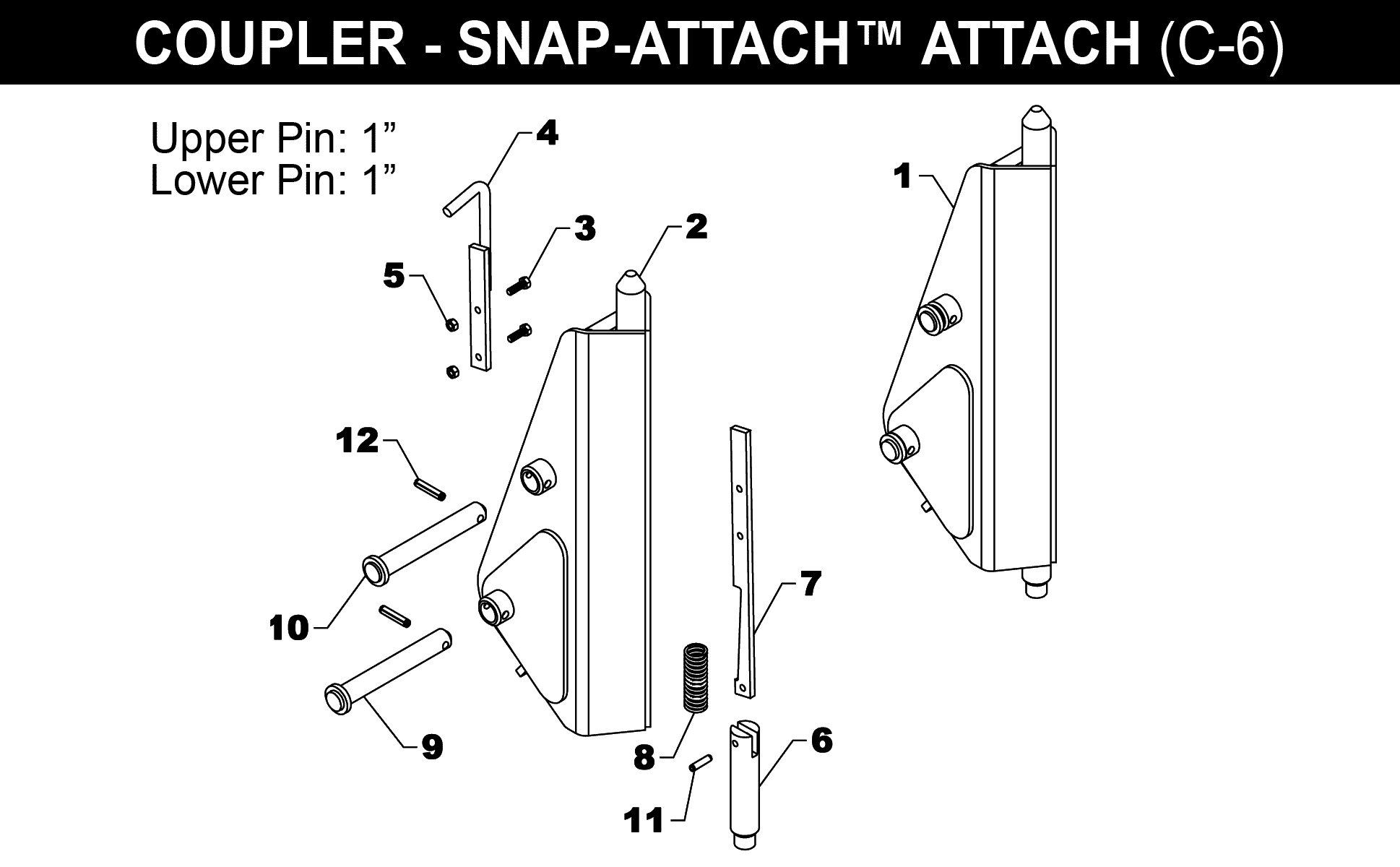

SNAP-ATTACH™ COUPLER - C-6 exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		QC-301COM	COUPLER-SNAP-ATTACH-1 IN. UPPER 1 IN. LOWER PIN (1 PC)	1	$623.43
2		QC-301AS	COUPLER-SNAP-ATTACH SHELL-1 IN. UPPER 1 IN. LOWER PIN (1 PC)	1	—	Call to order
3		HHS0518016	BOLT - 5/16 X 1	2	$3.94
4		QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
5		HTN0518	LOCK NUT - 5/16	2	$0.82
6		QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
7		QC-8	SNAP-ATTACH LATCH	1	$52.80
8		QC-12	SPRING FOR COUPLER	1	$17.62
9		QC-306AS	PIN	1	$30.17
10		LMF-18AS	PIN	1	$46.15
11		RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
12		DRP0600028	DOUBLE ROLL PIN	2	$2.53
