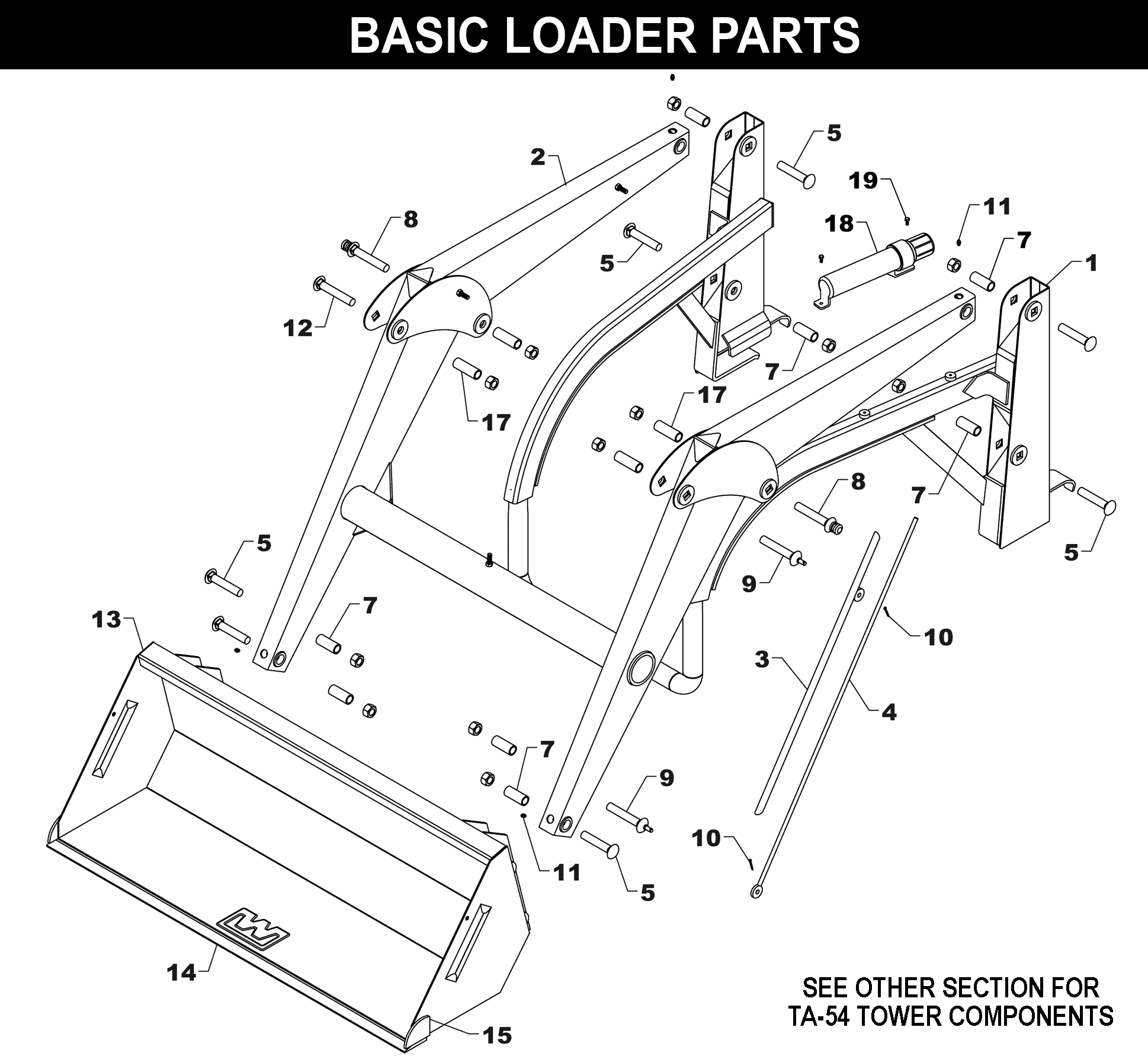

TA-54 / TA-55 Basic Loader Parts
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | MAT-1AS | TOWER (TA-55) | 1 | $1,538.55 | |
| 2 |  | MAF-4AS | FRAME (TA-55) | 1 | $4,828.68 | |
| 3 |  | MF-50AS | GAUGE ROD HOLDER | 1 | $22.62 | |
| 4 |  | MF-49AS | GAUGE ROD | 1 | $22.62 | |
| 5 |  | CBF1210064 | CARRIAGE BOLT - 3/4 X 4 | 7 | $15.12 | |
| 6 |  | HTN1210 | LOCK NUT - 3/4 | 12 | $5.03 | |
| 7 |  | MF-230 | INSERT BUSHING | 8 | $10.07 | |
| 8 |  | LF-84AS | LIFT PIN | 2 | $22.62 | |
| 9 |  | MF-69AS | GAUGE ROD BOLT | 2 | $30.17 | |
| 10 |  | CTK0200016 | COTTER KEY - 1/8 X 1 | 2 | $0.77 | |
| 11 |  | ZER1805 | GREASE FITTING | 4 | $2.53 | |
| 12 |  | CBF1210072 | CARRIAGE BOLT - 3/4 X 4-1/2 | 1 | $17.62 | |
| 13 |  | 48P604 | 48' Bucket | 1 | $671.65 | |
| 13 |  | 54P605 | 54' Bucket | 1 | $868.88 | |
| 14 |  | MB-214 | BUCKET-CUTTING EDGE - 48 | 1 | $150.84 | |
| 14 |  | MAB-314 | BUCKET-CUTTING EDGE - 54 | 1 | $193.58 | |
| 15 | RLB-15 | SIDE BLADE | 2 | $12.04 | ||
| 16 | DEC-55 | DECAL KIT FOR TA-55 | 1 | $67.91 | ||
| 16 | DEC-54 | DECAL KIT FOR TA-54 | 1 | $46.17 | ||
| 17 |  | B-1531 | INSERT BUSHING | 4 | $15.12 | |
| 18 |  | GP-2 | CANISTER TO STORE MANUAL | 1 | $44.94 | |
| 19 |  | EC-M03 | SELF-TAPPING SCREW | 2 | $1.56 |

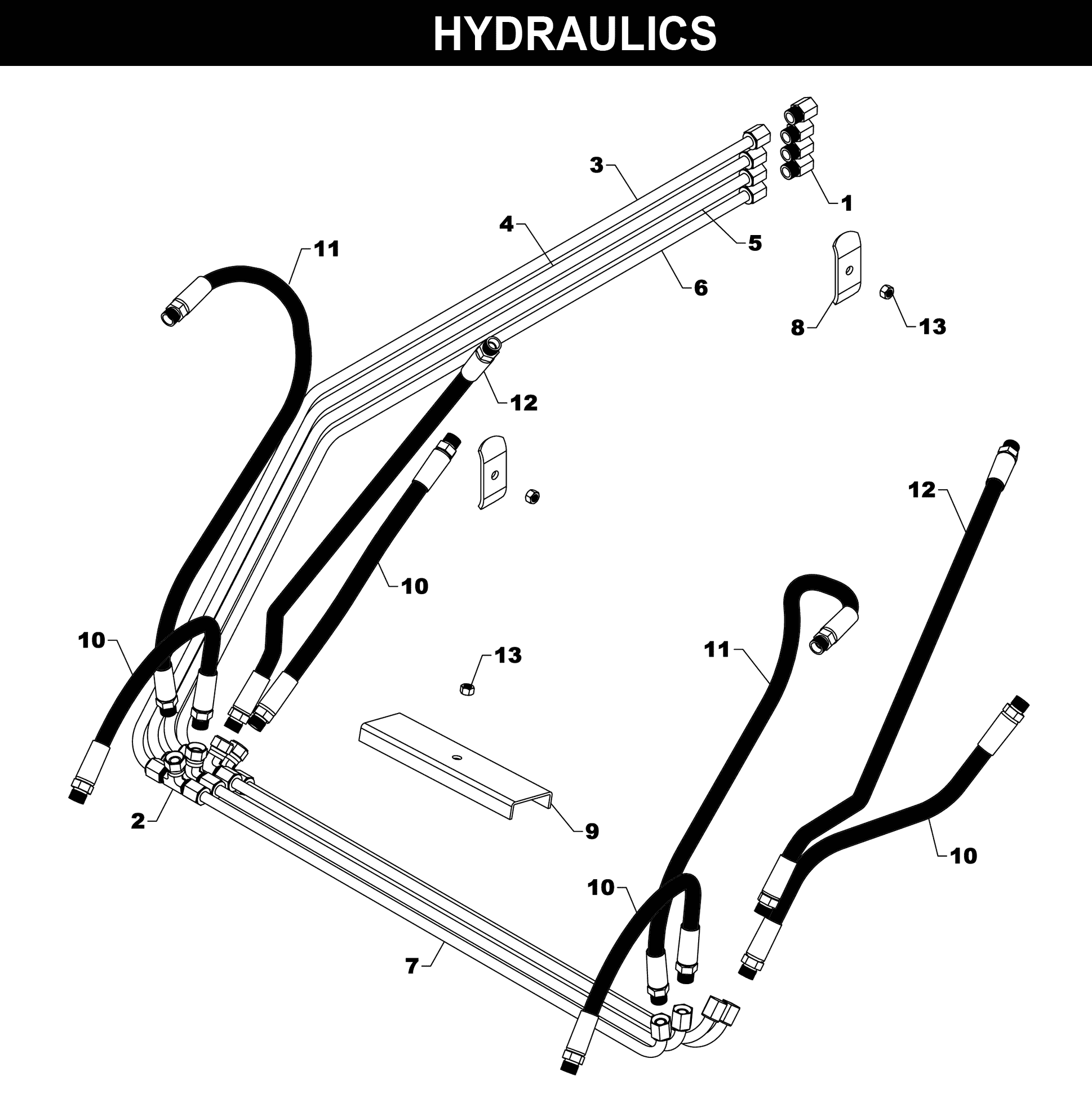

TA-55 / TA-54 Hydraulics
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | PF-FFC8 | PIPE FITTING - FEMALE CONNECTOR | 4 | $20.13 | |
| 2 |  | PF-FSBT8 | PIPE FITTING - SWIVEL NUT TEE | 4 | $75.47 | |
| 3 | OLT-180 | OIL LINE | 1 | $35.23 | ||
| 4 | OLT-181 | OIL LINE | 1 | $35.23 | ||
| 5 | OLT-182 | OIL LINE | 1 | $35.23 | ||
| 6 | OLT-183 | OIL LINE | 1 | $35.23 | ||
| 7 | OLT-184 | OIL LINE | 4 | $22.62 | ||
| 8 |  | OH-3 | OIL LINE PROTECTOR | 2 | $12.58 | |
| 9 |  | OH-11 | OIL LINE PROTECTOR | 1 | $48.41 | |
| 10 |  | H06020-FF | HYDRAULIC HOSE - 3/8 X 20 | 4 | $50.22 | |
| 11 |  | H06030-FF | HYDRAULIC HOSE STEEL LINE - 3/8 X 30 | 2 | $65.36 | |
| 12 |  | H06040-FF | HYDRAULIC HOSE - 3/8 X 40 | 2 | $88.02 | |
| 13 |  | HTN0616 | LOCK NUT - 3/8 | 3 | $2.53 |
Valve, Joystick & Manifold - KVJ-15
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | VP-171-01 | VALVE PLATE | 1 | $167.11 | |
| 2 | VP-171-02 | VALVE COVER | 1 | — | Call to order | |
| 3 |  | OC-2NB | VALVE | 1 | $1,173.99 | |
| 4 |  | VJ-302COM | JOYSTICK HANDLE KIT-KVJ | 1 | $120.47 | |
| 5 |  | DE-VJ1 | DECAL-JOYSTICK CONTROL | 1 | $12.58 | |
| 6 |  | PF-OS0806 | PIPE FITTING - 3/4 TO 3/8 O-RING MALE-FEMALE | 2 | $17.62 | |
| 7 |  | PF-OA06 | PIPE FITTING - MALE ADAPTER 9/16 X 3/8 | 4 | $10.07 | |
| 8 |  | LM-110 | HYDRAULIC FITTING | 4 | $45.26 | |
| 9 |  | STW1214008 | SELF TAPPING SCREW - 7/32' x 1/2' | 4 | $0.60 | |
| 10 |  | EXH-72 | EXHAUST CLAMP - 3 | 2 | $20.13 | |
| 11 |  | HHS0518010 | BOLT - 5/16 X 5/8 | 3 | $1.32 | |
| 12 |  | LWM05 | LOCK WASHER - 5/16 | 3 | $0.91 | |
| 13 |  | PF-PO10 | PIPE FITTING - O-RING PLUG | 1 | $77.93 | |
| 14 | MA-26 | HYDRAULIC MANIFOLD KIT | 1 | $153.38 |
