TA-28 Loader Frame

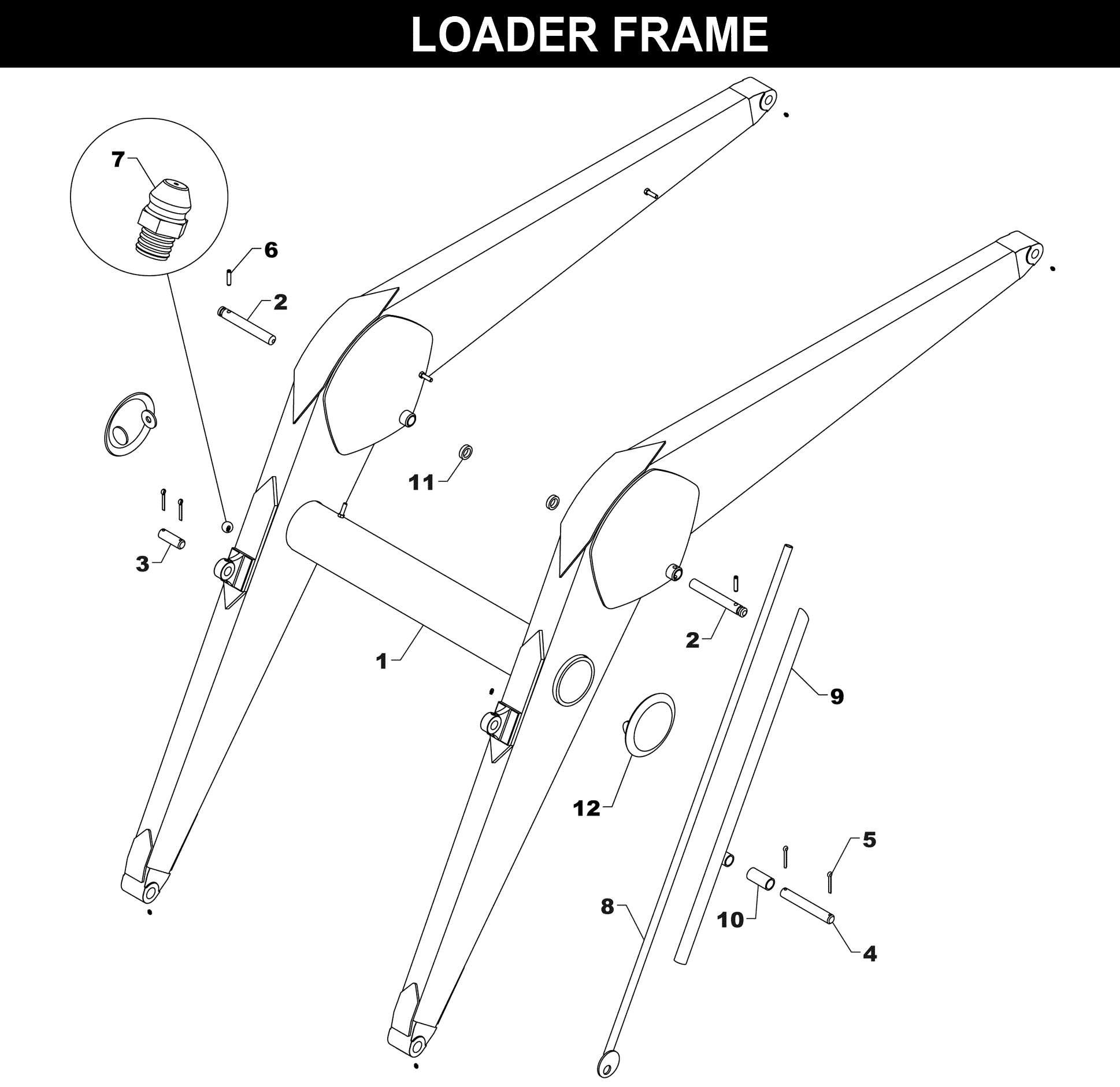

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RBF-4AS	FRAME (TA-28)	1	$6,350.26
2	LF-82	LIFT PIN	2	$24.08
3	LF-49	PIN - BUCKET CYLINDER	1	$12.58
4	BF-59	PIN	1	$20.12
5	CTK0400032	COTTER KEY - 1/4 X 2	4	$0.87
6	DRP0600028	DOUBLE ROLL PIN	2	$2.53
7	ZER1805	GREASE FITTING	6	$2.53
8	BF-47AS	GAUGE ROD	1	$42.72
9	BF-50AS	GAUGE ROD HOLDER	1	$57.84
10	BF-61	GAUGE ROD SPACER BUSHING	1	$12.57
11	RAT-30	SPACER BUSHING	2	$5.03

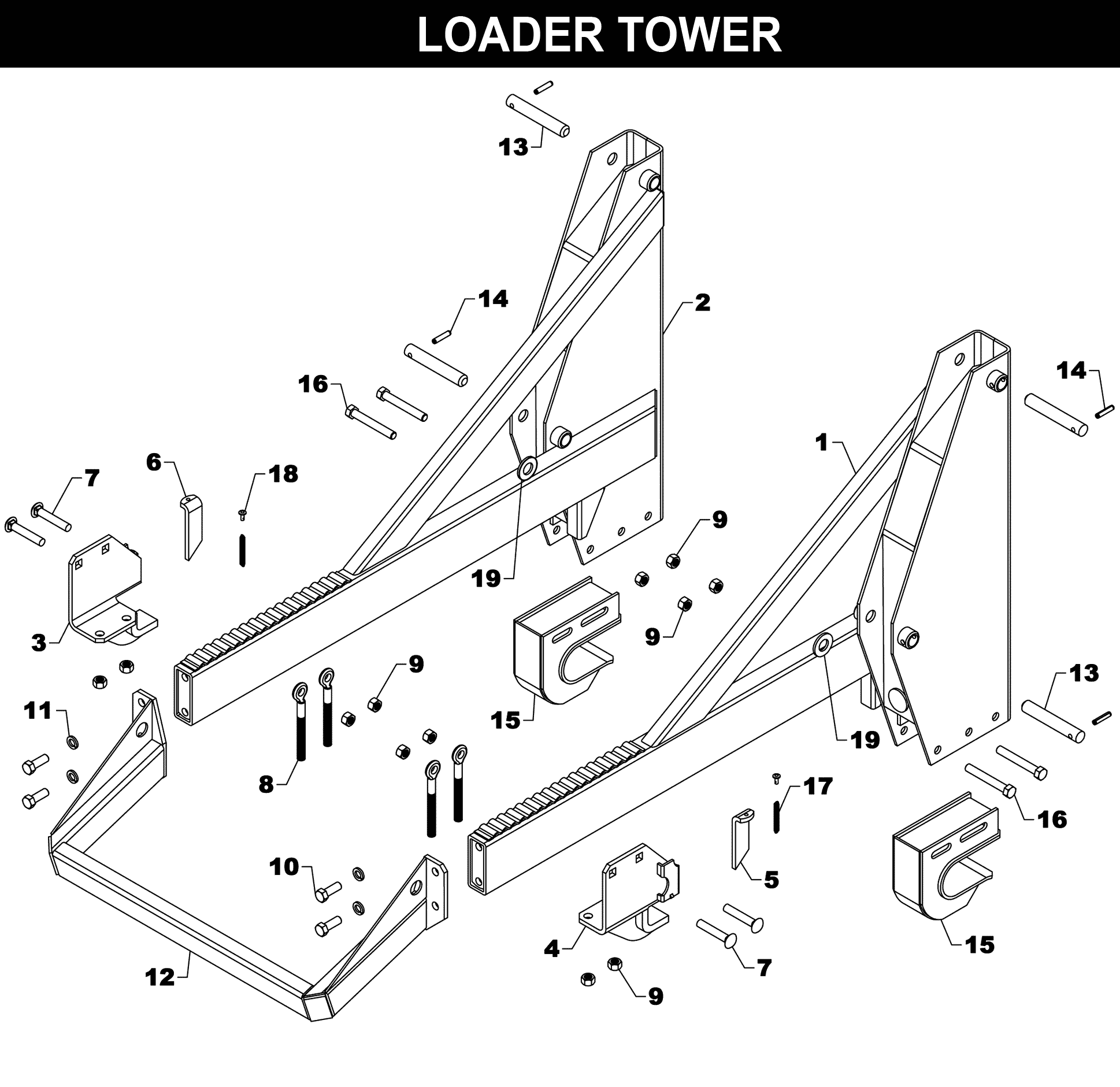

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RBT-12AS-L	TOWER (TA-28) - LEFT	1	$2,096.63
2	RBT-12AS-R	TOWER (TA-28) - RIGHT	1	$2,096.63
3	NAT-120COM-R	SLIDE LOCK - RIGHT KIT WITH HARDWARE	1	$291.64
3	NAT-120AS-R	SLIDE LOCK - RIGHT	1	$143.32
4	NAT-120COM-L	SLIDE LOCK - LEFT KIT WITH HARDWARE	1	$291.64
4	NAT-120AS-L	SLIDE LOCK - LEFT	1	$143.32
5	NAT-106-L	DROP LOCK - LEFT	1	$15.12
6	NAT-106-R	DROP LOCK - RIGHT	1	$15.12
7	CBF1011056	CARRIAGE BOLT - 5/8 X 3-1/2	4	$7.54
8	NAT-140	BAR CLAMP BOLT	4	$17.62
9	HTN1011	LOCK NUT - 5/8	12	$5.03
10	HHS1011028	BOLT - 5/8 X 1-3/4	4	$4.55
11	LWM10	LOCK WASHER -5/8	4	$0.77
12	0H004	FRONT WRAP	1	$666.17
13	JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	4	$18.57
14	DRP0600028	DOUBLE ROLL PIN	4	$2.53
15	RT-15AS	SHOE-ADJUSTABLE	2	$178.48
16	HHS1011072	BOLT - 5/8 X 4-1/2	4	$7.54
17	RLG-51	SPRING	2	$7.54
18	NAT-126	RIVET	2	$2.53
19	RAF-65	WASHER - 1/4	2	$17.62

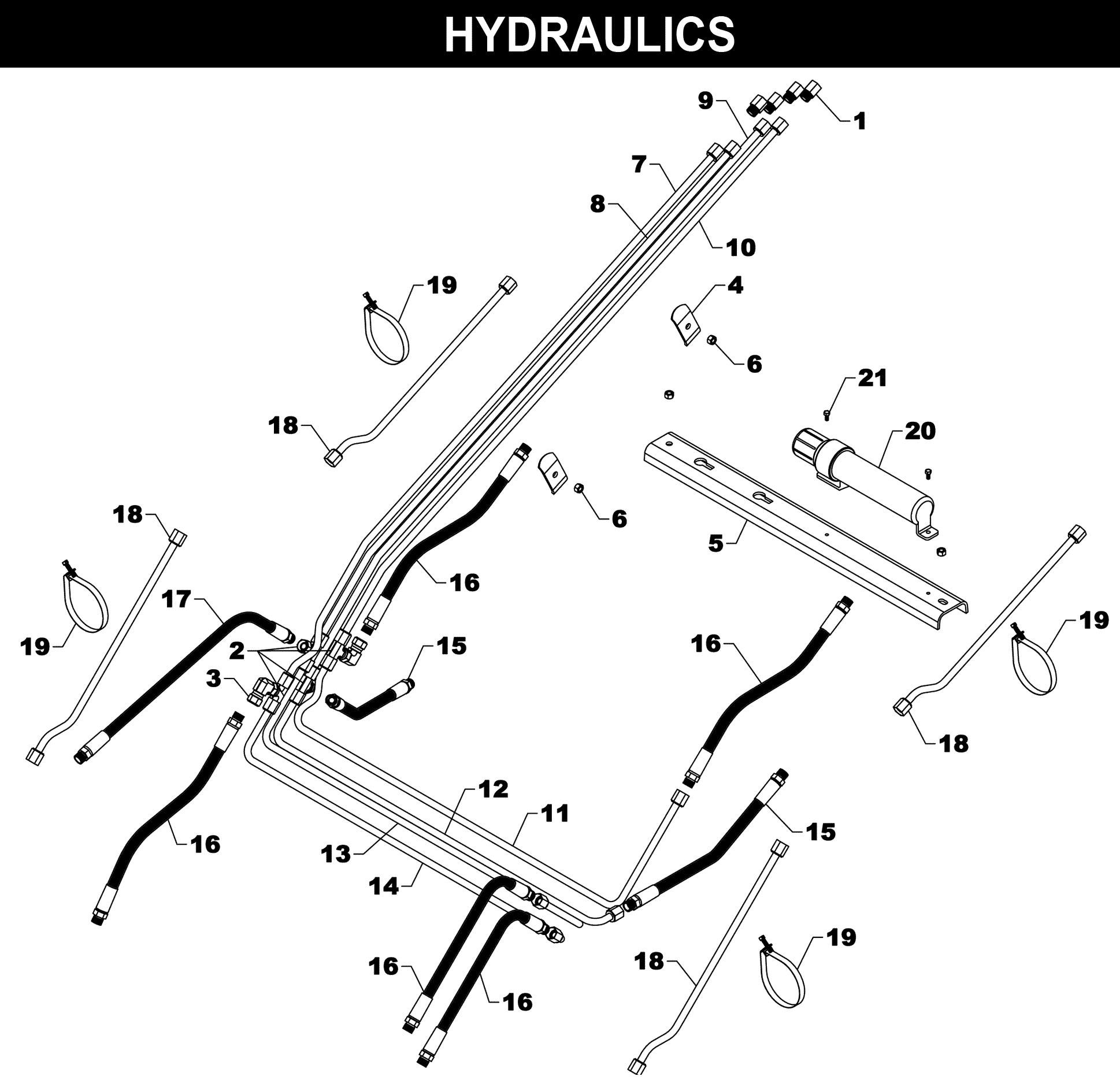

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	PF-FSE8	PIPE FITTING - SWIVEL NUT ELBOW - 90 DEG.	2	$67.91
4	OH-3	OIL LINE PROTECTOR	2	$12.58
5	OH-2	OIL LINE HOLDER	1	$85.49
6	HTN0616	LOCK NUT - 3/8	4	$2.53
7	OLT-14	OIL LINE	1	$27.63
8	OLT-15	OIL LINE	1	$25.13
9	OLT-16	OIL LINE	1	$25.13
10	OLT-17	OIL LINE	1	$25.13
11	OLT-190	OIL LINE	1	$50.27
12	OLT-191	OIL LINE	1	$35.23
13	OLT-192	OIL LINE	1	$30.17
14	OLT-193	OIL LINE	1	$27.63
15	H06015-FF	HYDRAULIC HOSE - 3/8 X 15	2	$47.82
16	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	5	$50.22
17	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	1	$65.36
18	OLT-143	OIL LINE	4	$27.63
19	BAND-15	METAL BAND	4	$5.03
20	GP-2	CANISTER TO STORE MANUAL	1	$44.94
21	EC-M03	SELF-TAPPING SCREW	2	$1.56

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	84Q216	BUCKET-84 WITH SNAP-ATTACH ADAPTERS	1	$2,176.65
1	84Q225	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,377.42
1	84Q225	BUCKET-84 LARGE CAPACITY WITH SNAP-ATTACH	1	$2,377.42
1	96Q229	BUCKET-96 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS	1	$2,638.63
2	SB-14	BUCKET-CUTTING EDGE - 84	1	$859.37
2	LB-14	BUCKET-CUTTING EDGE - 90	1	$814.48
2	CB-14	BUCKET-CUTTING EDGE - 96	1	$862.27
3	SB-15	SIDE BLADE	2	$52.80
4	QC-13AS	ADAPTER-SNAP-ATTACH WELD ON (1 PC)	2	$130.52
5	JB-22A	BUCKET GUIDE OR TEPEE	2	$70.39

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	C-31	COUPLER-SKID STEER ATTACH	1	$1,060.86
2	QC-3100AS	COUPLER-SKID STEER SHELL	1	—	Call to order
3	QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4	QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5	QC-2010	LINKAGE	2	$27.12
6	QC-2011	LATCH	2	$73.08
7	QC-12	SPRING FOR COUPLER	2	$17.62
8	LF-51	PIN - LINKAGE	3	$17.62
9	LMF-18AS	PIN	1	$46.15
10	HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
11	HHS0616032	BOLT - 3/8 X 2	2	$2.53
12	FWW06	FLAT WASHER - 3/8	4	$0.95
13	LWM06	LOCK WASHER - 3/8	2	$0.37
14	HTN0616	LOCK NUT - 3/8	4	$2.53
15	DRP0600028	DOUBLE ROLL PIN	4	$2.53
16	RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
17	BUS-211	BUSHING	2	$20.13
18	ZER1805	GREASE FITTING	2	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	QC-501COM	COUPLER-SNAP-ATTACH - 1 IN. UPPER 1.25 LOWER PIN (1 PC)	1	$573.22
2	QC-501AS	COUPLER-SNAP-ATTACH SHELL WITH 1 IN. UPPER 1.25 LOWER PIN (1 PC)	1	—	Call to order
3	HHS0518016	BOLT - 5/16 X 1	2	$3.94
4	QC-6AS	SNAP-ATTACH LATCH HANDLE	1	$22.62
5	HTN0518	LOCK NUT - 5/16	2	$0.82
6	QC-8	SNAP-ATTACH LATCH	1	$52.80
7	QC-12	SPRING FOR COUPLER	1	$17.62
8	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
9	XAF-55AS	LINKAGE PIN	1	$67.91
10	LMF-18AS	PIN	1	$46.15
11	DRP0600028	DOUBLE ROLL PIN	1	$2.53
12	DRP0600032	DOUBLE ROLL PIN	1	$2.53
13	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
14	ZER1805	GREASE FITTING	1	$2.53
