Parts Lookup › Loader Parts › Compact Series

TA-185 Parts

5 assemblies · choose one below

TA-180 • TA-185 Loader Tower

Open on its own page

Click a number on the diagram to find the part.

TA-180 • TA-185 Loader Tower exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		MDT-12AS-R	TOWER - RIGHT	1	$2,697.47
2		MDT-12AS-L	TOWER - LEFT	1	$2,697.47
3		MDT-5	SIDE RAIL SPACER	2	—	Call to order
4		MDT-6	LATCH	2	$32.68
5		0H048	FRONT WRAP	1	$1,050.83
5		0H062	FRONT WRAP	1	$666.18
6		B-930	INSERT BUSHING	4	$5.03
7		BUS-58	BUSHING	2	$13.02
8		HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
9		HHS1011040	BOLT - 5/8 X 2-1/2	4	$5.06
10		CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	2	$17.62
11		CBF1210080	CARRIAGE BOLT- 3/4 X 5	2	$17.62
12		HTN1011	LOCK NUT - 5/8	6	$5.03
13		HTN1210	LOCK NUT - 3/4	4	$5.03

TA-185 Loader Frame

Open on its own page

Click a number on the diagram to find the part.

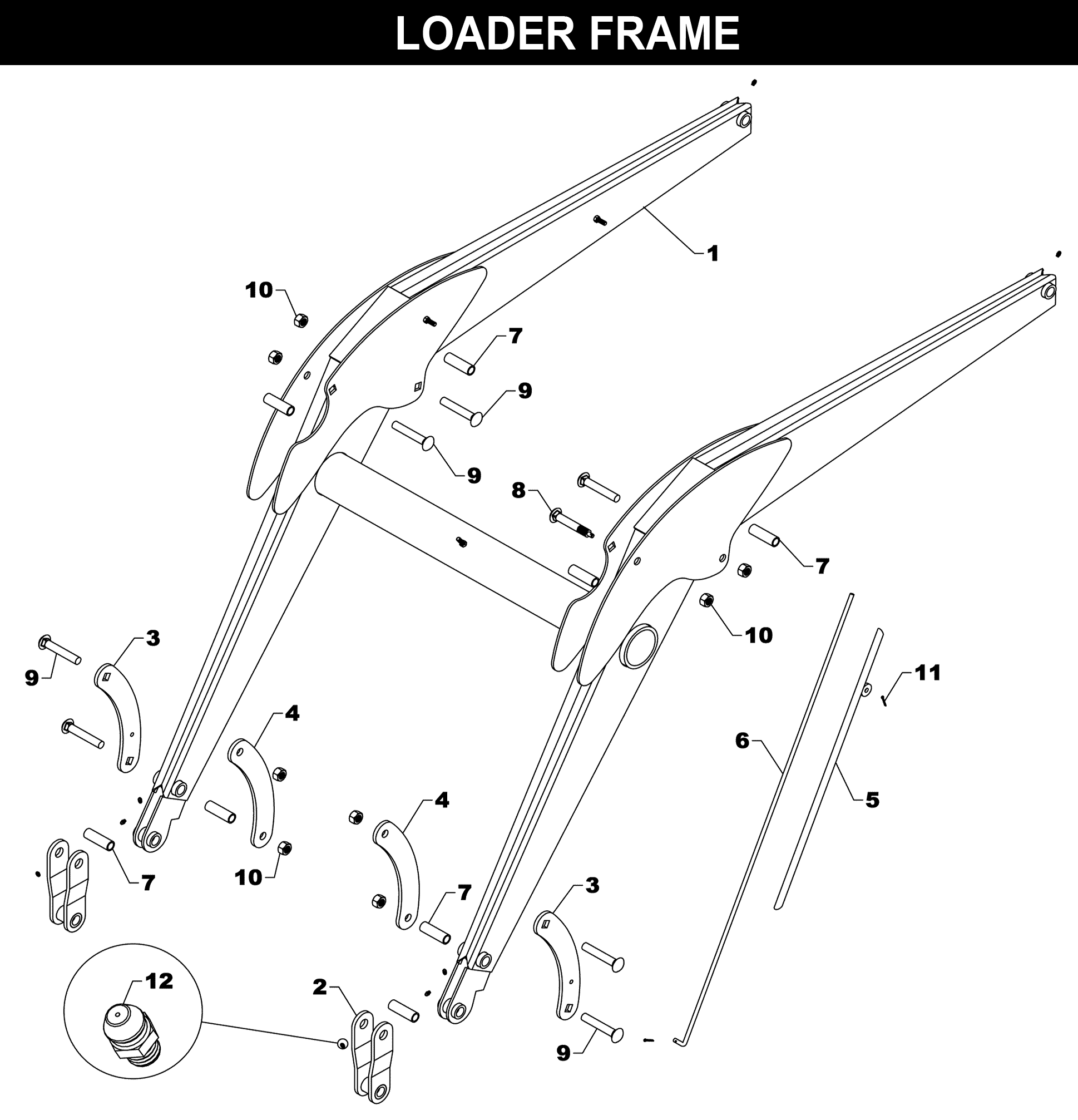

TA-185 Loader Frame exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		MDF-108AS	FRAME	1	—	Call to order
2		MDF-15AS	LINKAGE	2	—	Call to order
3		MDF-10	OUTSIDE PIVOT STRAP	2	—	Call to order
4		MDF-11	INSIDE PIVOT STRAP	2	$52.95
5		MF-50AS	GAUGE ROD HOLDER	1	$22.62
6		RF-49	GAUGE ROD	1	$51.50
7		B-931	INSERT BUSHING	8	$5.03
8		MAF-169	GAUGE ROD PIN	1	$15.11
9		CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	7	$17.62
10		HTN1210	LOCK NUT - 3/4	8	$5.03
11		CTK0200016	COTTER KEY - 1/8 X 1	2	$0.77
12		ZER1805	GREASE FITTING	8	$2.53

TA-185 Hydraulics

Open on its own page

Click a number on the diagram to find the part.

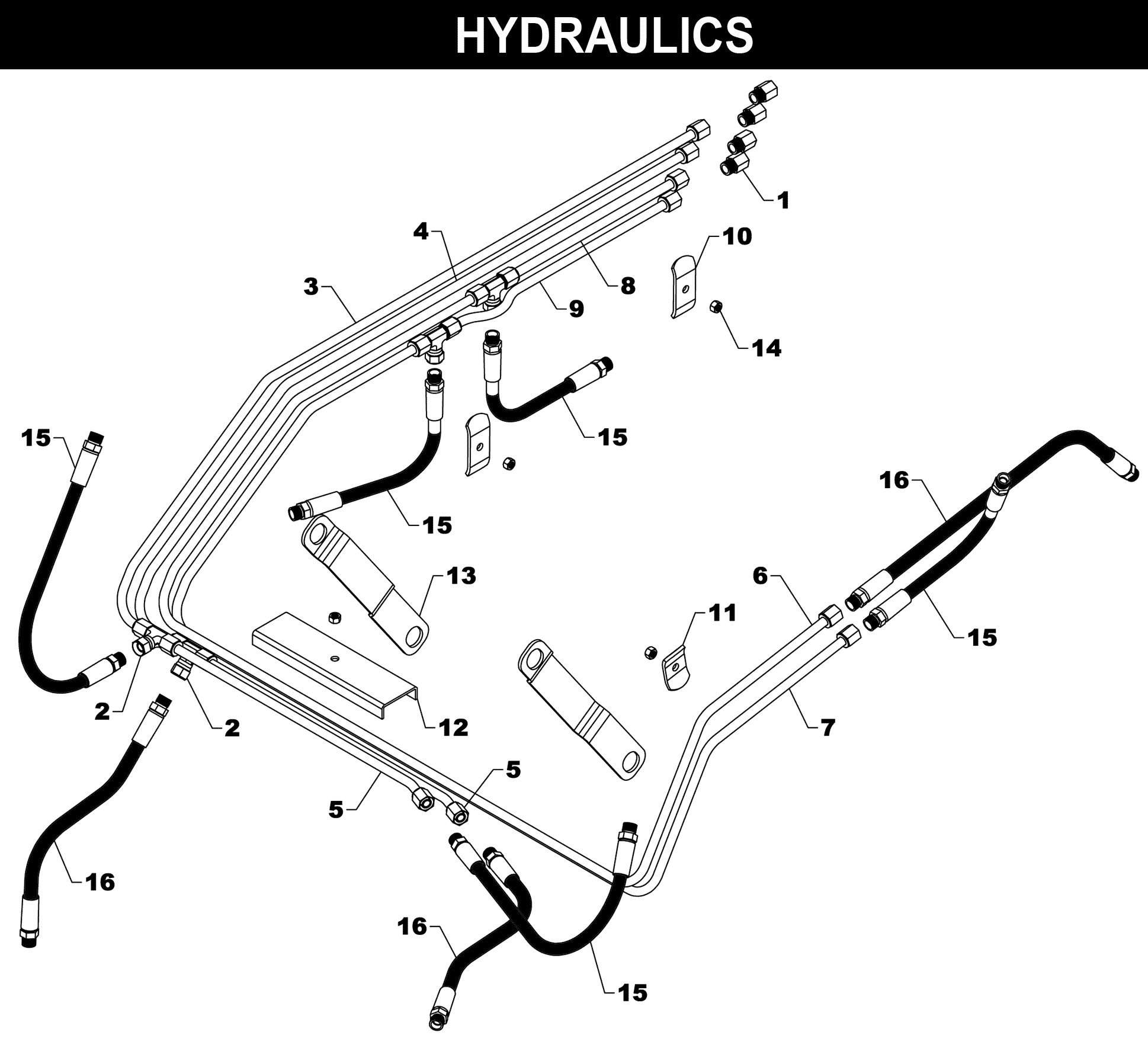

TA-185 Hydraulics exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2		PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3		OLT-530	OIL LINE	1	—	Call to order
4		OLT-531	OIL LINE	1	—	Call to order
5		OLT-532	OIL LINE	2	$36.57
6		OLT-533	OIL LINE	1	—	Call to order
7		OLT-534	OIL LINE	1	—	Call to order
8		OLT-535	OIL LINE	1	$36.57
9		OLT-536	OIL LINE	1	$36.57
10		OH-3	OIL LINE PROTECTOR	2	$12.58
11		OH-6	OIL LINE PROTECTOR	1	$12.04
12		OH-11	OIL LINE PROTECTOR	1	$48.41
13		OH-21	OIL LINE HOLDER	2	$18.56
14		HTN0616	LOCK NUT - 3/8	4	$2.53
15		H06020-FF	HYDRAULIC HOSE - 3/8 X 20	5	$50.22
16		H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	3	$65.36

TA-175 • TA-175A • TA-185 Skid Steer Bucket

Open on its own page

Click a number on the diagram to find the part.

TA-175 • TA-175A • TA-185 Skid Steer Bucket exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		60QS13	BUCKET-60 WITH SKID STEER ADAPTERS	1	$1,307.76
1		66QS14	BUCKET-66 WITH SKID STEER ATTACH	1	$1,412.59
1		72QS15	BUCKET-72 WITH SKID STEER ATTACH	1	$1,533.43
2		AB-14	BUCKET-CUTTING EDGE - 60	1	$477.66
2		IB-14	BUCKET-CUTTING EDGE - 66	1	$525.39
2		JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25

TA-175 • TA-175A • TA-185 Skid Steer Bucket

Open on its own page

Click a number on the diagram to find the part.

TA-175 • TA-175A • TA-185 Skid Steer Bucket exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		C-25	COUPLER-SKID STEER ATTACH	1	$1,355.67
2		QC-2026AS	COUPLER-SKID STEER SHELL	1	—	Call to order
3		QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4		QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5		QC-2010	LINKAGE	2	$27.12
6		QC-2011	LATCH	2	$73.08
7		QC-12	SPRING FOR COUPLER	2	$17.62
8		MF-230	INSERT BUSHING	4	$10.07
9		RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
10		HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
11		HHS0616032	BOLT - 3/8 X 2	2	$2.53
12		CBF1210080	CARRIAGE BOLT- 3/4 X 5	4	$17.62
13		FWW05	FLAT WASHER - 5/16	4	$0.88
14		LWM06	LOCK WASHER - 3/8	2	$0.37
15		HTN0616	LOCK NUT - 3/8	4	$2.53
16		HTN1210	LOCK NUT - 3/4	4	$5.03
17		ZER1805	GREASE FITTING	2	$2.53
