ta-180

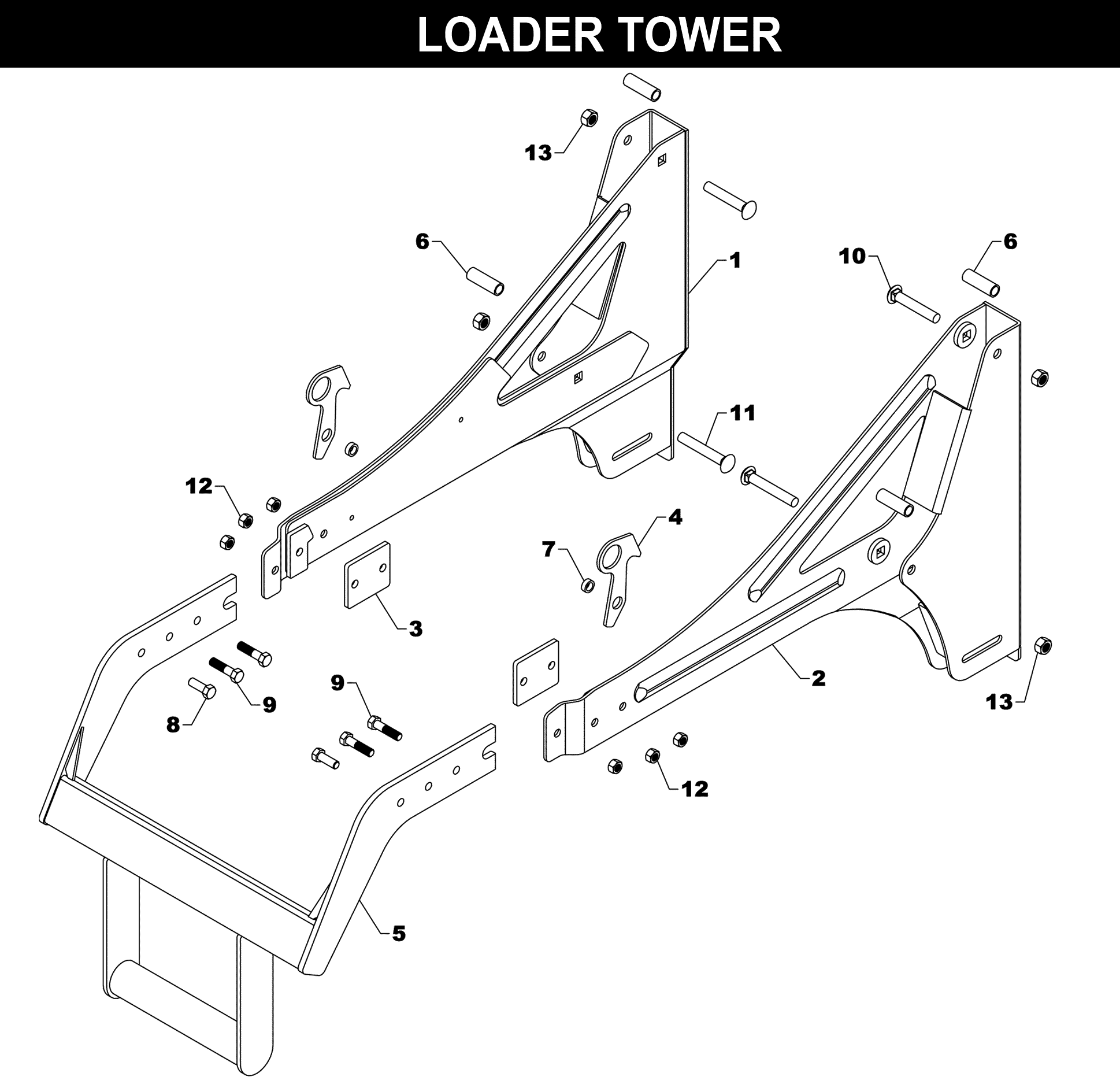

TA-180 • TA-185 Loader Tower

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	MDT-12AS-R	TOWER - RIGHT	1	$2,697.47
2	MDT-12AS-L	TOWER - LEFT	1	$2,697.47
3	MDT-5	SIDE RAIL SPACER	2	—	Call to order
4	MDT-6	LATCH	2	$32.68
5	0H048	FRONT WRAP	1	$1,050.83
5	0H062	FRONT WRAP	1	$666.18
6	B-930	INSERT BUSHING	4	$5.03
7	BUS-58	BUSHING	2	$13.02
8	HHS1011028	BOLT - 5/8 X 1-3/4	2	$4.55
9	HHS1011040	BOLT - 5/8 X 2-1/2	4	$5.06
10	CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	2	$17.62
11	CBF1210080	CARRIAGE BOLT- 3/4 X 5	2	$17.62
12	HTN1011	LOCK NUT - 5/8	6	$5.03
13	HTN1210	LOCK NUT - 3/4	4	$5.03

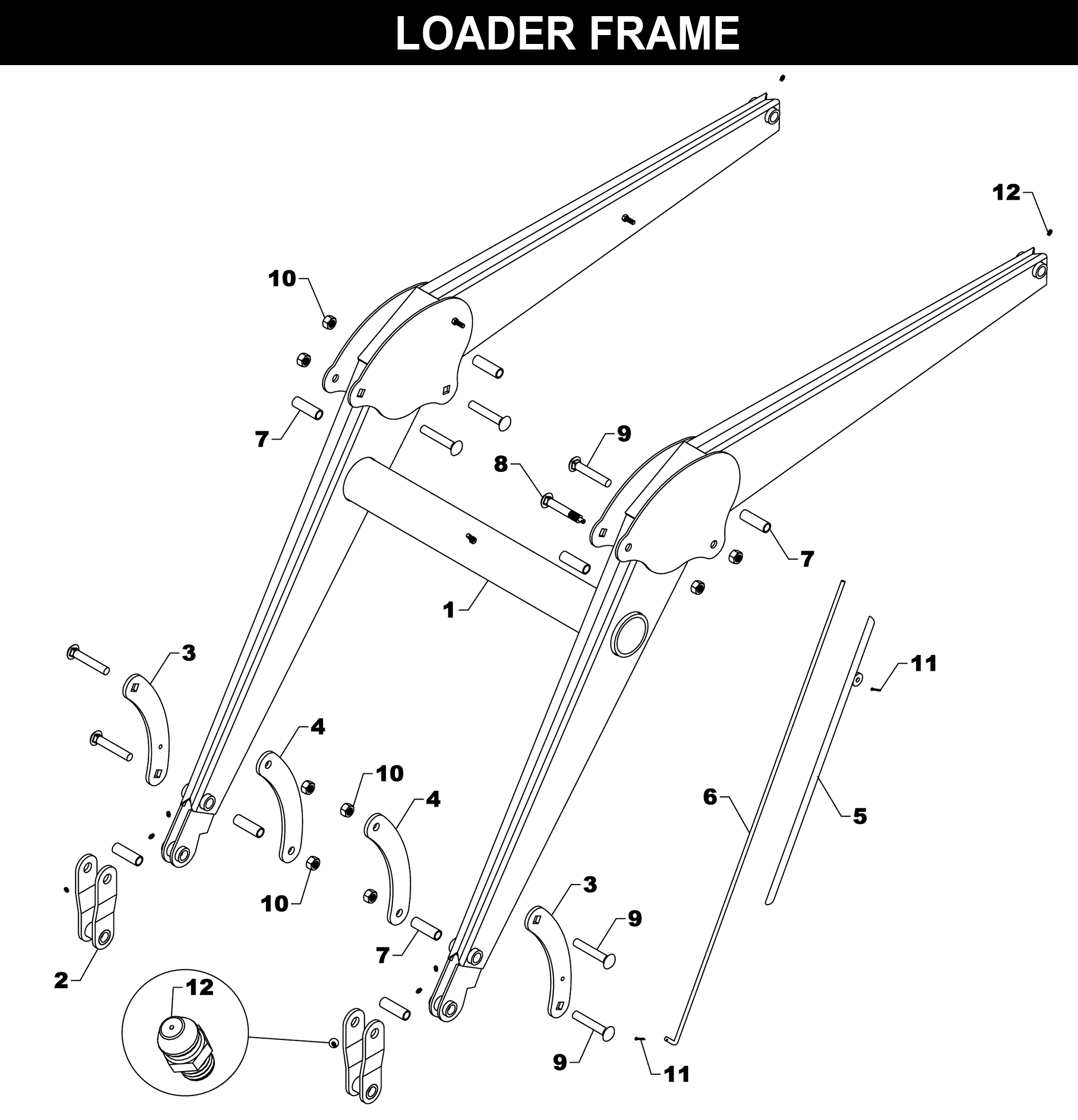

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	MDF-8AS	FRAME (TA-180)	1	—	Call to order
2	MDF-15AS	LINKAGE	2	—	Call to order
3	MDF-10	OUTSIDE PIVOT STRAP	2	—	Call to order
4	MDF-11	INSIDE PIVOT STRAP	2	$52.95
5	MF-50AS	GAUGE ROD HOLDER	1	$22.62
6	RF-49	GAUGE ROD	1	$51.50
7	B-931	INSERT BUSHING	8	$5.03
8	MAF-169	GAUGE ROD PIN	1	$15.11
9	CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	7	$17.62
10	HTN1210	LOCK NUT - 3/4	8	$5.03
11	CTK0200016	COTTER KEY - 1/8 X 1	2	$0.77
12	ZER1805	GREASE FITTING	8	$2.53

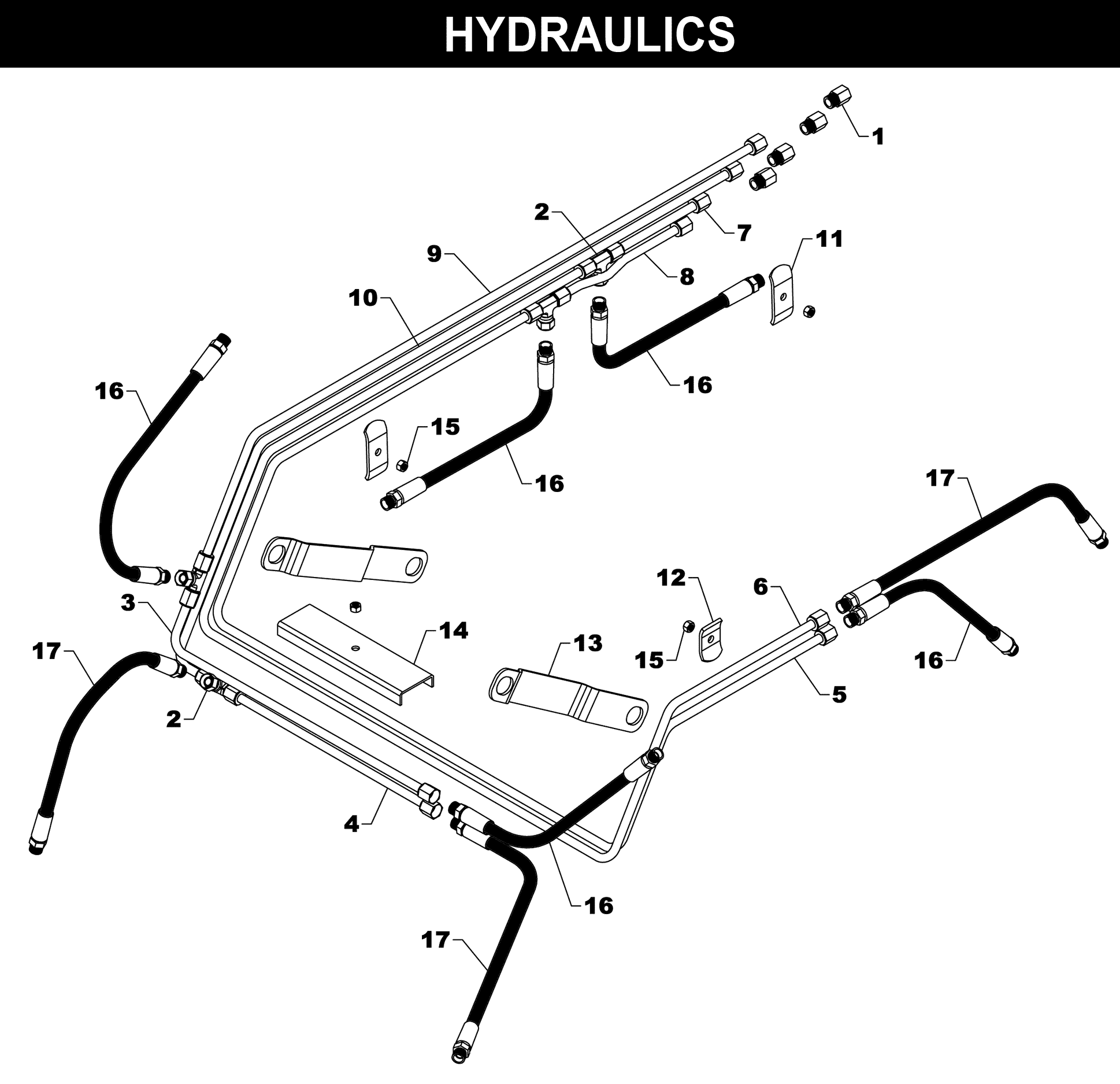

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3	OLT-445	OIL LINE	1	$37.70
4	OLT-447	OIL LINE	1	$27.63
5	OLT-449	OIL LINE	1	$40.22
6	OLT-480	OIL LINE	1	$70.39
7	OLT-481	OIL LINE	1	$30.17
8	OLT-482	OIL LINE	1	$37.70
9	OLT-483	OIL LINE	1	$37.70
10	OLT-484	OIL LINE	1	$45.26
11	OH-3	OIL LINE PROTECTOR	2	$12.58
12	OH-6	OIL LINE PROTECTOR	1	$12.04
13	OH-21	OIL LINE HOLDER	2	$18.56
14	OH-11	OIL LINE PROTECTOR	1	$48.41
15	HTN0616	LOCK NUT - 3/8	4	$2.53
16	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	5	$50.22
17	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	3	$65.36

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	60Q109-SB	BUCKET-60 TAPERED WITH QUICK ATTACH	1	$1,375.30
1	66Q110-SB	BUCKET-66 TAPERED WITH QUICK ATTACH	1	$1,128.29
1	72Q112-SB	BUCKET-72 TAPERED WITH QUICK-ATTACH	1	$1,174.48
1	60QS13	BUCKET-60 WITH SKID STEER ADAPTERS	1	$1,307.76
1	66QS14	BUCKET-66 WITH SKID STEER ATTACH	1	$1,412.59
1	72QS15	BUCKET-72 WITH SKID STEER ATTACH	1	$1,533.43
2	AB-14	BUCKET-CUTTING EDGE - 60	1	$477.66
2	IB-14	BUCKET-CUTTING EDGE - 66	1	$525.39
2	JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25
3	MB-115	SIDE BLADE	2	$12.58

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	C-8	COUPLER-QUICK ATTACH UNIT	1	$515.66
2	QC-801AS	COUPLER-QUICK ATTACH SHELL	1	$57.84
3	QC-811AS-R	LATCH HANDLE FOR QUICK ATTACH UNIT- RIGHT SIDE	1	$57.84
4	QC-811AS-L	LATCH HANDLE FOR QUICK ATTACH UNIT - LEFT SIDE	1	$57.84
5	SBC0616024	MACHINE BOLT-FLAT HEAD	2	$2.53
6	HFN0616	HEX NUT - 3/8	4	$0.67
7	CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	4	$17.62
8	HTN1210	LOCK NUT - 3/4	4	$5.03
9	MF-230	INSERT BUSHING	4	$10.07

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	C-22	COUPLER-SKID STEER ATTACH	1	$1,060.86
2	QC-2013AS	COUPLER-SKID STEER SHELL	1	—	Call to order
3	QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4	QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5	QC-2010	LINKAGE	2	$27.12
6	QC-2011	LATCH	2	$73.08
7	MF-230	INSERT BUSHING	4	$10.07
8	QC-12	SPRING FOR COUPLER	2	$17.62
9	HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
10	HHS0616032	BOLT - 3/8 X 2	2	$2.53
11	CBF1210080	CARRIAGE BOLT- 3/4 X 5	4	$17.62
12	FWW06	FLAT WASHER - 3/8	4	$0.95
13	LWM06	LOCK WASHER - 3/8	2	$0.37
14	HFN0616	HEX NUT - 3/8	4	$0.67
15	HFN1210	NUT - 3/4	4	$2.53
16	RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
17	ZER1805	GREASE FITTING	2	$2.53
