Parts Lookup › Loader Parts › Compact Series

TA-170A Parts

5 assemblies · choose one below

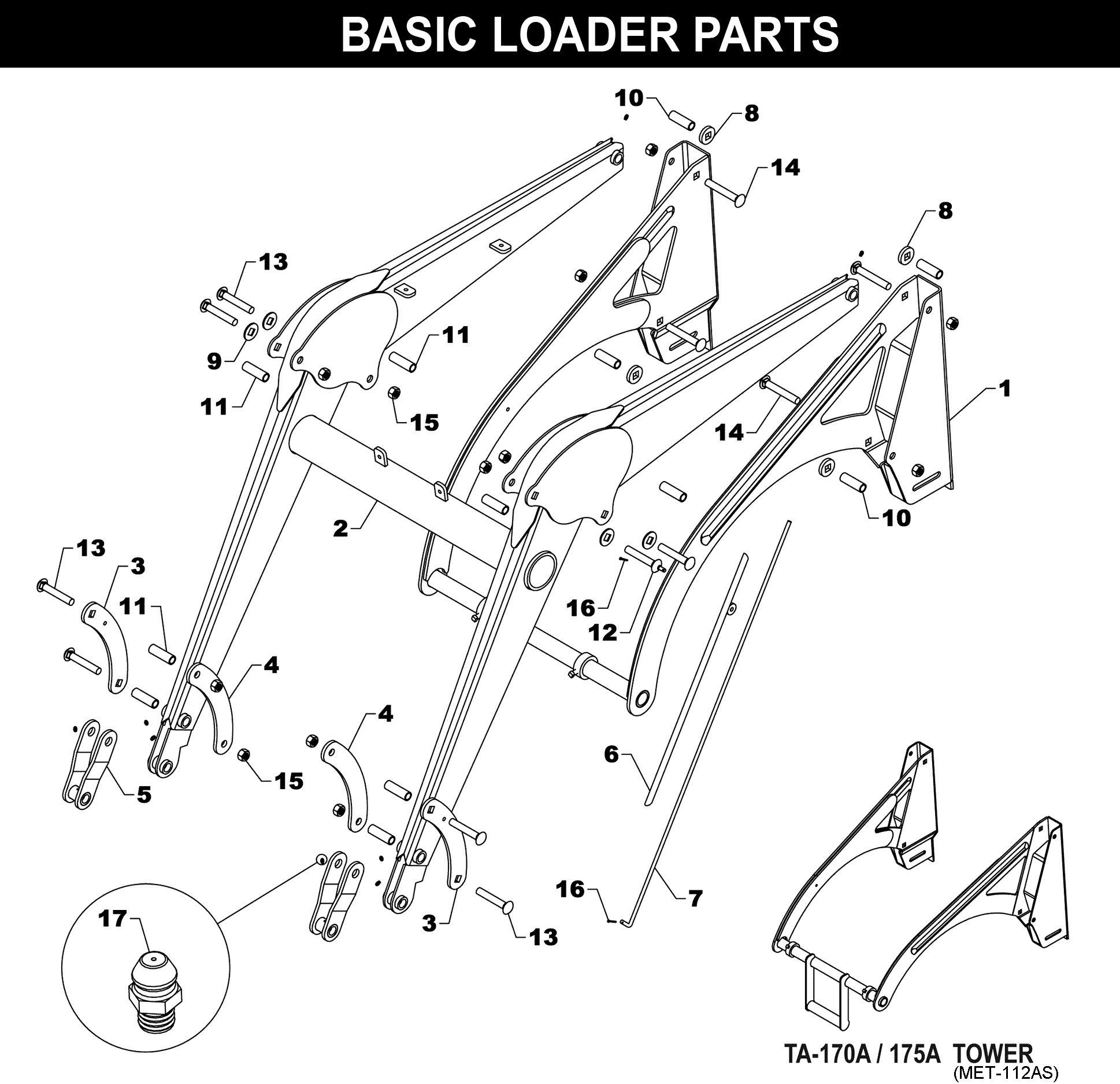

TA-170 • TA-170A • TA-175 • TA-175A Basic Loader Parts

Open on its own page

Click a number on the diagram to find the part.

TA-170 • TA-170A • TA-175 • TA-175A Basic Loader Parts exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		MET-12AS	TOWER	1	$3,983.41
1		MET-112AS	TOWER - 'A' STYLE	1	$4,266.19
2		MEF-4AS	FRAME	1	—	Call to order
3		MDF-10	OUTSIDE PIVOT STRAP	2	—	Call to order
4		MDF-11	INSIDE PIVOT STRAP	2	$52.95
5		MDF-15AS	LINKAGE	2	—	Call to order
6		MF-50AS	GAUGE ROD HOLDER	1	$22.62
7		RF-49	GAUGE ROD	1	$51.50
8		MT-331	SQUARE HOLE SLUG	4	$12.58
9		MCF-48	WASHER - SQUARE HEAD	4	$12.58
10		B-930	INSERT BUSHING	4	$5.03
11		B-931	INSERT BUSHING	8	$5.03
12		MF-69AS	GAUGE ROD BOLT	1	$30.17
13		CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	7	$17.62
14		CBF1210080	CARRIAGE BOLT- 3/4 X 5	4	$17.62
15		HTN1210	LOCK NUT - 3/4	12	$5.03
16		CTK0200016	COTTER KEY - 1/8 X 1	2	$0.77
17		ZER1805	GREASE FITTING	8	$2.53

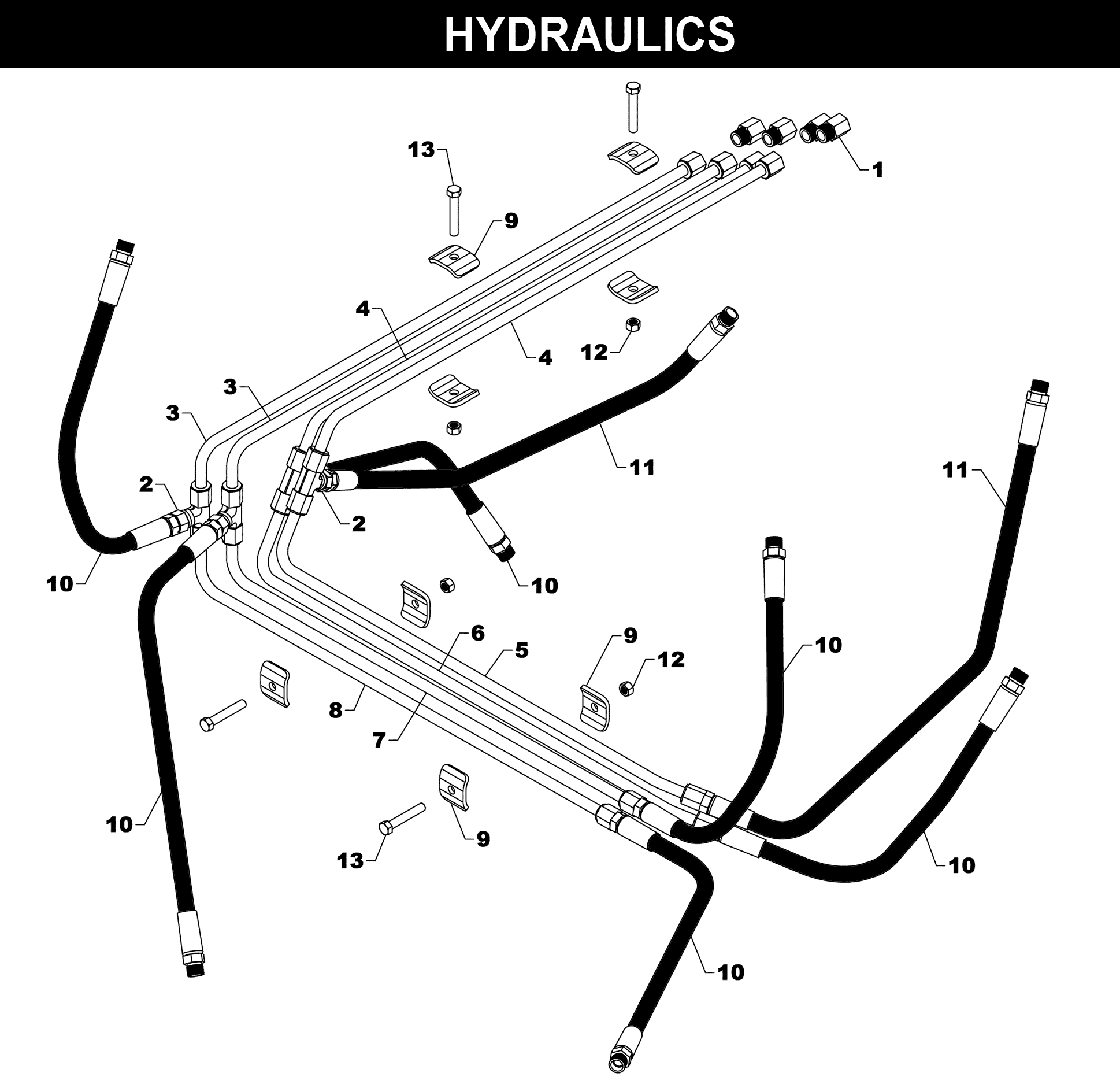

TA-170 • TA-170A • TA-175 • TA-175A Hydraulics

Open on its own page

Click a number on the diagram to find the part.

TA-170 • TA-170A • TA-175 • TA-175A Hydraulics exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
2		PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
3		OLT-490	OIL LINE	2	$35.23
4		OLT-491	OIL LINE	2	$40.22
5		OLT-492	OIL LINE	1	$40.22
6		OLT-493	OIL LINE	1	$40.22
7		OLT-494	OIL LINE	1	$32.68
8		OLT-495	OIL LINE	1	$32.68
9		OH-23	OIL LINE PROTECTOR	8	$10.07
10		H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	6	$65.36
11		H06040-FF	HYDRAULIC HOSE - 3/8 X 40	2	$88.02
12		HTN0616	LOCK NUT - 3/8	4	$2.53
13		HHS0616036	BOLT - 3/8 X 2-1/4	4	$2.53

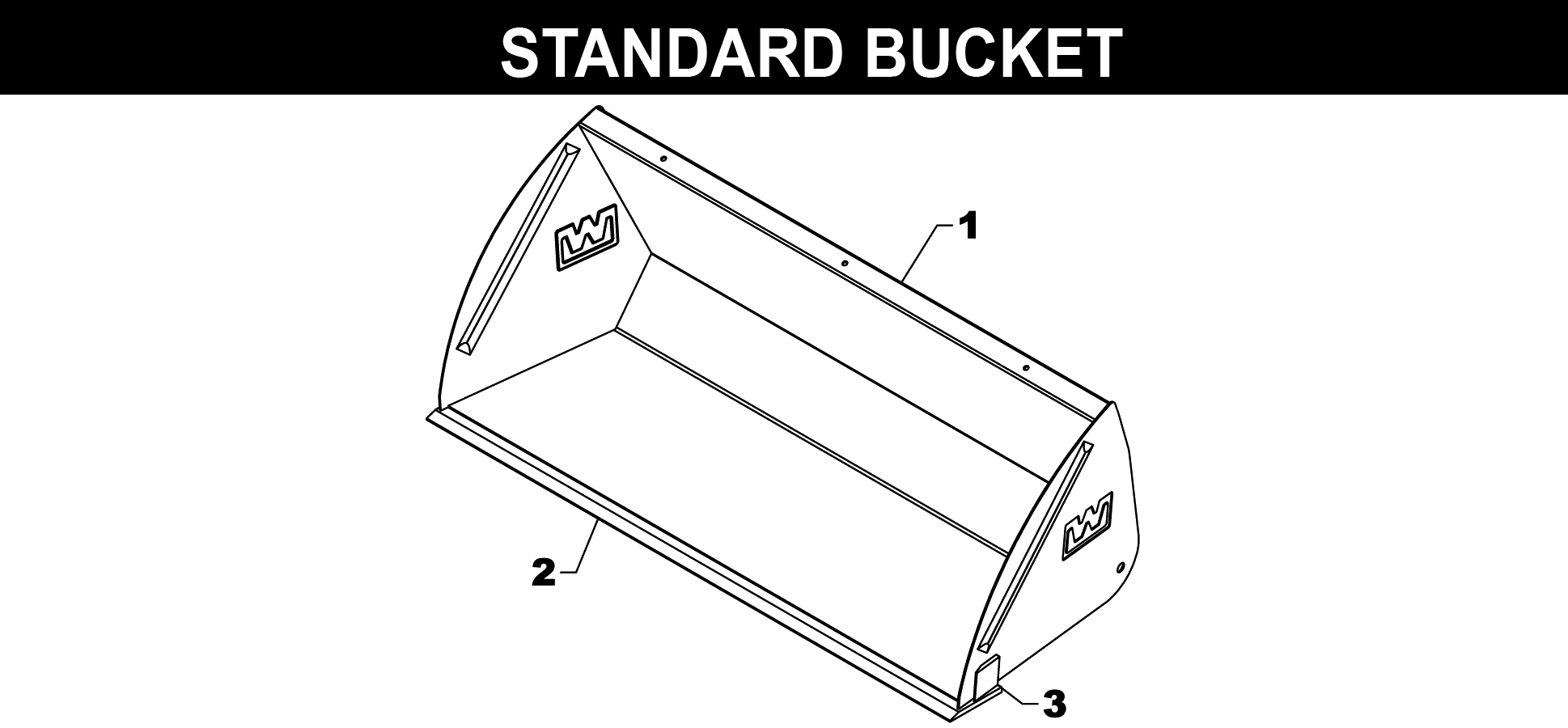

TA-170 • TA-170A • TA-180 Bucket

Open on its own page

Click a number on the diagram to find the part.

TA-170 • TA-170A • TA-180 Bucket exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		60Q109-SB	BUCKET-60 TAPERED WITH QUICK ATTACH	1	$1,375.30
1		66Q110-SB	BUCKET-66 TAPERED WITH QUICK ATTACH	1	$1,128.29
1		72Q112-SB	BUCKET-72 TAPERED WITH QUICK-ATTACH	1	$1,174.48
1		60QS13	BUCKET-60 WITH SKID STEER ADAPTERS	1	$1,307.76
1		66QS14	BUCKET-66 WITH SKID STEER ATTACH	1	$1,412.59
1		72QS15	BUCKET-72 WITH SKID STEER ATTACH	1	$1,533.43
2		AB-14	BUCKET-CUTTING EDGE - 60	1	$477.66
2		IB-14	BUCKET-CUTTING EDGE - 66	1	$525.39
2		JB-14	BUCKET-CUTTING EDGE - 72	1	$676.25
3		MB-115	SIDE BLADE	2	$12.58

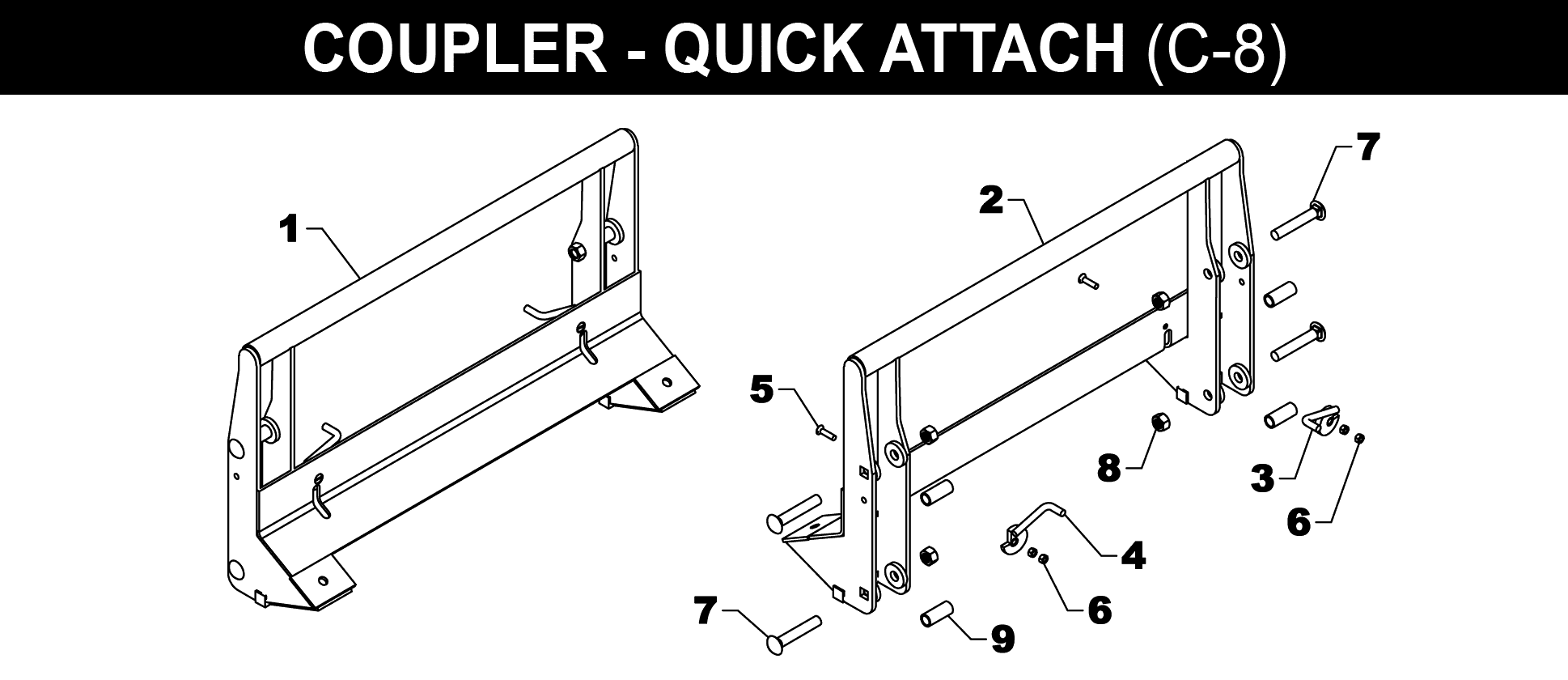

Quick Coupler - C-8

Open on its own page

Click a number on the diagram to find the part.

Quick Coupler - C-8 exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		C-8	COUPLER-QUICK ATTACH UNIT	1	$515.66
2		QC-801AS	COUPLER-QUICK ATTACH SHELL	1	$57.84
3		QC-811AS-R	LATCH HANDLE FOR QUICK ATTACH UNIT- RIGHT SIDE	1	$57.84
4		QC-811AS-L	LATCH HANDLE FOR QUICK ATTACH UNIT - LEFT SIDE	1	$57.84
5		SBC0616024	MACHINE BOLT-FLAT HEAD	2	$2.53
6		HFN0616	HEX NUT - 3/8	4	$0.67
7		CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	4	$17.62
8		HTN1210	LOCK NUT - 3/4	4	$5.03
9		MF-230	INSERT BUSHING	4	$10.07

SKID STEER COUPLER - C-22

Open on its own page

Click a number on the diagram to find the part.

SKID STEER COUPLER - C-22 exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		C-22	COUPLER-SKID STEER ATTACH	1	$1,060.86
2		QC-2013AS	COUPLER-SKID STEER SHELL	1	—	Call to order
3		QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4		QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5		QC-2010	LINKAGE	2	$27.12
6		QC-2011	LATCH	2	$73.08
7		MF-230	INSERT BUSHING	4	$10.07
8		QC-12	SPRING FOR COUPLER	2	$17.62
9		HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
10		HHS0616032	BOLT - 3/8 X 2	2	$2.53
11		CBF1210080	CARRIAGE BOLT- 3/4 X 5	4	$17.62
12		FWW06	FLAT WASHER - 3/8	4	$0.95
13		LWM06	LOCK WASHER - 3/8	2	$0.37
14		HFN0616	HEX NUT - 3/8	4	$0.67
15		HFN1210	NUT - 3/4	4	$2.53
16		RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
17		ZER1805	GREASE FITTING	2	$2.53
