ta-140

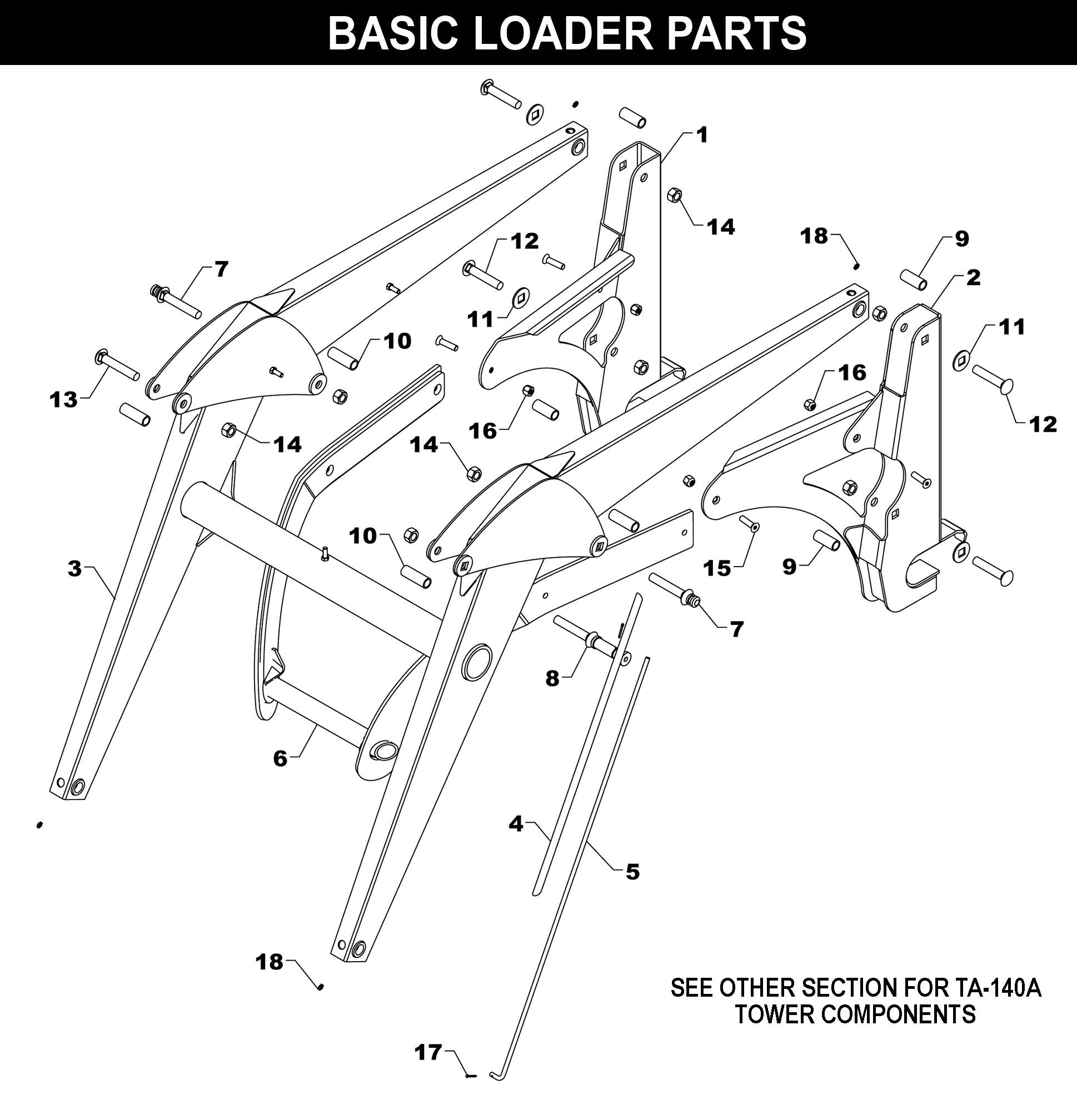

TA-140 / 140A Basic Loader Parts

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	MBT-12AS-R	TOWER-RIGHT (TA-140)	1	—	Call to order
2	MBT-12AS-L	TOWER-LEFT (TA-140)	1	—	Call to order
3	MF-204AS	FRAME	1	$4,726.26
4	MF-50AS	GAUGE ROD HOLDER	1	$22.62
5	MF-149	GAUGE ROD	1	$22.62
6	0H034	FRONT WRAP (TA-140)	1	$652.55
7	LF-84AS	LIFT PIN	2	$22.62
8	MF-69AS	GAUGE ROD BOLT	1	$30.17
9	MF-230	INSERT BUSHING	4	$10.07
10	B-1531	INSERT BUSHING	4	$15.12
11	MCF-48	WASHER - SQUARE HEAD	4	$12.58
12	CBF1210064	CARRIAGE BOLT - 3/4 X 4	4	$15.12
13	CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	1	$17.62
14	HTN1210	LOCK NUT - 3/4	8	$5.03
15	FSS0820032	FLAT HEAD ALLEN SCREW 1/2 X 2'	4	$5.03
16	12WN	WHEEL NUT	4	$5.03
17	CTK0200016	COTTER KEY - 1/8 X 1	2	$0.77
18	ZER1805	GREASE FITTING	4	$2.53

Click a number on the diagram to find the part.

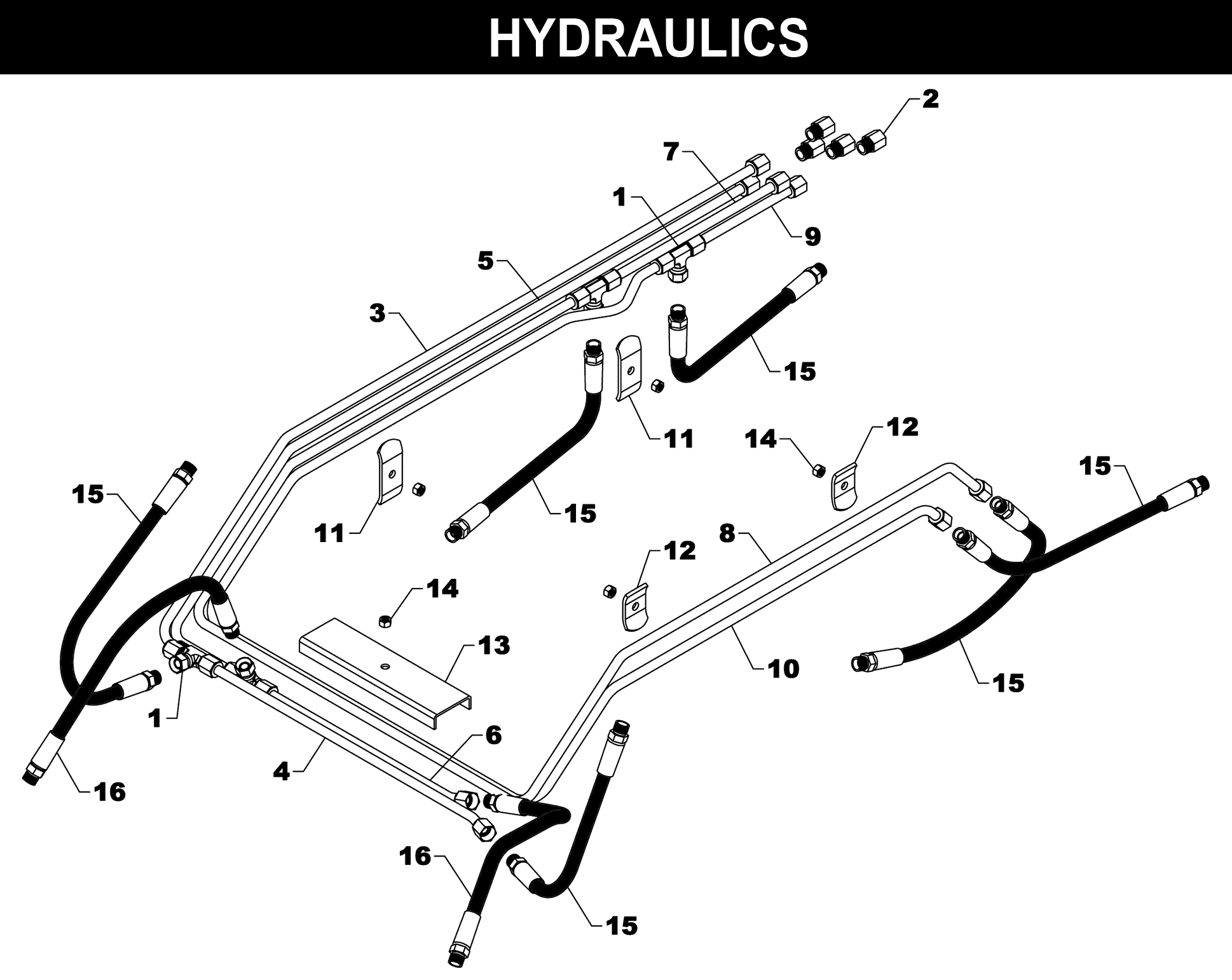

Ref	Part #	Description	Qty	Price
1	PF-FSBT8	PIPE FITTING - SWIVEL NUT TEE	4	$75.47
2	PF-FFC8	PIPE FITTING - FEMALE CONNECTOR	4	$20.13
3	OLT-103	OIL LINE	1	$40.22
4	OLT-105	OIL LINE	1	$20.13
5	OLT-104	OIL LINE	1	$40.22
6	OLT-100	OIL LINE	1	$17.62
7	OLT-101	OIL LINE	1	$17.62
8	OLT-106	OIL LINE	1	$67.91
9	OLT-102	OIL LINE	1	$15.12
10	OLT-107	OIL LINE	1	$72.89
11	OH-3	OIL LINE PROTECTOR	2	$12.58
12	OH-6	OIL LINE PROTECTOR	2	$12.04
13	OH-11	OIL LINE PROTECTOR	1	$48.41
14	HTN0616	LOCK NUT - 3/8	5	$2.53
15	H06020-FF	HYDRAULIC HOSE - 3/8 X 20	6	$50.22
16	H06030-FF	HYDRAULIC HOSE STEEL LINE - 3/8 X 30	2	$65.36

Click a number on the diagram to find the part.

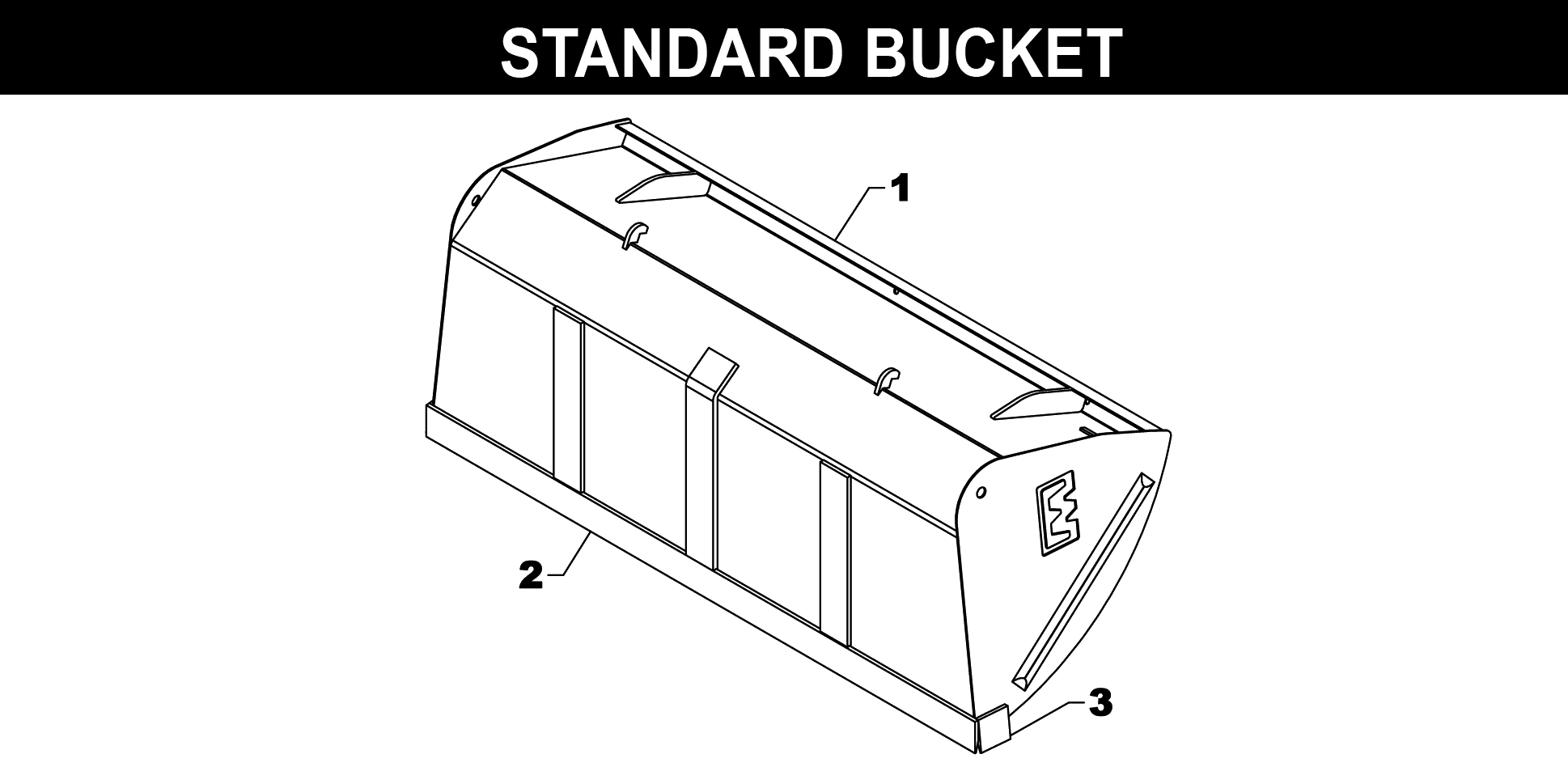

Ref	Part #	Description	Qty	Price
1	60Q109-SB	BUCKET-60 TAPERED WITH QUICK ATTACH	1	$1,375.30
1	60QS13	BUCKET-60 WITH SKID STEER ADAPTERS	1	$1,307.76
1	66QS14	BUCKET-66 WITH SKID STEER ATTACH	1	$1,412.59
2	MB-114	BUCKET-CUTTING EDGE - 60	1	$206.18
2	IB-14	BUCKET-CUTTING EDGE - 66	1	$525.39
3	MB-115	SIDE BLADE	2	$12.58

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	C-8	COUPLER-QUICK ATTACH UNIT	1	$515.66
2	QC-801AS	COUPLER-QUICK ATTACH SHELL	1	$57.84
3	QC-811AS-R	LATCH HANDLE FOR QUICK ATTACH UNIT- RIGHT SIDE	1	$57.84
4	QC-811AS-L	LATCH HANDLE FOR QUICK ATTACH UNIT - LEFT SIDE	1	$57.84
5	SBC0616024	MACHINE BOLT-FLAT HEAD	2	$2.53
6	HFN0616	HEX NUT - 3/8	4	$0.67
7	CBF1210072	CARRIAGE BOLT - 3/4 X 4-1/2	4	$17.62
8	HTN1210	LOCK NUT - 3/4	4	$5.03
9	MF-230	INSERT BUSHING	4	$10.07

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	C-22	COUPLER-SKID STEER ATTACH	1	$1,060.86
2	QC-2013AS	COUPLER-SKID STEER SHELL	1	—	Call to order
3	QC-2007AS-R	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - RIGHT	1	$64.22
4	QC-2007AS-L	COUPLER-HANDLE ASSEMBLY FOR SKID-STEER ATTACH - LEFT	1	$64.22
5	QC-2010	LINKAGE	2	$27.12
6	QC-2011	LATCH	2	$73.08
7	MF-230	INSERT BUSHING	4	$10.07
8	QC-12	SPRING FOR COUPLER	2	$17.62
9	HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
10	HHS0616032	BOLT - 3/8 X 2	2	$2.53
11	CBF1210080	CARRIAGE BOLT- 3/4 X 5	4	$17.62
12	FWW06	FLAT WASHER - 3/8	4	$0.95
13	LWM06	LOCK WASHER - 3/8	2	$0.37
14	HFN0616	HEX NUT - 3/8	4	$0.67
15	HFN1210	NUT - 3/4	4	$2.53
16	RLP0500020	ROLL PIN - 5/16 X 1-1/4	2	$0.89
17	ZER1805	GREASE FITTING	2	$2.53

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	VP-171-01	VALVE PLATE	1	$167.11
2	VP-171-02	VALVE COVER	1	—	Call to order
3	OC-2NB	VALVE	1	$1,173.99
4	VJ-302COM	JOYSTICK HANDLE KIT-KVJ	1	$120.47
5	DE-VJ1	DECAL-JOYSTICK CONTROL	1	$12.58
6	PF-OS0806	PIPE FITTING - 3/4 TO 3/8 O-RING MALE-FEMALE	2	$17.62
7	PF-OA06	PIPE FITTING - MALE ADAPTER 9/16 X 3/8	4	$10.07
8	LM-110	HYDRAULIC FITTING	4	$45.26
9	STW1214008	SELF TAPPING SCREW - 7/32' x 1/2'	4	$0.60
10	EXH-72	EXHAUST CLAMP - 3	2	$20.13
11	HHS0518010	BOLT - 5/16 X 5/8	3	$1.32
12	LWM05	LOCK WASHER - 5/16	3	$0.91
13	PF-PO10	PIPE FITTING - O-RING PLUG	1	$77.93
14	MA-26	HYDRAULIC MANIFOLD KIT	1	$153.38
