Parts Lookup › Wagon Parts › Hitch-N-Go

Hitch-N-Go Parts

5 assemblies · choose one below

Hitch-N-Go Cylinder & Components

Open on its own page

Click a number on the diagram to find the part.

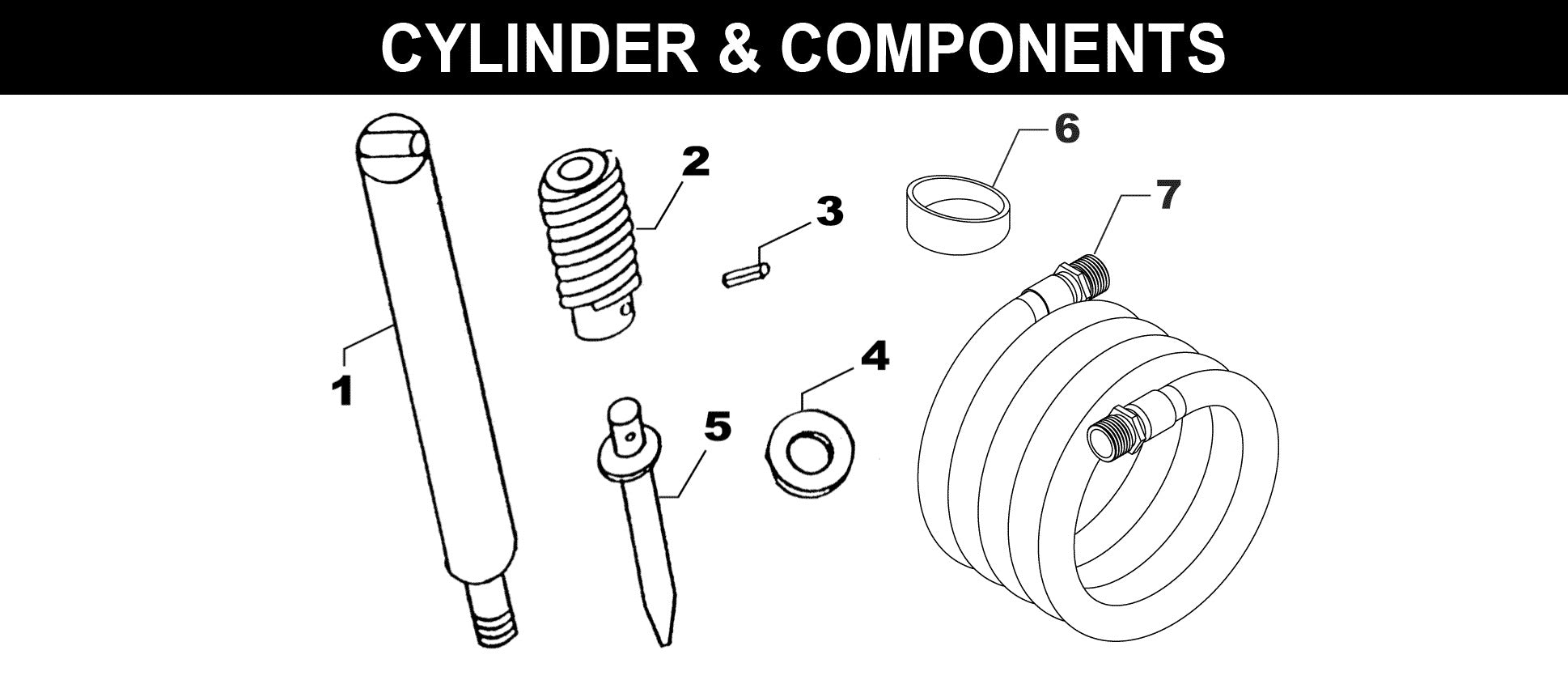

Hitch-N-Go Cylinder & Components exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		M-1	CYLINDER-HITCH-N-GO	1	$532.95
2		HM-27AAS	H-N-G SPRING ASSEMBLY WITH BOLT	1	—	Call to order

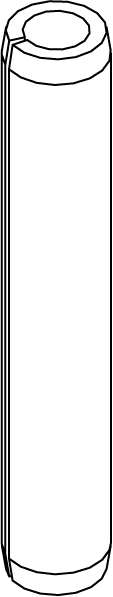

3		RLP0400024	ROLL PIN - 1/4 X 1 1/2	1	$0.89
4		HM-124	WASHER	1	$5.03
5		HM-20	H-N-G 7/8 REPLACEMENT PIN	1	$27.63
5		HM-21	H-N-G 1 REPLMT. PIN	1	$30.17
6		HM-122	H-N-G TONGUE RING	5	$5.03
7		HK-23	HOSE KIT	1	$116.63

Hitch-N-Go Draw Bar Extension

Open on its own page

Click a number on the diagram to find the part.

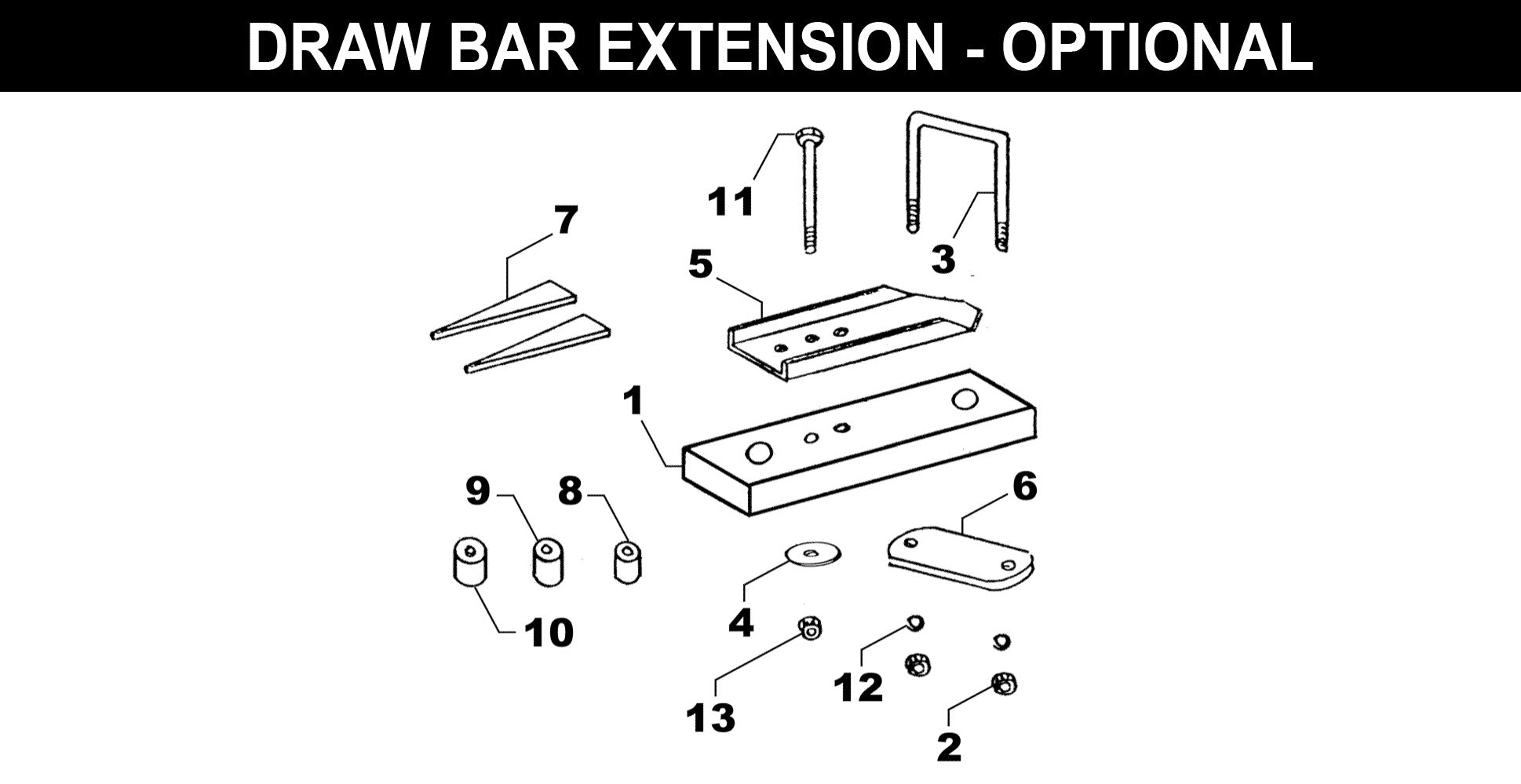

Hitch-N-Go Draw Bar Extension exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		HM-125	DRAWBAR EXTENSION	1	$178.48
2		HFN1011	NUT - 5/8	2	$1.26
3		HM-126	U-BOLT FOR HITCH-N-GO	1	$15.12
4		FWW12	FLAT WASHER - 3/4	1	$2.53
5		HM-128	SIDE PLATE	1	—	Call to order
6		HM-127	CLAMP PLATE	1	—	Call to order
7		HM-135A	WEDGE PLATE	2	$7.55
8		HM-129	O.D. FILLER BUSHING - 1	1	—	Call to order
9		HM-130	O.D. FILLER BUSHING - 1-1/8	1	—	Call to order
10		HM-131	O.D. FILLER BUSHING - 1-1/4	1	—	Call to order
11		HHS1210080	BOLT -3/4 X 5	1	$10.07
12		LWM10	LOCK WASHER -5/8	2	$0.77
13		HTN1210	LOCK NUT - 3/4	1	$5.03

Hitch-N-Go Main Frame

Open on its own page

Click a number on the diagram to find the part.

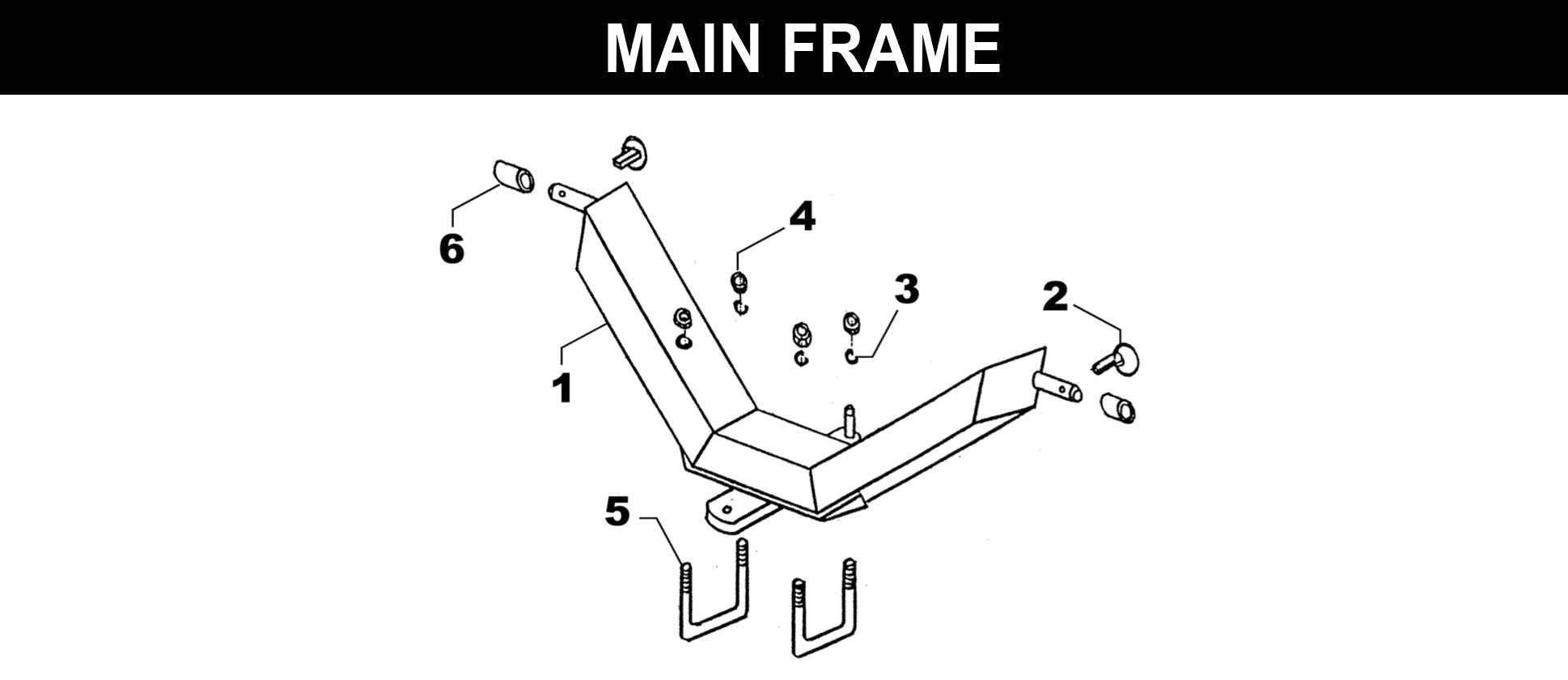

Hitch-N-Go Main Frame exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		HM-1	MAIN FRAME	1	$614.77
2		QLP0700024	QUICK LYNCH PIN	2	$5.03
3		LWM10	LOCK WASHER -5/8	4	$0.77
4		HFN1011	NUT - 5/8	4	$1.26
5		HM-119	U-BOLT	2	$17.62
6		HM-32	BUSHING-CAT. I TO CAT. II	2	$12.58

Hitch-N-Go Safety Trip

Open on its own page

Click a number on the diagram to find the part.

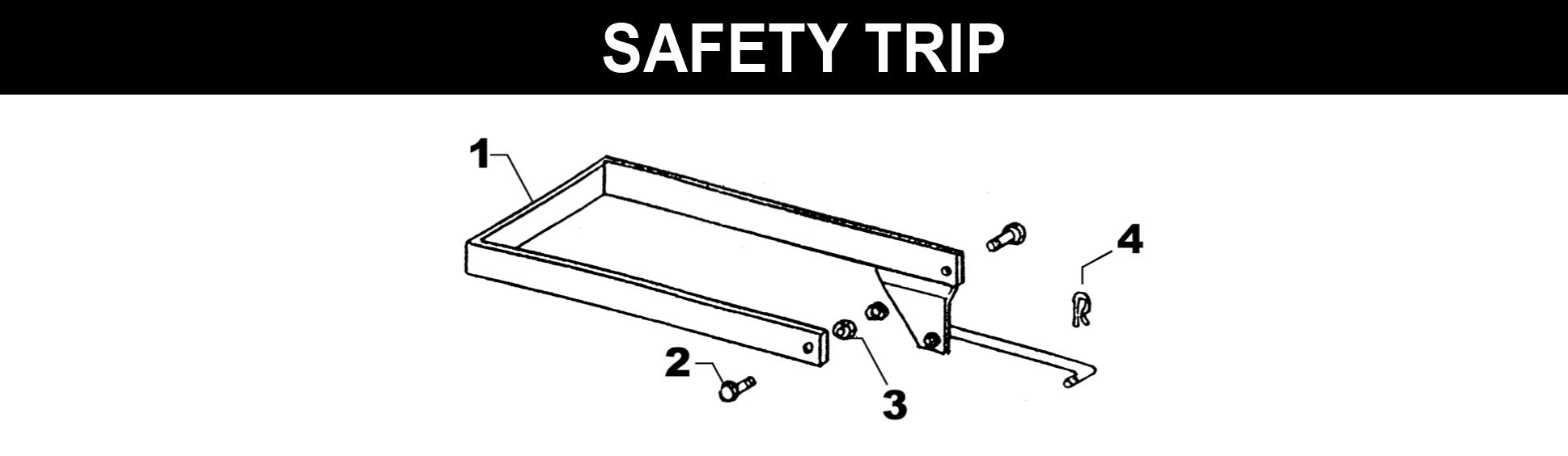

Hitch-N-Go Safety Trip exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		HM-103	SAFETY TRIP	1	—	Call to order
2		HHS0616020	BOLT - 3/8 X 1-1/4	2	$5.03
3		HTN0616	LOCK NUT - 3/8	2	$2.53
4		CTK0200016	COTTER KEY - 1/8 X 1	1	$0.77

Hitch-N-Go Tower

Open on its own page

Click a number on the diagram to find the part.

Hitch-N-Go Tower exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		HM-101	H-N-G TOWER UPRIGHT ASSEMBLY	1	$648.60
2		HM-25A	TOP LINK PIN	1	—	Call to order
3		18EHP	HAIR PIN	2	$0.70
4		HM-26	CLEVIS PIN - 3/4	1	$7.54
5		CTK0250032	COTTER PIN	1	$0.76
