Parts Lookup › Wagon Parts › Gravity Flow Box
Gravity Flow Box Parts
3 assemblies · choose one below

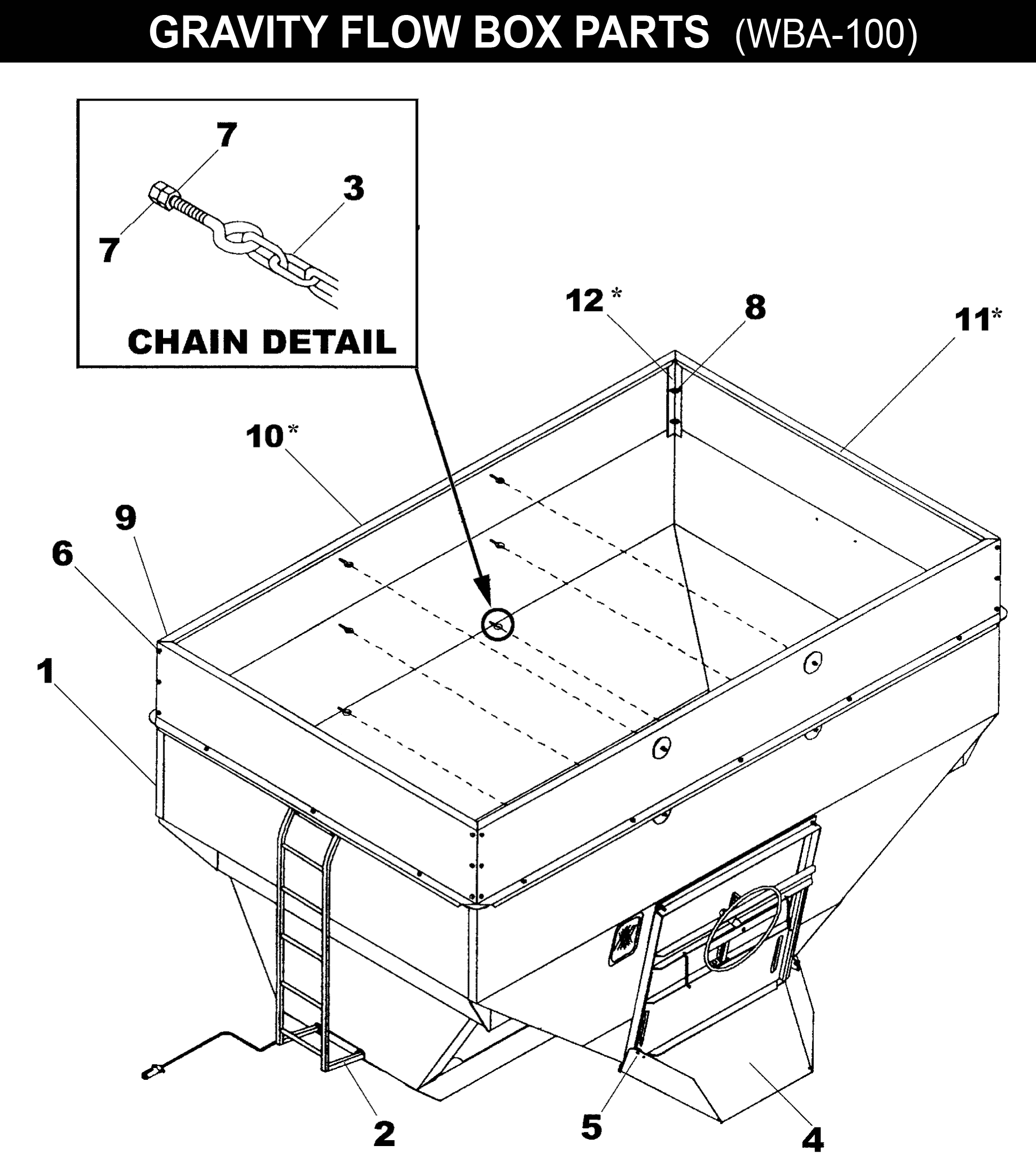

Gravity Flow Box WBA-100
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | WBA-3ECOM | WAGON BOX COMPLETE LESS TOP | 1 | $8,904.42 | ||
| 2 | WBA-52AAS | WAGON BOX -LADDER | 1 | $258.96 | ||
| 3 | WBA-80BAS | CHAIN WITH EYEBOLT | 6 | $80.43 | ||
| 4 | WBA-60A | WAGON BOX-CHUTE | 1 | $319.27 | ||
| 5 | CTK0200032 | COTTER KEY - 1/8 X 2 | 2 | $0.77 | ||
| 6 |  | HHS0616016 | BOLT - 3/8 X 1 | 44 | $2.53 | |
| 7 |  | HFN0616 | HEX NUT - 3/8 | 24 | $0.67 | |
| 8 |  | HTN0616 | LOCK NUT - 3/8 | 44 | $2.53 | |
| 9 |  | FWW06 | FLAT WASHER - 3/8 | 88 | $0.95 | |
| 10 | WBA-170AAS | WAGON BOX-10 TOP SIDE | 2 | $314.22 | ||
| 10 | WBA-70AAS | WAGON BOX-18 TOP- SIDE | 2 | $362.00 | ||
| 11 | WBA-71 | WAGON BOX 18 TOP-END | 2 | $243.86 | ||
| 11 | WBA-171 | WAGON BOX-10 TOP END | 2 | $218.71 | ||
| 12 | WBA-172 | TOP EXTENSION CORNERS - 10 | 4 | — | Call to order | |
| 12 | WBA-72 | TOP EXTENSION CORNERS -18 | 4 | $42.71 |
Wagon Door Parts WBA-100
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | WBA-27 | WAGON BOX-DOOR | 1 | $605.87 | ||
| 2 | WBA-28AAS | WAGON BOX-DOOR LIFT CHANNEL ASSEMBLY | 1 | $77.95 | ||
| 3 | WBA-35AS | WAGON BOX-HAND WHEEL | 1 | $118.14 | ||
| 4 |  | WB-55 | WAGON BOX-SPROCKET | 1 | $114.59 | |
| 5 |  | RLP0500020 | ROLL PIN - 5/16 X 1-1/4 | 1 | $0.89 | |
| 6 | HHS1011016 | BOLT - 5/8 X 1 | 1 | $5.03 | ||
| 7 |  | WBA-31AS | DOOR LOCK | 1 | $60.33 | |
| 8 | WBA-30 | LOCK BUSHING | 1 | $7.54 | ||
| 9 | WBA-85AS | CHUTE CHAIN | 2 | — | Call to order | |
| 10 | | HHS0616016 | BOLT - 3/8 X 1 | 2 | $2.53 | |
| 11 | | HTN0616 | LOCK NUT - 3/8 | 2 | $2.53 |

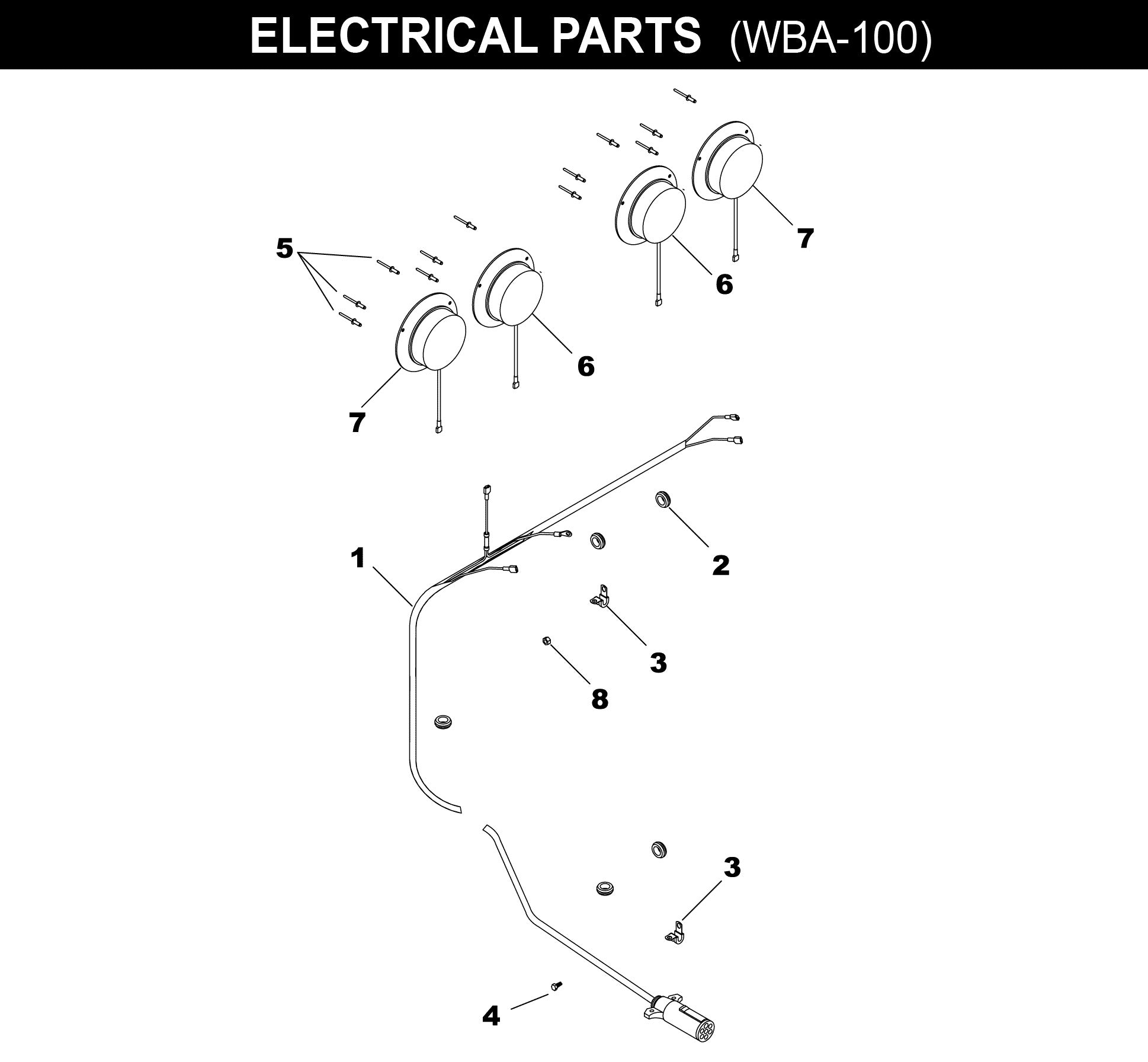

Wagon Electrical Parts WBA-100
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | ECB-1BAS | WIRING HARNESS ASSEMBLY | 1 | — | Call to order | |
| 2 | EC-M01 | GROMMET | 5 | — | Call to order | |
| 3 | EC-M02 | CABLE CLAMP | 2 | — | Call to order | |
| 4 |  | EC-M03 | SELF-TAPPING SCREW | 1 | $1.56 | |
| 5 |  | EC-M04 | RIVET | 12 | $0.26 | |
| 6 |  | EC-M06AS | LIGHT-RED | 2 | $29.36 | |
| 7 |  | EC-M08AS | AMBER LIGHT ASSEMBLY | 2 | $178.49 | |
| 8 |  | HFN0420 | NUT - 1/4 | 1 | $0.89 |
