FM-585 LOADER PARTS

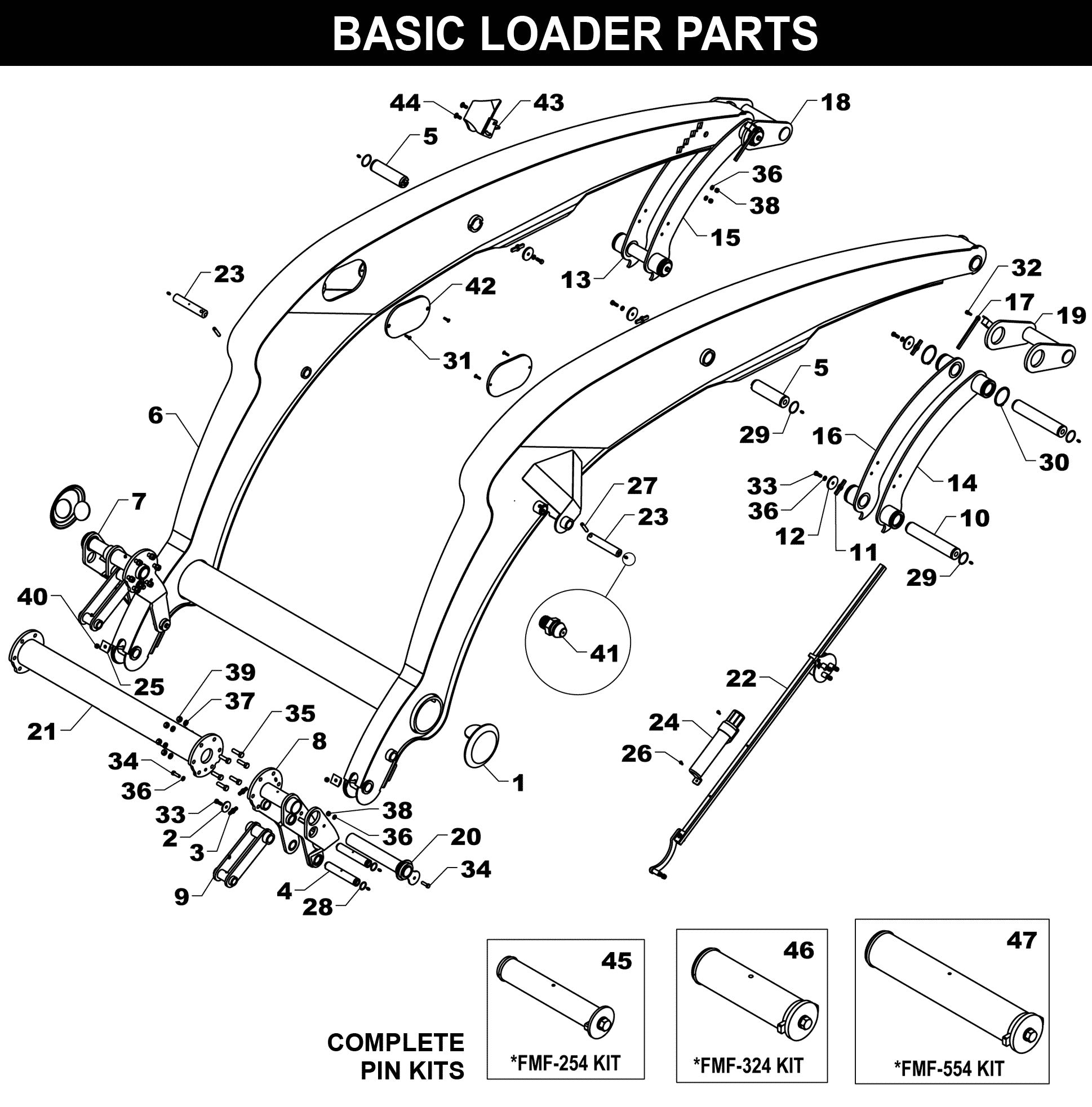

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	FMF-147AS	CAP	2	$27.34
2	FMF-226	WASHER	2	$2.44
3	FMF-227	PIN LOCK	4	$2.53
4	FMF-254	LINKAGE PIN	4	$111.89
5	FMF-324	KEYED PIN	2	$60.33
6	FMF-504AS	FRAME (FM-580)	1	—	Call to order
6	FMF-904AS	FRAME (FM-585)	1	$25,318.19
7	FMF-512AS-R	BUCKET LINKAGE - RIGHT	1	$457.77
8	FMF-512AS-L	BUCKET LINKAGE - LEFT	1	$457.77
9	FMF-513AS	BUCKET LINKAGE	2	$124.49
10	FMF-554	KEYED PIN	4	$169.61
11	FMT-303	PIN LOCK	6	$11.42
12	FMT-304	HOLD DOWN	6	$5.02
13	FMT-511AS-R	OUTSIDE TOWER - RIGHT	1	$62.40
14	FMT-511AS-L	OUTSIDE TOWER - LEFT	1	$62.40
15	FMT-512AS-R	INSIDE TOWER - LEFT	1	$62.40
16	FMT-512AS-L	INSIDE TOWER - RIGHT	1	$62.40
17	FMT-514	LEVER	2	—	Call to order
18	FMT-520AS-R	LATCH - RIGHT	1	—	Call to order
19	FMT-520AS-L	LATCH - LEFT	1	—	Call to order
20	FMF-555AS	LINKAGE PIN	2	$287.66
21	FMF-576AS	LINKAGE PIPE	1	—	Call to order
21	FMF-976AS	LINKAGE PIPE	1	—	Call to order
22	LAC-15-31	ROTATIONAL BUCKET INDICATOR	1	$172.06
23	XAF-54	PIN	2	$54.23
24	GP-2	CANISTER TO STORE MANUAL	1	$44.94
25	OH-32	OIL LINE HOLDER	2	$10.07
26	EC-M03	SELF-TAPPING SCREW	2	$1.56
27	RLP0700036	ROLL PIN - 7/16	2	$3.31
28	SR-B10	WIRE RING - 1-3/8	4	$3.13
29	SR-B16	WIRE RING - 2-1/16	6	$15.11
30	SR-C48	SNAP RING - 3 DIA.	4	$15.67
31	FSS0420016	FLAT HEAD ALLEN SCREW - 1/4 X 1	4	$1.68
32	SCH0420005	SHOULDER HEAD SCREW	2	—	Call to order
33	HHS0616016	BOLT - 3/8 X 1	8	$2.53
34	HHS0616020	BOLT - 3/8 X 1-1/4	4	$5.03
35	HHS0813028	BOLT - 1/2 X 1-3/4	12	$12.58
36	LWM06	LOCK WASHER - 3/8	14	$0.37
37	LWM08	LOCK WASHER - 1/2	12	$0.37
38	HFN0616	HEX NUT - 3/8	4	$0.67
39	HFN0813	NUT - 1/2	12	$0.95
40	HTN0616	LOCK NUT - 3/8	2	$2.53
41	ZER1805	GREASE FITTING	16	$2.53
42	FMF-538	COVER PLATE	2	—	Call to order
43	RZT-20AS	HYDRA-SNAP MOUNT	1	$177.48
44	CBF0616016	CARRIAGE BOLT - 3/8 X 1	2	$7.03
45	FMF-254 KIT-1	PIN KIT - (FM/MAX)	1	$114.67
46	FMF-324 KIT	KEYED PIN KIT	1	$183.62
47	FMF-554KIT	KEYED PIN KIT	1	$169.61

Bucket Indicator - LAC-15-31

Open on its own page

Click a number on the diagram to find the part.

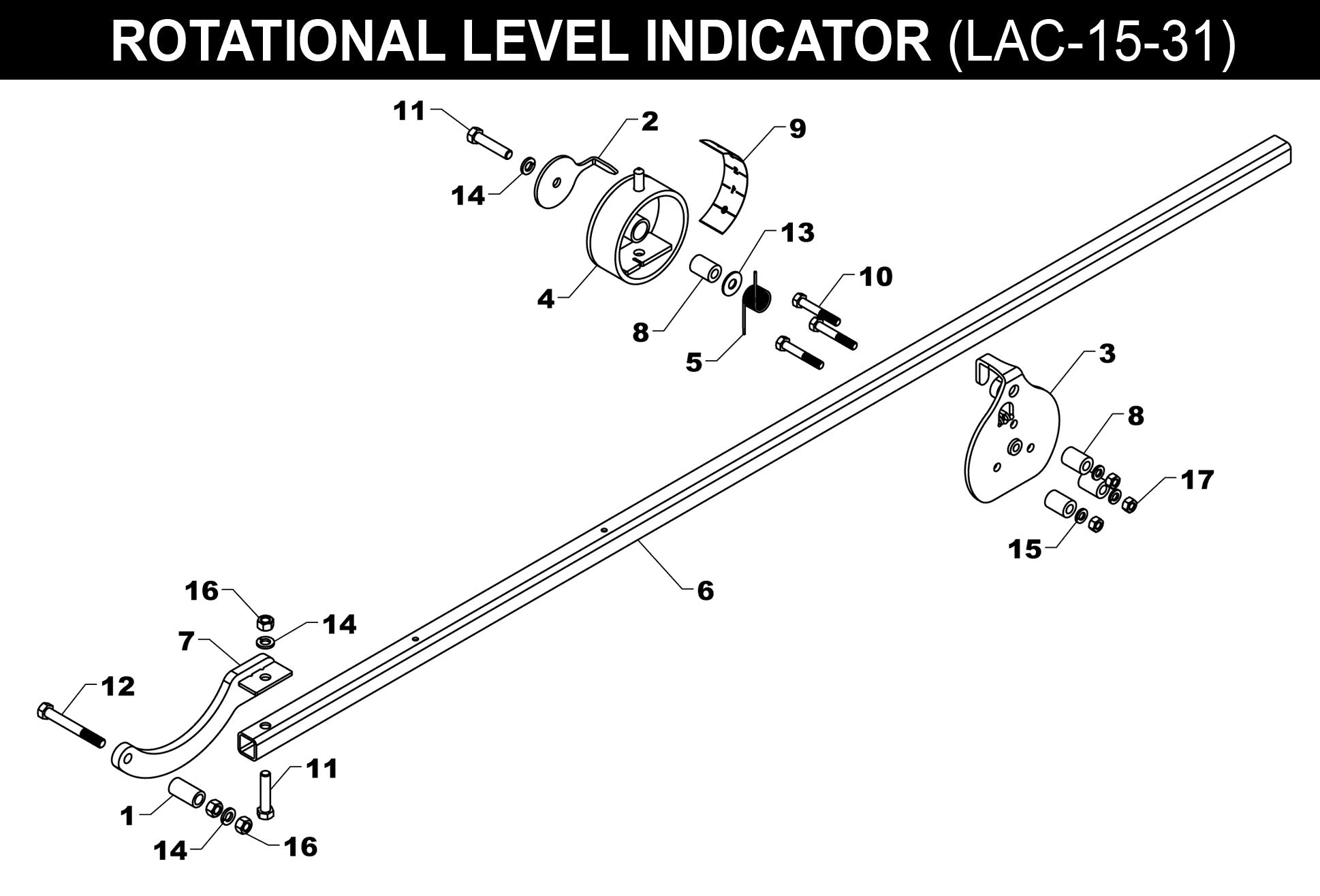

Bucket Indicator - LAC-15-31 exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	BUS-265	BUSHING	1	—	Call to order
2	GRD-175	POINTER	1	$13.10
3	GRD-260AS	MOUNTING PLATE	1	$83.53
4	GRD-262AS	BUCKET INDICATOR	1	$83.53
5	GRD-272	TORSION SPRING	1	$5.39
6	GRD-280	GAUGE TUBE	1	$81.86
7	GRD-281AS	GAUGE ROD BRACKET	1	$99.55
8	LM-4	NYLON BUSHING	4	$2.53
9	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
10	HHS0518032	BOLT - 5/16 X 2	3	$2.53
11	HHS0616028	BOLT - 3/8 X 1-3/4	2	$0.71
12	HHS0616048	BOLT -3/8 X 3	1	$5.03
13	FWW06	FLAT WASHER - 3/8	1	$0.95
14	LWM06	LOCK WASHER - 3/8	3	$0.37
15	LWM05	LOCK WASHER - 5/16	3	$0.91
16	HFN0616	HEX NUT - 3/8	3	$0.67
17	HFN0518	NUT - 5/16	3	$1.12

FM-580 / 585 HYDRAULICS

Open on its own page

Click a number on the diagram to find the part.

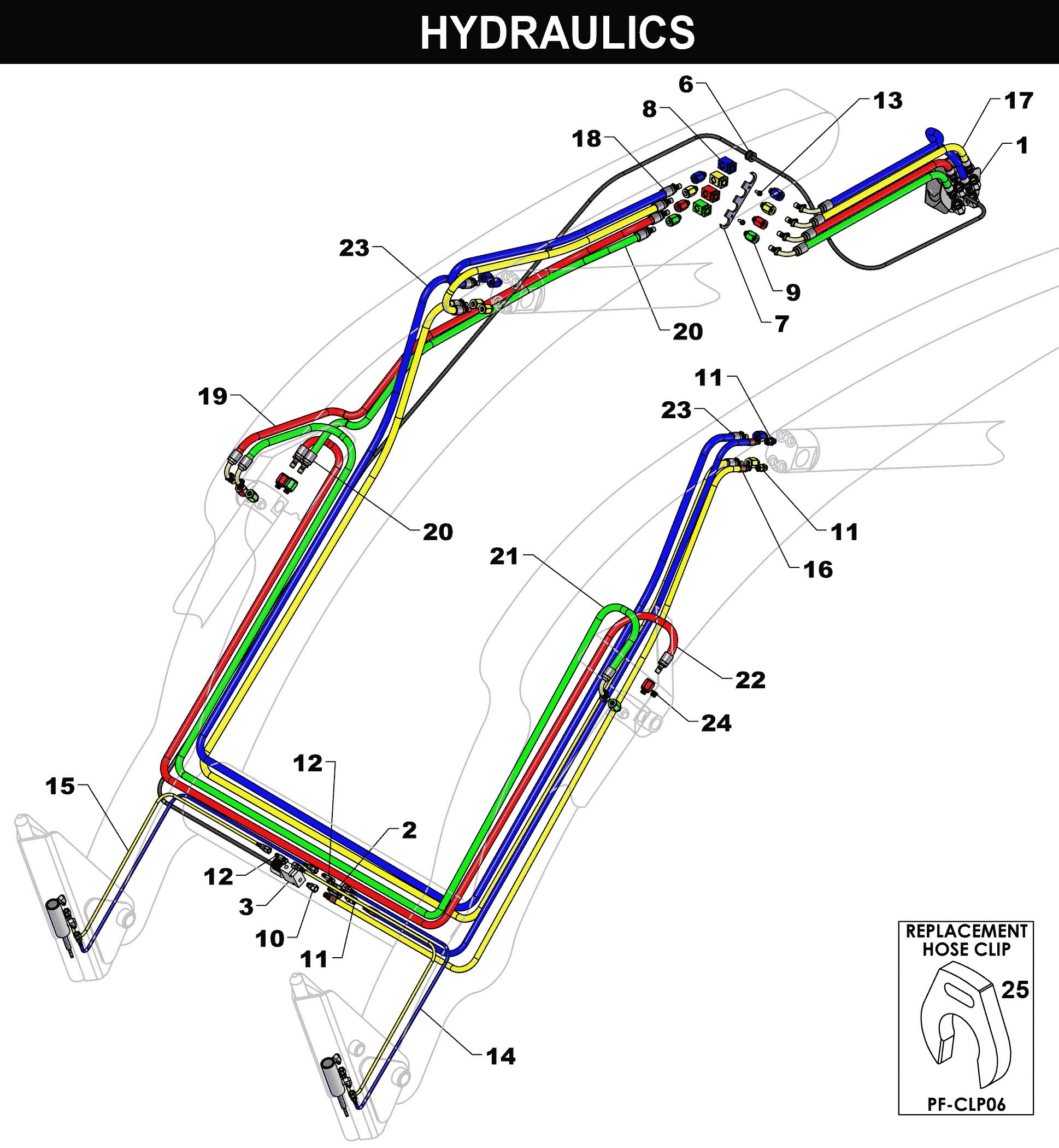

FM-580 / 585 HYDRAULICS exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	LM-323COM	FEMALE COUPLER	1	—	Call to order
2	VB-36	VALVE BLOCK	1	$19.19
3	VB-39	VALVE BLOCK	1	$407.17
4	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
5	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
6	EC-M10	GROMMET	1	$1.19
7	FMF-527	HOSE CLAMP	1	—	Call to order
8	PF-FMF274	PIPE FITTING - ELBOW	4	$41.79
9	PF-PS0600	PIPE FITTING - MALE STRAIGHT PLUG SOCKET	20	—	Call to order
10	PF-OS04	PIPE FITTING - 7/16 O-RING - 1/4 FNPT SWIVEL	1	$12.58
11	PF-OS0604	PIPE FITTING - 9/16 O-RING - 1/4 FNPT SWIVEL	3	$25.06
12	PF-STBT04	PIPE FITTING - 7/16 JIC - O-RING BRANCH TEE	2	$24.09
13	SHW1214008	HEX HEAD SCREW - 7/32 X 1/2	2	—	Call to order
14	H02054-RRDYNA	MICRO HOSE	2	$74.43
15	H02080-RRDYNA	MICRO HOSE	2	$97.16
16	H04096-44	HYDRAULIC HOSE - 1/4 X 96	2	$94.87
17	H06048-E816	HYDRAULIC HOSE - 3/8 X 48	4	—	Call to order
18	H06082-SS16	HYDRAULIC HOSE - 3/8 X 82	2	$211.84
19	H06107-ES16	HYDRAULIC HOSE - 3/8 X 107	1	$243.66
20	H06107-SS16	HYDRAULIC HOSE - 3/8 X 107	1	$259.72
21	H06173-EE16	HYDRAULIC HOSE- 3/8 X 173	1	$362.45
22	H06173-SS16	HYDRAULIC HOSE- 3/8 X 173	1	$362.45
23	H06248-SS16	HYDRAULIC HOSE - 3/8 X 248	2	$530.05
24	PF-POHH06	PIPE FITTING - HOLLOW HEX PLUG 9/16	2	$17.52
25	PF-CLP06	HOSE CLIP FOR PLUG-N-PLAY HOSES	1	$10.07

FM-580 / 585 BUCKETS

Open on its own page

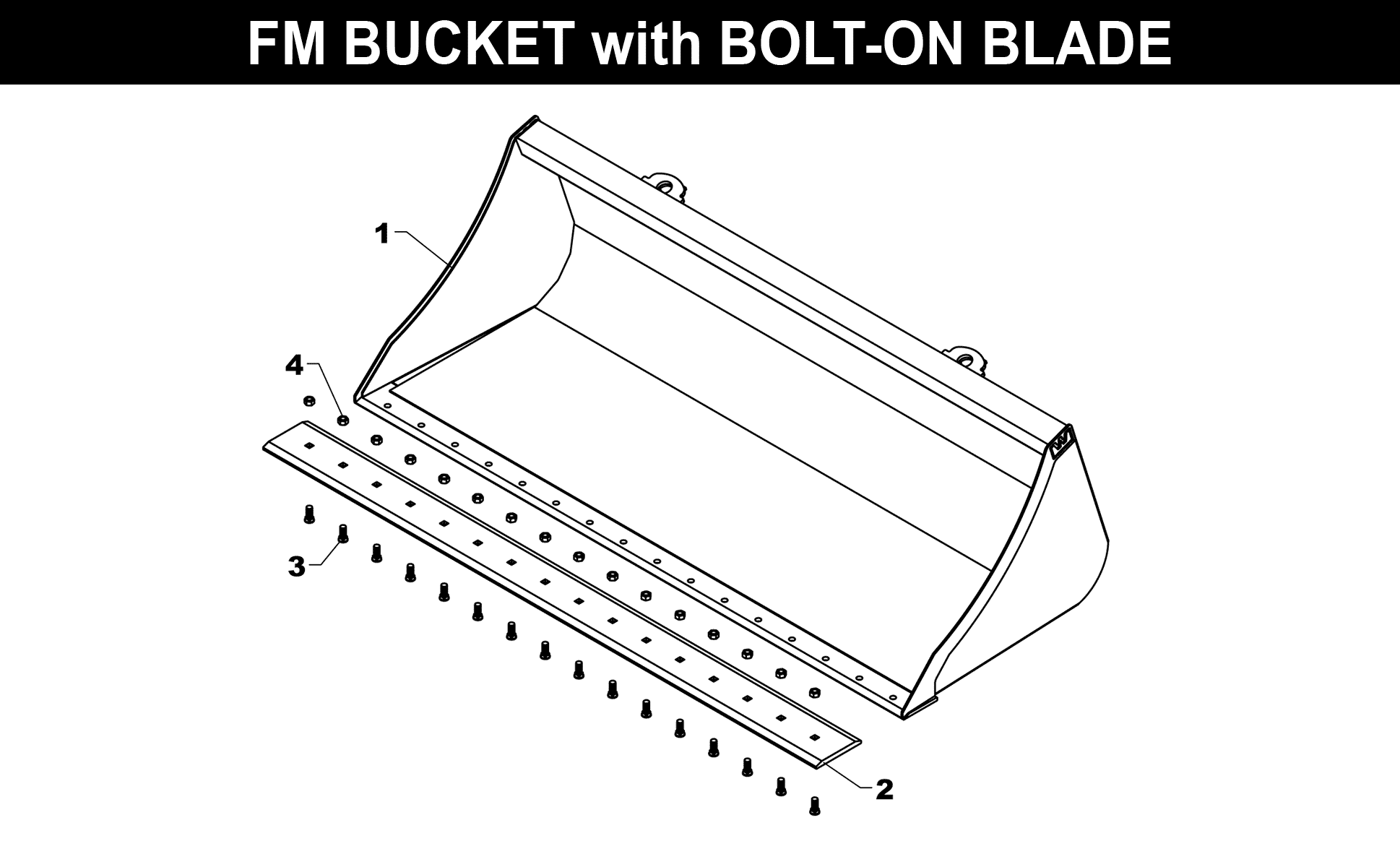

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	98Q729B	BUCKET-98 LARGE CAPACITY WITH SNAP-ATTACH AND BOLT ON BLADE	1	$4,296.42
1	108Q732B	BUCKET-108 LARGE CAPACITY WITH SNAP-ATTACH AND BOLT ON BLADE	1	$4,671.32
1	108Q858	BUCKET-108 LARGE CAPACITY WITH QUICK ATTACH FOR WL-1000	1	$4,388.80
2	NB-124	BUCKET-CUTTING EDGE - BOLT ON - 96	1	$1,440.76
2	NB-127	BOLT ON CUTTING EDGE - 98	1	$1,694.55
3	FPB1210032	PLOW BOLT - 3/4 - 10 X 2	1	$15.12
4	OLN1210	10 OVAL LOCK NUT - 3/4	1	$5.03

EC-C131 WIRING KIT FOR REMOTE COUPLER

Open on its own page

Click a number on the diagram to find the part.

EC-C131 WIRING KIT FOR REMOTE COUPLER exploded diagram

Ref	Part #	Description	Qty	Price	Buy
0	EC-C131 KIT	WIRING HARNESS KIT MA-381-382	1	$216.58
1	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
2	EC-C27	SCOTCHLOCK	4	$4.22
3	EC-C31	SWITCH WIRING HARNESS	1	$30.11
4	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
5	EC-M11	MOUNTING BRACKET	1	$25.08
6	STW0814016	SELF TAPPING SCREW - #8 X 1	3	—	Call to order
7	BAND-6R	PLASTIC BAND - 6 RED	1	$1.14
8	DE-ACK	DECAL	1	—	Call to order
10	DE-HOWTO-1	HOW TO CARD - Remote Control Coupler	1	—	Call to order
11	DE-HOWTO-2	HOW TO CARD - Smart-Lock	1	—	Call to order
12	DE-HOWTO-3	HOW TO CARD - FM Auto-Lock	1	—	Call to order
13	DE-HOWTO-4	HOW TO CARD - Hydra-Snap	1	—	Call to order
14	DE-HOWTO-5	HOW TO CARD - J-Hook Dismount	1	—	Call to order

REMOTE CONTROL COUPLER - C-48

Open on its own page

Click a number on the diagram to find the part.

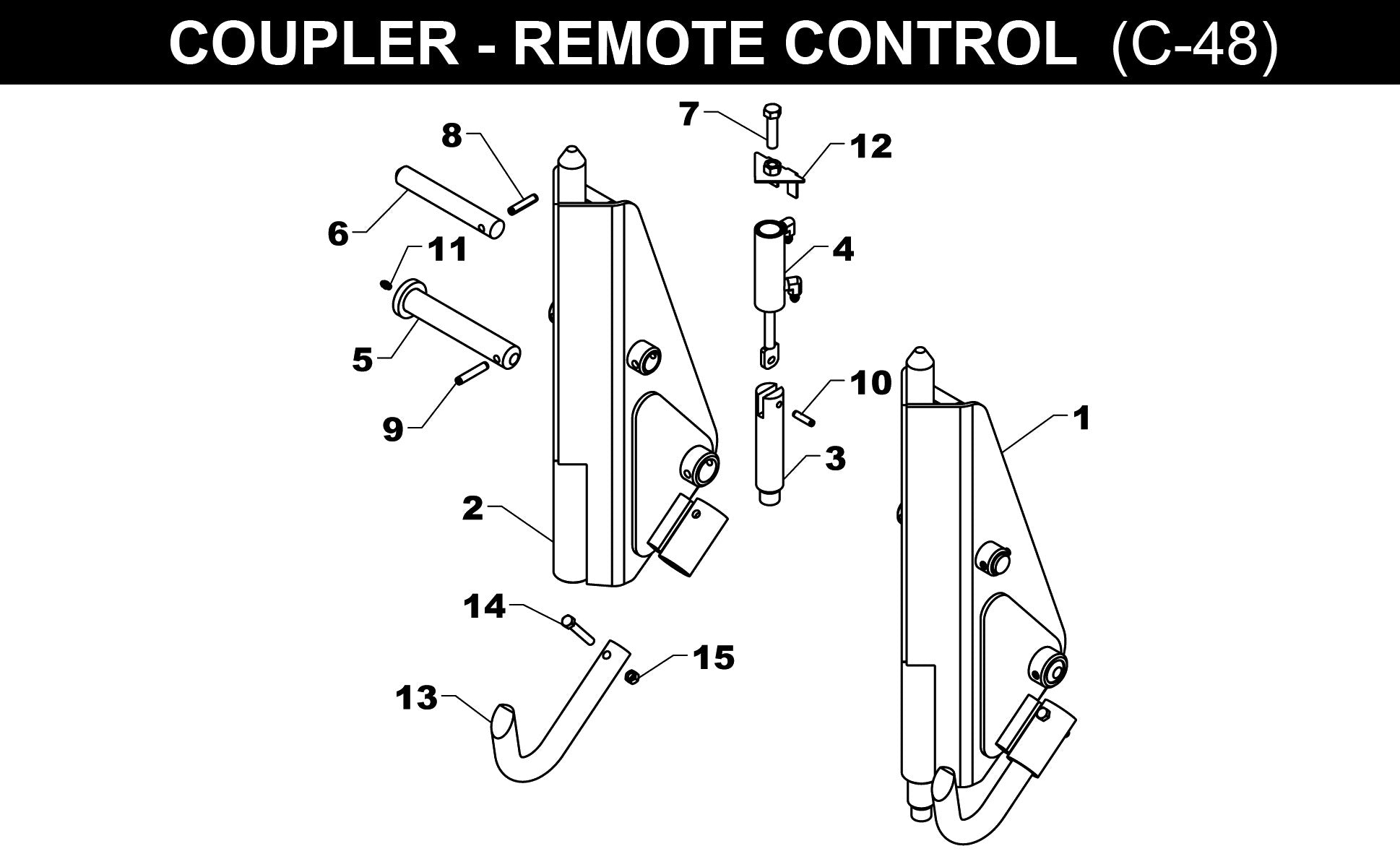

REMOTE CONTROL COUPLER - C-48 exploded diagram

Ref	Part #	Description	Qty	Price	Buy
1	QC-4801COM	COUPLER-REMOTE CONTROL WITH J-HOOK COMPLETE (1 PC)	1	—	Call to order
2	QC-4801AS	COUPLER-REMOTE CONTROL WITH J-HOOK SHELL (1 PC)	1	$1,175.77
3	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
4	M-19	REPLACEMENT CYLINDER KIT FOR C-40 COUPLER	1	$430.87
5	XAF-55AS	LINKAGE PIN	1	$67.91
6	LF-51	PIN - LINKAGE	1	$17.62
7	HHS0813032	BOLT - 1/2 X 2	1	$2.53
8	DRP0600028	DOUBLE ROLL PIN	1	$2.53
9	DRP0600032	DOUBLE ROLL PIN	1	$2.53
10	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
11	ZER1805	GREASE FITTING	1	$2.53
12	QC-4009AS	CYLINDER STOP	1	$54.81
13	QC-4807	J-HOOK	1	$75.28
14	HHS0616040	BOLT -3/8 X 2-1/2	1	$2.53
15	HTN0616	LOCK NUT - 3/8	1	$2.53
