FM-560 / 570 LOADER PARTS

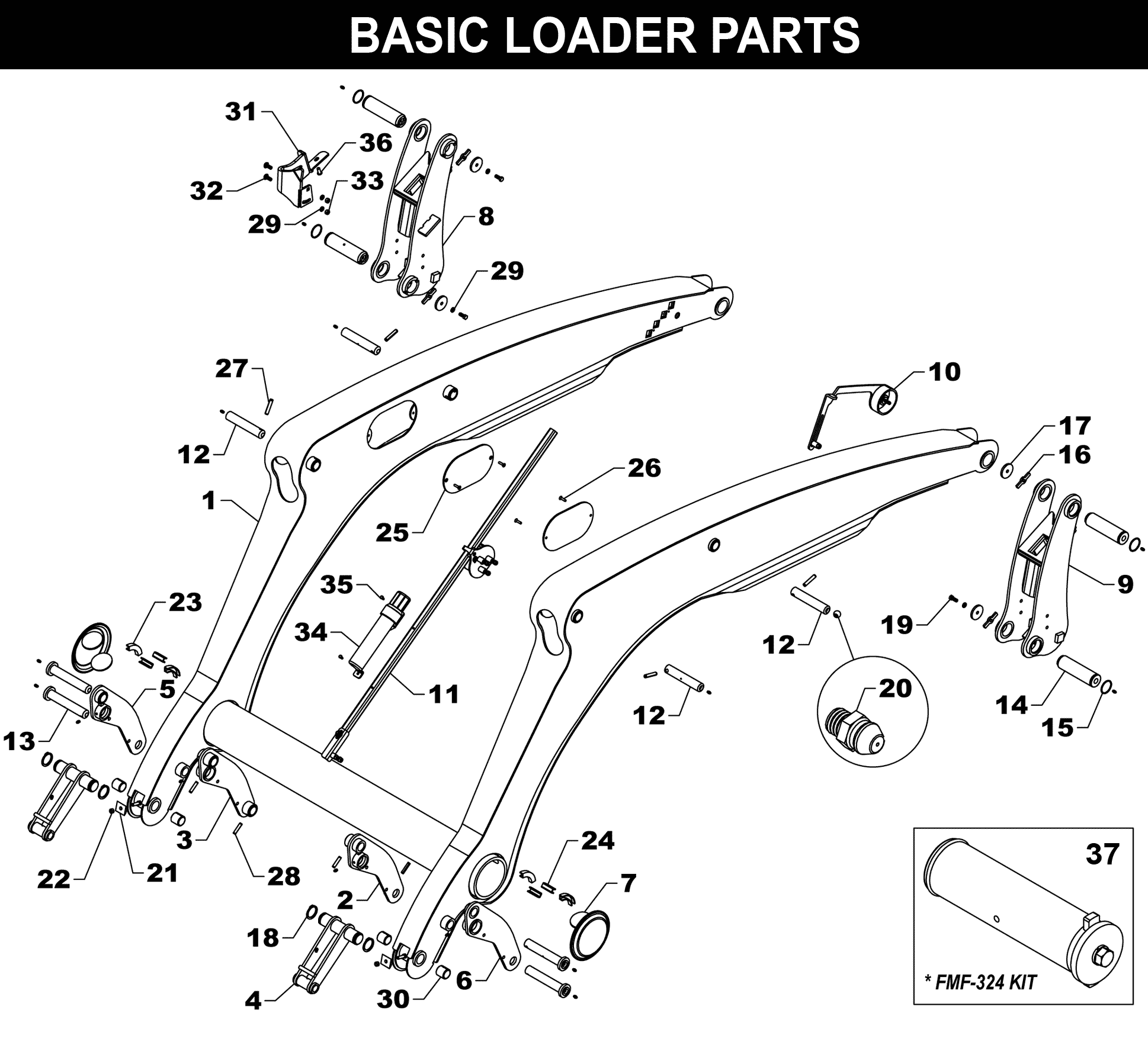

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	FMF-604AS	FRAME (FM-570)	1	$16,938.04
1	FMF-804AS	FRAME (FM-560)	1	$16,385.97
2	FMF-310AS-L	BUCKET LINKAGE - LEFT	1	$177.48
3	FMF-310AS-R	BUCKET LINKAGE - RIGHT	1	$177.48
4	FMF-328AS	BUCKET LINKAGE STRAP	2	$260.99
5	FMF-312AS-R	LINKAGE - RIGHT	1	$138.28
6	FMF-312AS-L	LINKAGE - LEFT	1	$138.28
7	FMF-147AS	CAP	2	$27.34
8	FMT-612AS-R	TOWER - RIGHT	1	$432.96
9	FMT-612AS-L	TOWER - LEFT	1	$432.96

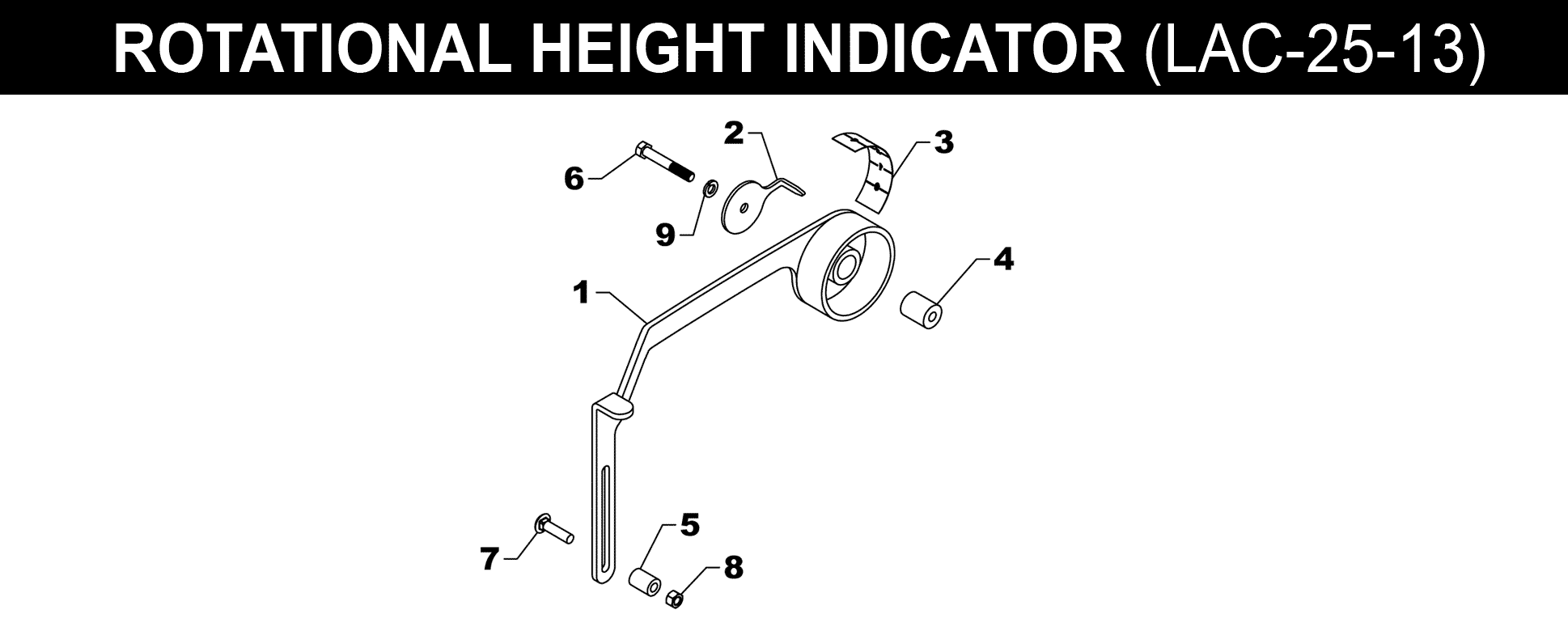

10	LAC-25-13	ROTATIONAL HEIGHT INDICATOR	1	$98.54

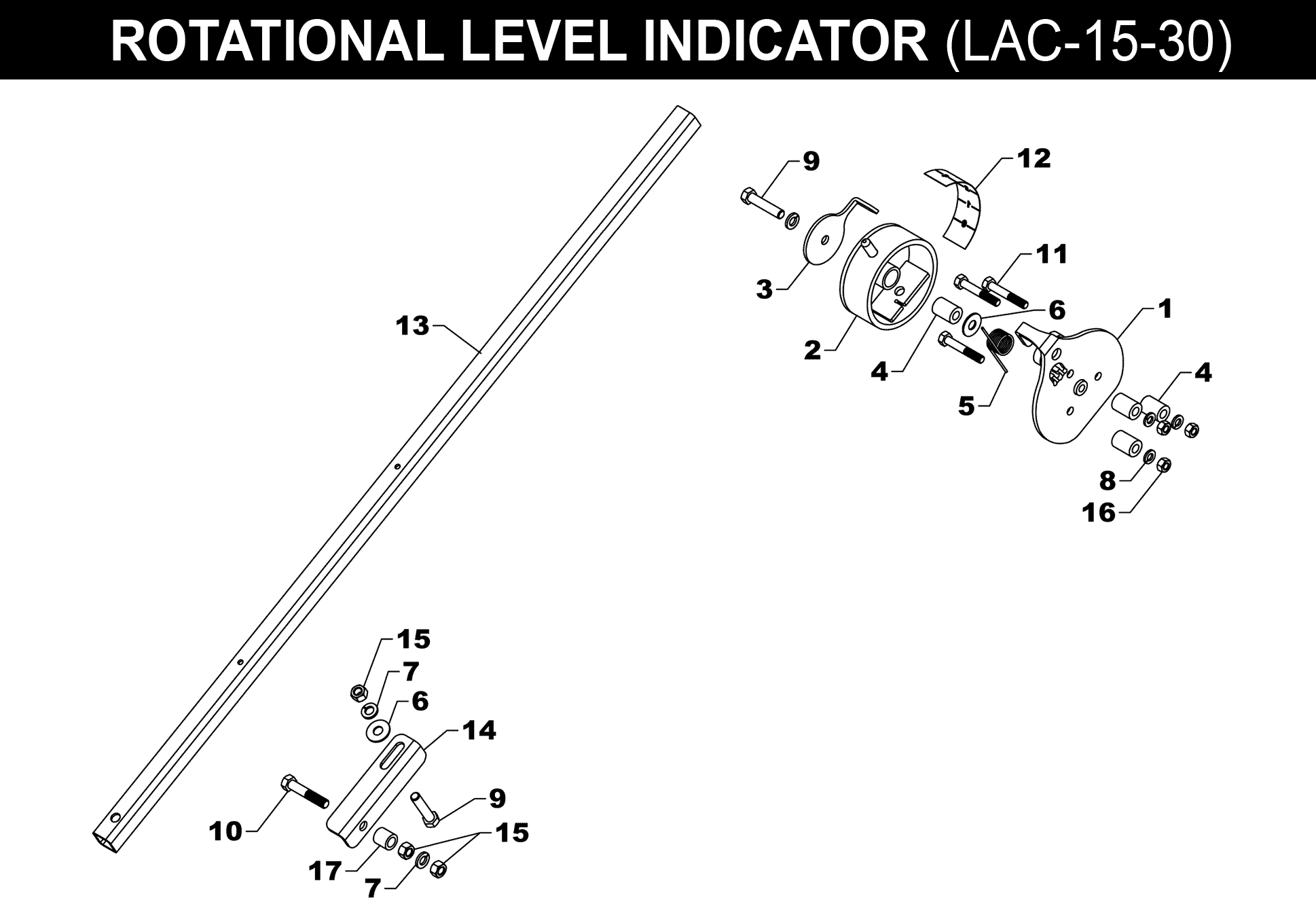

11	LAC-15-30	ROTATIONAL BUCKET INDICATOR	1	$172.06
12	XAF-54	PIN	4	$54.23
13	XAF-55AS	LINKAGE PIN	4	$67.91
14	FMF-324	KEYED PIN	4	$60.33
15	SR-B16	WIRE RING - 2-1/16	4	$15.11
16	FMT-303	PIN LOCK	4	$11.42
17	FMT-304	HOLD DOWN	4	$5.02
18	SR-C14	SNAP RING - EXTERNAL 1-3/4	4	$9.15
19	HHS0616016	BOLT - 3/8 X 1	3	$2.53
20	ZER1805	GREASE FITTING	18	$2.53
21	OH-32	OIL LINE HOLDER	2	$10.07
22	HTN0616	LOCK NUT - 3/8	2	$2.53
23	FMF-22	RUBBER EDGING	4	$35.23
24	FMF-23	RUBBER EDGING	4	$17.63
25	FMF-338	COVER PLATE	2	—	Call to order
26	FSS0420016	FLAT HEAD ALLEN SCREW - 1/4 X 1	4	$1.68
27	RLP0700036	ROLL PIN - 7/16	4	$3.31
28	DRP0600028	DOUBLE ROLL PIN	4	$2.53
29	LWM06	LOCK WASHER - 3/8	5	$0.37
30	LW-32	INSERT BUSHING	4	$35.23
31	RZT-20AS	HYDRA-SNAP MOUNT	1	$177.48
32	CBF0616016	CARRIAGE BOLT - 3/8 X 1	2	$7.03
33	HFN0616	HEX NUT - 3/8	2	$0.67
34	GP-2	CANISTER TO STORE MANUAL	1	$44.94
35	EC-M03	SELF-TAPPING SCREW	2	$1.56
36	ABCS0616016	SCREW-BUTTON HEAD CAP - 3/8 X 1	1	$2.02
37	FMF-324 KIT	KEYED PIN KIT	1	$183.62

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GRD-260AS	MOUNTING PLATE	1	$83.53
2	GRD-262AS	BUCKET INDICATOR	1	$83.53
3	GRD-175	POINTER	1	$13.10
4	LM-4	NYLON BUSHING	4	$2.53
5	GRD-272	TORSION SPRING	1	$5.39
6	FWW06	FLAT WASHER - 3/8	2	$0.95
7	LWM06	LOCK WASHER - 3/8	3	$0.37
8	LWM05	LOCK WASHER - 5/16	3	$0.91
9	HHS0616028	BOLT - 3/8 X 1-3/4	2	$0.71
10	HHS0616032	BOLT - 3/8 X 2	1	$2.53
11	HHS0518032	BOLT - 5/16 X 2	3	$2.53
12	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
13	GRD-270	GAUGE TUBE	1	$121.11
14	GRD-61	ADJUSTMENT PLATE	1	$15.67
15	HFN0616	HEX NUT - 3/8	3	$0.67
16	HFN0518	NUT - 5/16	3	$1.12
17	GRD-271	BUSHING	1	$4.16

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GRD-51AS	HEIGHT INDICATOR	1	$105.36
2	GRD-175	POINTER	1	$13.10
3	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
4	BUS-212	INSERT BUSHING	1	$9.11
5	LM-4	NYLON BUSHING	1	$2.53
6	HHS0616040	BOLT -3/8 X 2-1/2	1	$2.53
7	CBF0616024	CARRIAGE BOLT - 3/1 X 1-1/2	1	$7.54
8	HTN0616	LOCK NUT - 3/8	1	$2.53
9	LWM06	LOCK WASHER - 3/8	1	$0.37

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	LM-322COM	FEMALE COUPLER	1	—	Call to order
2	VB-36	VALVE BLOCK	1	$19.19
3	VB-39	VALVE BLOCK	1	$407.17
4	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
5	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
6	EC-M10	GROMMET	1	$1.19
7	FMF-527	HOSE CLAMP	1	—	Call to order
8	PF-FMF271	PIPE FITTING - ELBOW	4	$45.60
9	PF-OS04	PIPE FITTING - 7/16 O-RING - 1/4 FNPT SWIVEL	1	$12.58
10	PF-OS0604	PIPE FITTING - 9/16 O-RING - 1/4 FNPT SWIVEL	3	$25.06
11	PF-PS0600	PIPE FITTING - MALE STRAIGHT PLUG SOCKET	20	—	Call to order
12	PF-STBT04	PIPE FITTING - 7/16 JIC - O-RING BRANCH TEE	2	$24.09
14	H02054-RRDYNA	MICRO HOSE	2	$74.43
15	H02080-RRDYNA	MICRO HOSE	2	$97.16
16	H04064-44	HYDRAULIC HOSE - 1/4 X 64	2	$73.46
17	H06043-ES16	HYDRAULIC HOSE - 3/8 X 43	2	$174.34
18	H06048-E816	HYDRAULIC HOSE - 3/8 X 48	4	—	Call to order
19	H06075-ES16	HYDRAULIC HOSE - 3/8 X 75	2	$186.01
21	H06173-DD16	HYDRAULIC HOSE - 3/8 X 173	2	$362.45
22	PF-POHH06	PIPE FITTING - HOLLOW HEX PLUG 9/16	2	$17.52
23	PF-CLP06	HOSE CLIP FOR PLUG-N-PLAY HOSES	1	$10.07
24	LWM04	LOCK WASHER - 1/4	2	$0.37

Click a number on the diagram to find the part.

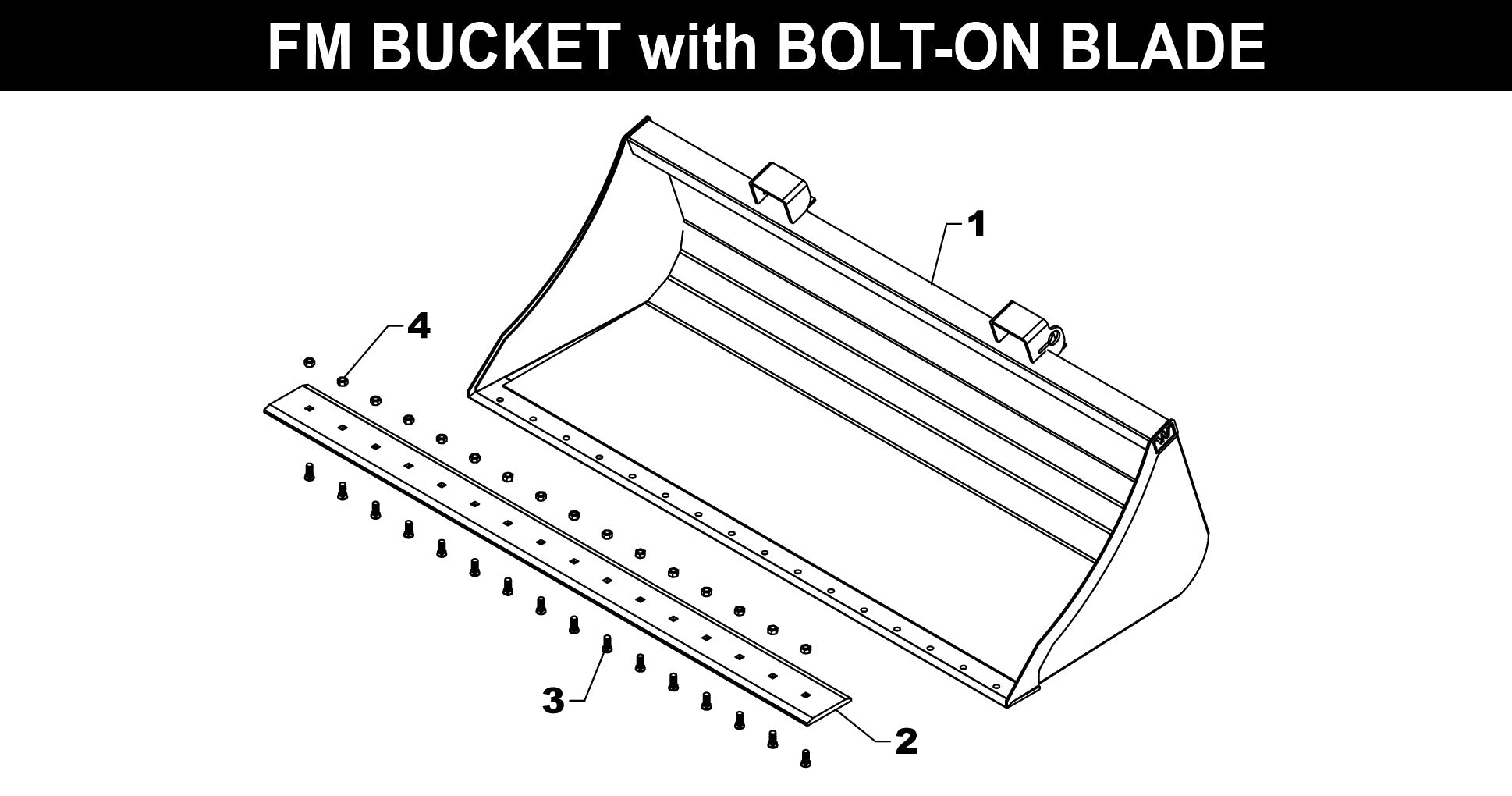

Ref	Part #	Description	Qty	Price
1	98Q429B	BUCKET-98 LARGE CAPACITY WITH SNAP-ATTACH AND BOLT ON BLADE	1	$4,296.42
1	98Q729B	BUCKET-98 LARGE CAPACITY WITH SNAP-ATTACH AND BOLT ON BLADE	1	$4,296.42
2	NB-124	BUCKET-CUTTING EDGE - BOLT ON - 96	1	$1,440.76
3	FPB1210032	PLOW BOLT - 3/4 - 10 X 2	16	$15.12
4	OLN1210	10 OVAL LOCK NUT - 3/4	16	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
0	EC-C131 KIT	WIRING HARNESS KIT MA-381-382	1	$216.58
1	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
2	EC-C27	SCOTCHLOCK	4	$4.22
3	EC-C31	SWITCH WIRING HARNESS	1	$30.11
4	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
5	EC-M11	MOUNTING BRACKET	1	$25.08
6	STW0814016	SELF TAPPING SCREW - #8 X 1	3	—	Call to order
7	BAND-6R	PLASTIC BAND - 6 RED	1	$1.14
8	DE-ACK	DECAL	1	—	Call to order
10	DE-HOWTO-1	HOW TO CARD - Remote Control Coupler	1	—	Call to order
11	DE-HOWTO-2	HOW TO CARD - Smart-Lock	1	—	Call to order
12	DE-HOWTO-3	HOW TO CARD - FM Auto-Lock	1	—	Call to order
13	DE-HOWTO-4	HOW TO CARD - Hydra-Snap	1	—	Call to order
14	DE-HOWTO-5	HOW TO CARD - J-Hook Dismount	1	—	Call to order

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-4001COM	COUPLER - REMOTE CONTROL COMPLETE - (1 PC)	1	$1,139.90
2	QC-4001AS	COUPLER - REMOTE CONTROL SHELL - (1 PC)	1	$1,075.38
3	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
4	M-19	REPLACEMENT CYLINDER KIT FOR C-40 COUPLER	1	$430.87
5	XAF-55AS	LINKAGE PIN	1	$67.91
6	LF-51	PIN - LINKAGE	1	$17.62
7	HHS0813032	BOLT - 1/2 X 2	1	$2.53
8	DRP0600028	DOUBLE ROLL PIN	1	$2.53
9	DRP0600032	DOUBLE ROLL PIN	1	$2.53
10	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
11	ZER1805	GREASE FITTING	1	$2.53
12	QC-4009AS	CYLINDER STOP	1	$54.81

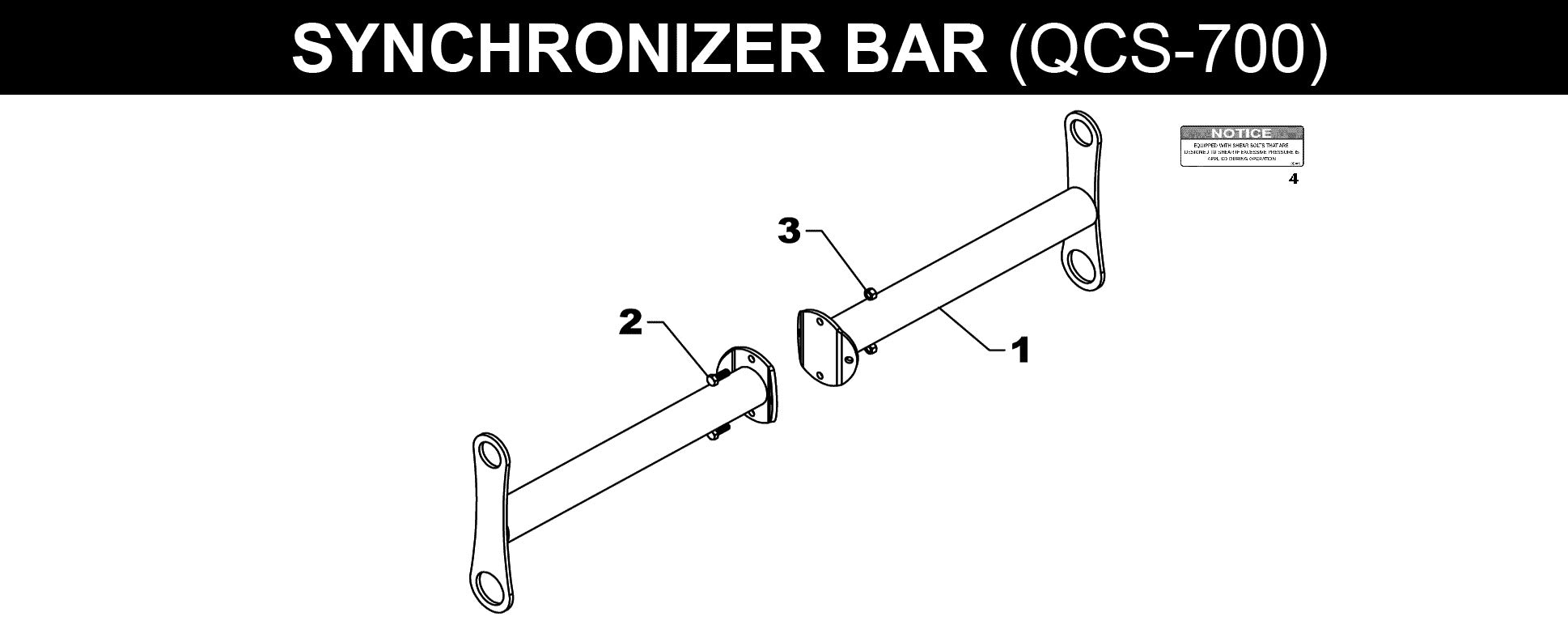

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	QC-4053AS	SYNCHRONIZER BAR (70 SERIES)	2	—	Call to order
2	HHS0616016	BOLT - 3/8 X 1	2	$2.53
3	HTN0616	LOCK NUT - 3/8	2	$2.53
4	DE-QCS	NOTICE - Synchronizer Bar	1	—	Call to order
