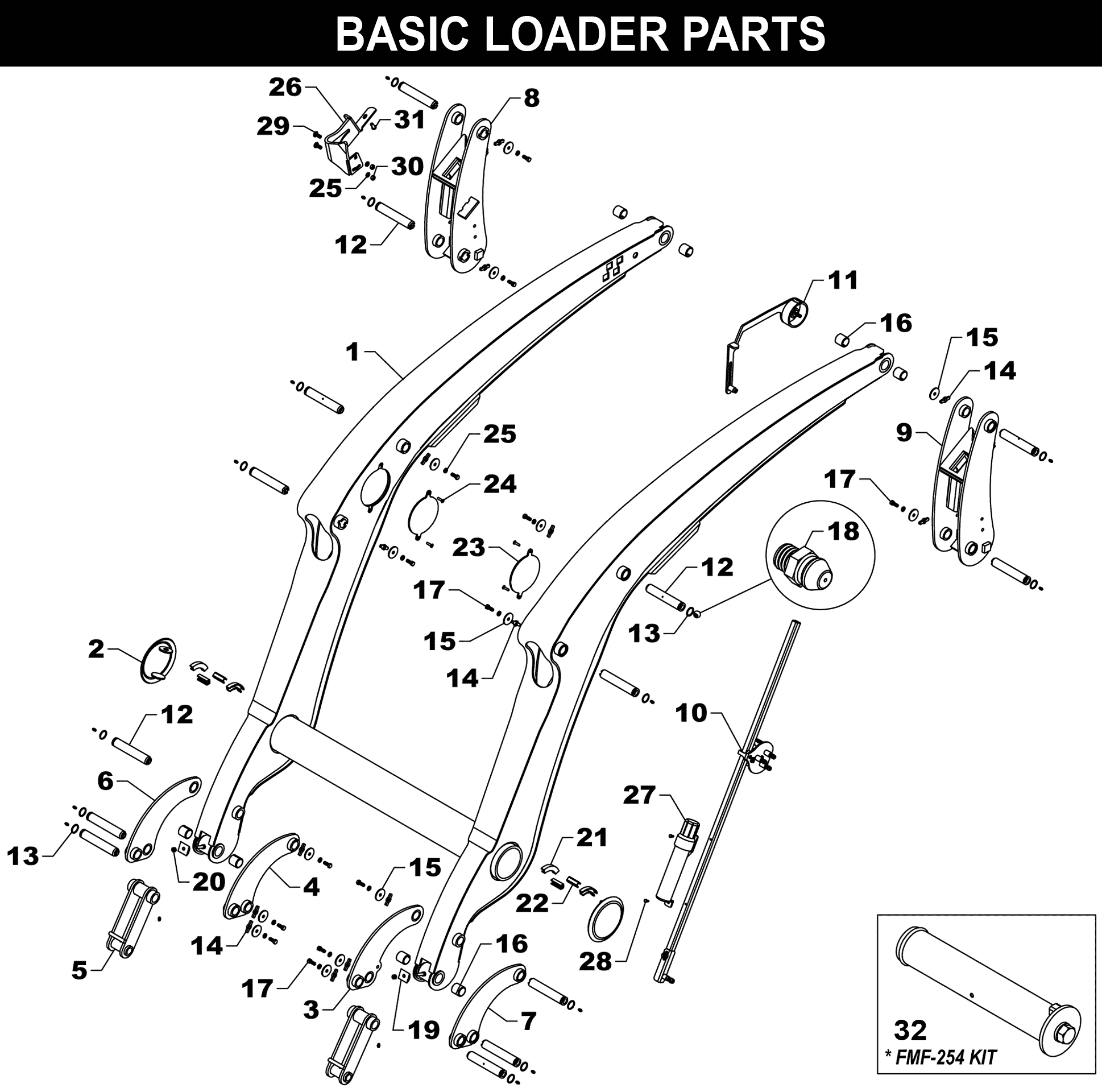

FM-550 LOADER PARTS

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	FMF-704AS	FRAME (FM-550)	1	$14,060.41
2	FMF-43AS	CAP	2	$57.84
3	FMF-710AS	BUCKET LINKAGE	1	$50.11
4	FMF-211AS	BUCKET LINKAGE	1	$147.81
5	FMF-215AS	LINKAGE STRAP	2	$77.95
6	FMF-212AS-R	BUCKET LINKAGE - RIGHT	1	$50.11
7	FMF-212AS-L	BUCKET LINKAGE - LEFT	1	$50.11
10	LAC-15-30	ROTATIONAL BUCKET INDICATOR	1	$172.06
11	LAC-25-13	ROTATIONAL HEIGHT INDICATOR	1	$98.54
12	FMF-254	LINKAGE PIN	14	$111.89
13	SR-B10	WIRE RING - 1-3/8	14	$3.13
14	FMF-227	PIN LOCK	14	$2.53
15	FMF-226	WASHER	14	$2.44
16	LW-32	INSERT BUSHING	8	$35.23
17	HHS0616016	BOLT - 3/8 X 1	13	$2.53
18	ZER1805	GREASE FITTING	16	$2.53
19	OH-32	OIL LINE HOLDER	2	$10.07
20	HTN0616	LOCK NUT - 3/8	2	$2.53
21	FMF-22	RUBBER EDGING	4	$35.23
22	FMF-23	RUBBER EDGING	4	$17.63
23	FMF-52	COVER PLATE	2	$17.70
24	FSS0420016	FLAT HEAD ALLEN SCREW - 1/4 X 1	4	$1.68
25	LWM06	LOCK WASHER - 3/8	15	$0.37
26	RZT-20AS	HYDRA-SNAP MOUNT	1	$177.48
27	GP-2	CANISTER TO STORE MANUAL	1	$44.94
28	EC-M03	SELF-TAPPING SCREW	2	$1.56
29	CBF0616016	CARRIAGE BOLT - 3/8 X 1	2	$7.03
30	HFN0616	HEX NUT - 3/8	2	$0.67
31	ABCS0616016	SCREW-BUTTON HEAD CAP - 3/8 X 1	1	$2.02
32	FMF-254 KIT-1	PIN KIT - (FM/MAX)	1	$114.67

Click a number on the diagram to find the part.

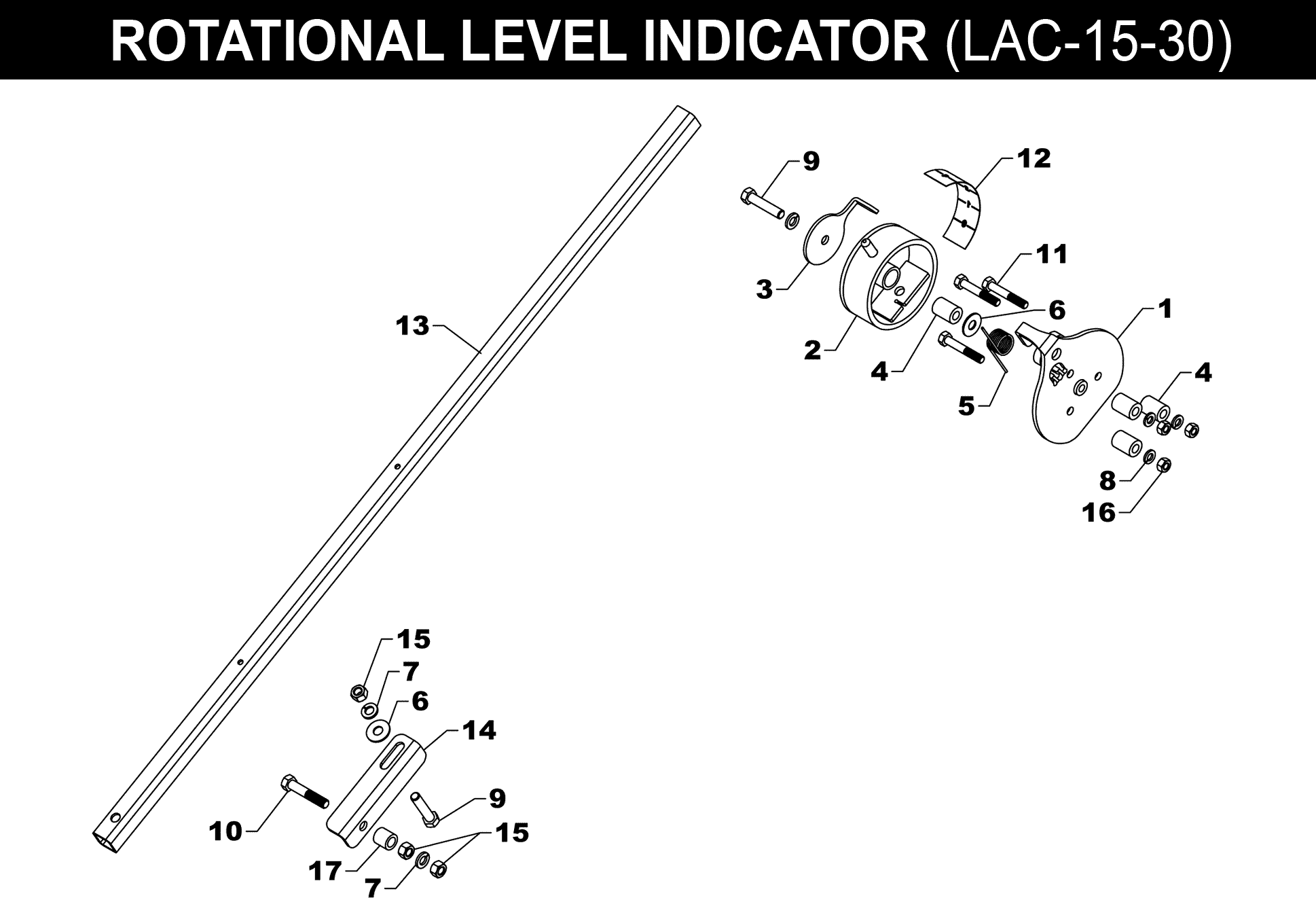

Ref	Part #	Description	Qty	Price
1	GRD-260AS	MOUNTING PLATE	1	$83.53
2	GRD-262AS	BUCKET INDICATOR	1	$83.53
3	GRD-175	POINTER	1	$13.10
4	LM-4	NYLON BUSHING	4	$2.53
5	GRD-272	TORSION SPRING	1	$5.39
6	FWW06	FLAT WASHER - 3/8	2	$0.95
7	LWM06	LOCK WASHER - 3/8	3	$0.37
8	LWM05	LOCK WASHER - 5/16	3	$0.91
9	HHS0616028	BOLT - 3/8 X 1-3/4	2	$0.71
10	HHS0616032	BOLT - 3/8 X 2	1	$2.53
11	HHS0518032	BOLT - 5/16 X 2	3	$2.53
12	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
13	GRD-270	GAUGE TUBE	1	$121.11
14	GRD-61	ADJUSTMENT PLATE	1	$15.67
15	HFN0616	HEX NUT - 3/8	3	$0.67
16	HFN0518	NUT - 5/16	3	$1.12
17	GRD-271	BUSHING	1	$4.16

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GRD-51AS	HEIGHT INDICATOR	1	$105.36
2	GRD-175	POINTER	1	$13.10
3	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
4	BUS-212	INSERT BUSHING	1	$9.11
5	LM-4	NYLON BUSHING	1	$2.53
6	HHS0616040	BOLT -3/8 X 2-1/2	1	$2.53
7	CBF0616024	CARRIAGE BOLT - 3/1 X 1-1/2	1	$7.54
8	HTN0616	LOCK NUT - 3/8	1	$2.53
9	LWM06	LOCK WASHER - 3/8	1	$0.37

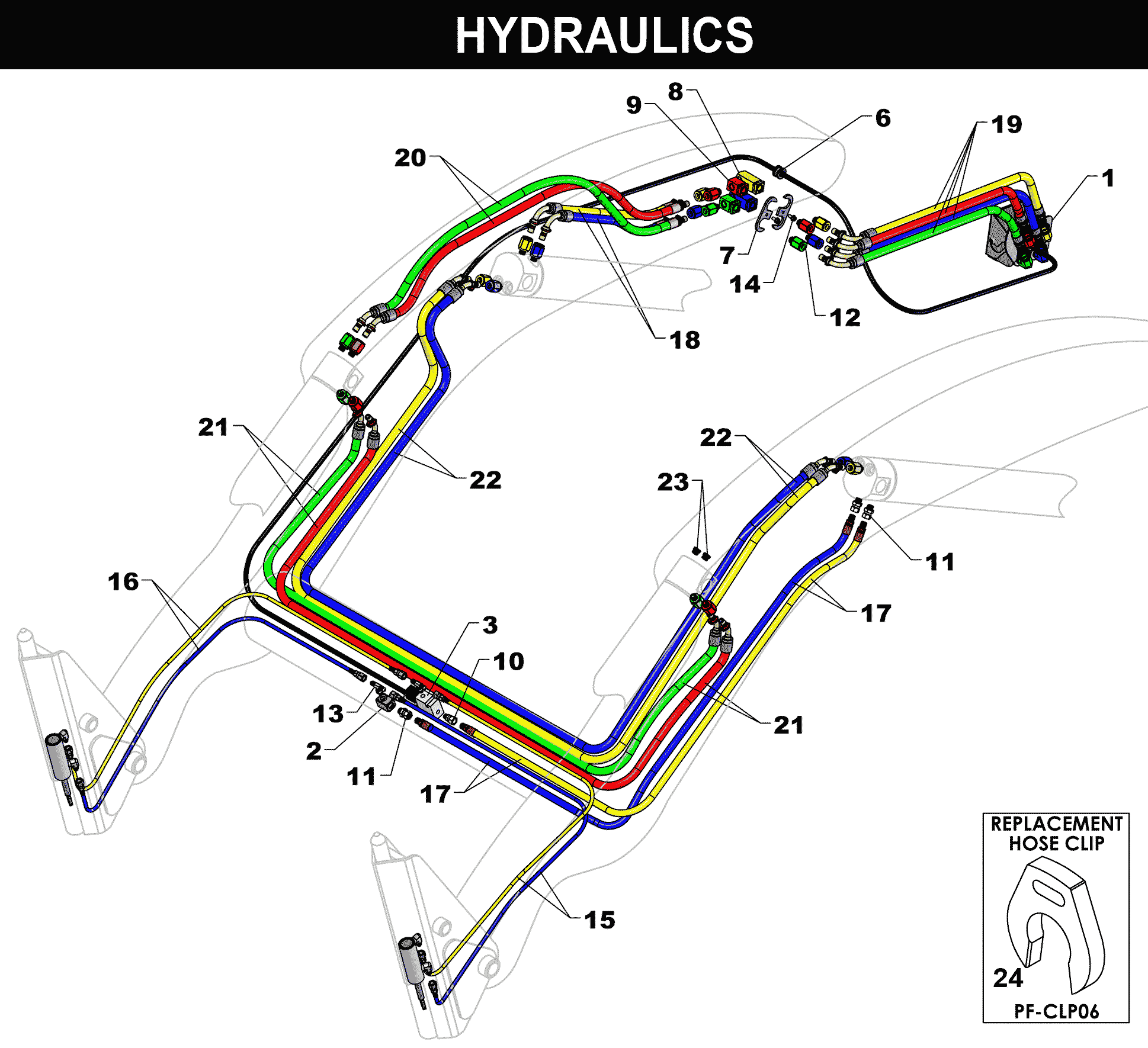

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	LM-322COM	FEMALE COUPLER	1	—	Call to order
2	VB-36	VALVE BLOCK	1	$19.19
3	VB-39	VALVE BLOCK	1	$407.17
4	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
5	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
6	EC-M10	GROMMET	1	$1.19
7	FMF-127	HOSE CLAMP	2	$20.35
8	PF-FMF271	PIPE FITTING - ELBOW	2	$45.60
9	PF-FMF274	PIPE FITTING - ELBOW	2	$41.79
10	PF-OS04	PIPE FITTING - 7/16 O-RING - 1/4 FNPT SWIVEL	1	$12.58
11	PF-OS0604	PIPE FITTING - 9/16 O-RING - 1/4 FNPT SWIVEL	3	$25.06
12	PF-PS0600	PIPE FITTING - MALE STRAIGHT PLUG SOCKET	20	—	Call to order
13	PF-STBT04	PIPE FITTING - 7/16 JIC - O-RING BRANCH TEE	2	$24.09
15	H02054-RRDYNA	MICRO HOSE	2	$74.43
16	H02080-RRDYNA	MICRO HOSE	2	$97.16
17	H04056-44	HYDRAULIC HOSE - 1/4 X 56	2	$62.68
18	H06046-ES16	HYDRAULIC HOSE - 3/8 X 46	2	—	Call to order
19	H06048-E816	HYDRAULIC HOSE - 3/8 X 48	4	—	Call to order
20	H06063-DS16	HYDRAULIC HOSE - 3/8 X 63	2	—	Call to order
21	H06116-DD16	HYDRAULIC HOSE - 3/8 X 116	2	—	Call to order
22	H06138-DD16	HYDRAULIC HOSE - 3/8 X 138	2	—	Call to order
23	PF-POHH06	PIPE FITTING - HOLLOW HEX PLUG 9/16	2	$17.52
24	PF-CLP06	HOSE CLIP FOR PLUG-N-PLAY HOSES	1	$10.07
25	LWM04	LOCK WASHER - 1/4	2	$0.37

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	98Q429B	BUCKET-98 LARGE CAPACITY WITH SNAP-ATTACH AND BOLT ON BLADE	1	$4,296.42
1	98Q729B	BUCKET-98 LARGE CAPACITY WITH SNAP-ATTACH AND BOLT ON BLADE	1	$4,296.42
2	NB-124	BUCKET-CUTTING EDGE - BOLT ON - 96	1	$1,440.76
3	FPB1210032	PLOW BOLT - 3/4 - 10 X 2	16	$15.12
4	OLN1210	10 OVAL LOCK NUT - 3/4	16	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
0	EC-C131 KIT	WIRING HARNESS KIT MA-381-382	1	$216.58
1	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
2	EC-C27	SCOTCHLOCK	4	$4.22
3	EC-C31	SWITCH WIRING HARNESS	1	$30.11
4	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
5	EC-M11	MOUNTING BRACKET	1	$25.08
6	STW0814016	SELF TAPPING SCREW - #8 X 1	3	—	Call to order
7	BAND-6R	PLASTIC BAND - 6 RED	1	$1.14
8	DE-ACK	DECAL	1	—	Call to order
10	DE-HOWTO-1	HOW TO CARD - Remote Control Coupler	1	—	Call to order
11	DE-HOWTO-2	HOW TO CARD - Smart-Lock	1	—	Call to order
12	DE-HOWTO-3	HOW TO CARD - FM Auto-Lock	1	—	Call to order
13	DE-HOWTO-4	HOW TO CARD - Hydra-Snap	1	—	Call to order
14	DE-HOWTO-5	HOW TO CARD - J-Hook Dismount	1	—	Call to order

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-4001COM	COUPLER - REMOTE CONTROL COMPLETE - (1 PC)	1	$1,139.90
2	QC-4001AS	COUPLER - REMOTE CONTROL SHELL - (1 PC)	1	$1,075.38
3	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
4	M-19	REPLACEMENT CYLINDER KIT FOR C-40 COUPLER	1	$430.87
5	XAF-55AS	LINKAGE PIN	1	$67.91
6	LF-51	PIN - LINKAGE	1	$17.62
7	HHS0813032	BOLT - 1/2 X 2	1	$2.53
8	DRP0600028	DOUBLE ROLL PIN	1	$2.53
9	DRP0600032	DOUBLE ROLL PIN	1	$2.53
10	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
11	ZER1805	GREASE FITTING	1	$2.53
12	QC-4009AS	CYLINDER STOP	1	$54.81

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	QC-4052AS	SYNCHRONIZER BAR (ONE SIDE FOR 40 SERIES)	2	$97.93
2	HHS0616016	BOLT - 3/8 X 1	2	$2.53
3	HTN0616	LOCK NUT - 3/8	2	$2.53
4	DE-QCS	NOTICE - Synchronizer Bar	1	—	Call to order
