FM-540 LOADER FRAME

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	FAF-4AS	FRAME	1	—	Call to order
2	FMF-22	RUBBER EDGING	4	$35.23
3	FMF-23	RUBBER EDGING	4	$17.63
4	FMF-52	COVER PLATE	2	$17.70
5	FAF-12AS-R	BUCKET LINKAGE (RIGHT)	1	$78.34
6	FAF-12AS-L	BUCKET LINKAGE (LEFT)	1	$78.34
7	FAF-11AS	BUCKET LINKAGE	1	—	Call to order
8	FMF-215AS	LINKAGE STRAP	2	$77.95
9	FAF-10AS	BUCKET LINKAGE	1	—	Call to order
10	FMF-226	WASHER	10	$2.44
11	FMF-227	PIN LOCK	10	$2.53
12	FMF-254	LINKAGE PIN	10	$111.89
13	XCF-47AS	CROSS PIPE CAP	2	$57.84
14	LAC-15-30	ROTATIONAL BUCKET INDICATOR	1	$172.06
15	GP-2	CANISTER TO STORE MANUAL	1	$44.94
16	EC-M03	SELF-TAPPING SCREW	2	$1.56
17	OH-32	OIL LINE HOLDER	2	$10.07
18	SR-B10	WIRE RING - 1-3/8	10	$3.13
19	FSS0420016	FLAT HEAD ALLEN SCREW - 1/4 X 1	4	$1.68
20	HHS0616016	BOLT - 3/8 X 1	10	$2.53
21	LWM06	LOCK WASHER - 3/8	10	$0.37
22	HTN0616	LOCK NUT - 3/8	2	$2.53
23	ZER1805	GREASE FITTING	12	$2.53
24	FMF-254 KIT-1	PIN KIT - (FM/MAX)	10	$114.67

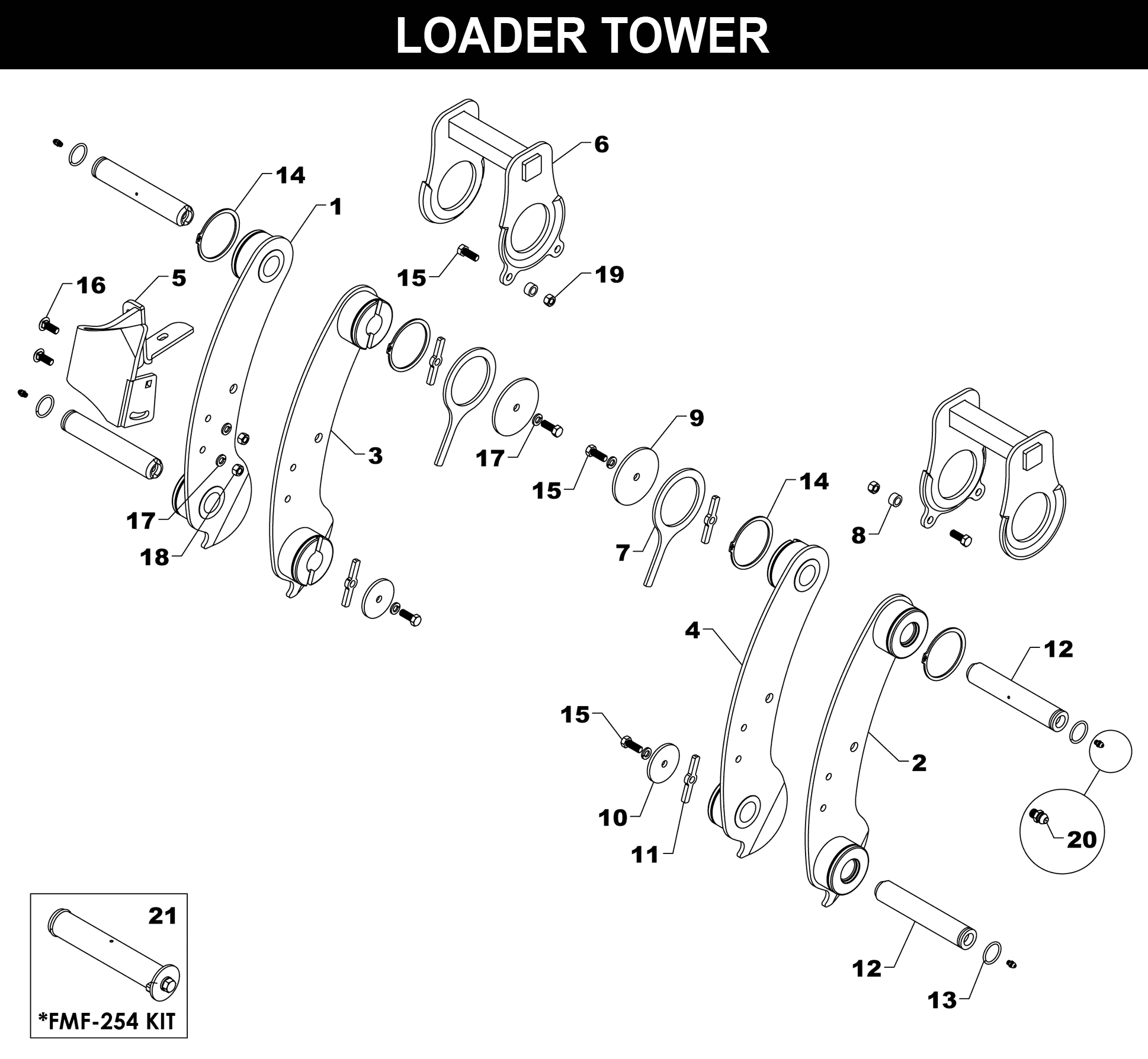

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	RZT-11AS-R	OUTSIDE TOWER UPRIGHT (MAX) - RIGHT	1	$296.49
2	RZT-11AS-L	OUTSIDE TOWER UPRIGHT (MAX) - LEFT	1	$296.49
3	RZT-12AS-R	INSIDE TOWER UPRIGHT (MAX) - RIGHT	1	$296.49
4	RZT-12AS-L	INSIDE TOWER UPRIGHT (MAX) - LEFT	1	$296.49
5	RZT-20AS	HYDRA-SNAP MOUNT	1	$177.48
6	RZT-25AS	SMART-LOCK	2	$135.73
7	RZT-27	FLIPPER	2	$5.23
8	RZT-29	BUSHING	2	$1.05
9	RZT-30	WASHER	2	$4.16
10	RZF-226	WASHER	2	$2.44
11	RZF-227	PIN LOCK	4	$2.53
12	FMF-254	LINKAGE PIN	4	$111.89
13	SR-B10	WIRE RING - 1-3/8	4	$3.13
14	SR-C48	SNAP RING - 3 DIA.	4	$15.67
15	HHS0616016	BOLT - 3/8 X 1	6	$2.53
16	CBF0616016	CARRIAGE BOLT - 3/8 X 1	2	$7.03
17	LWM06	LOCK WASHER - 3/8	6	$0.37
18	HFN0616	HEX NUT - 3/8	2	$0.67
19	HTN0616	LOCK NUT - 3/8	2	$2.53
20	ZER1805	GREASE FITTING	4	$2.53
21	FMF-254 KIT-1	PIN KIT - (FM/MAX)	4	$114.67

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	GRD-260AS	MOUNTING PLATE	1	$83.53
2	GRD-262AS	BUCKET INDICATOR	1	$83.53
3	GRD-175	POINTER	1	$13.10
4	LM-4	NYLON BUSHING	4	$2.53
5	GRD-272	TORSION SPRING	1	$5.39
6	FWW06	FLAT WASHER - 3/8	2	$0.95
7	LWM06	LOCK WASHER - 3/8	3	$0.37
8	LWM05	LOCK WASHER - 5/16	3	$0.91
9	HHS0616028	BOLT - 3/8 X 1-3/4	2	$0.71
10	HHS0616032	BOLT - 3/8 X 2	1	$2.53
11	HHS0518032	BOLT - 5/16 X 2	3	$2.53
12	DE-GRD	DECAL FOR ROTATIONAL INDICATORS	1	$20.13
13	GRD-270	GAUGE TUBE	1	$121.11
14	GRD-61	ADJUSTMENT PLATE	1	$15.67
15	HFN0616	HEX NUT - 3/8	3	$0.67
16	HFN0518	NUT - 5/16	3	$1.12
17	GRD-271	BUSHING	1	$4.16

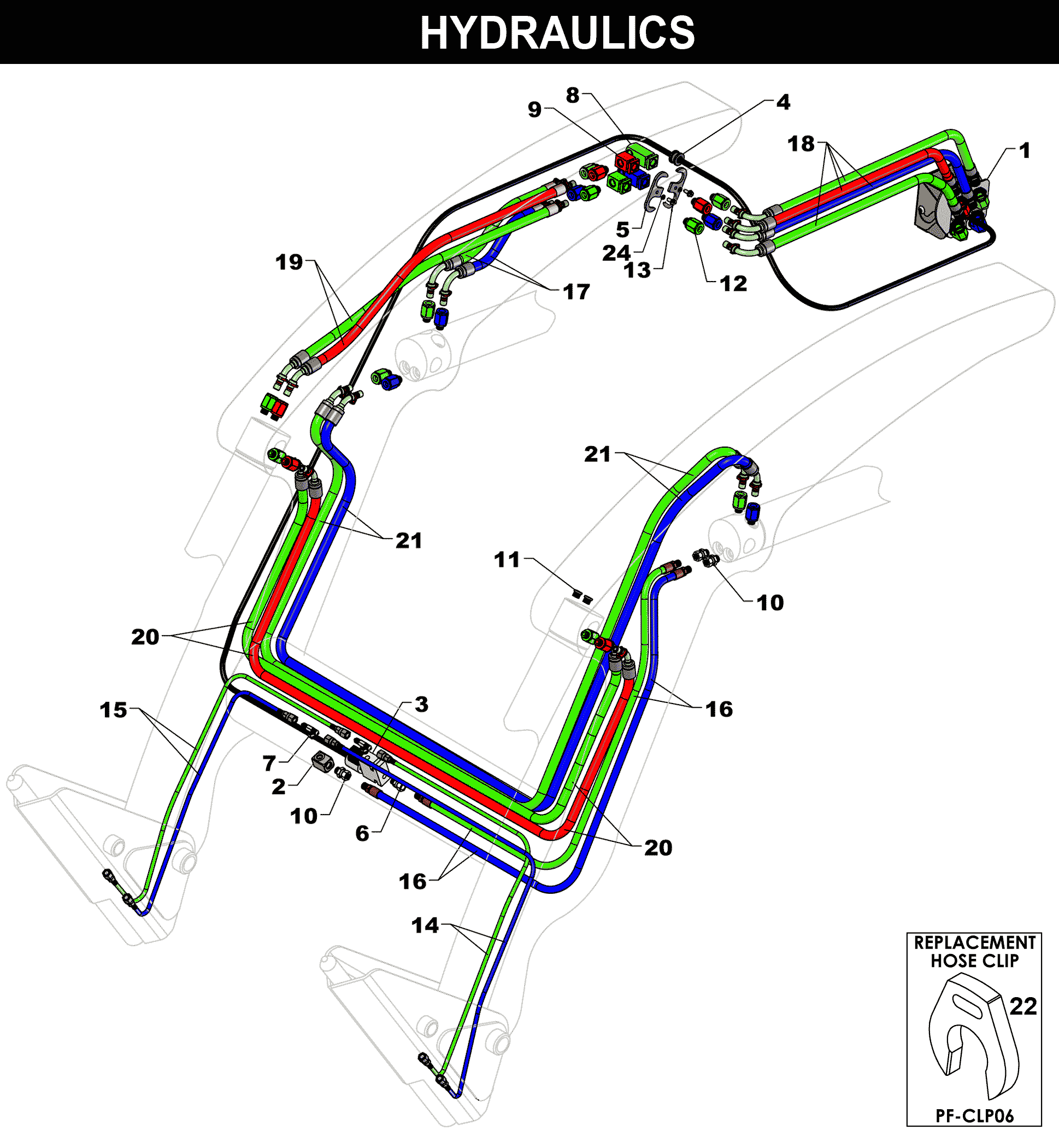

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	LM-322COM	FEMALE COUPLER	1	—	Call to order
2	VB-36	VALVE BLOCK	1	$19.19
3	VB-39	VALVE BLOCK	1	$407.17
4	EC-M10	GROMMET	1	$1.19
5	FMF-127	HOSE CLAMP	2	$20.35
6	PF-OS04	PIPE FITTING - 7/16 O-RING - 1/4 FNPT SWIVEL	1	$12.58
7	PF-STBT04	PIPE FITTING - 7/16 JIC - O-RING BRANCH TEE	2	$24.09
8	PF-FMF271	PIPE FITTING - ELBOW	2	$45.60
9	PF-FMF274	PIPE FITTING - ELBOW	2	$41.79
10	PF-OS0604	PIPE FITTING - 9/16 O-RING - 1/4 FNPT SWIVEL	3	$25.06
11	PF-POHH06	PIPE FITTING - HOLLOW HEX PLUG 9/16	2	$17.52
12	PF-PS0600	PIPE FITTING - MALE STRAIGHT PLUG SOCKET	20	—	Call to order
13	SHW1214008	HEX HEAD SCREW - 7/32 X 1/2	2	—	Call to order
14	H02054-RRDYNA	MICRO HOSE	2	$74.43
15	H02080-RRDYNA	MICRO HOSE	2	$97.16
16	H04078-44	HYDRAULIC HOSE - 1/4 X 78	2	$86.39
17	H06036-ES16	HYDRAULIC HOSE - 3/8' X 36	2	$170.42
18	H06048-E816	HYDRAULIC HOSE - 3/8 X 48	4	—	Call to order
19	H06053-DS16	HYDRAULIC HOSE - 3/8 X 53	2	$152.14
20	H06128-DD16	HYDRAULIC HOSE - 3/8 X 128	2	$281.30
21	H06140-DD16	HYDRAULIC HOSE - 3/8 X 140	2	$302.92
22	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
23	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
24	PF-CLP06	HOSE CLIP FOR PLUG-N-PLAY HOSES	20	$10.07

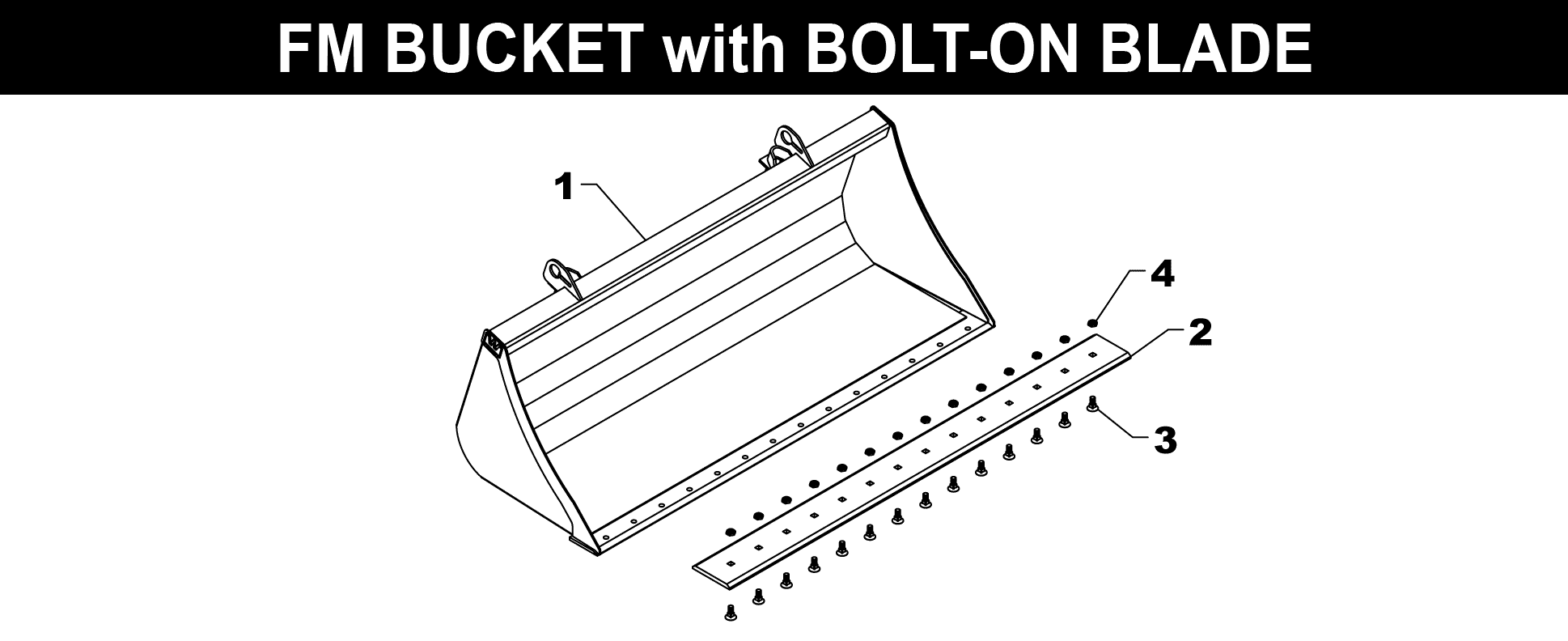

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	86Q421B	BUCKET-86 LARGE CAPACITY WITH SNAP-ATTACH ADAPTERS AND BOLT ON BLADE	1	$3,734.92
2	OB-24	BUCKET-CUTTING EDGE - BOLT ON - 84	1	$1,133.75
3	FPB1210032	PLOW BOLT - 3/4 - 10 X 2	14	$15.12
4	OLN1210	10 OVAL LOCK NUT - 3/4	14	$5.03

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
0	EC-C131 KIT	WIRING HARNESS KIT MA-381-382	1	$216.58
1	EC-C22	BLUE BUTT CONNECTOR	2	—	Call to order
2	EC-C27	SCOTCHLOCK	4	$4.22
3	EC-C31	SWITCH WIRING HARNESS	1	$30.11
4	EC-C33	HEAT SHRINK TUBING	1	—	Call to order
5	EC-M11	MOUNTING BRACKET	1	$25.08
6	STW0814016	SELF TAPPING SCREW - #8 X 1	3	—	Call to order
7	BAND-6R	PLASTIC BAND - 6 RED	1	$1.14
8	DE-ACK	DECAL	1	—	Call to order
10	DE-HOWTO-1	HOW TO CARD - Remote Control Coupler	1	—	Call to order
11	DE-HOWTO-2	HOW TO CARD - Smart-Lock	1	—	Call to order
12	DE-HOWTO-3	HOW TO CARD - FM Auto-Lock	1	—	Call to order
13	DE-HOWTO-4	HOW TO CARD - Hydra-Snap	1	—	Call to order
14	DE-HOWTO-5	HOW TO CARD - J-Hook Dismount	1	—	Call to order

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price
1	QC-4001COM	COUPLER - REMOTE CONTROL COMPLETE - (1 PC)	1	$1,139.90
2	QC-4001AS	COUPLER - REMOTE CONTROL SHELL - (1 PC)	1	$1,075.38
3	QC-3	SNAP-ATTACH BOTTOM LATCH PIN	1	$52.80
4	M-19	REPLACEMENT CYLINDER KIT FOR C-40 COUPLER	1	$430.87
5	XAF-55AS	LINKAGE PIN	1	$67.91
6	LF-51	PIN - LINKAGE	1	$17.62
7	HHS0813032	BOLT - 1/2 X 2	1	$2.53
8	DRP0600028	DOUBLE ROLL PIN	1	$2.53
9	DRP0600032	DOUBLE ROLL PIN	1	$2.53
10	RLP0500020	ROLL PIN - 5/16 X 1-1/4	1	$0.89
11	ZER1805	GREASE FITTING	1	$2.53
12	QC-4009AS	CYLINDER STOP	1	$54.81

Click a number on the diagram to find the part.

Ref	Part #	Description	Qty	Price	Buy
1	QC-4052AS	SYNCHRONIZER BAR (ONE SIDE FOR 40 SERIES)	2	$97.93
2	HHS0616016	BOLT - 3/8 X 1	2	$2.53
3	HTN0616	LOCK NUT - 3/8	2	$2.53
4	DE-QCS	NOTICE - Synchronizer Bar	1	—	Call to order
