Parts Lookup › Attachment Parts › Plows & Blades
Dozer Blade DB-84 Parts
2 assemblies · choose one below

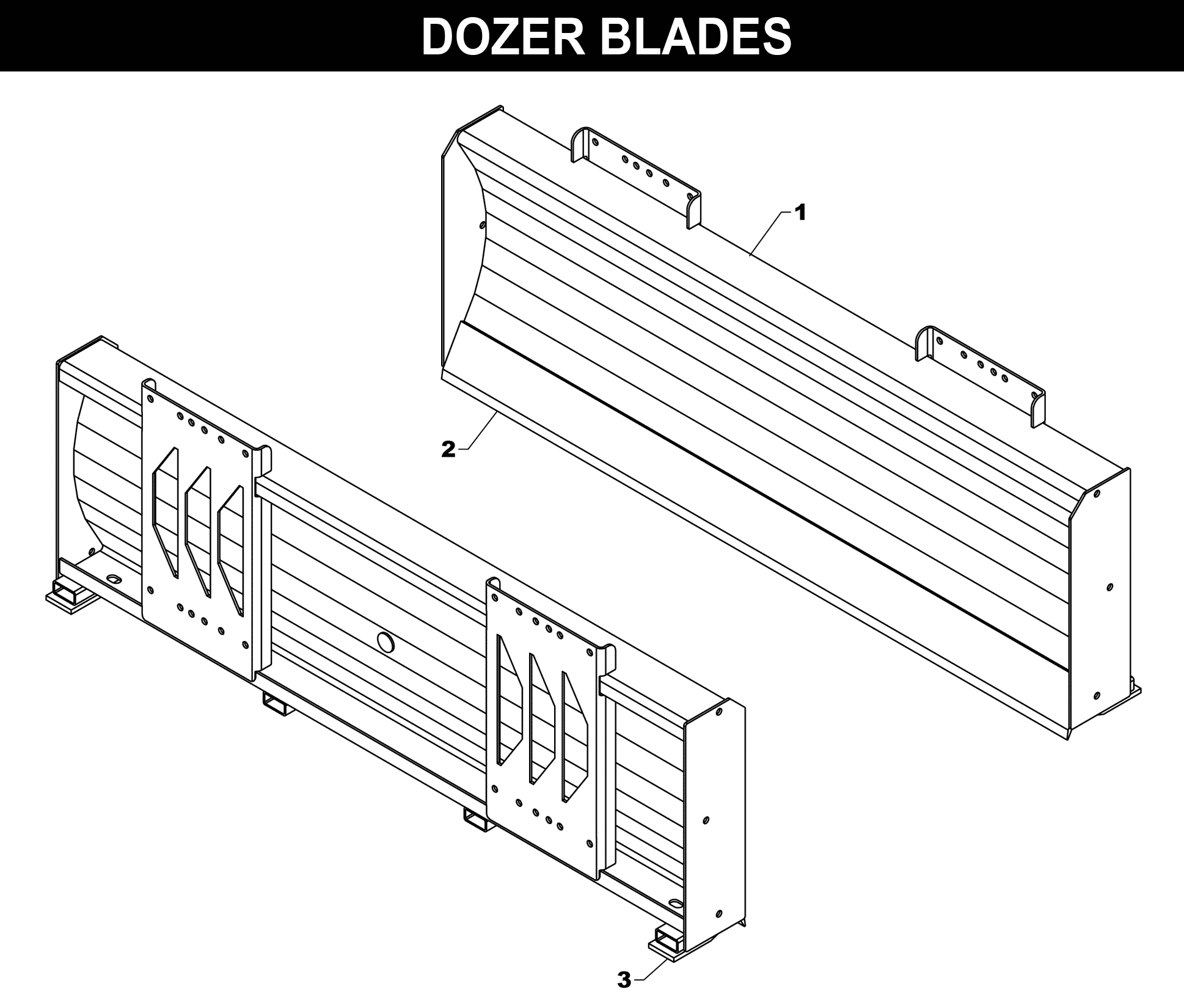

Dozer Blade
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 |  | DB-50AS | DOZER BLADE SHELL- 84 | 1 | $2,461.68 | |
| 1 |  | DB-60AS | DOZER BLADE SHELL - 96 | 1 | $2,052.74 | |
| 1 | DB-70AS | DOZER BLADE SHELL - 120 | 1 | — | Call to order | |
| 2 | DB-51 | CUTTING EDGE - 84 | 1 | — | Call to order | |
| 2 |  | DB-61 | CUTTING EDGE - 96 | 1 | $862.27 | |
| 2 |  | DB-71 | CUTTING EDGE - 120 | 1 | $1,077.85 | |
| 3 | DB-55 | SKID BLADE | 1 | — | Call to order | |
| 4 |  | C-3KIT-1 | FEMALE ADAPTER KIT WITH BOLTS - 5/8 X 1-1/2 | 1 | $233.54 |
Top Cage
Open on its own page
| Ref | Photo | Part # | Description | Qty | Price | Buy |
|---|---|---|---|---|---|---|
| 1 | DB-360AS | TOP CAGE-96 | 1 | — | Call to order | |
| 1 |  | DB-460AS | TOP CAGE-120 | 1 | $759.12 | |
| 1 |  | DB-560AS | TOP CAGE-144 | 1 | $1,230.89 | |
| 2 | DB-363AS-R | CLAMP (RIGHT) | 1 | — | Call to order | |
| 3 | DB-363AS-L | CLAMP (LEFT) | 1 | — | Call to order | |
| 4 |  | HHS0813024 | BOLT - 1/2 X 1-1/2 | 12 | $2.53 | |
| 5 |  | HHS1011040 | BOLT - 5/8 X 2-1/2 | 4 | $5.06 | |
| 6 |  | FWW08 | FLAT WASHER - 1/2 | 4 | $2.53 | |
| 7 |  | LWM08 | LOCK WASHER - 1/2 | 12 | $0.37 | |
| 8 |  | HFN0813 | NUT - 1/2 | 12 | $0.95 | |
| 9 |  | LWM10 | LOCK WASHER -5/8 | 4 | $0.77 | |
| 10 |  | HFN1011 | NUT - 5/8 | 4 | $1.26 |
