Cat Claw GF-84-3D Parts

3 assemblies · choose one below

Bucket Braces & Hyraulics - GF-84-3D/GF-96-3D

Open on its own page

Click a number on the diagram to find the part.

Bucket Braces & Hyraulics - GF-84-3D/GF-96-3D exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		GF-419AS-R	BUCKET BRACE - RIGHT	1	$241.35
2		GF-419AS-L	BUCKET BRACE - LEFT	1	$241.35
3		GF-425	PULL PIN - 3/8	2	$10.07
4		HAR-05	HAIR PIN	2	$0.89
5		HK-21	HOSE KIT	1	$422.34
6		HK-27	HOSE KIT	1	$261.46
7		LM-10	MALE COUPLER	1	$62.70
8		LM-11	FEMALE COUPLER	1	$55.35

Triple Action Cat Claw GF-84-3D

Open on its own page

Click a number on the diagram to find the part.

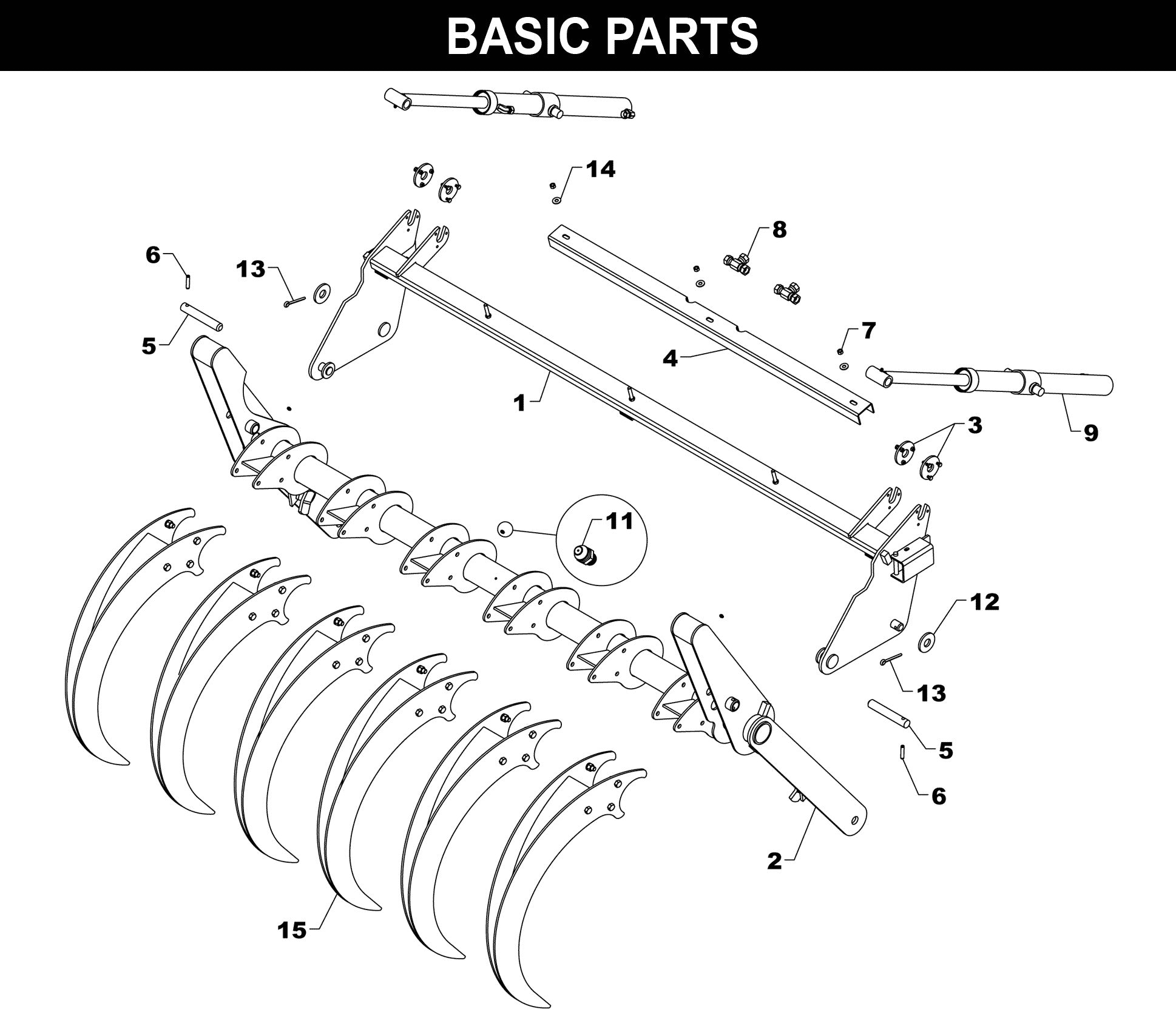

Triple Action Cat Claw GF-84-3D exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		GF-401AS	GRAB FORK BASE	1	$603.23
2		GF-487AS	TOOTH FRAME	1	—	Call to order
3		GF-414KIT	CYLINDER ATTACH KIT	2	$68.22
4		OH-24	OIL LINE COVER	1	—	Call to order
5		JT-20	PIN - 6-1/2 x 1' WITH 1 HOLE	2	$18.57
6		DRP0600028	DOUBLE ROLL PIN	2	$2.53
7		HTN0616	LOCK NUT - 3/8	3	$2.53
8		PF-HPFT06	PIPE FITTING - SWIVEL NUT TEE 3/8	2	$42.18
9		M-10	CYLINDER FOR CAT CLAW	2	$759.17
10		HK-44	HOSE KIT	4	$275.03
11		ZER1805	GREASE FITTING	3	$2.53
12		GF-411	WASHER	2	$2.70
13		CTK0400032	COTTER KEY - 1/4 X 2	2	$0.87
14		FWW06	FLAT WASHER - 3/8	3	$0.95
15		GF-637KIT	REPLACEMENT TOOK KIT FOR GF-184/196	6	$341.96

Cylinder - M-10

Open on its own page

Click a number on the diagram to find the part.

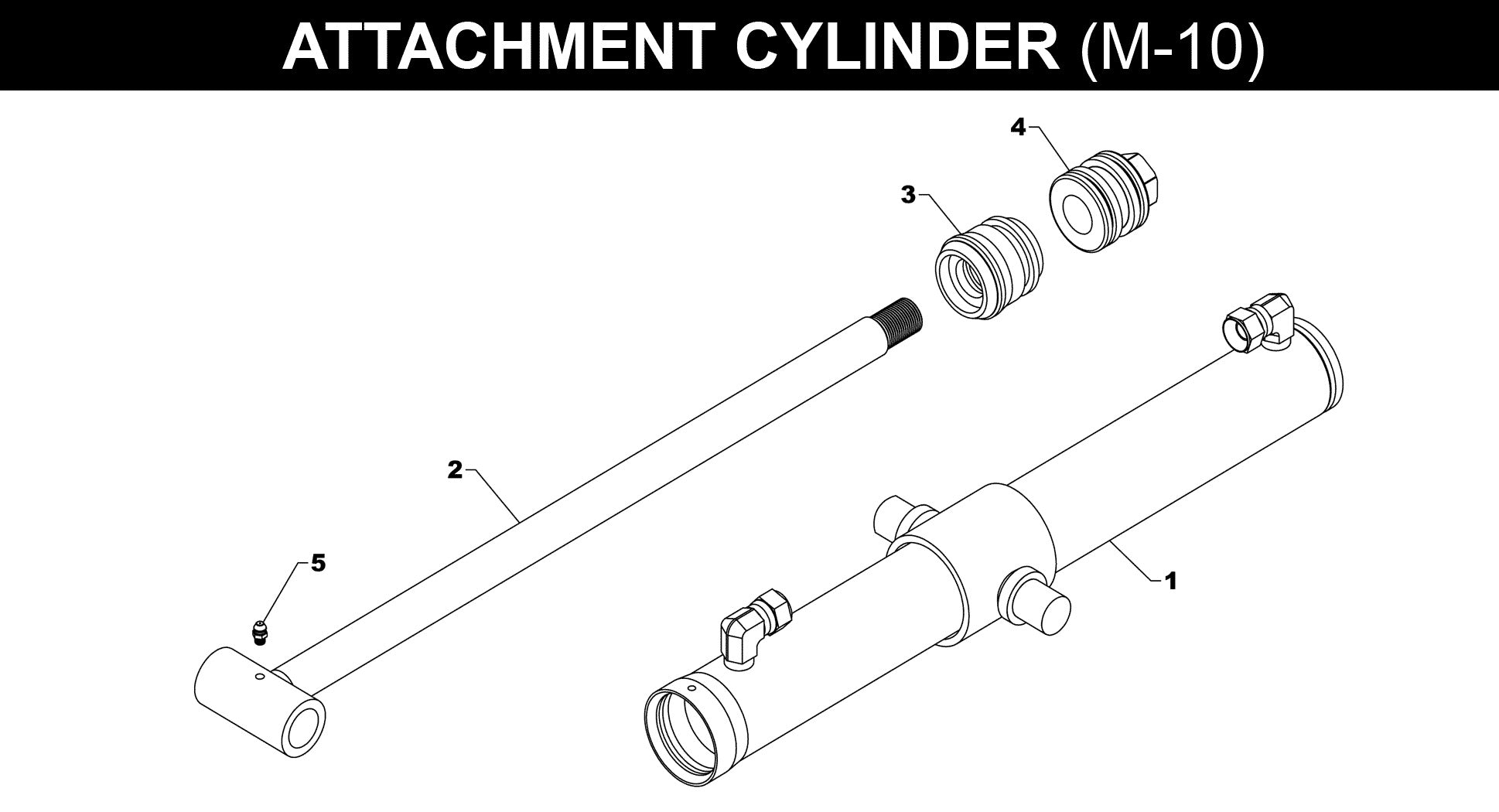

Cylinder - M-10 exploded diagram

Ref	Photo	Part #	Description	Qty	Price	Buy
1		M-10	CYLINDER FOR CAT CLAW	1	$759.17
2		M-1001	CYLINDER-BARREL (M-10)	1	$337.62
3		M-1010	CYLINDER-RAM (M-10)	1	$234.77
4		G-H	GLAND	1	$193.58
5		P-C	PISTON - 2 DIA.	1	$118.14
6		HFN1614	NUT - 1	1	$5.07
7		ZER1805	GREASE FITTING	1	$2.53
8		#7CK	CYLINDER REPAIR SEAL KIT	1	$88.02
